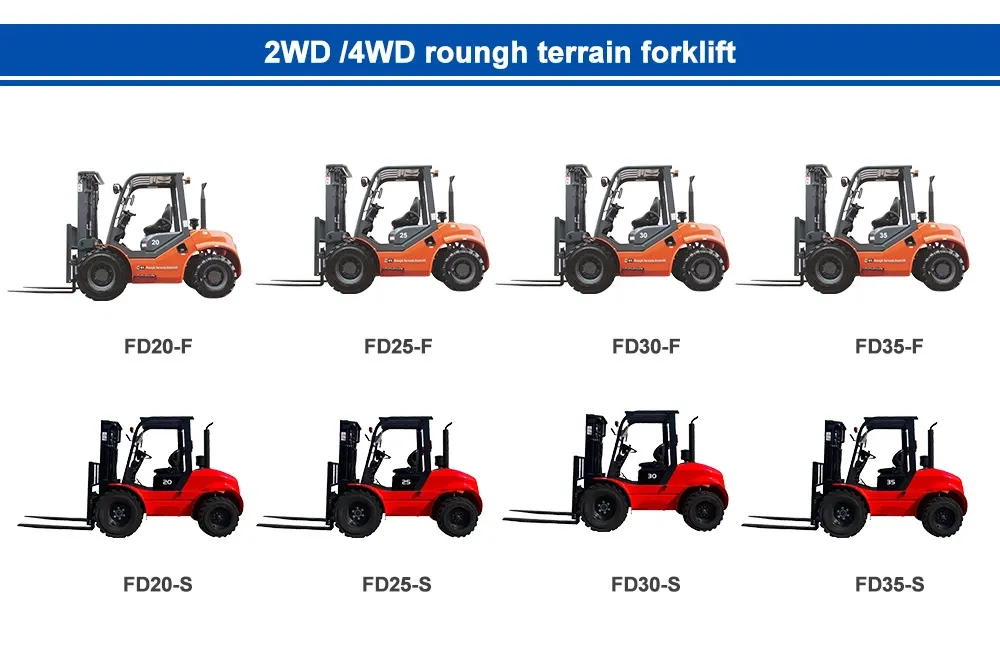

| Model NO. | FD30-S / FD20S |
| Type | Diesel Forklift |

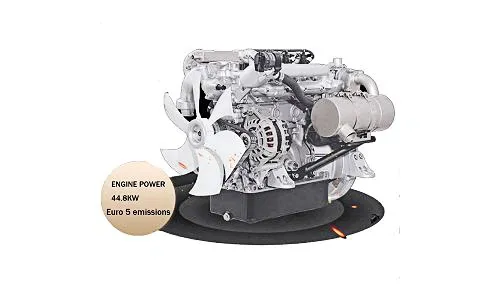

| Power | Diesel Engine (XINCHAI/ISUZU/MITSUBISHI) |
| Load Capacity | 1T - 5T (Rated 2000KG - 3000KG) |
| Lift Height | 3000mm ~ 5000mm |
| Load Center | 500mm |
| Driving Mode | Seat Driving |
| Certification | CE, ISO9001 |
| Brake System | Hydraulic Service / Mechanical Parking |
| Overall Width | 1210mm | Wheelbase | 1750mm |
| Mast Tilt (F/R) | 6°/12° | Min. Turning Radius | 2240mm |
| Max Lifting Speed | 505 mm/s (No-load) | Max Gradeability | 15-20% |
| Overhead Guard Height | 2100mm | Ground Clearance | 110mm |
Improved Visibility: Forward visibility enhanced by 10% through a wide mast and optimized chain spacing. High-mount stop lamps provide clear visibility for workers behind the truck.

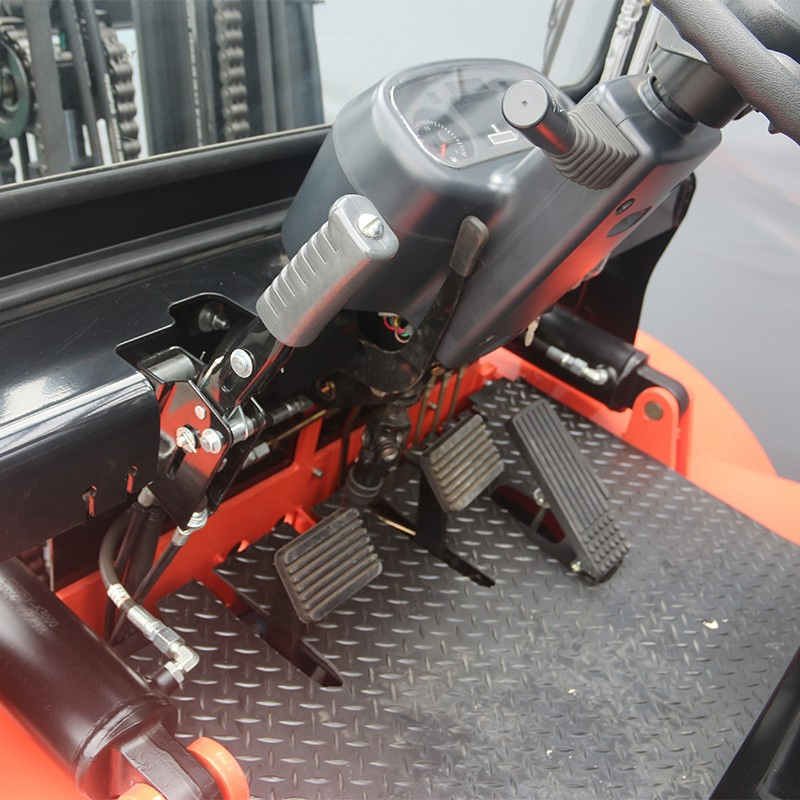

Advanced Safety: Includes a neutral safety mechanism to prevent engine starting unless the directional lever is in neutral. The engine hood features an automatic fail-safe locking stopper.
Operator Comfort: Electro-hydraulic transmission reduces noise by 3~5dB. New suspension systems and adjustable seats significantly reduce driver fatigue during long shifts.
| Package Size | 320.00cm * 115.00cm * 2250.00cm |
| Gross Weight | 4500.000kg |
| Transport Package | Naked |
