High Performance Solution for Narrow Space Operations

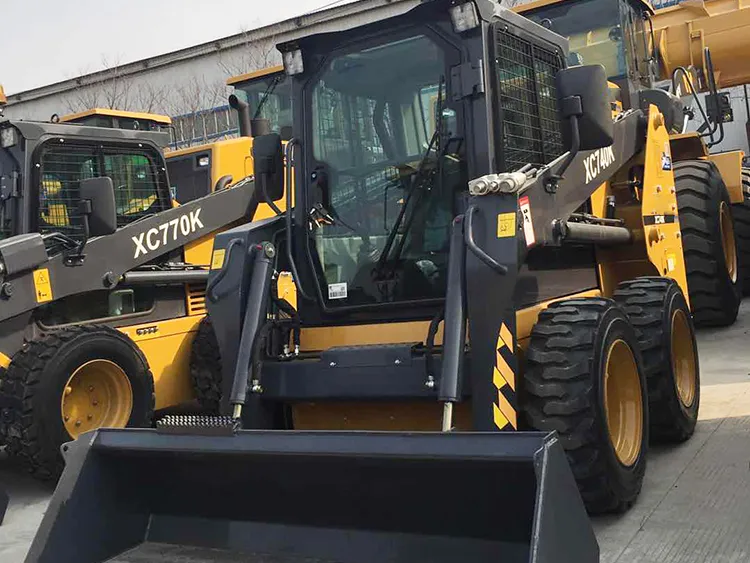

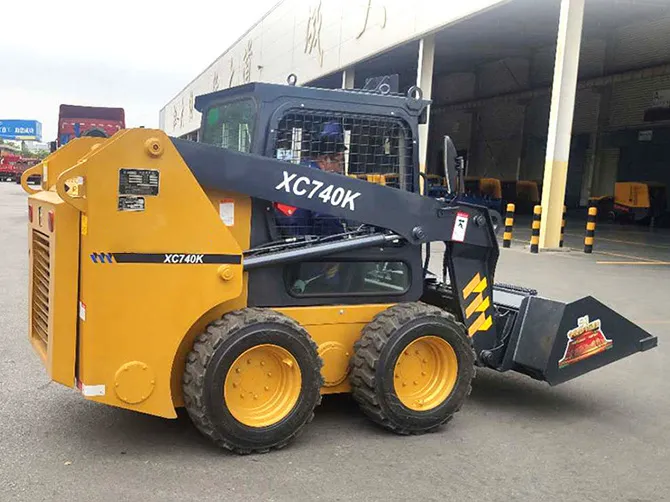

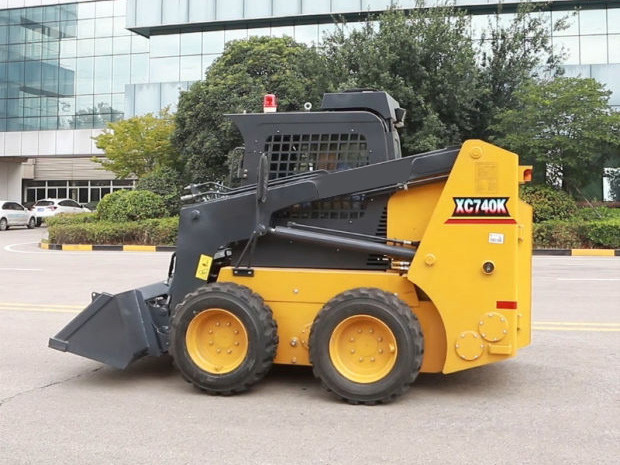

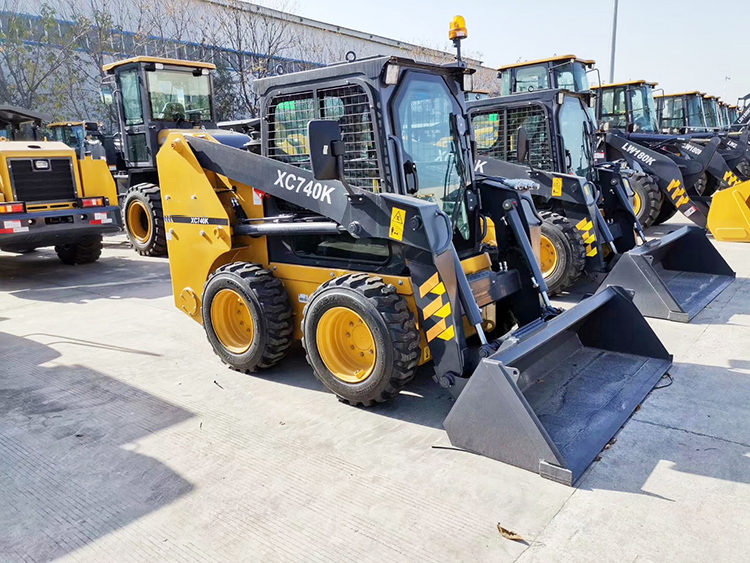

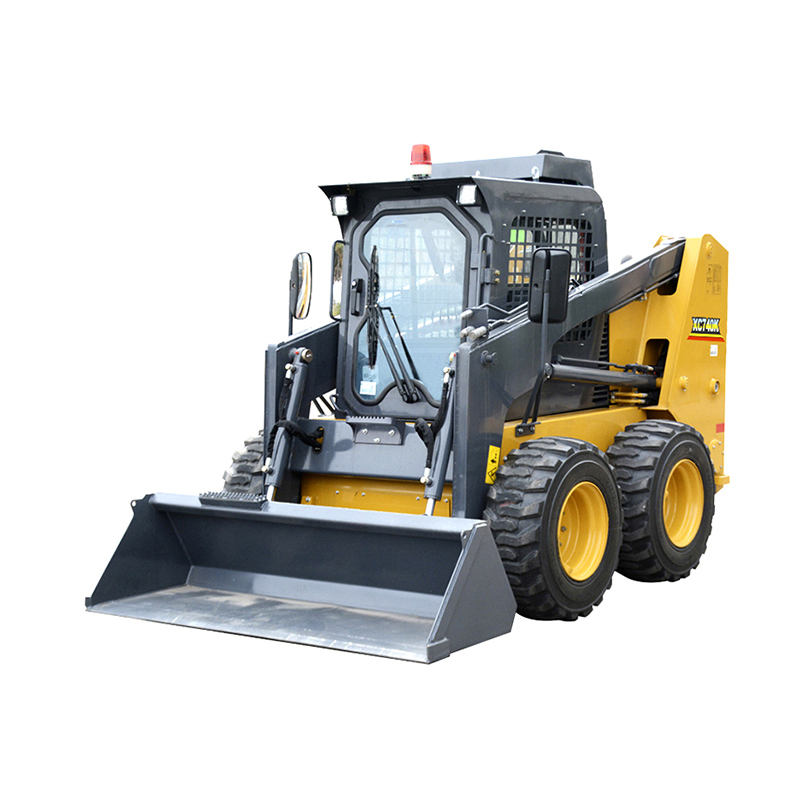

The XC740K mini skid-steer loader, equipped with strong power and a wide variety of attachments, is designed to excel in narrow spaces. It is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, offering low operation costs and significant economic benefits.
Equipped with a renowned brand engine featuring high fuel efficiency and ultra-low emissions. Static hydraulic drive technology ensures stability and reliability.
International quick-change coupling allows rapid switching between tens of attachments like sweepers, planers, hammers, and ditchers.
| Category | Items | Unit | XC740K Data |
|---|---|---|---|
| General | Rated load | kg | 750 |
| Tipping load | kg | 1500 | |
| Operating weight | kg | 3140 | |
| Max breakout force | kN | 18 | |
| Engine | Manufacturer | - | Xinchai |
| Rated power | Hp/kw | 49.3/36.8 | |
| Rated speed | rpm | 2500 | |
| Performance | Tire standard | - | 10-16.5 |
| Maximum speed | Km/h | 14 | |
| Hydraulic flow rate | L/min | 62.5 | |
| Dimensions | Max operating height | mm | 3878 |
| Bucket hinge pin height | mm | 3057 | |
| Length with bucket | mm | 3310 | |
| Wheel base | mm | 1027 |
