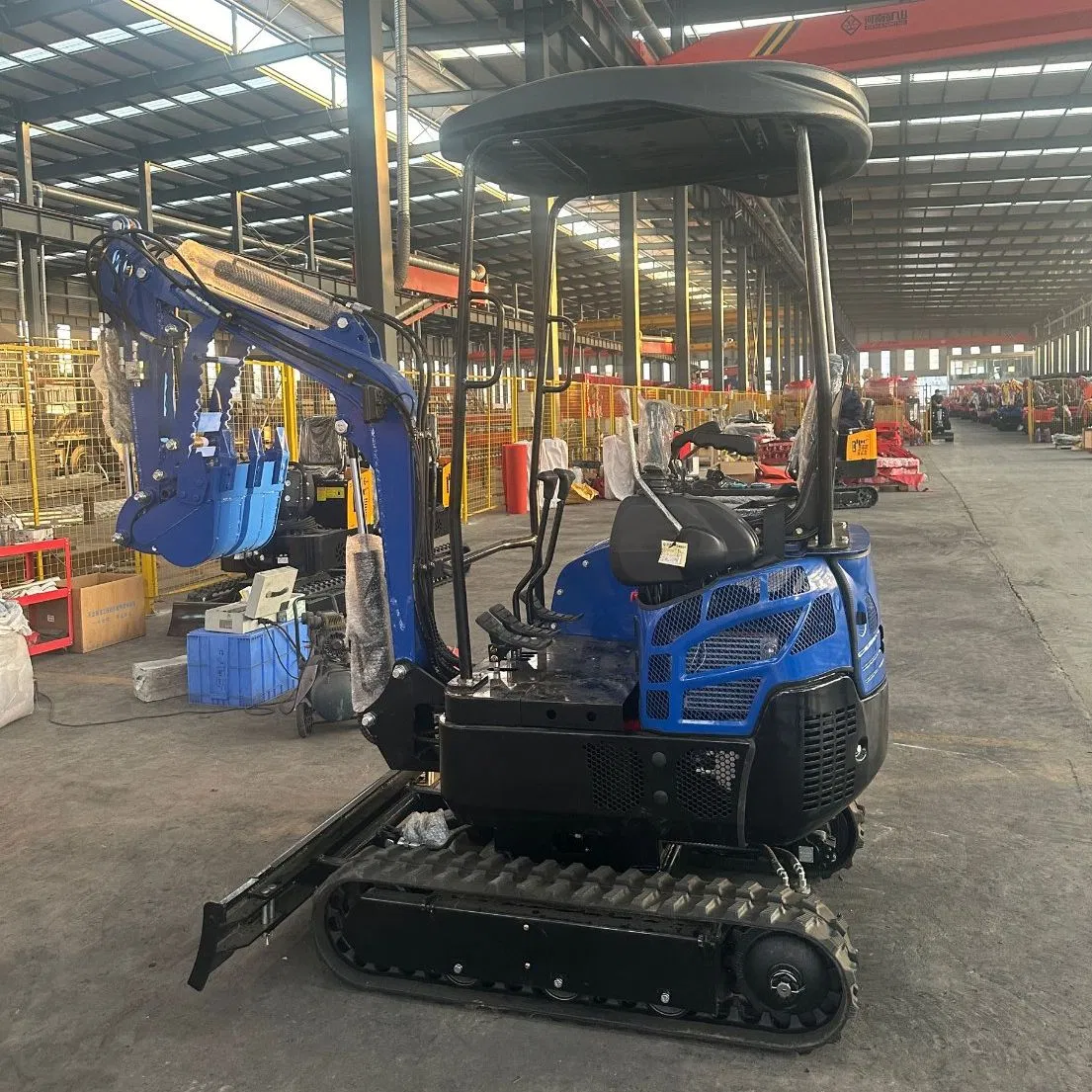

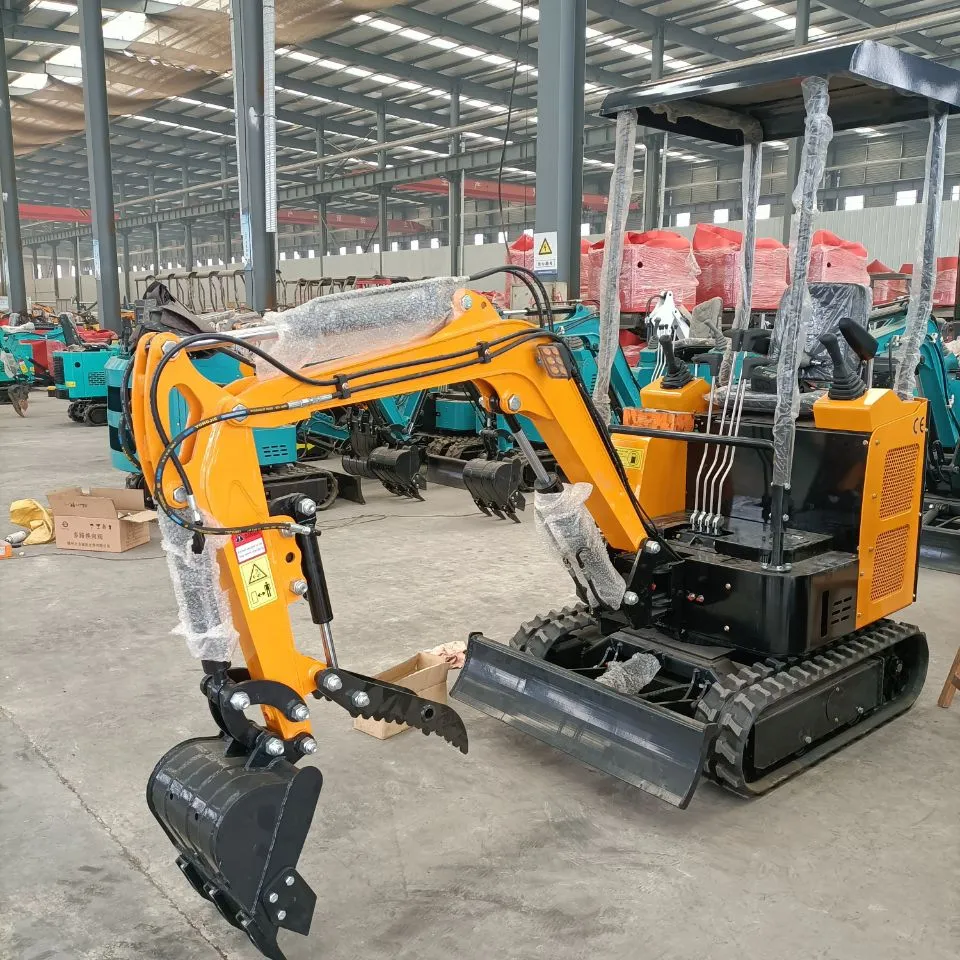

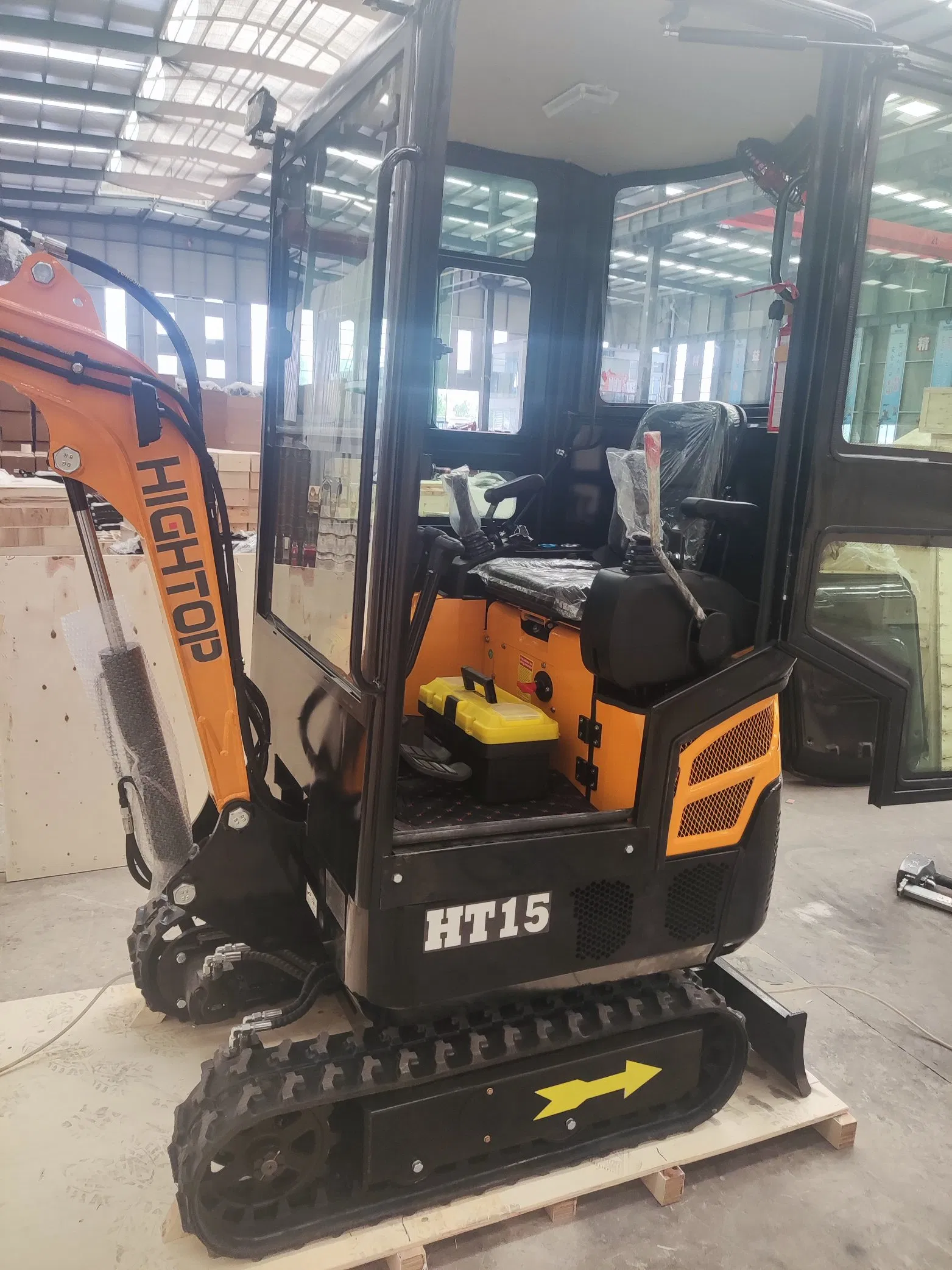

1.5T Miniature Backhoe Mini Digger Excavator
Designed for small-scale projects, gardens, farmlands, municipal works, and vegetable greenhouses. This machine features a compact design, simple maintenance, and high efficiency for digging trenches and small construction tasks.
Standard Configuration: One set includes a 380mm standard digging bucket and a 4-pillar canopy.

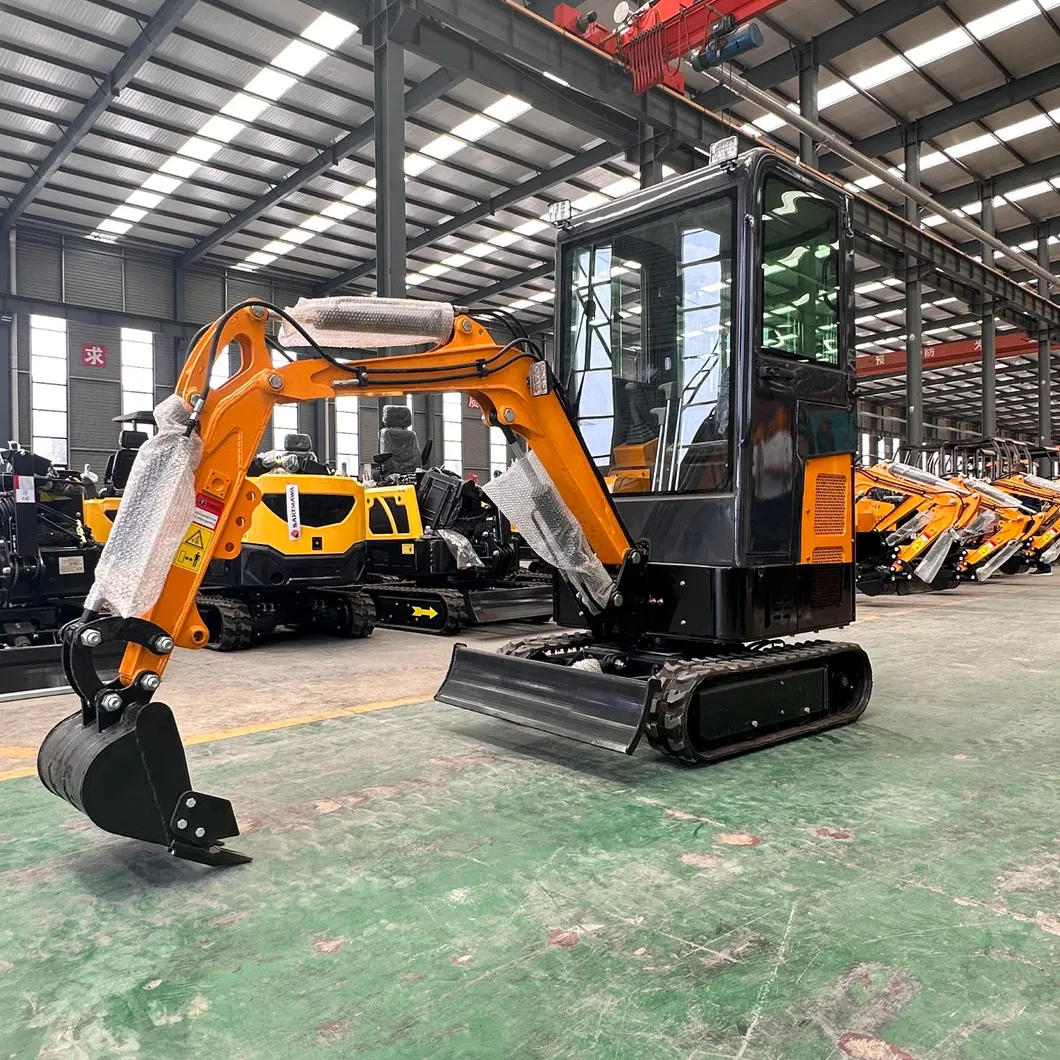

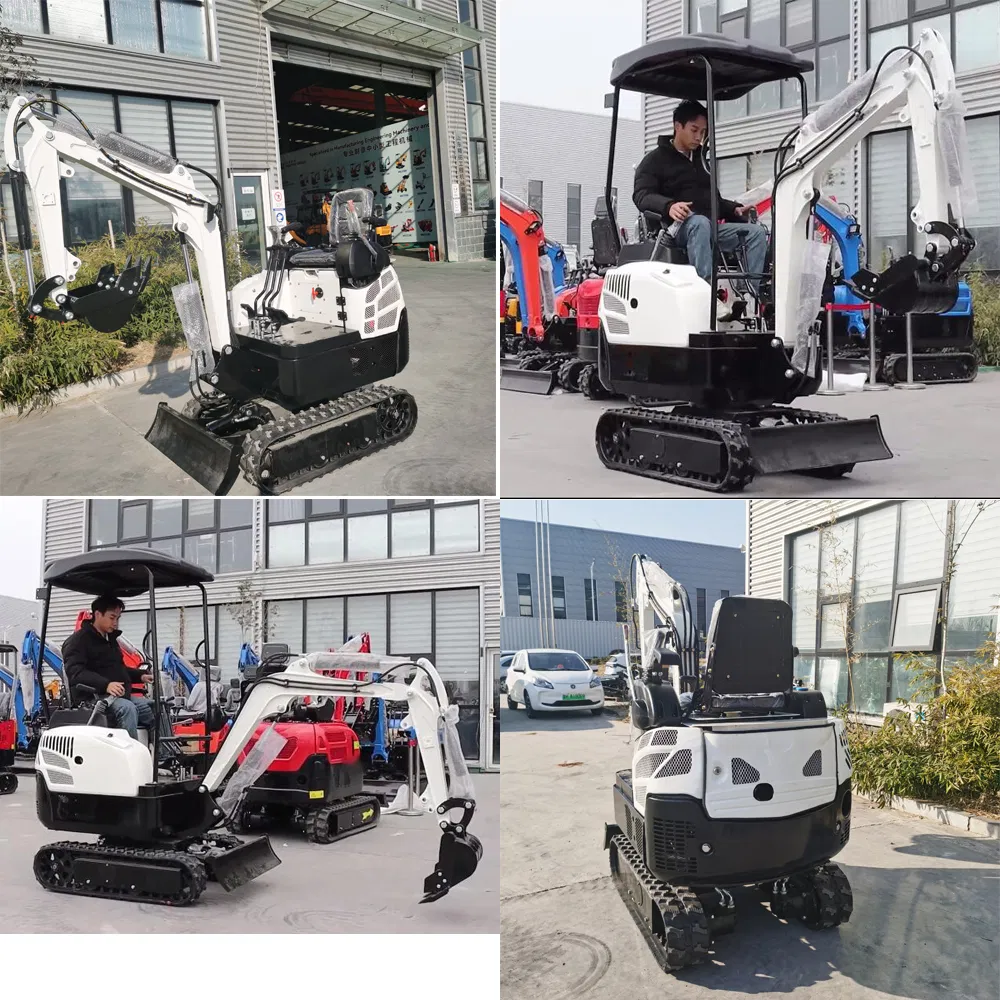

Color Options: Available in Yellow, Blue, Red, Black, or customized colors.

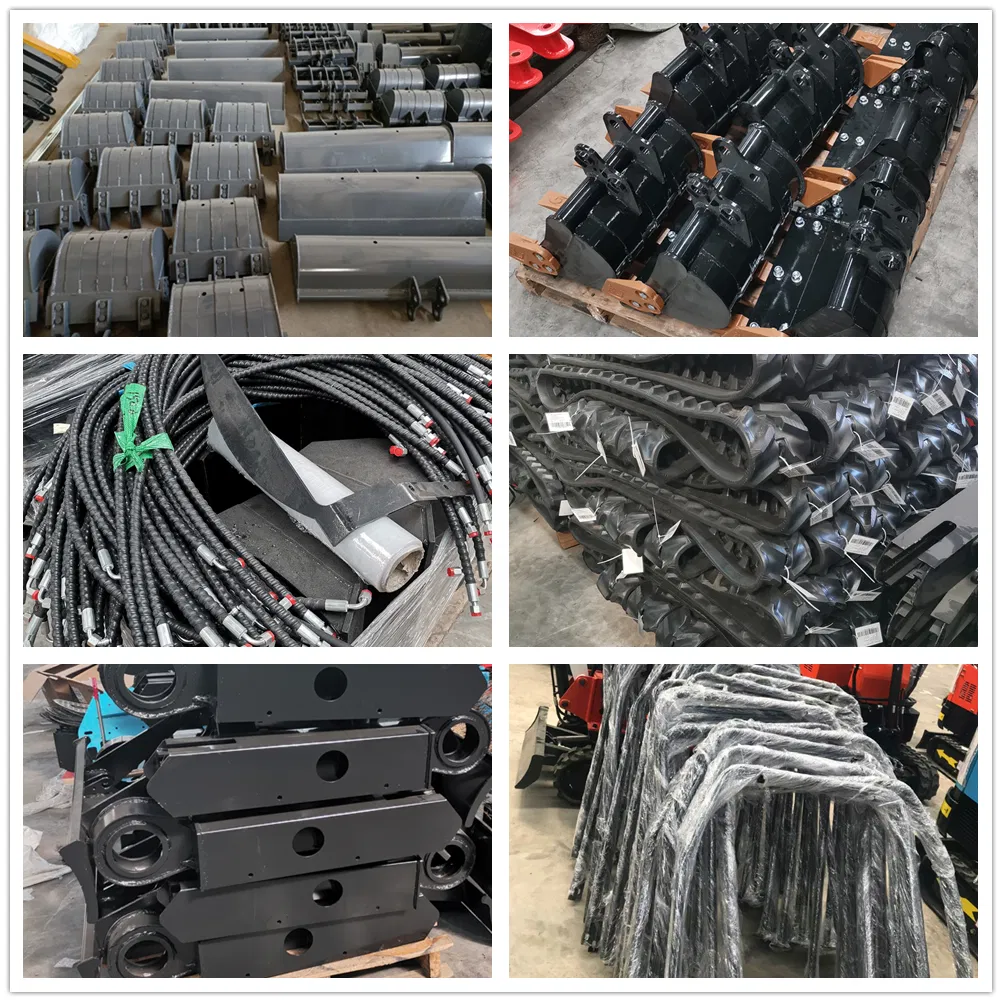

Optional Accessories:
Narrow bucket (200mm), Plain bucket (500mm), Ripper, Grabber, Rake, Auger, Quick Hitch.
| Technology Specification | |
|---|---|
| Model | HT 15 |
| Weight | 1500 kg |
| Digging Bucket Capacity | 0.025cbm / 120 kg |
| Bucket Width | 380 mm |
| Engine | KOOP (292F) |
| Optional Engine | LCT / BRIGGS & STRATTON |
| Rated Power | 14kw / 3000 r/min |
| Travel Speed | 3.5 km/h |
| Operating Range | |
| Max. Digging Depth | 1650 mm |
| Max. Vertical Digging Depth | 1375 mm |
| Max. Digging Height | 2610 mm |
| Max. Dumping Height | 1850 mm |
| Max. Digging Radius on Ground | 2850 mm |
| Min. Rotation Radius | 1330 mm |

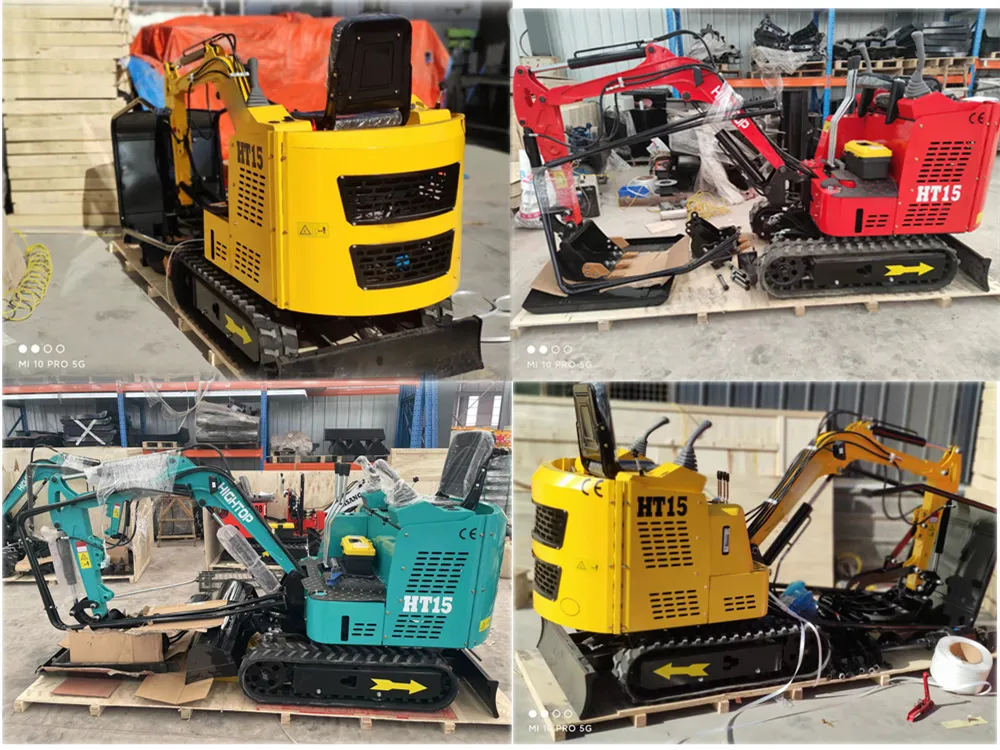

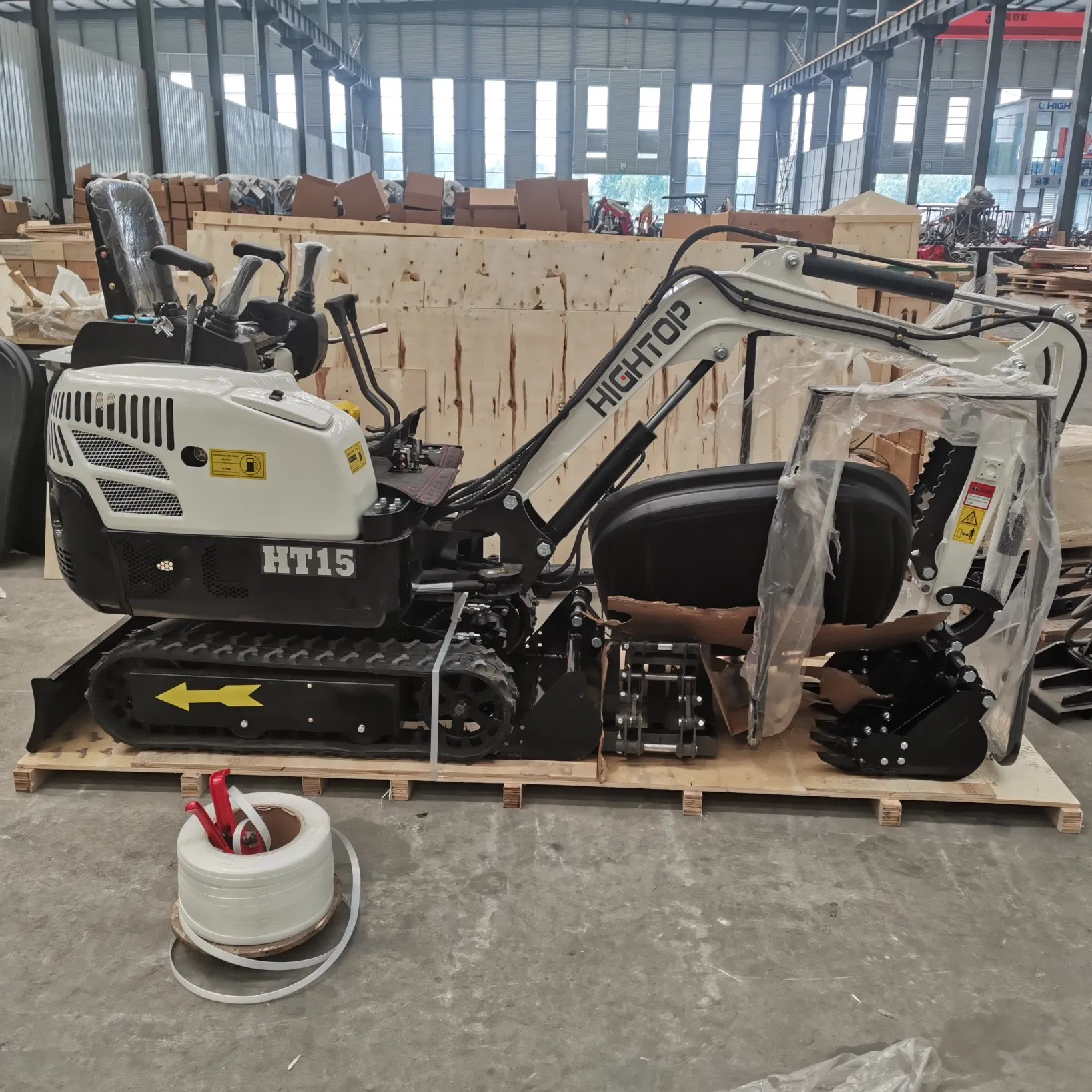

Packing Method: Individual sets are packed in robust wooden cases.

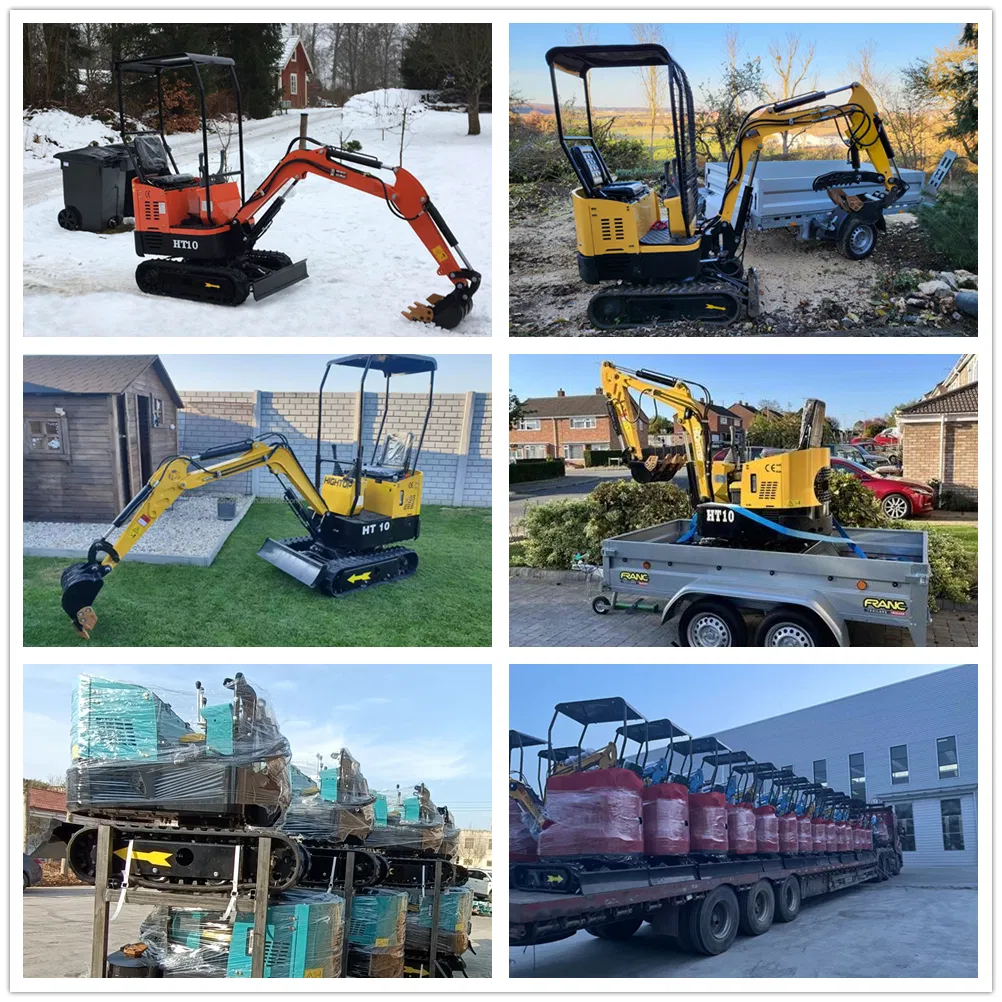

Loading Capacity:
