18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
1 / 5
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price
18 M Telehandler with CE Europe 5 Engine Price

18 M Telehandler with CE Europe 5 Engine Price

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
TH1840
Type
Diesel Forklift / Telehandler
Load Capacity
1T - 5T (Max 4000kg)
Fuel
Diesel
Condition
New
Max Lifting Height
17,550 mm
Origin
China
Production
20 Sets Per Month
📦 Packaging & Logistics
Package Size
7600 x 2700 x 3380 cm
Gross Weight
13,000.00 kg
Transport
Nude Package
🖼️ Product Gallery

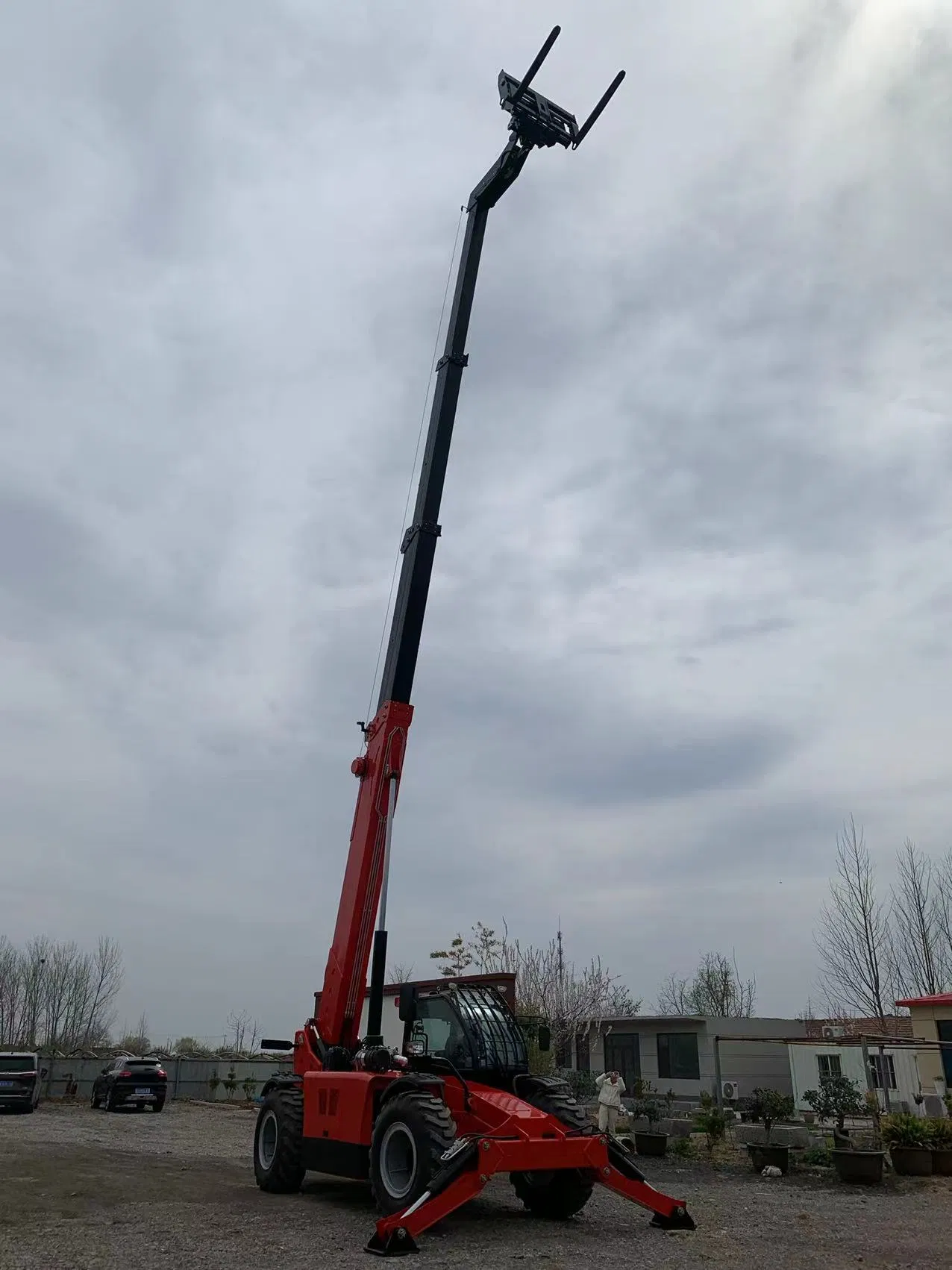

18 M Telehandler Overview
Telehandler Work View

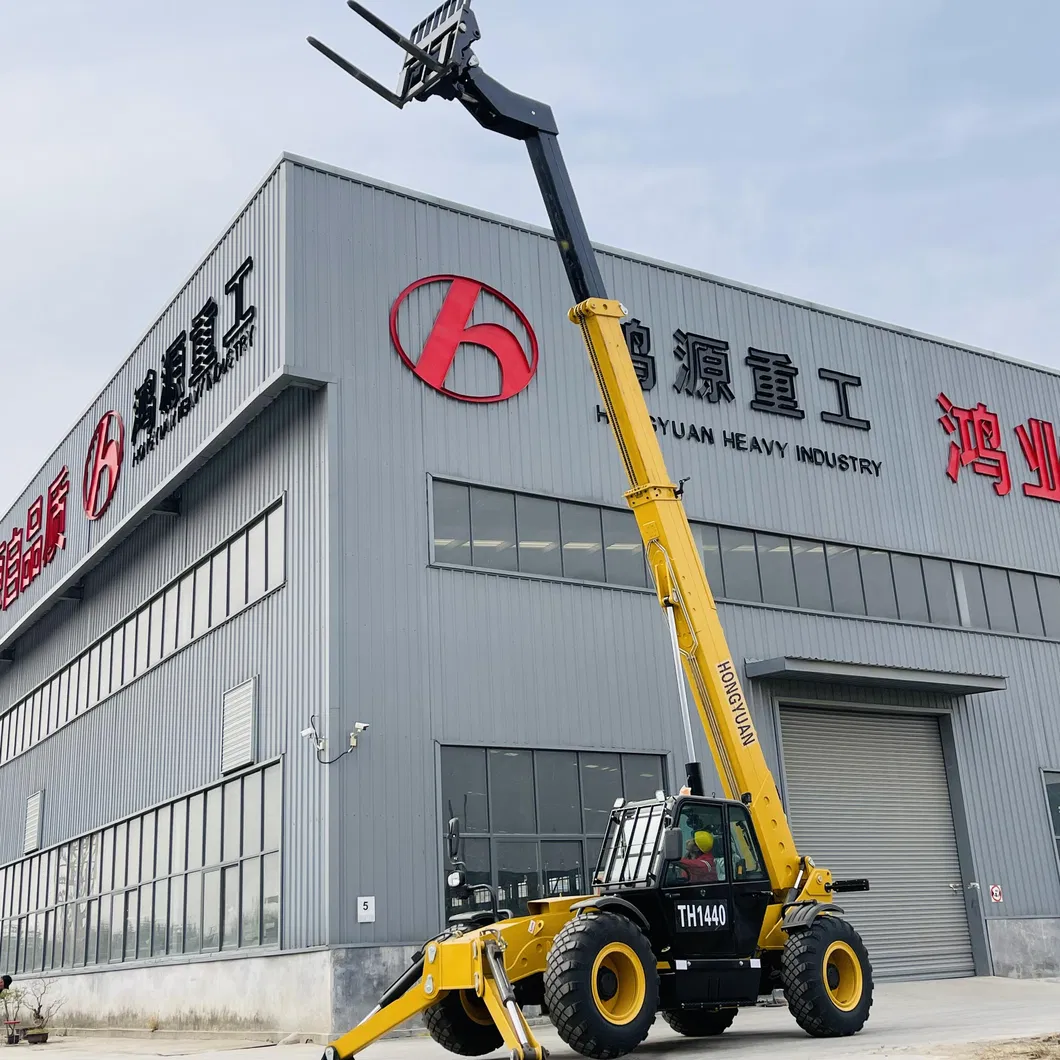

Telescopic Handler Design

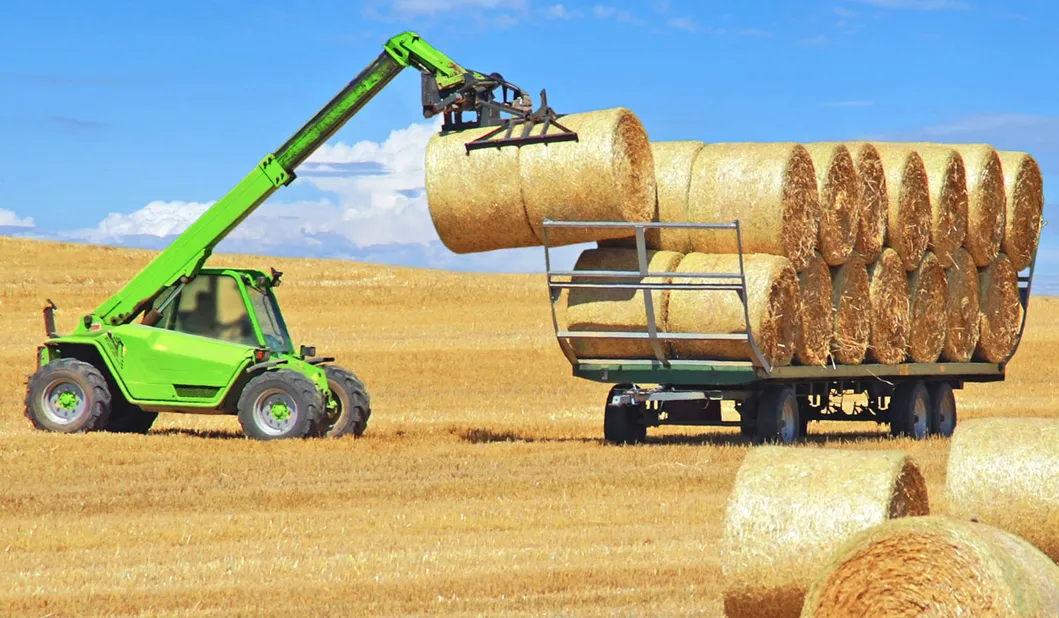

High Lifting Details
Engine and Chassis
Telehandler Dimensions

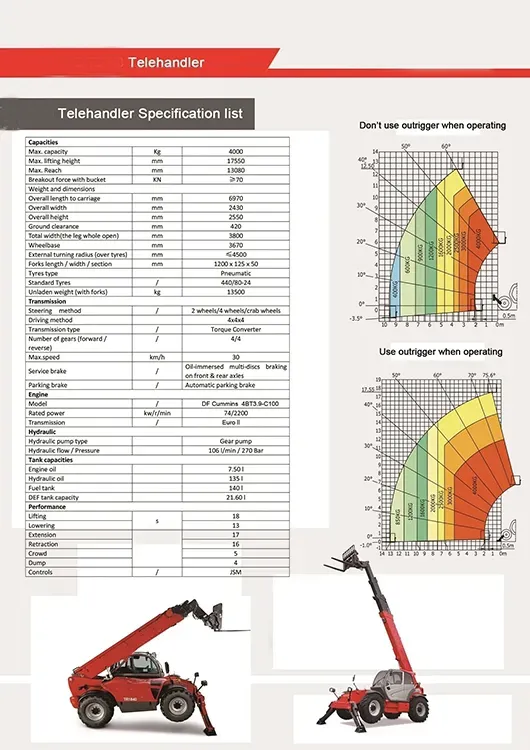

⚙️ Technical Specifications
Capacities
Max. capacityKg4000
Max. lifting heightmm17550
Max. Reachmm13080
Breakout force with bucketKN≥ 70
Weight and Dimensions
Overall length to carriagemm6970
Overall widthmm2430
Overall heightmm2550
Ground clearancemm420
Total width (leg whole open)mm3800
Wheelbasemm3670
Unladen weight (with forks)kg13500
Transmission & Engine
Steering method/2 wheels/4 wheels/crab wheels
Driving method/4x4x4
Max. speedkm/h30
Engine Model/Yunnei
Rated powerkw/r/min92/2200
Emission Standard/Euro 2
Hydraulic & Performance (Seconds)
Hydraulic flow / Pressure/106 l/min / 270 Bar
Lifting / Lowerings18 / 13
Extension / Retractions17 / 16
Fuel Tank Capacityl140
❓ Frequently Asked Questions
What is the maximum lifting capacity and height for the TH1840?
The TH1840 telehandler has a maximum load capacity of 4,000 kg and can reach a maximum lifting height of 17,550 mm (17.55 meters).
What steering modes does this telehandler support?
It supports three steering modes for maximum maneuverability: 2-wheel steering, 4-wheel steering, and crab steering.
What are the engine specifications and driving system?
It is powered by a Yunnei diesel engine with a rated power of 92 kW. The machine features a 4x4x4 driving method for superior off-road performance.
What is the braking system used in this model?
The TH1840 is equipped with oil-immersed multi-disc braking on both front and rear axles, along with an automatic parking brake for safety.
How fast can the extension and retraction of the boom be performed?
The boom extension takes approximately 17 seconds, while retraction takes about 16 seconds, ensuring efficient material handling.
What is the fuel and hydraulic tank capacity?
The fuel tank has a capacity of 140 liters, and the hydraulic oil tank holds 135 liters, supporting long working cycles on the job site.
