📝 Product Description

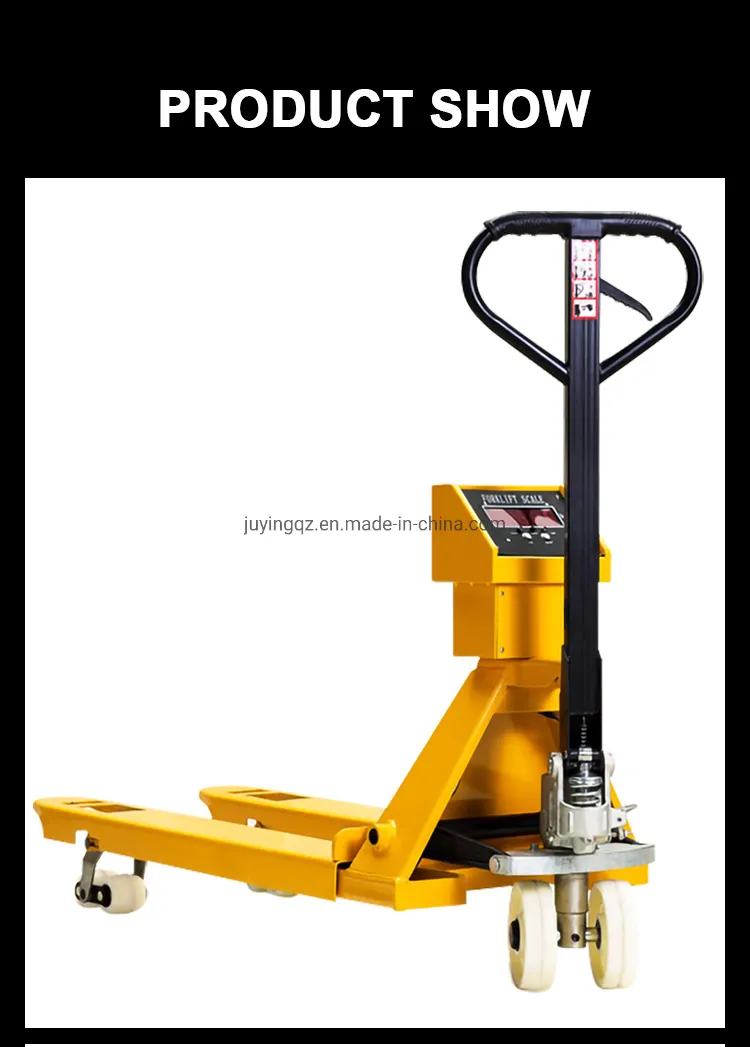

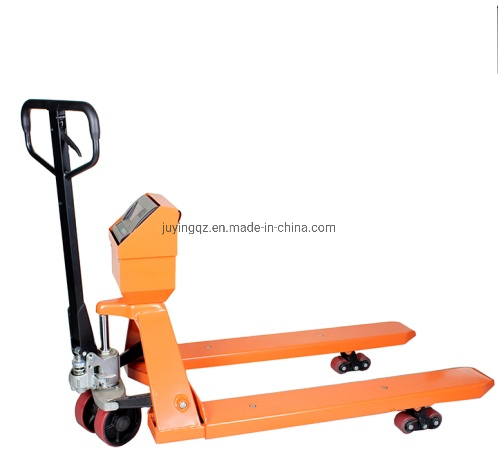

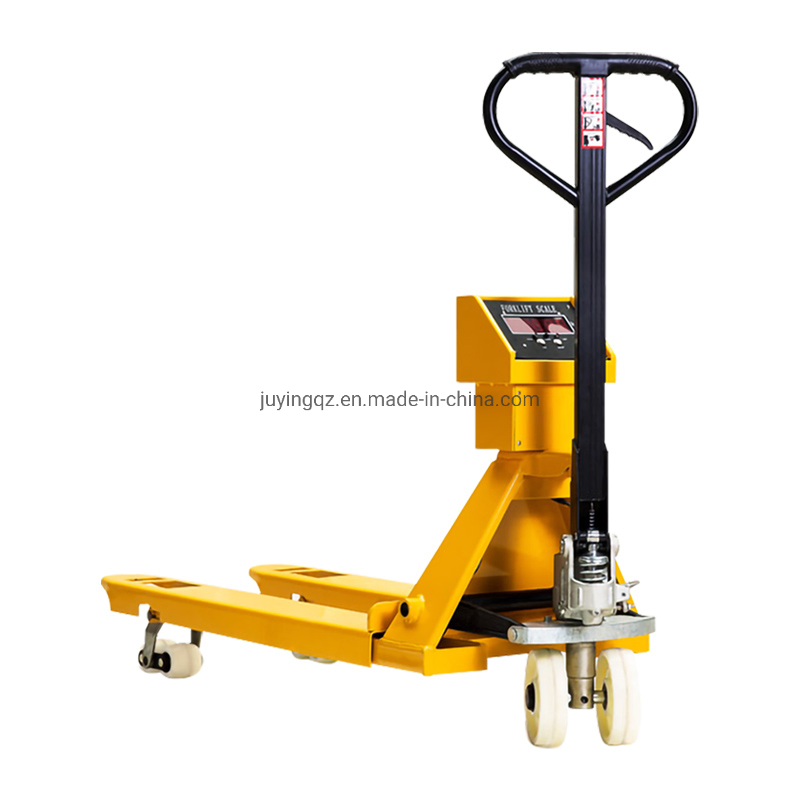

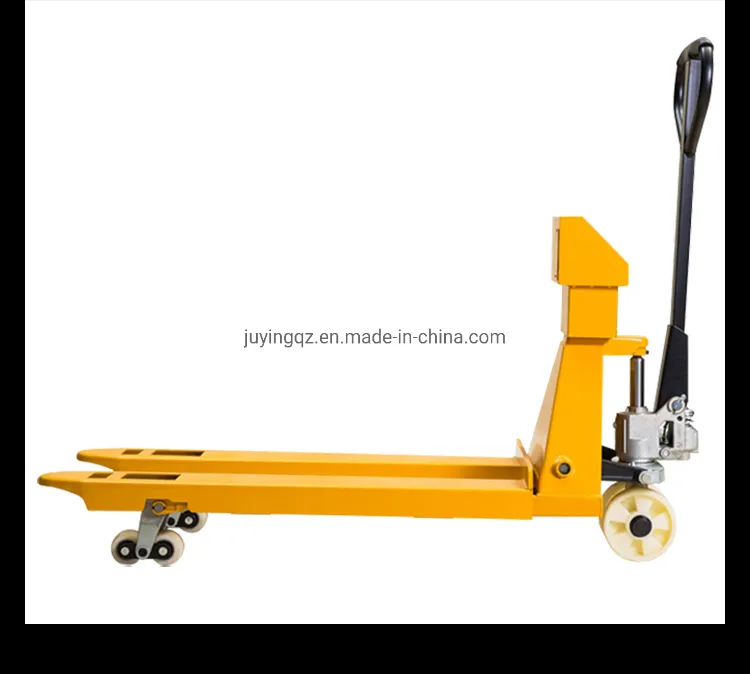

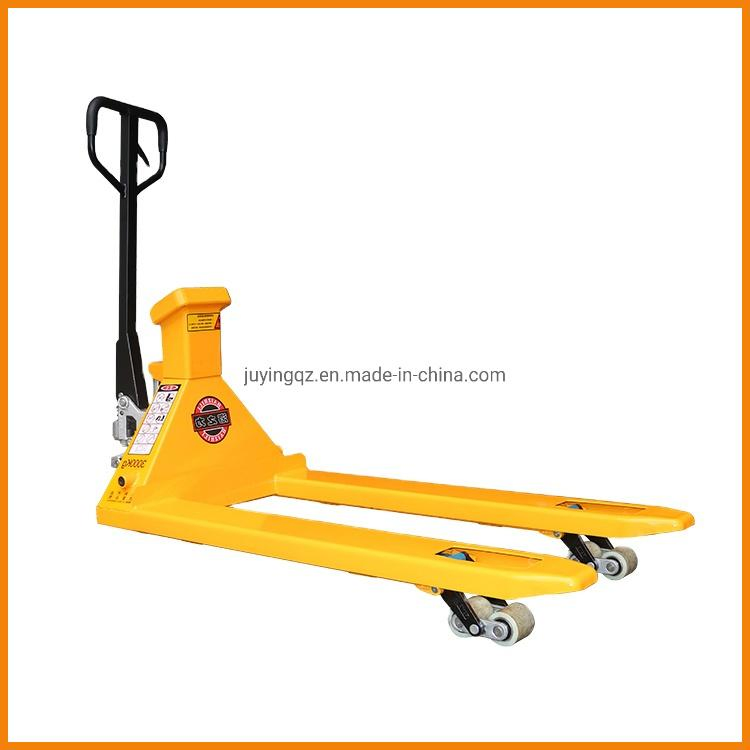

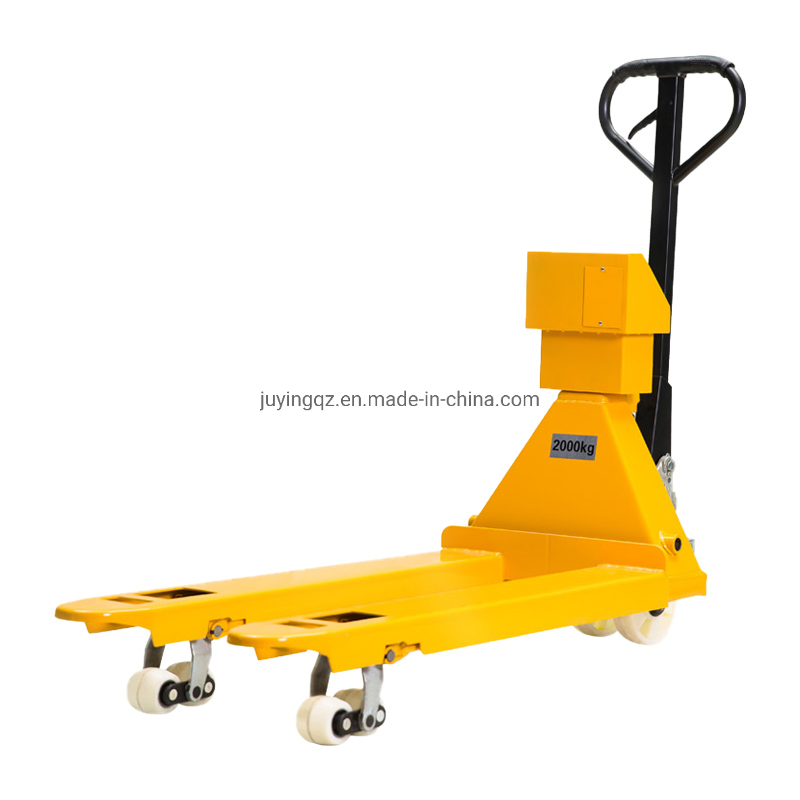

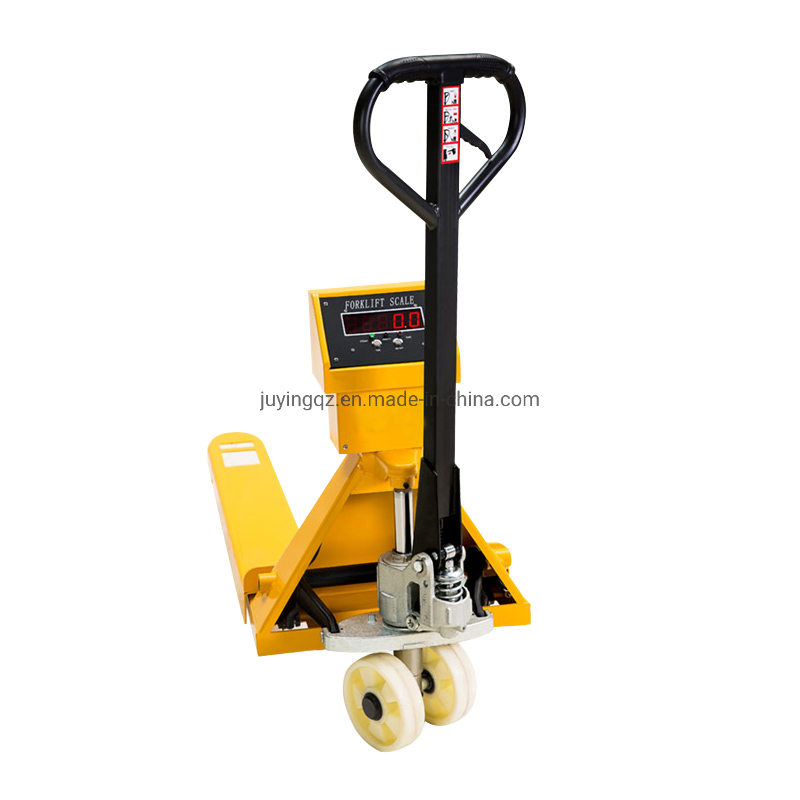

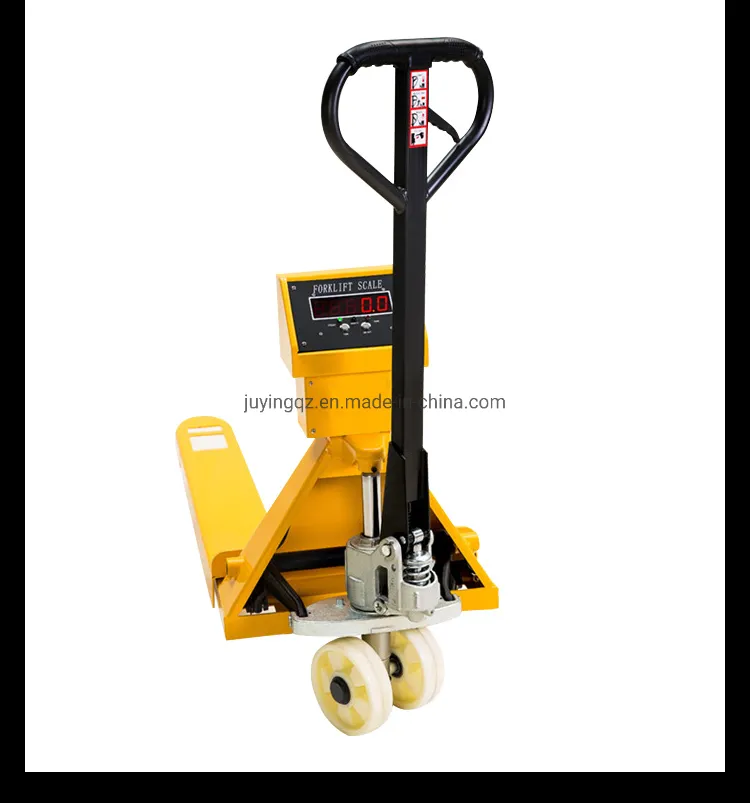

The electronic forklift scale is a weighing system based on the manual hydraulic lift truck. With a pallet truck including a weighing scale, you can easily fulfill goods transporting and goods weighing simultaneously.

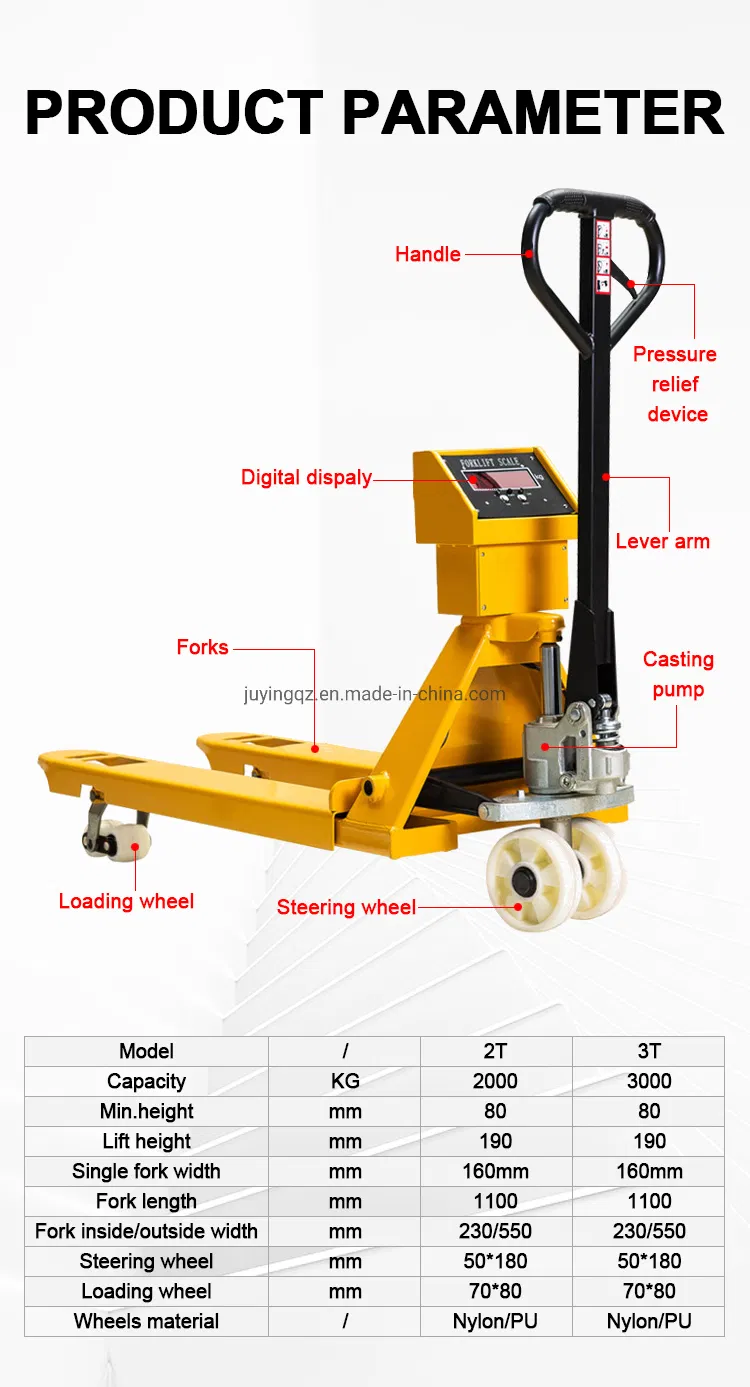

| Model |
Unit |
JY-20 |
JY-25 |
JY-30 |
| Capacity | kg | 2000 | 2500 | 3000 |
| Fork outside distance | mm | 550/685 |
| Fork length | mm | 1150/1220 |
| Fork width | mm | 160 |
| Lowered fork height | mm | 85 |
| Max. lifting height | mm | 195 |
| Format of steering wheel | mm | Φ180*50 |
| Format of loading wheel (double) | mm | Φ80*70 |
⚙️ Key Technical Specifications
- Load Capacity: 2000kg / 2500kg / 3000kg
- Accuracy: 0.5 (500g)
- AC power: AC85-245V; 50Hz-Hz
- Temperature: -10 ~ 40°C
- Height Range: 85mm (Min) - 190mm (Max)
- Wide Fork: outer 680 * inner 360 * fork length 1160mm
- Narrow Fork: outer 550 * inner 230 * fork length 1160mm

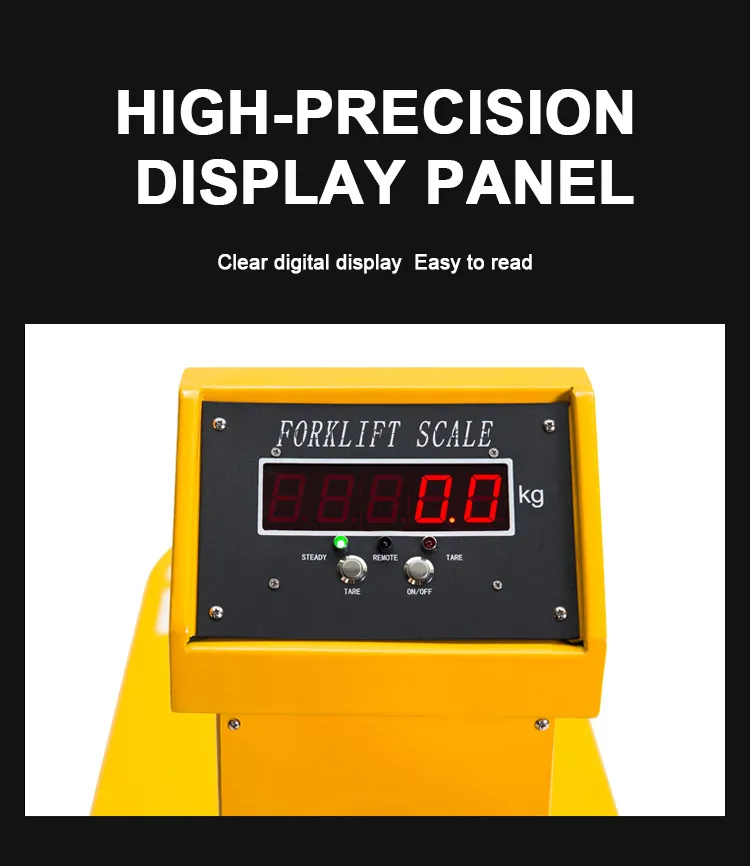

- Functions: Weighing, Net weight, Accumulate, Zero, lb converter
❓ Frequently Asked Questions
What is the maximum weight capacity of the hand pallet jack?
The pallet jack is available in three different models with capacities of 2000kg (2 Ton), 2500kg (2.5 Ton), and 3000kg (3 Ton).
How accurate is the integrated electronic scale?
The scale features a high accuracy of 0.5, which translates to a precise measurement increment of 500g.
What type of wheels are used for the steering and loading?

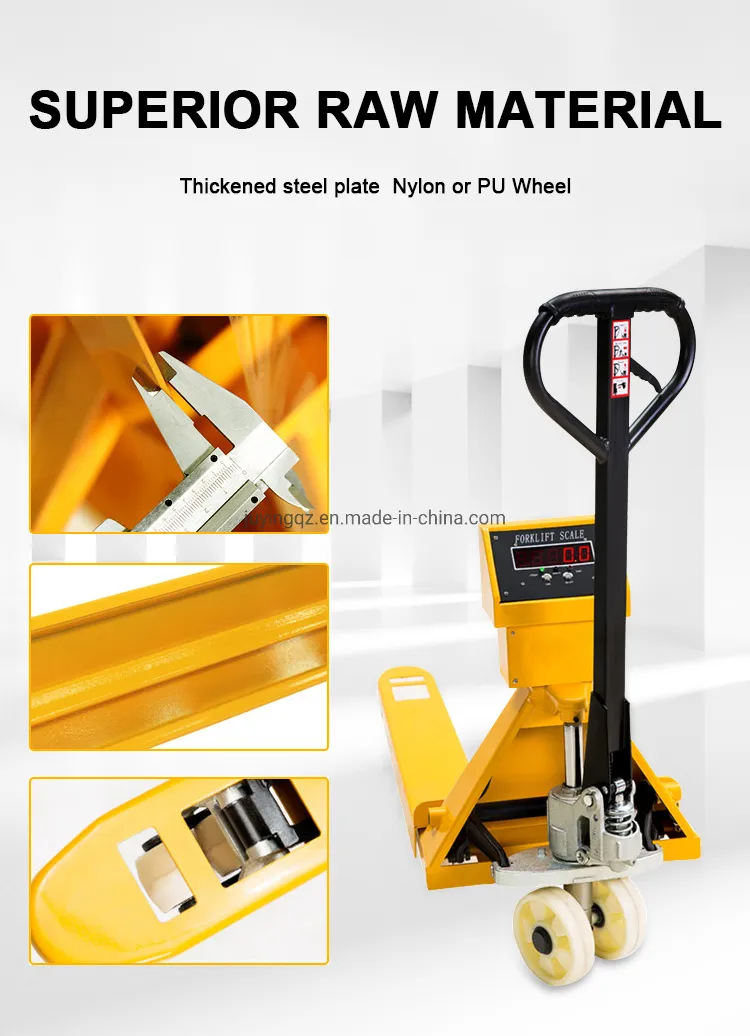

You can choose between high-quality PU or Nylon wheels. The steering wheel size is Φ180*50mm and the double loading wheels are Φ80*70mm.
What are the fork dimensions available?
We offer both wide and narrow fork options. Wide forks measure 680mm outer width, while narrow forks measure 550mm outer width, both with a length of 1160mm.
What are the main functions of the weighing system?
The scale includes essential functions such as standard weighing, net weight calculation, accumulation of weights, zeroing, and a lb/kg converter.
What is the lifting height range?
The forks have a minimum lowered height of 85mm and can reach a maximum lifting height of 195mm.
