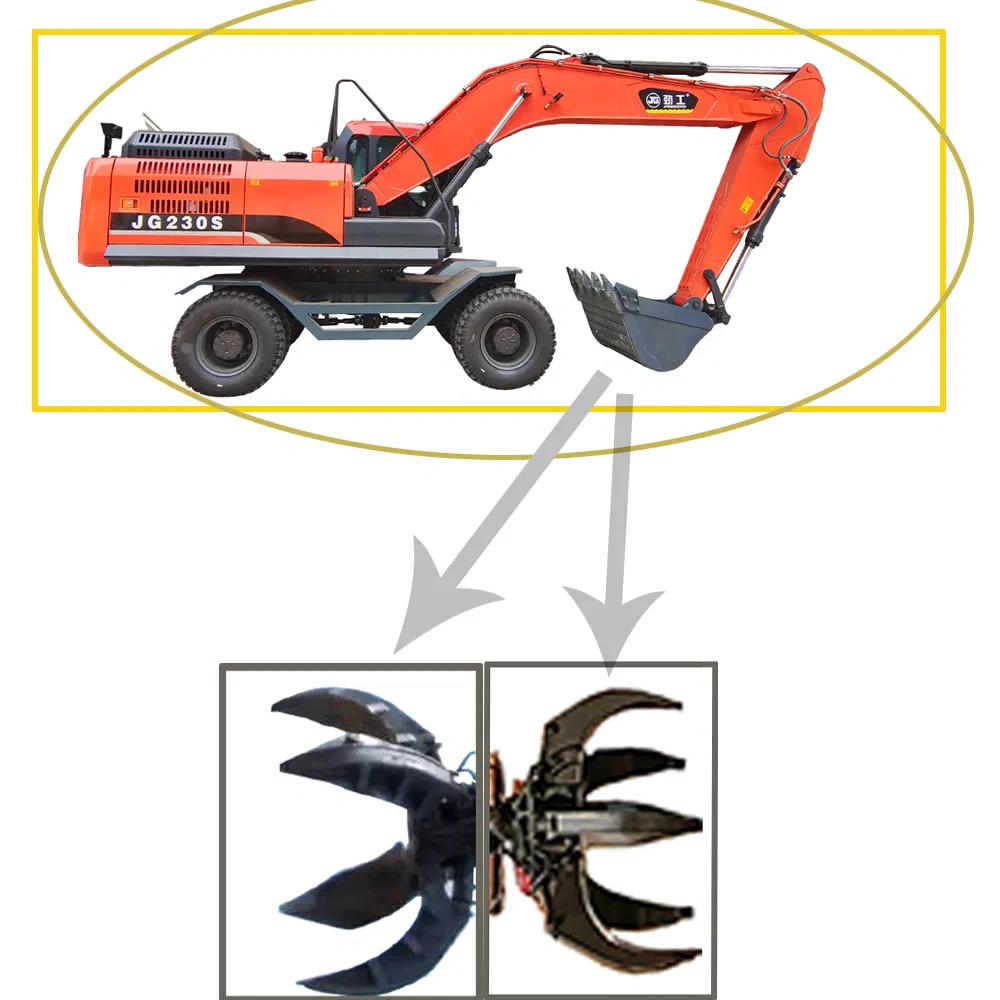

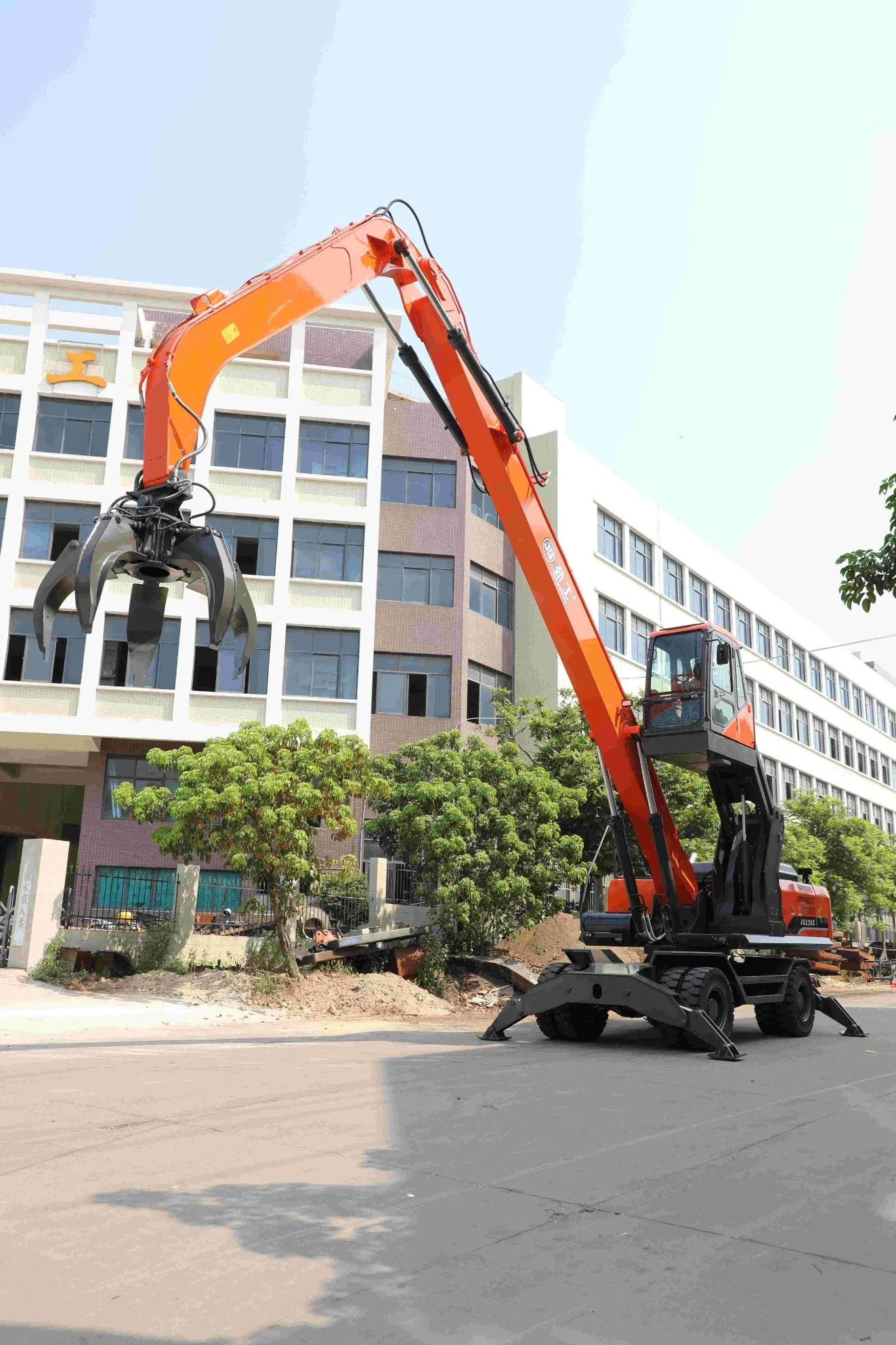

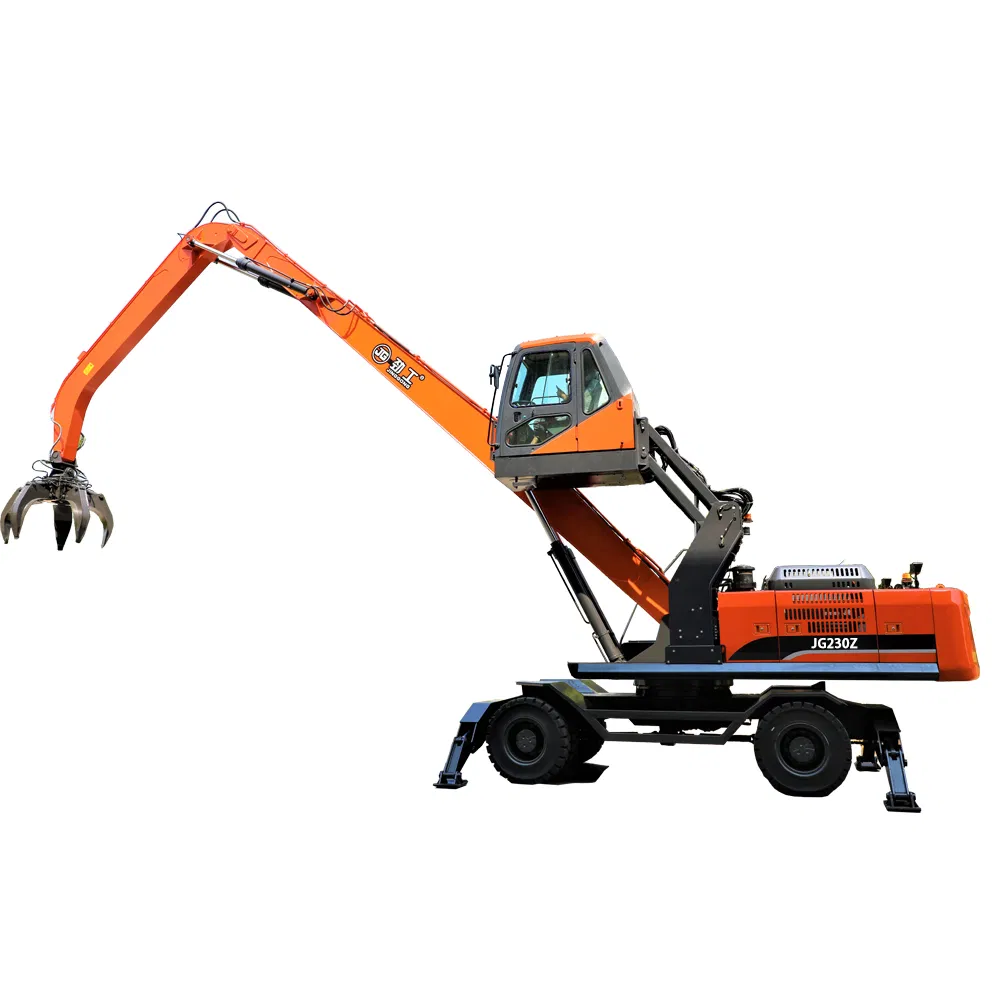

CE Certified Chinese Excavator Material Handling Machinerymaterial Wheel Loader Grabbing Crane

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
JG-Z
Type
Customized
Usage
Special Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Attachments
Bucket, Drill, Hammer, Various Clamps
HS Code
8429521100
Production
3000 units/ Year
Dimensions
14500*2750*3200mm
Product Overview

As the professional level of users is getting higher and higher, in order to meet customer demand, we constantly innovate and upgrade our products, optimizing them from the professional perspective of future development. We focus on quality and efficiency to manufacture products that are popular in the global market.

Material Handler Machinery
JG-Z Series 15-26 Ton Material Handler

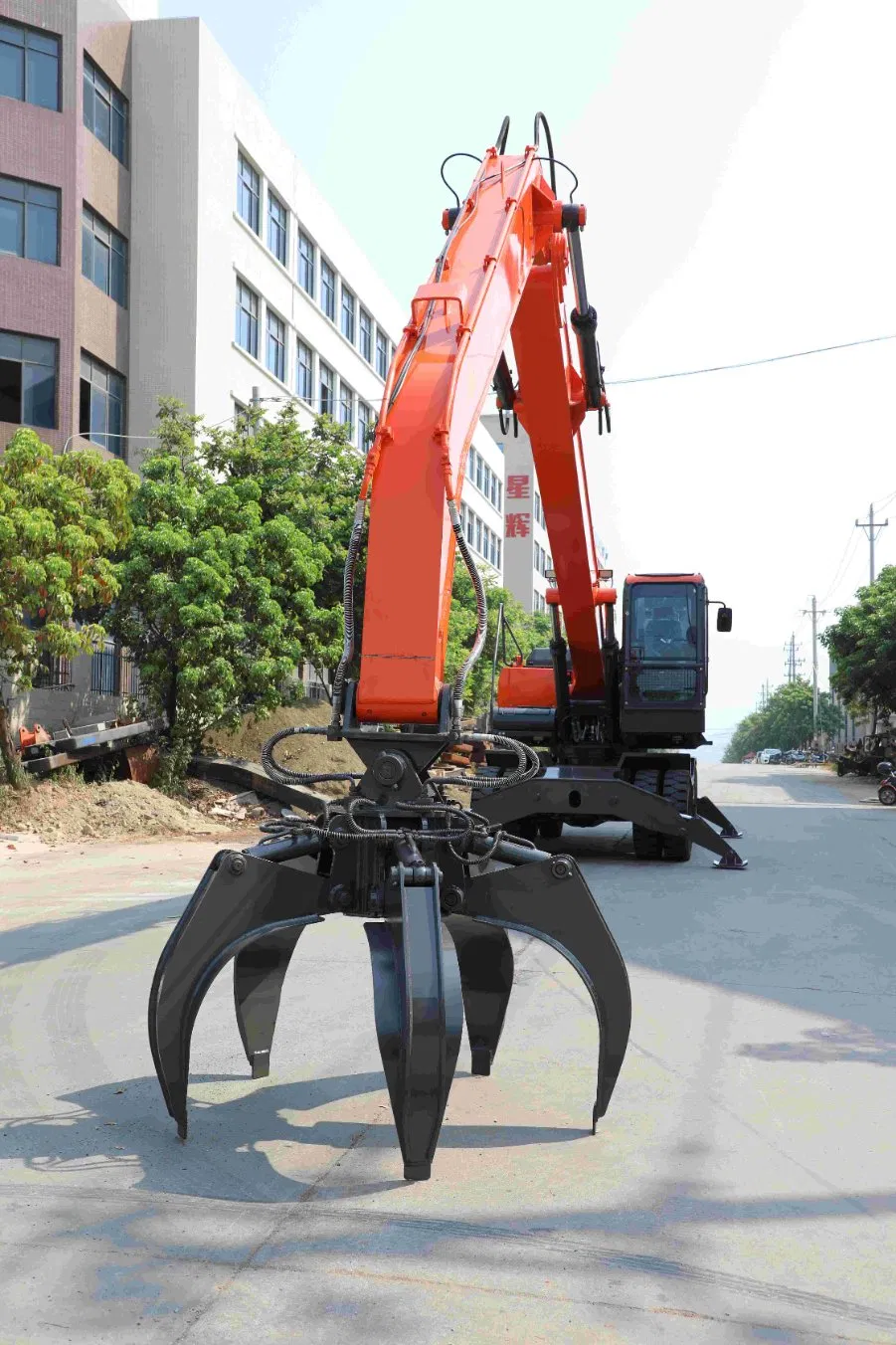

The JG-Z Series Mobile Material Handler is installed with a 124KW turbocharged engine and a 360° rotary grab, realizing a grab capacity of 2.5-3 tons. It can be used for loading and unloading in wood mills, sugarcane fields, stone factories, scrap iron plants, and more. It features a unique 360° rotating stall that is reliable and durable. The equipped bulldozer greatly improves the stability and performance of the machine during operation.

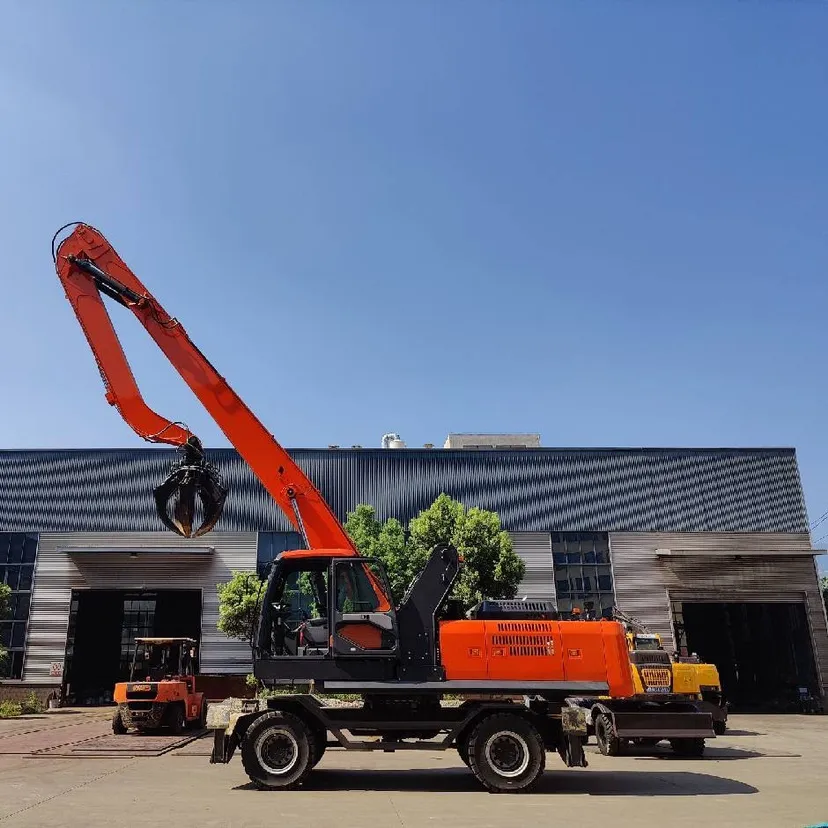

Equipment Detail 1 Equipment Detail 2 Equipment Detail 3

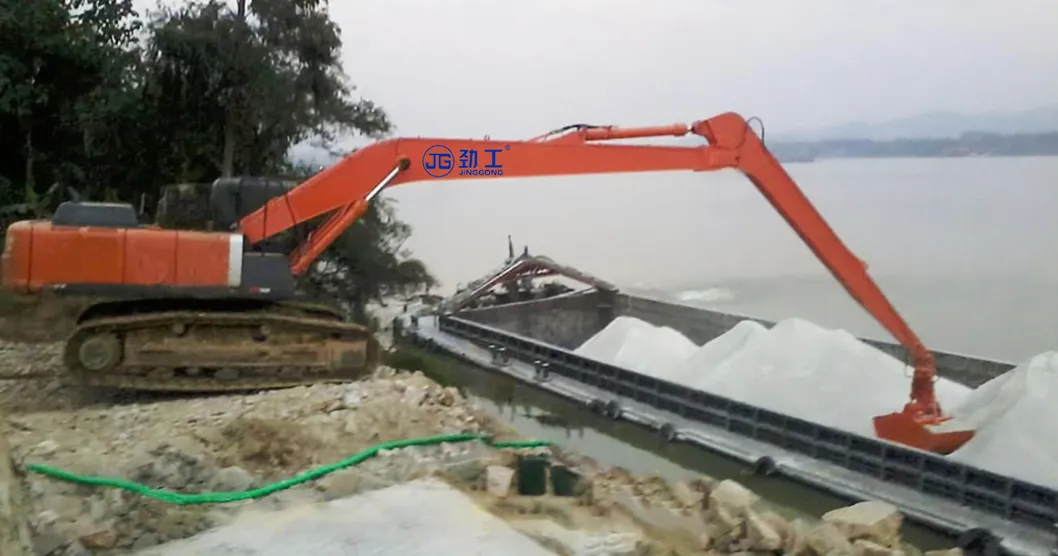

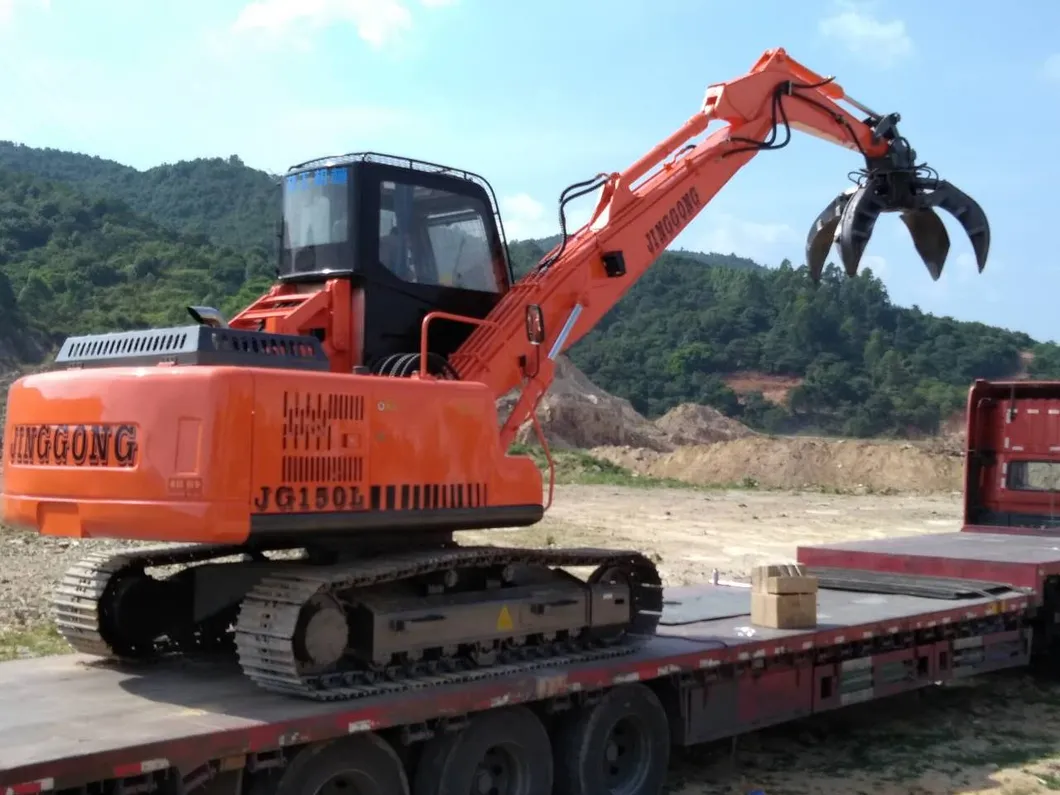

Equipment Detail 4 Equipment Detail 5
📋Technical Specifications (JG220Z)
Range of Operation
Boom length9000mm
Arm length6000mm
Maximum Dumping Height15000mm
Farthest Grabbing Distance15000mm
Dimensions & Chassis
Transport Dimensions (L*W*H)14500*2750*3200mm
Axle base3300mm
Ground clearance1325mm
Min ground clearance310mm
Grapple Specifications (Orange Peel)
Angle of rotation360°
Weight of Grab800Kg
Max. Opening Width1600mm
Technical Performance
Machine weight24000kg
Rated Power124KW
Rated Speed2000r/min
Volume of bucket1.1m3
Hydraulic system pressure32Mpa
Walking speed25km/h
Professional Manufacturing & Versatility

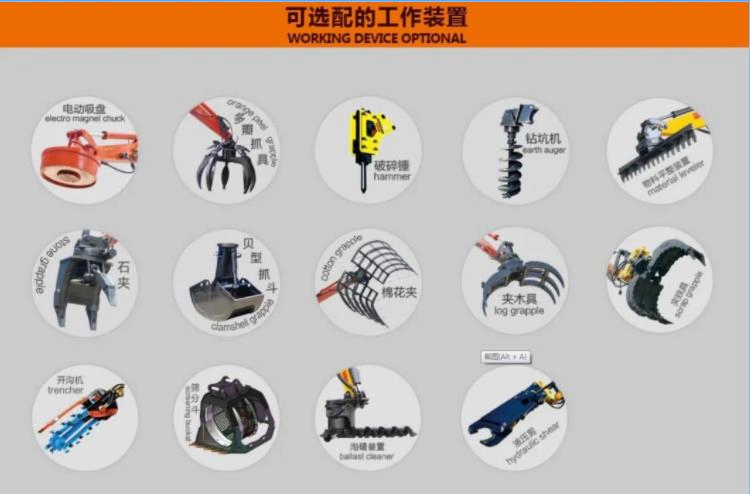

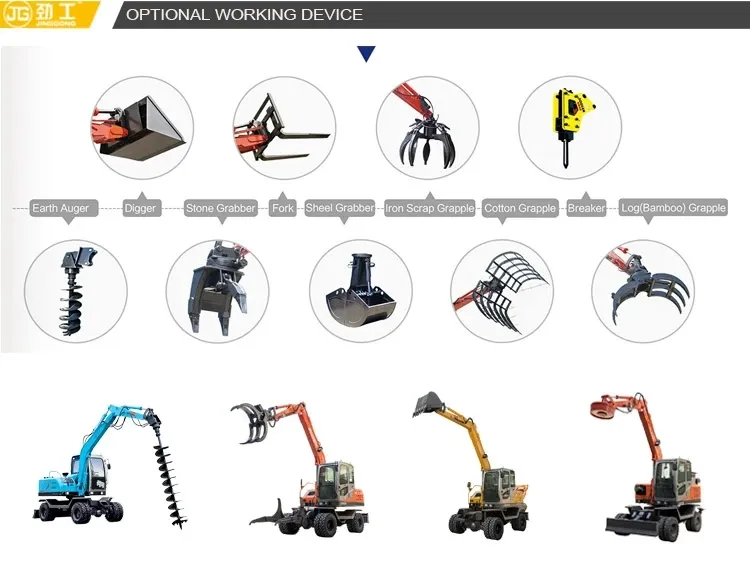

We are a professional excavator manufacturer with over 20 years of experience. Our main production includes wheel excavators, crawler excavators, grapple excavators, material handlers, and specialized railway machines. We provide more optional parts to complete various types of work, such as grabs, forks, and pulverizers, to meet your specific application needs. Auxiliary hydraulic lines are arranged on the base of the boom for easier installation of tools, reducing time and costs.

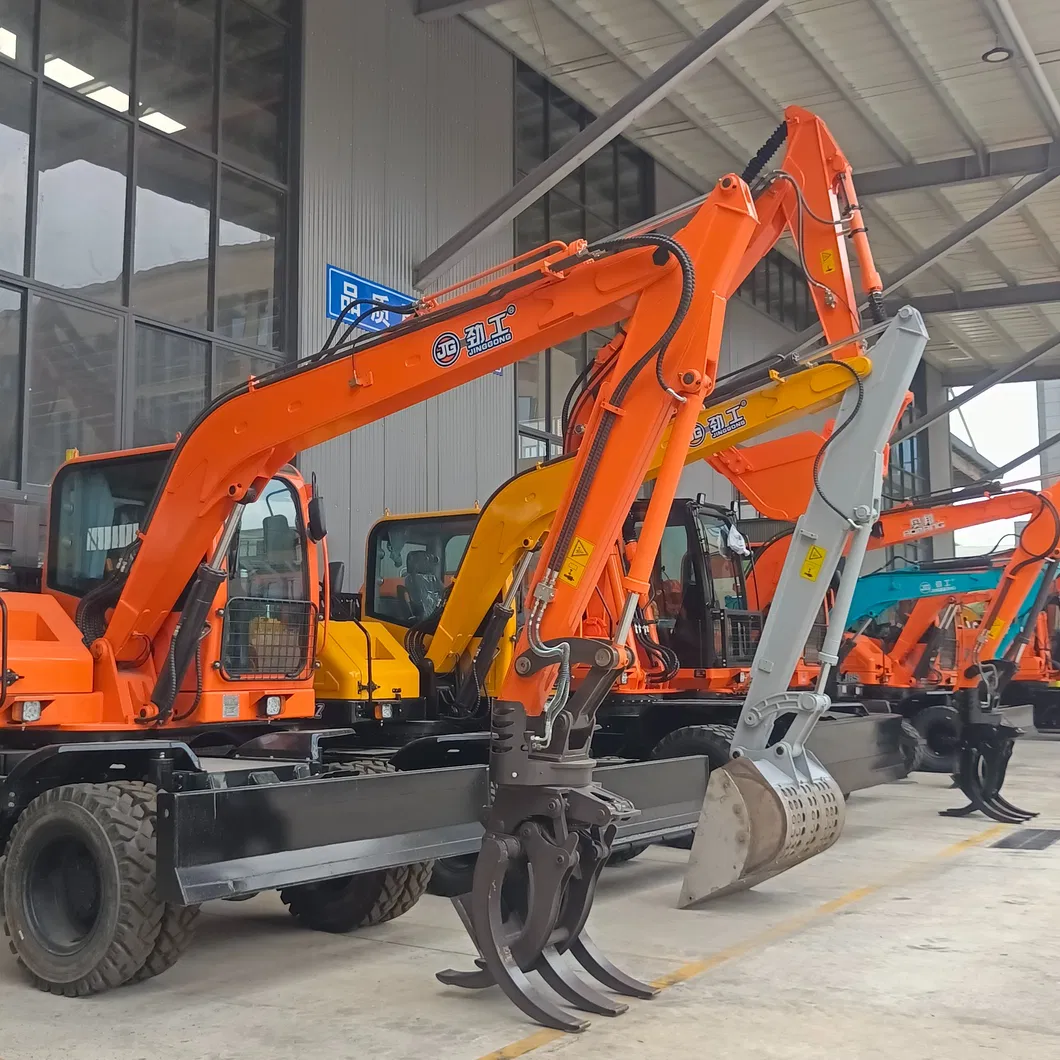

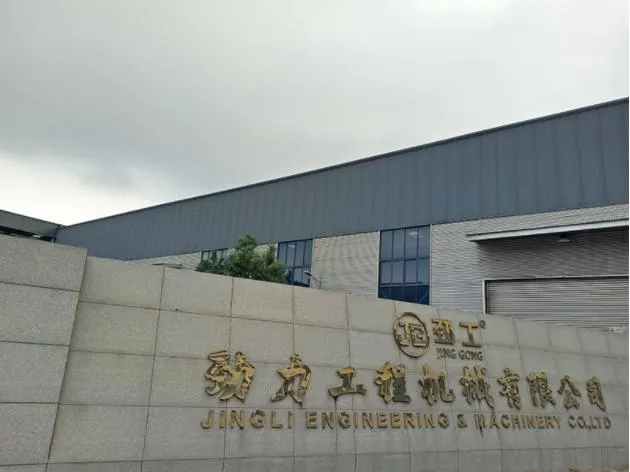

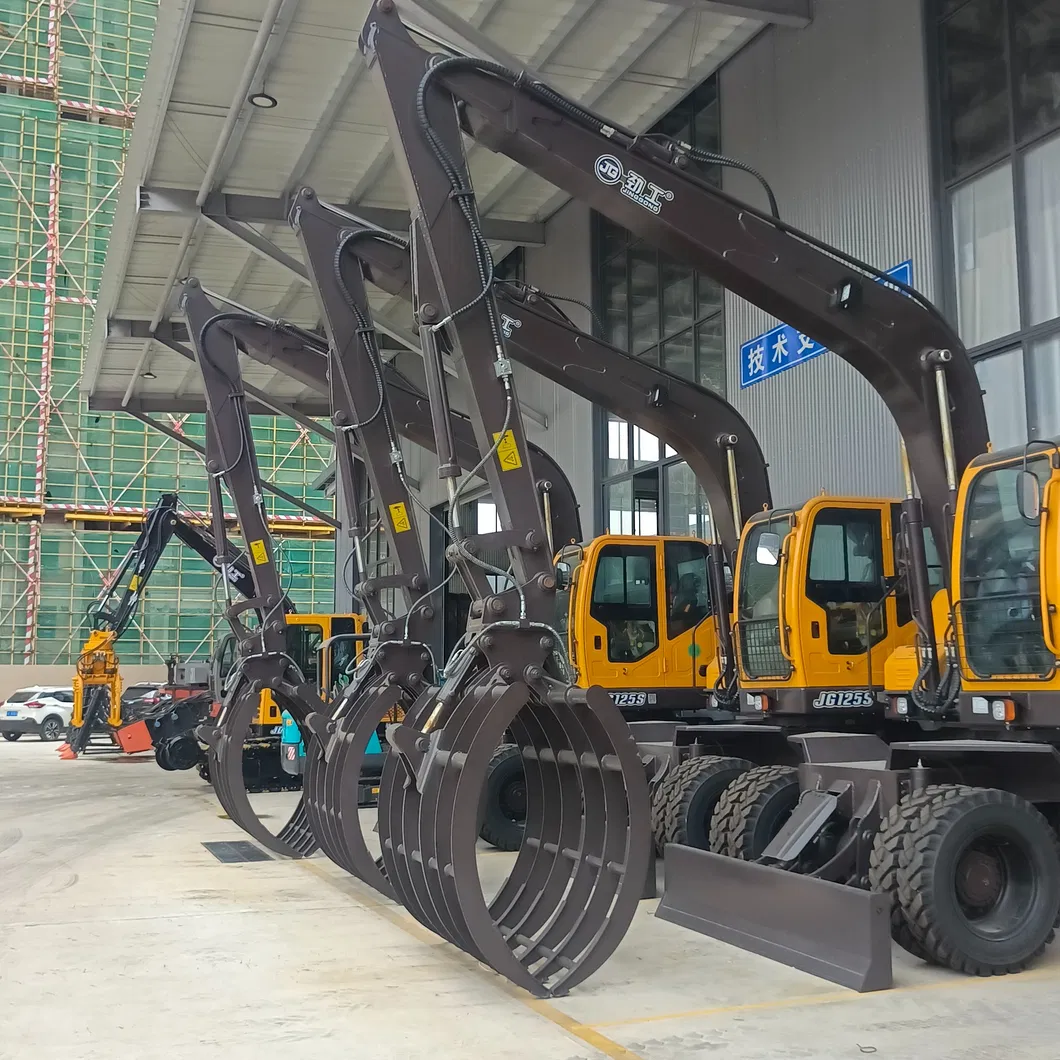

Product View 1 Product View 2 Product View 3
Vertical View

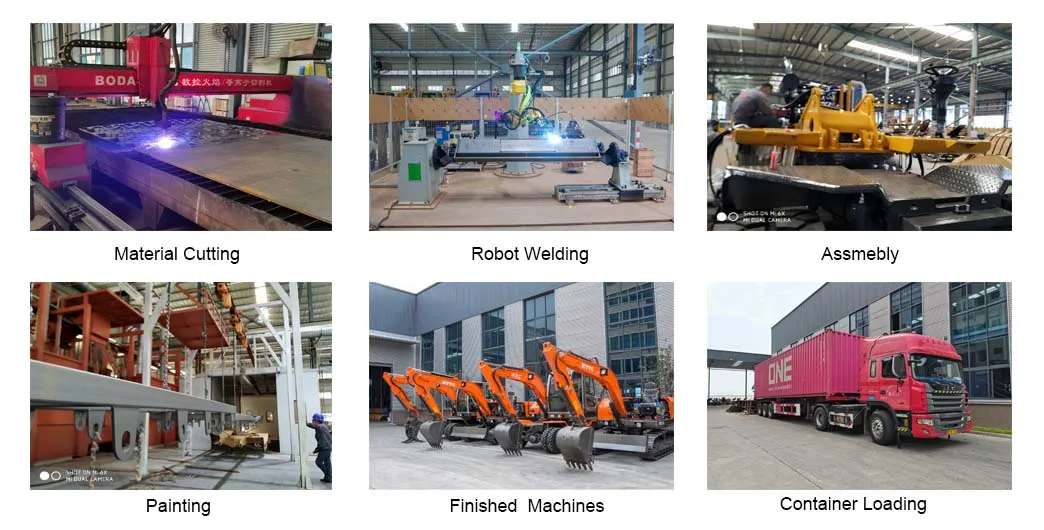

Production Detail Factory Detail
Working View 1 Working View 2
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3
Final Assembly
?Frequently Asked Questions
1 What are the main applications for this material handler?
The JG-Z series is ideal for loading and unloading operations in wood mills, sugarcane fields, stone factories, and scrap iron recycling plants.
2 What is the maximum grabbing capacity?
The machine is designed to realize a grab capacity of 2.5 to 3 tons, powered by a 124KW turbocharged engine.
3 Does it support 360-degree operation?
Yes, it features both a 360° rotary grab and a 360° rotating stall, providing full flexibility during operation.
4 How is the stability of the machine ensured?
The machine is equipped with a bulldozer attachment which significantly improves stability and balance during heavy-duty material handling tasks.
5 Can I customize the attachments for specific jobs?
Absolutely. We offer various work tools including different types of grabs, forks, hammers, and pulverizers to meet your specific application requirements.
6 What is the maximum dumping height?
The JG220Z model features a maximum dumping height of 15,000mm (15 meters), making it suitable for high-reach loading tasks.
