Plautz Excavator
1 / 5

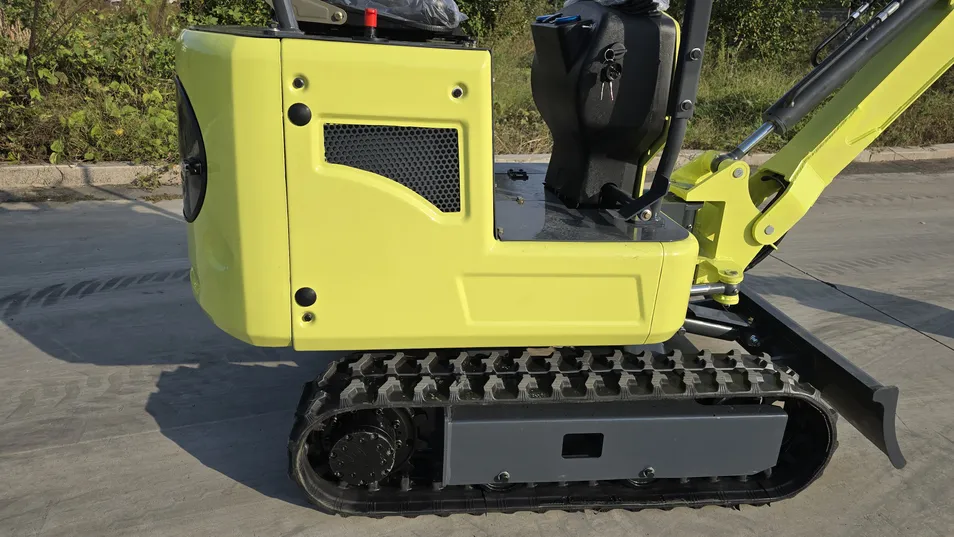

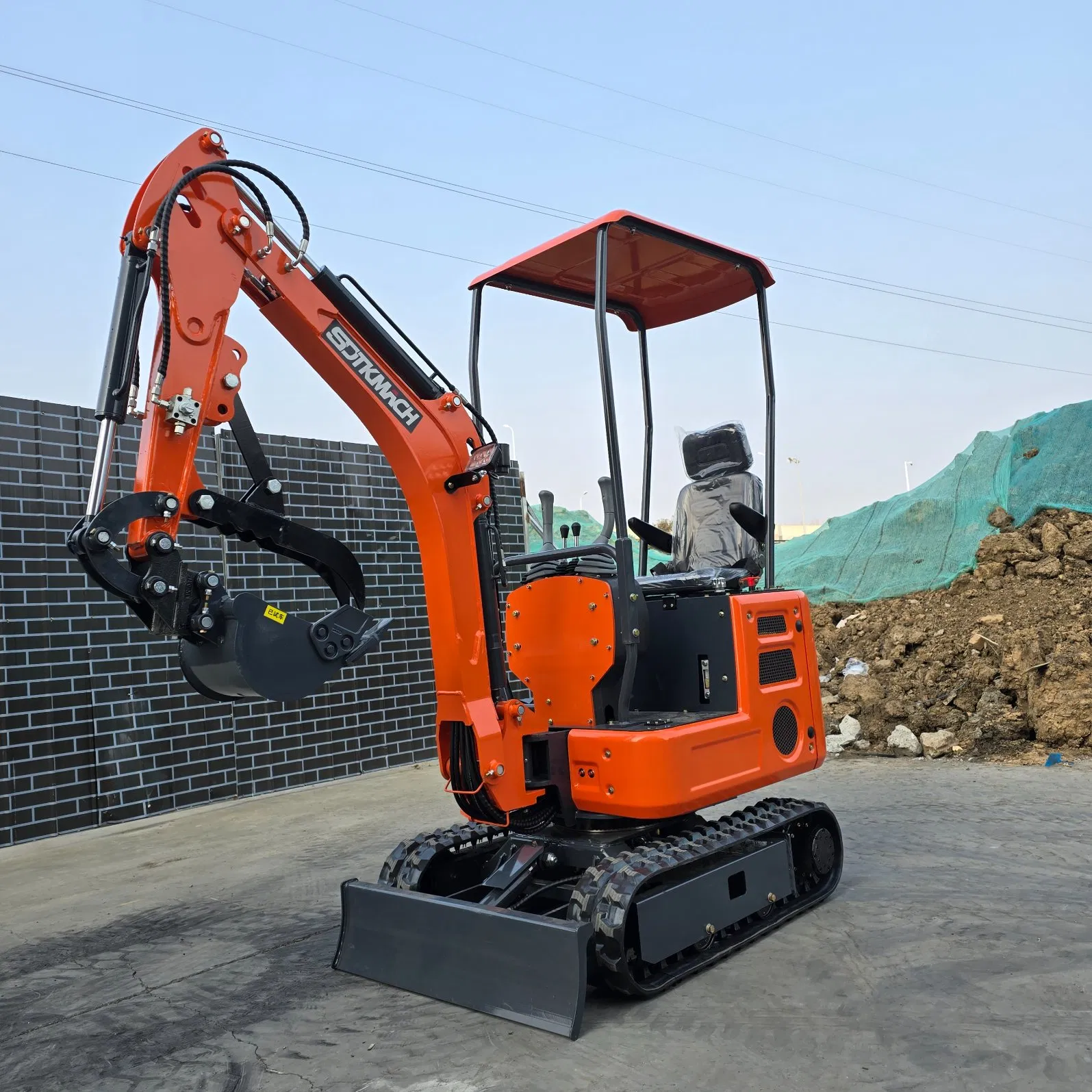

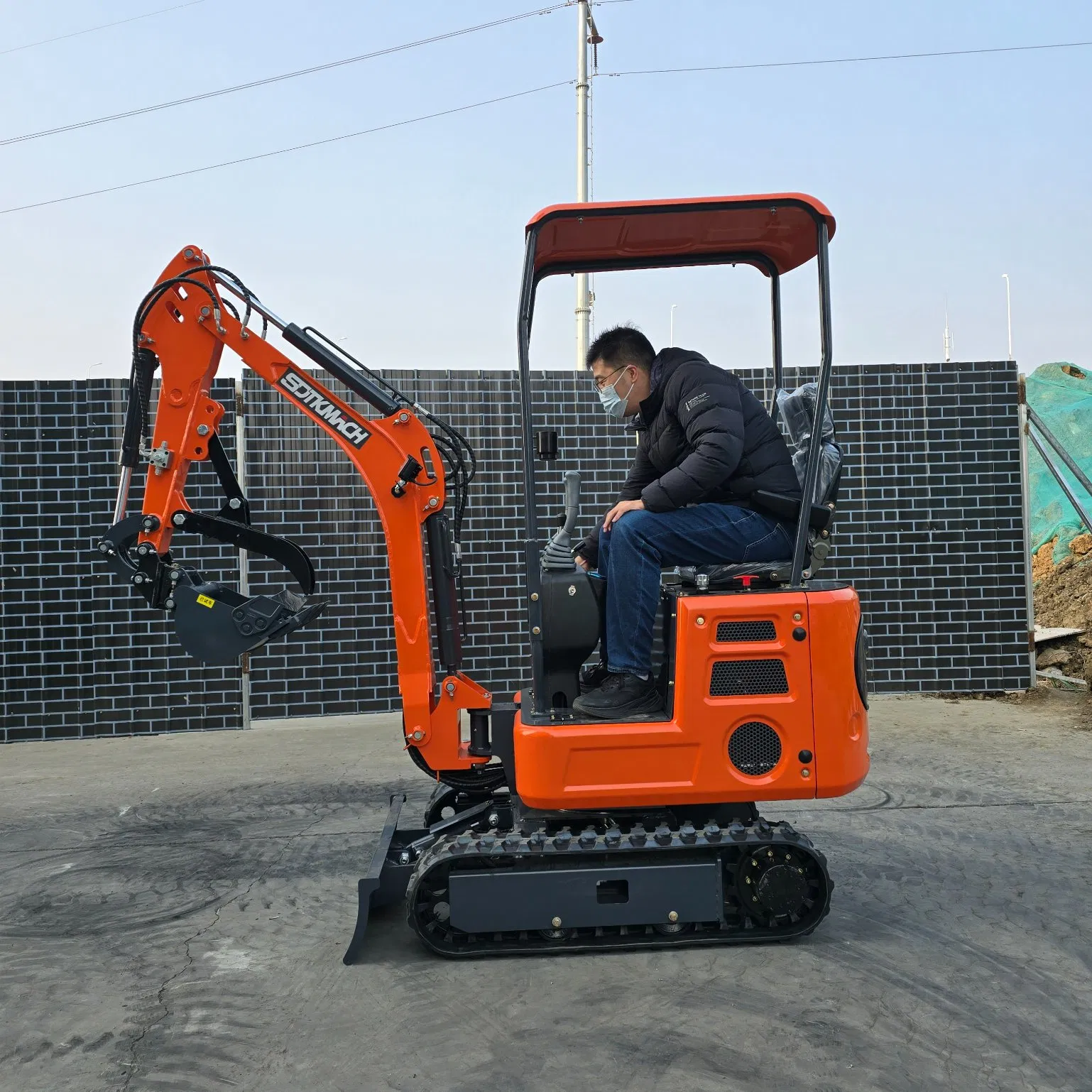

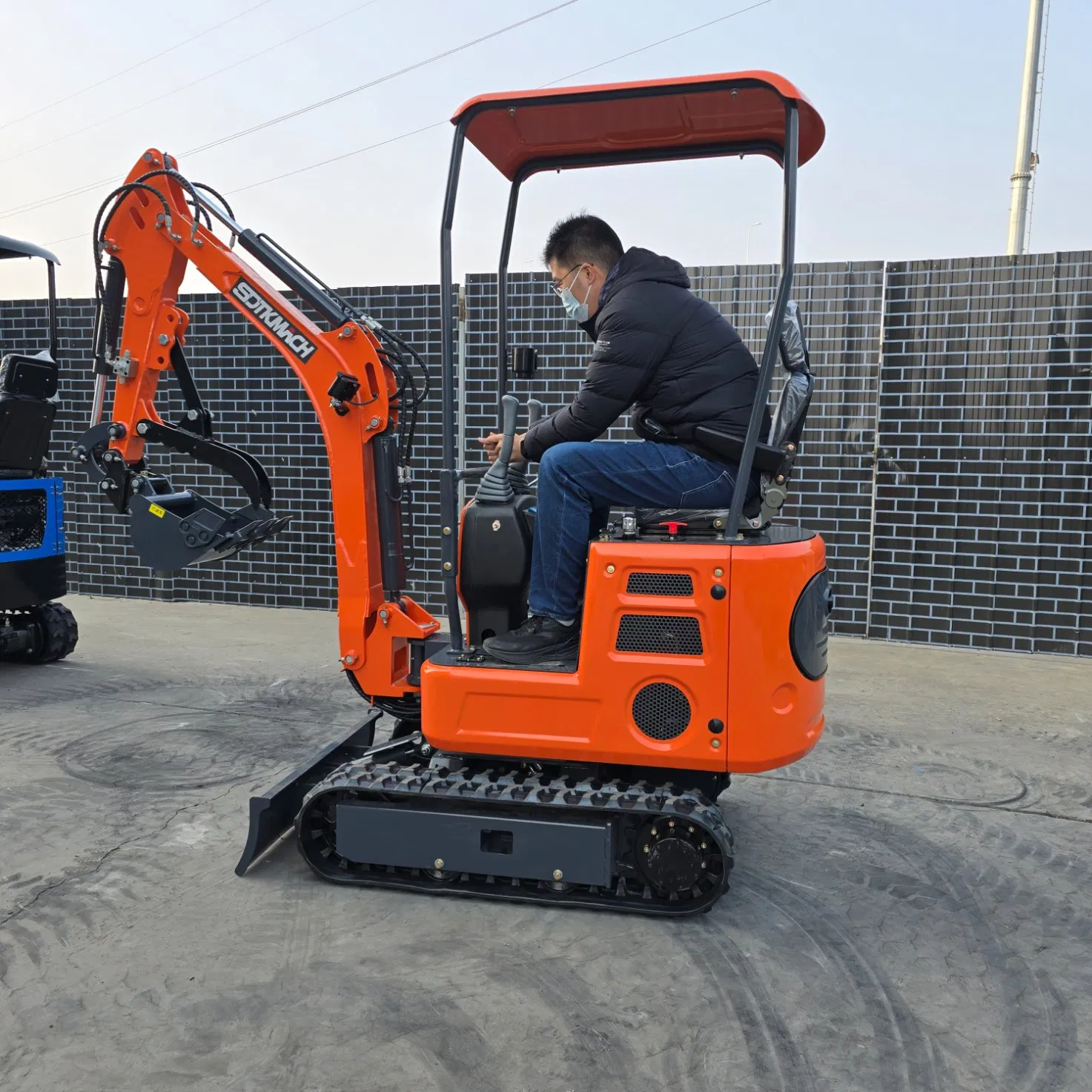

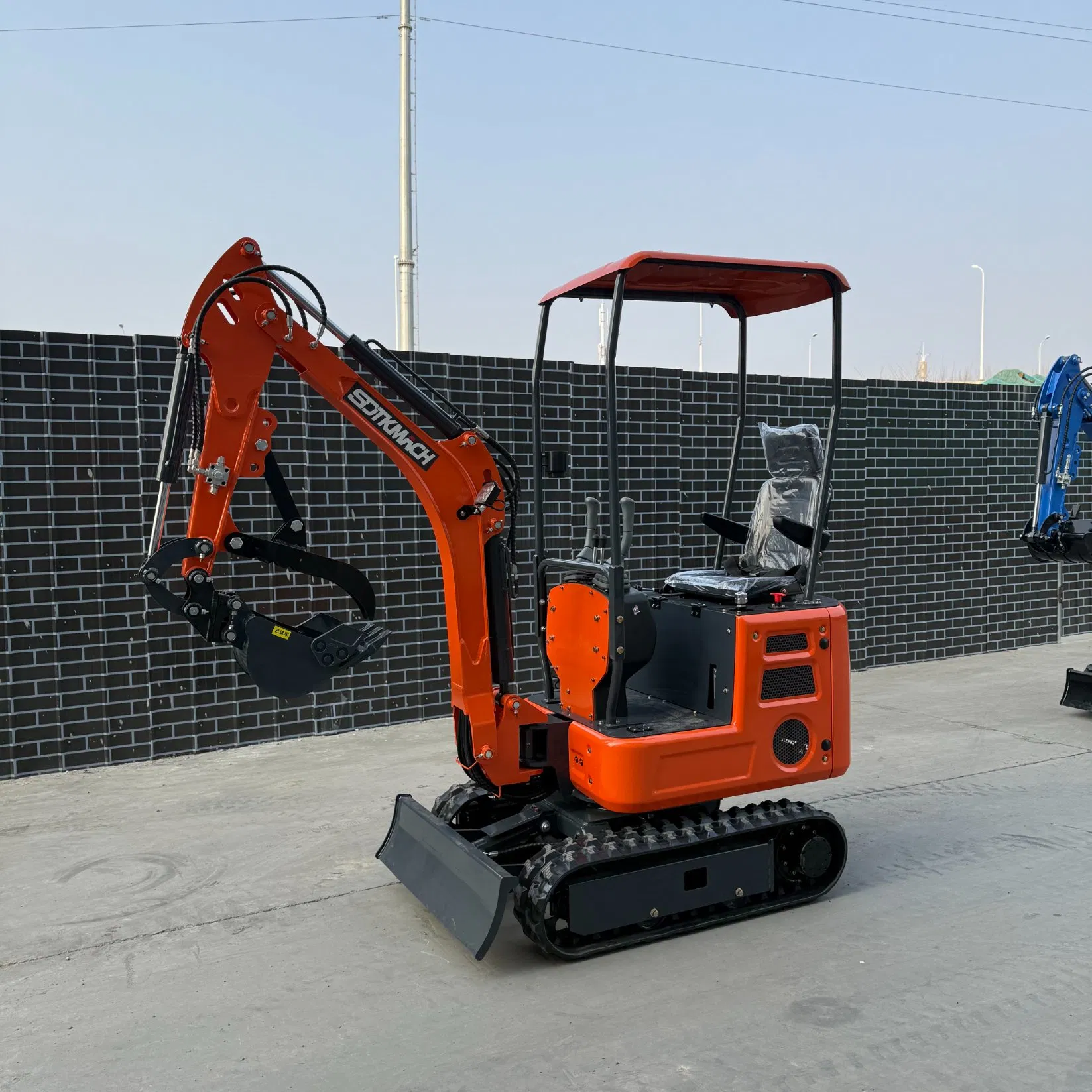

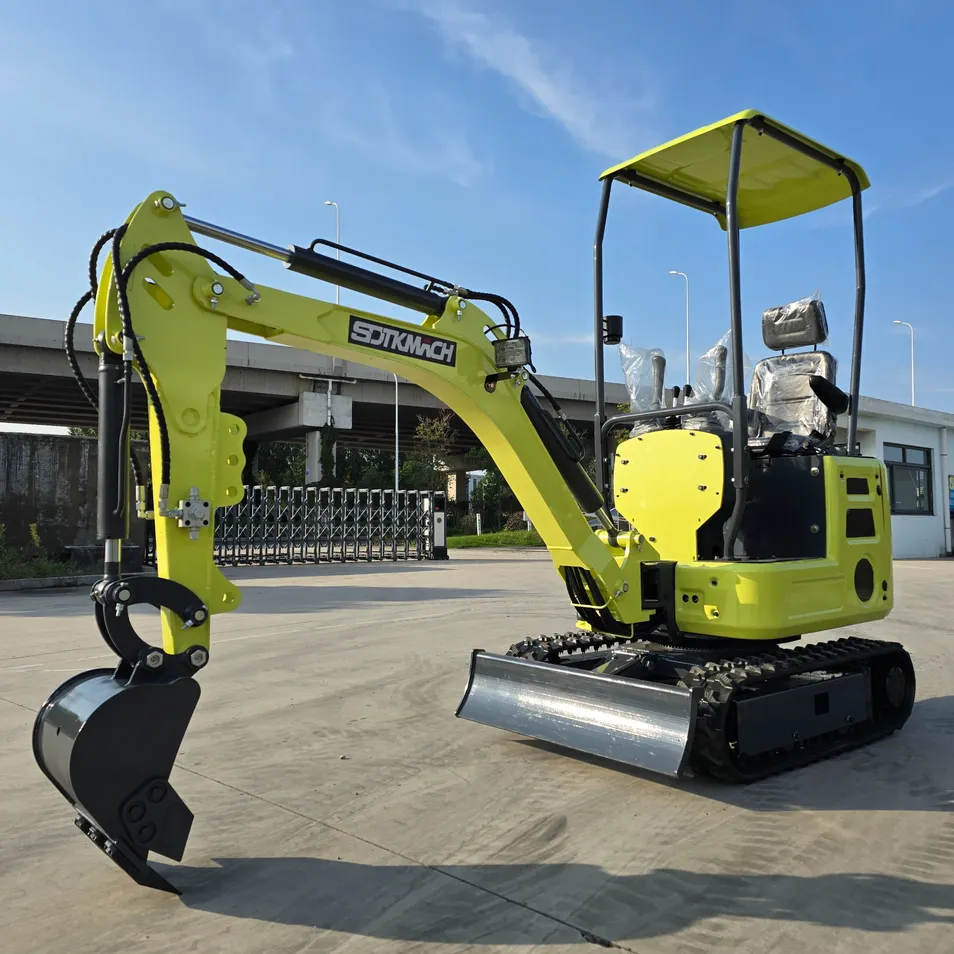

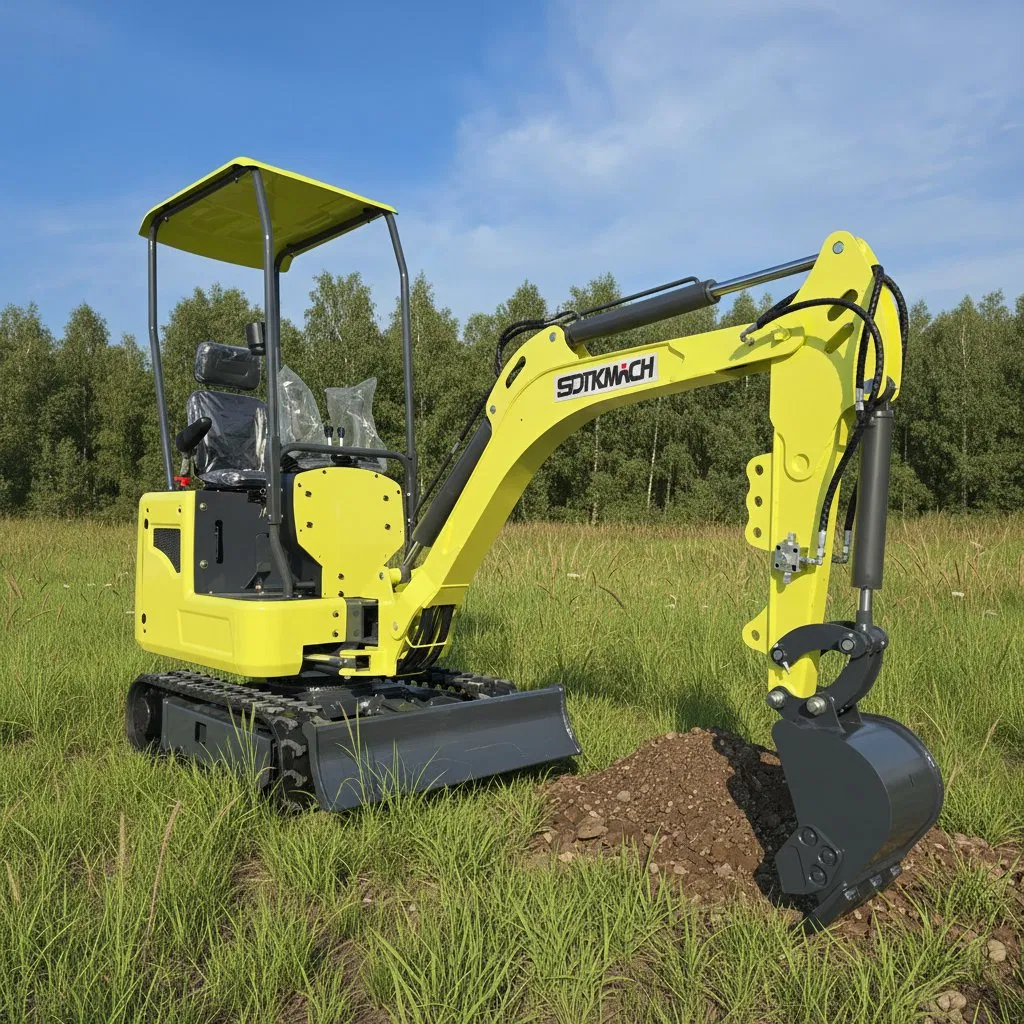

Meet the ultimate solution for space-impossible jobs. At just 940mm wide and with a true zero-tail-swing design (900mm radius), this hydraulic excavator is engineered to go where others cannot. It transforms confined areas—from basement renovations to historic alleyway repairs—into productive worksites.
With a width under 1 meter and 900mm tail swing, work in elevators, standard doorways, or inside crowded warehouses easily.

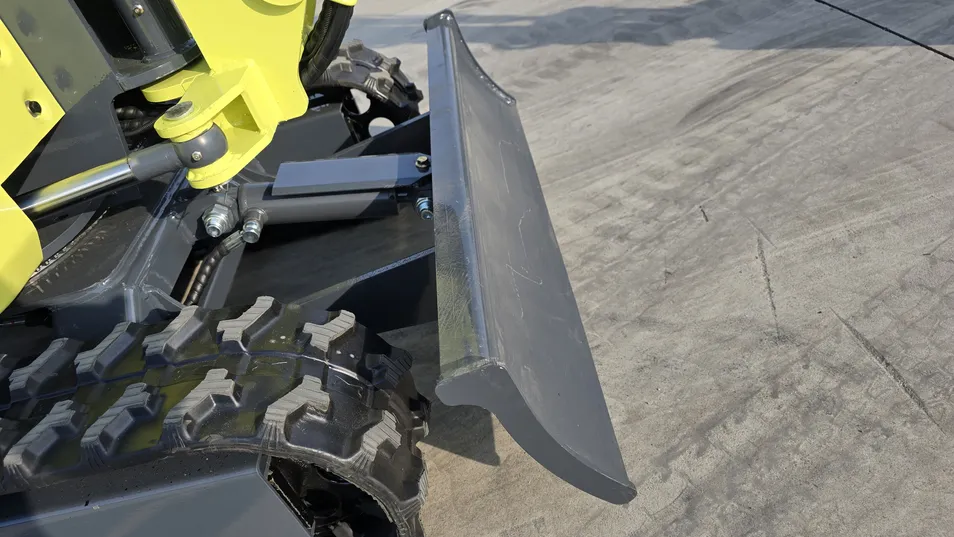

Efficient backfilling of trenches, final grade leveling, or light material spreading without extra tools.

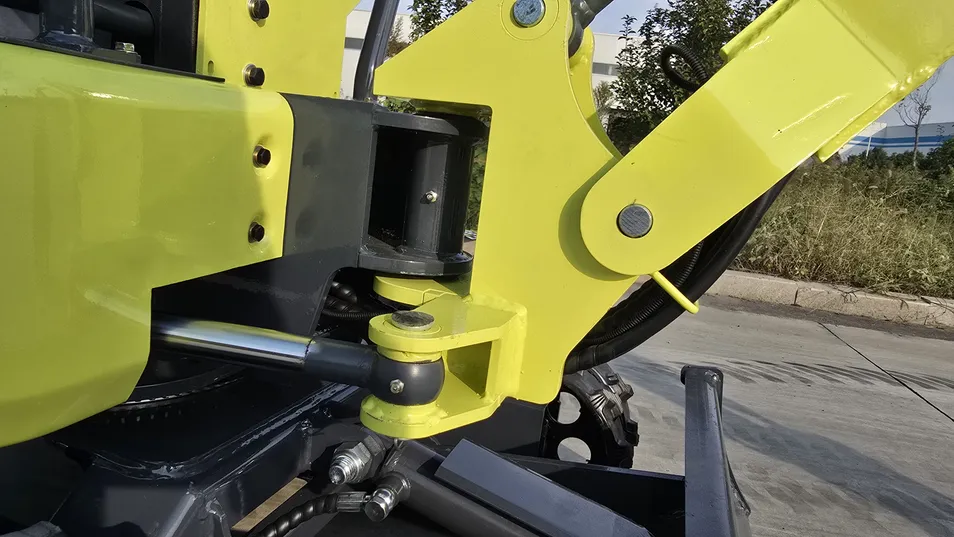

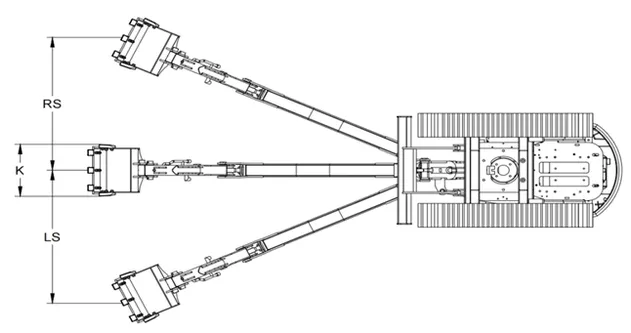

Asymmetrical boom swing allows digging alongside foundations or fences without repositioning the machine.

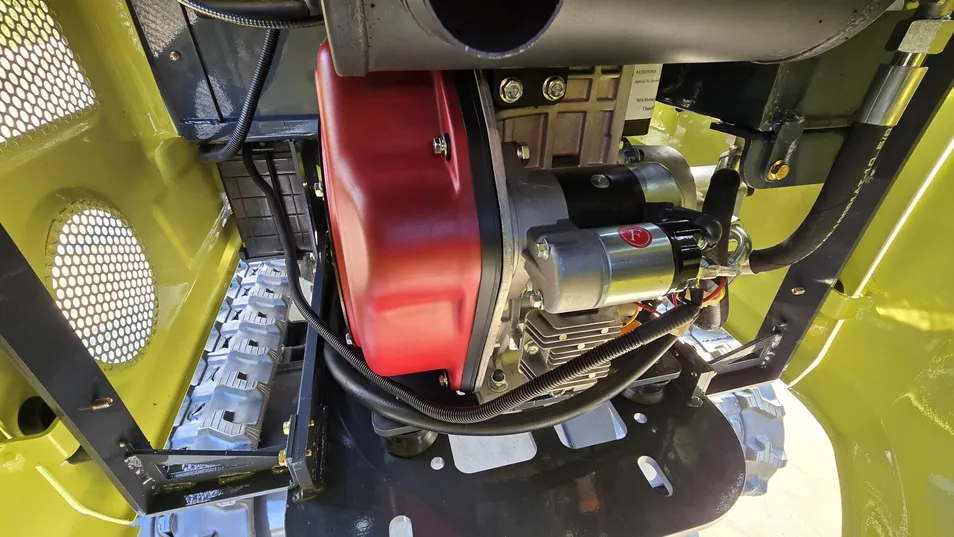

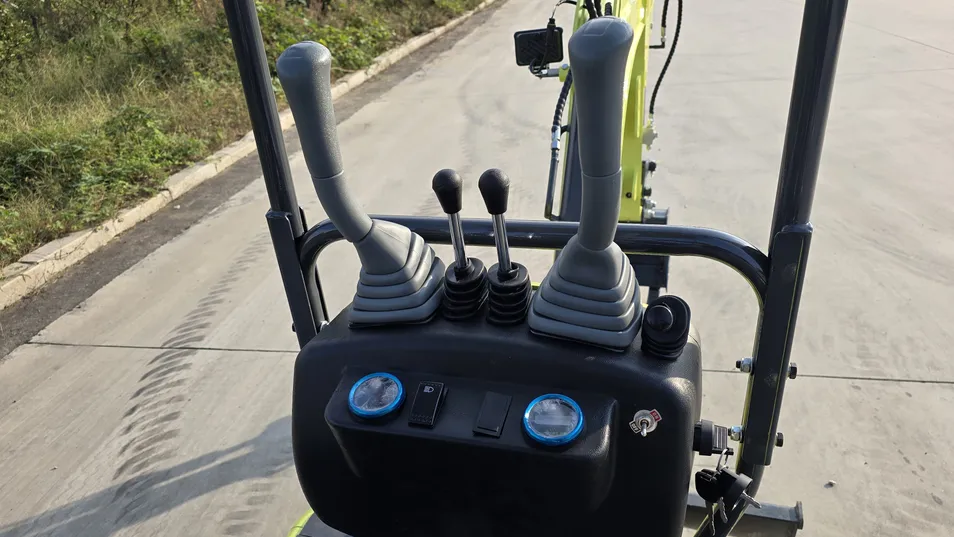

Mechanical brake system and straightforward hydraulics ensure reliability and simple maintenance.

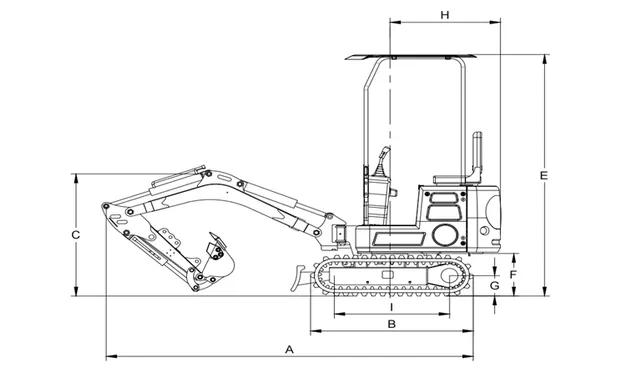

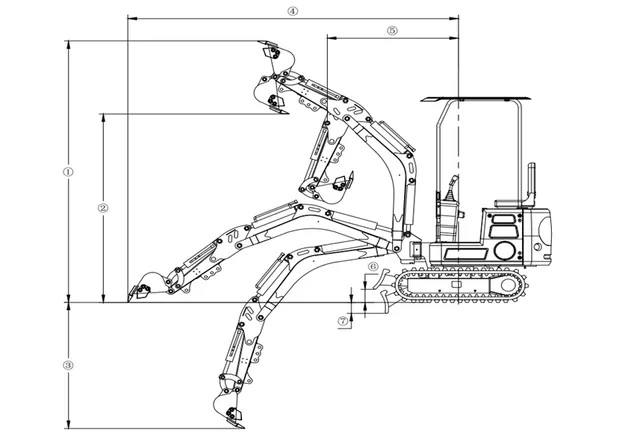

| Overall length | 3150 mm | Overall height (to top of cab) | 2160 mm |
| Overall width | 940 mm | Tail swing radius | 900 mm |
| Max. digging height | 2850 mm | Max. digging depth | 1750 mm |
| Max. digging distance | 3200 mm | Max. dumping height | 1950 mm |
| Bucket digging force | 9 kN | Travel speed | 2.5 km/h |
| Fuel tank capacity | 5.5 L | Hydraulic tank capacity | 10 L |

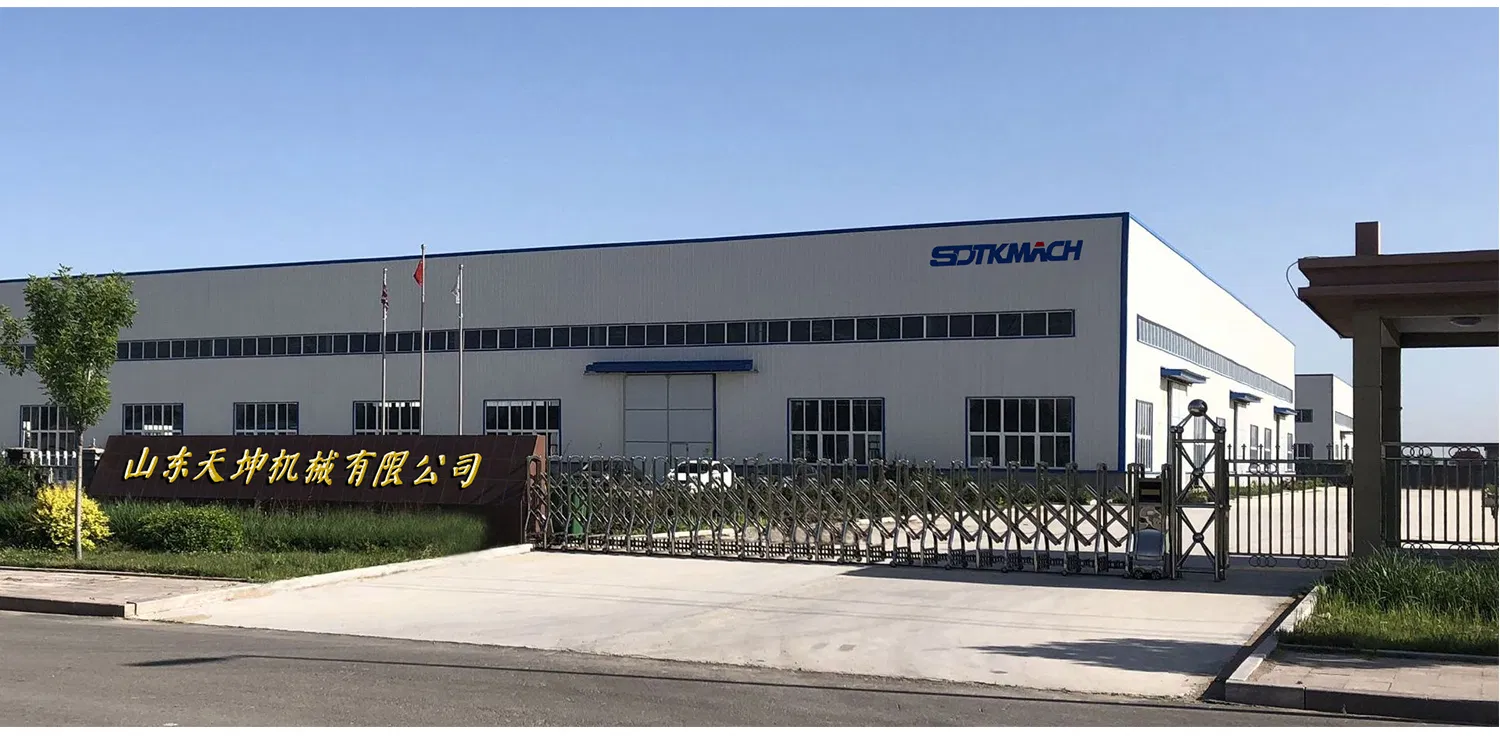

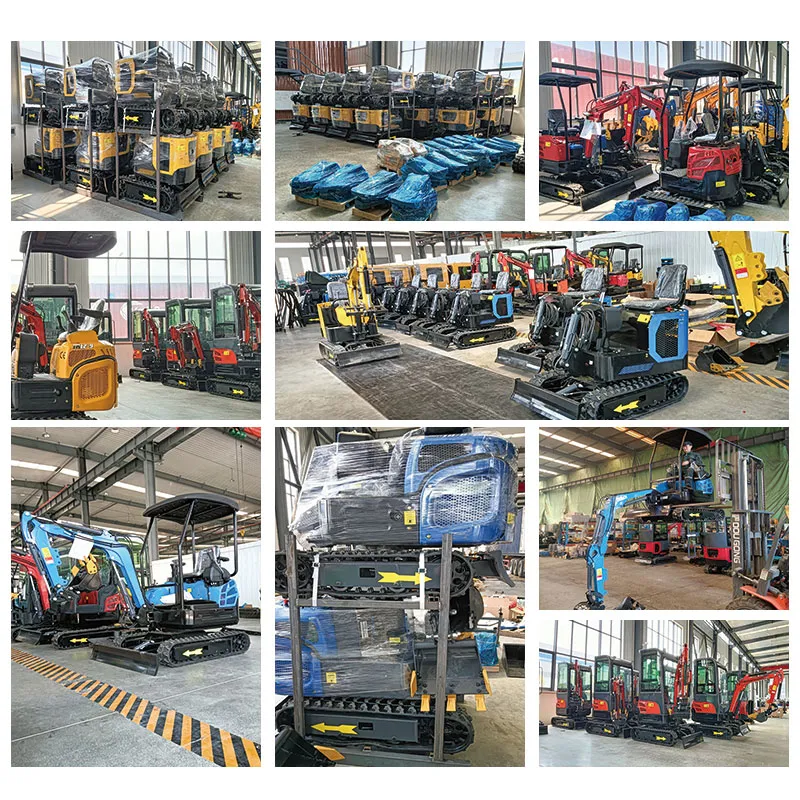

Specializing in the research, development, and production of construction machinery, our facility is located in a major industry base. We produce small excavators, lawn mowers, bulldozers, and loaders. We are committed to high-quality designs that meet diverse customer needs and provide customized services.
Strictly implementing ISO quality systems, we focus on every detail of production to ensure reliable service. A comprehensive after-sales system provides full lifecycle technical solutions for every device.
