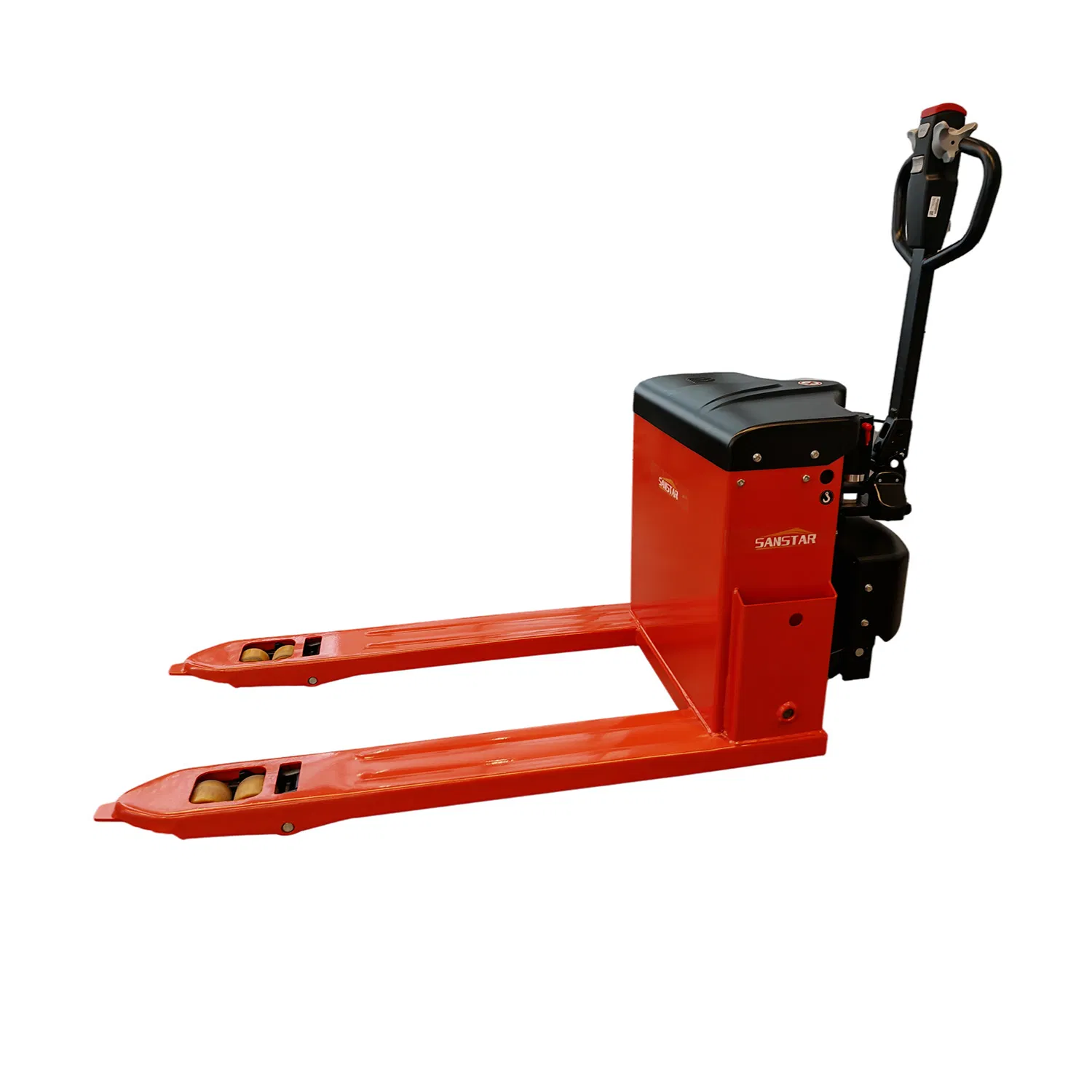

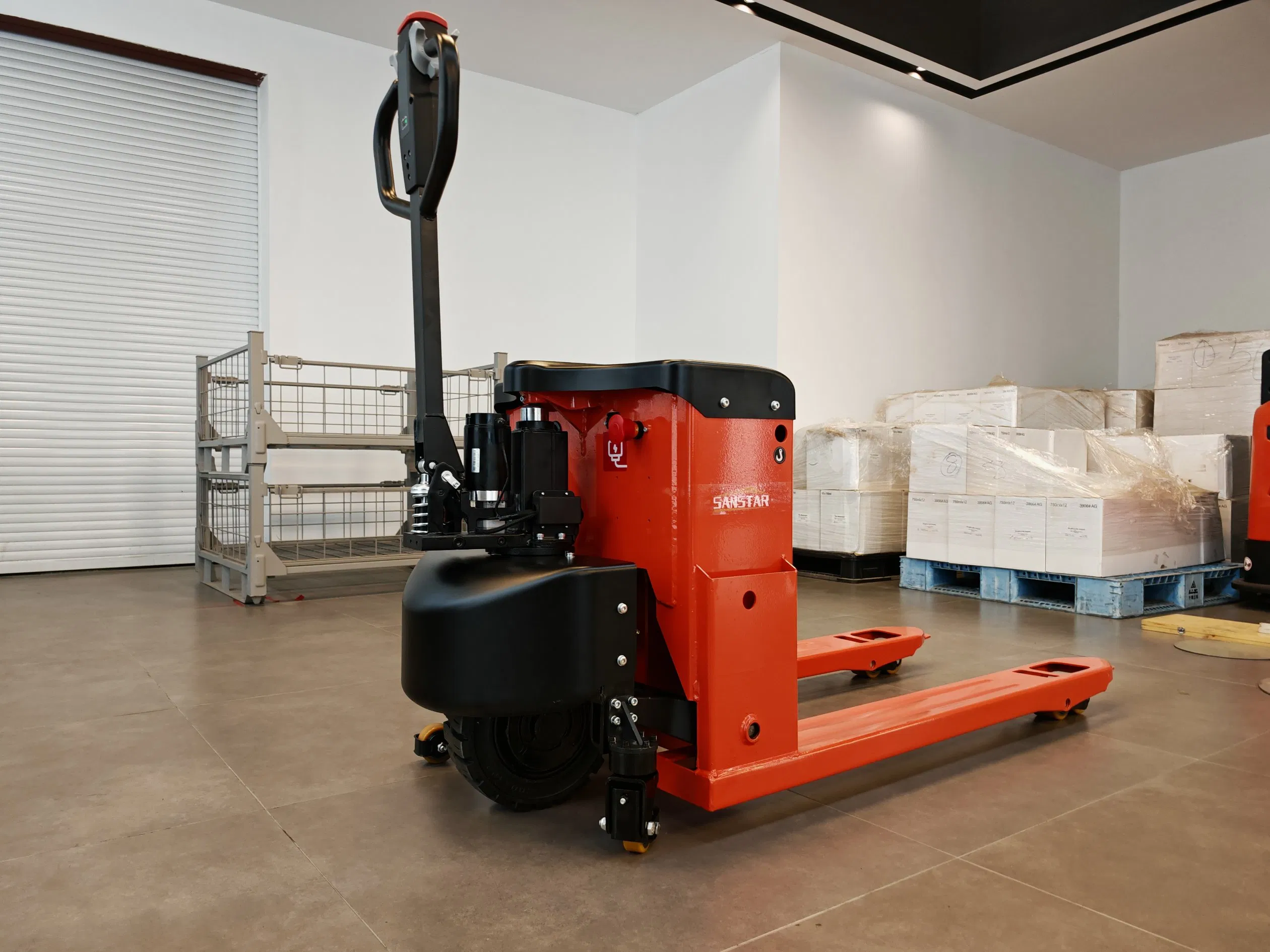

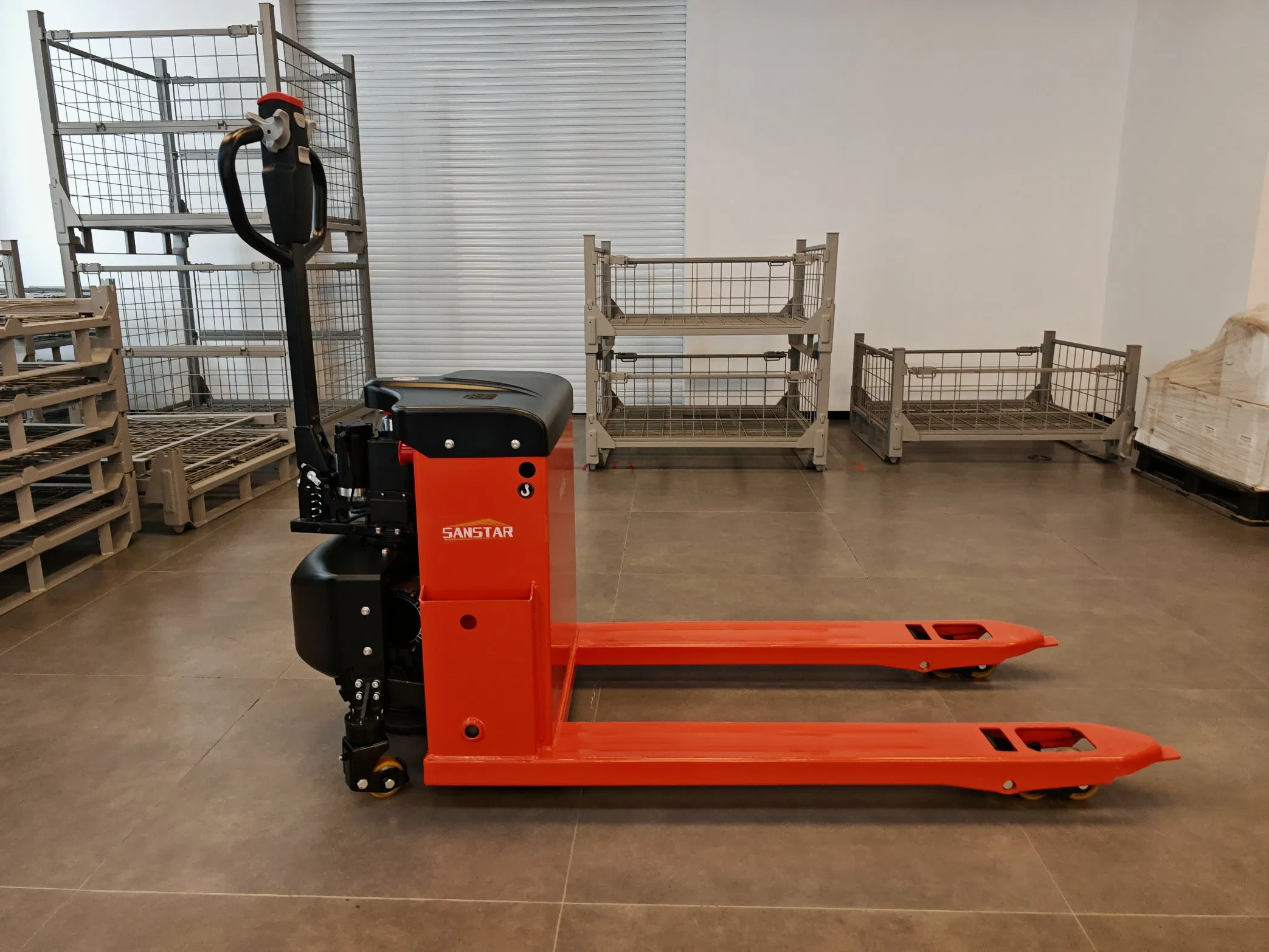

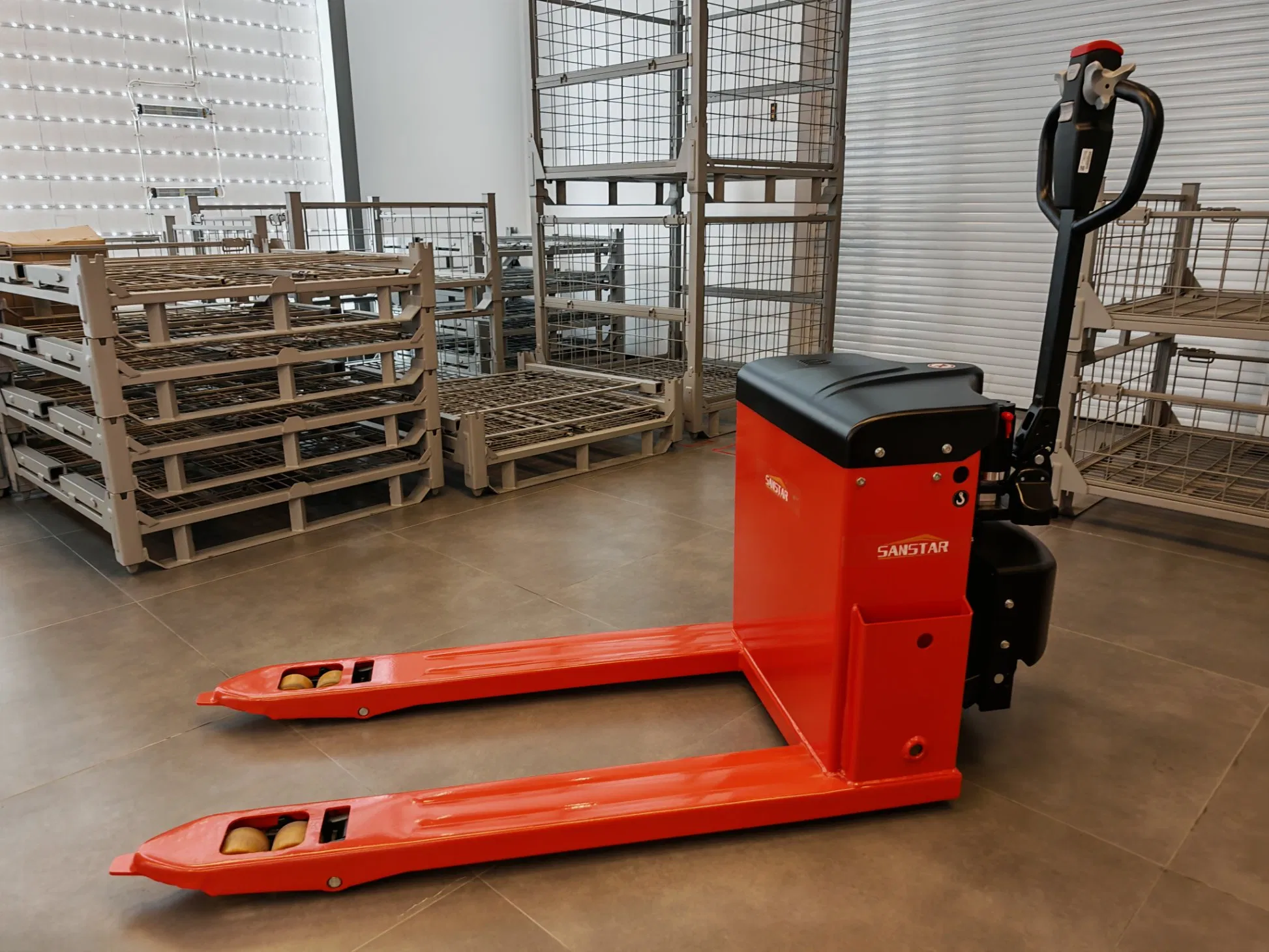

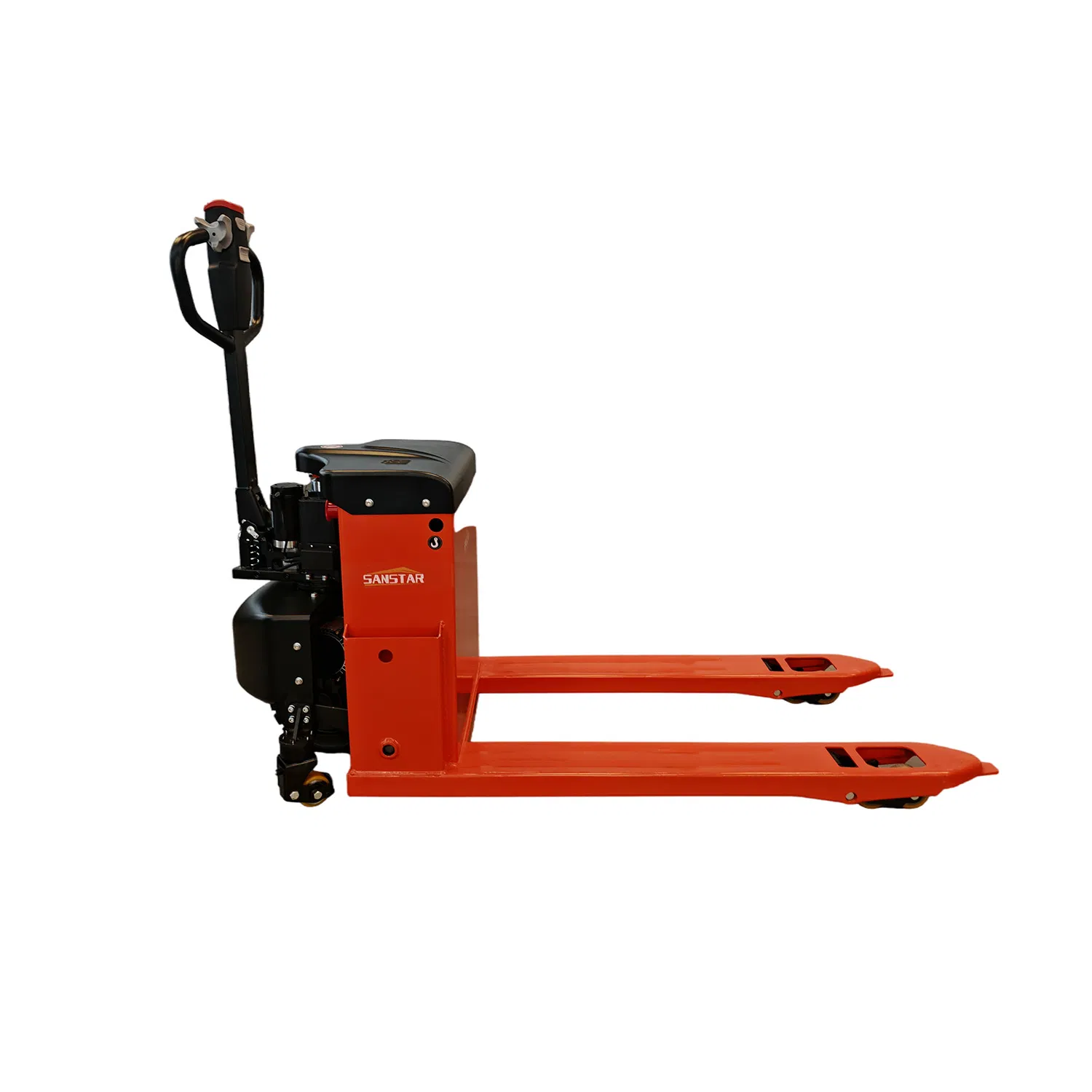

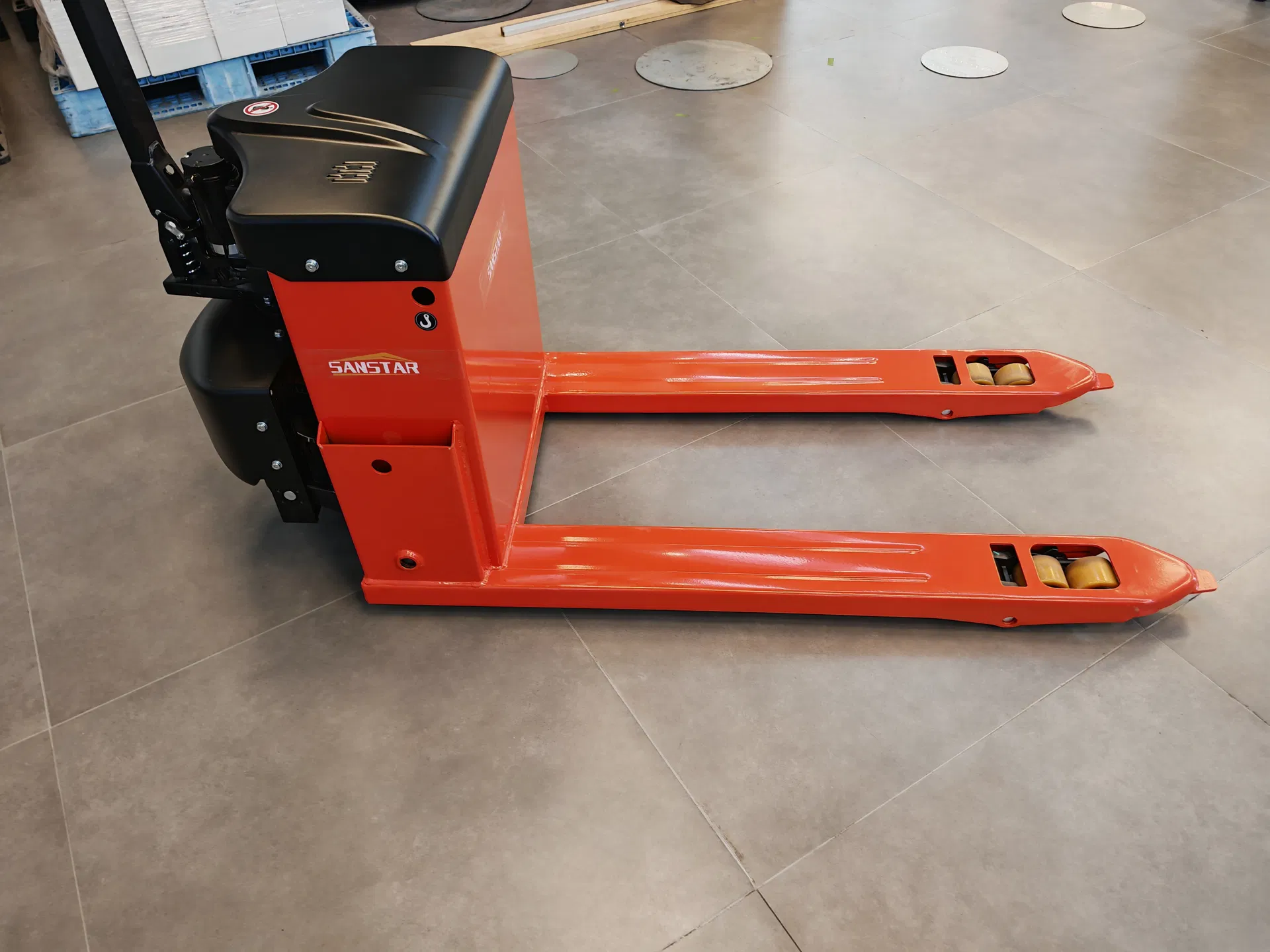

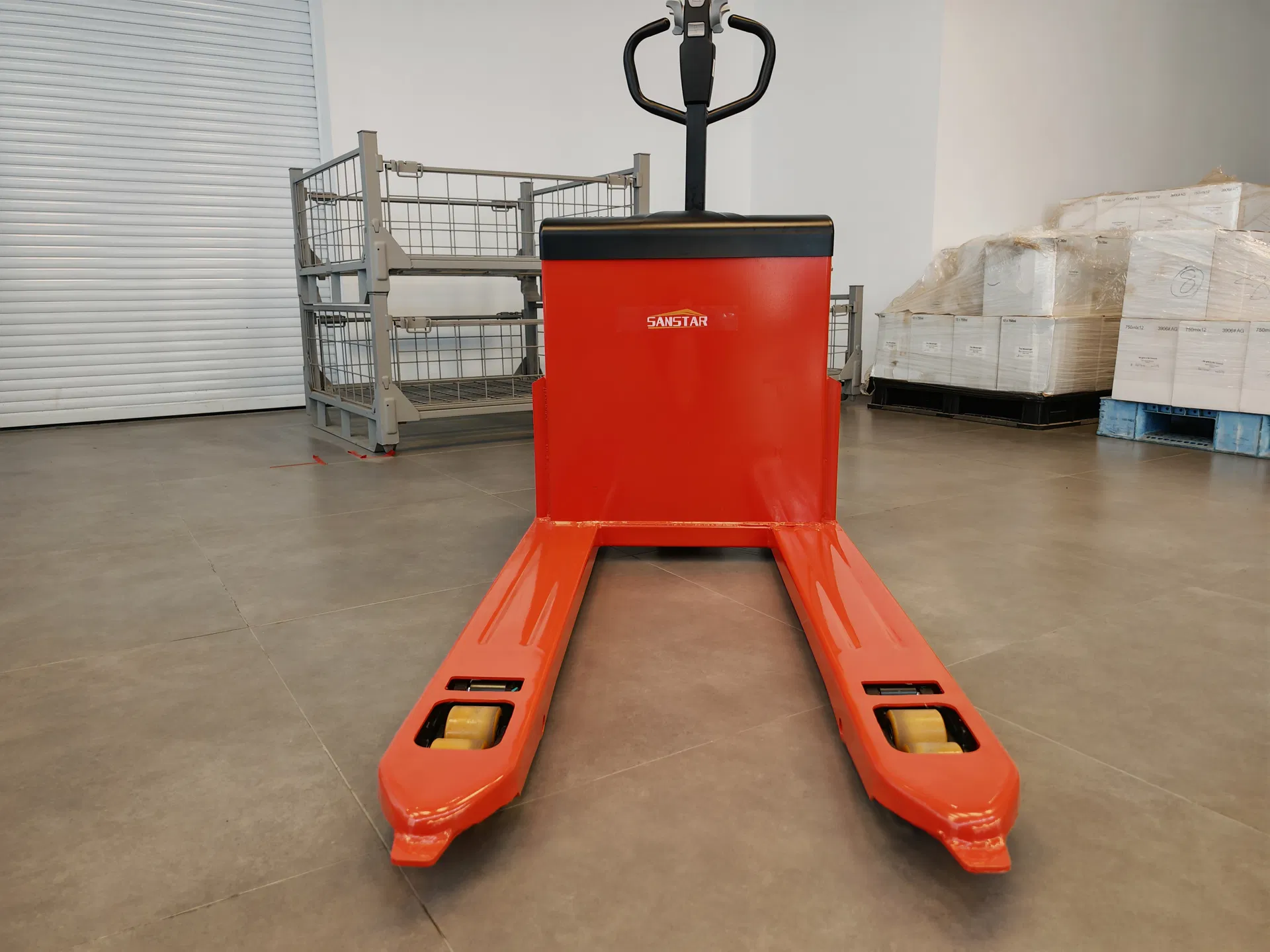

All-terrain pallet trucks are designed for transporting heavy loads over rough and uneven terrain. These heavy-duty and robust pallet trucks feature strong construction for dependable use in a variety of settings. Large diameter wheels optimize manoeuvrability over soil, grass, and other unpaved surfaces.
| Category | Feature | Unit | Details (PTE30R) |
|---|---|---|---|
| Feature | Power form | - | Electrical |
| Operation | - | Pedestrian | |
| Load | kgs | 3000 | |
| Wheelbase | mm | 1290 | |
| Weight | Self weight with battery | kg | 225kgs |
| Wheel | Wheel Type | - | Front Rubber, rear PU |
| Driving wheel size | mm | φ300×100 | |
| Number of wheels | - | 1/4 | |
| Size | Maximum height of fork | mm | 195 |
| Fork outer distance | mm | 685 | |
| Length of forks | mm | 1150/1220 | |
| Turning Radius | mm | 1510 | |
| Capability | Travel speed, laden/unladen | km/h | 4.2/4.9 |
| Brake type | - | Electronic / electromagnetic | |
| Battery | V/Ah | 48/32 Lead Acid |

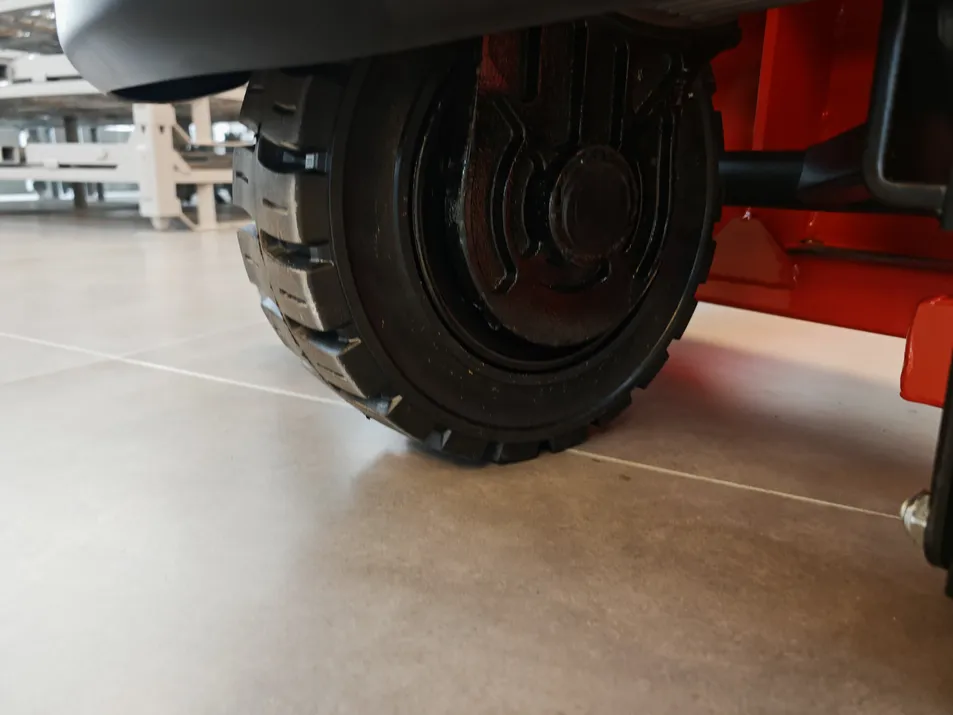

300x95mm heavy-duty solid rubber driving wheel, strong wear resistance, strong grip friction, 85mm ground clearance. It can easily cope with mud, gravel, and uneven harsh environments.
50mm hydraulic cylinder diameter. The square oil pump design has more oil filling capacity, larger air intake volume and stronger lifting force than standard round pumps.
