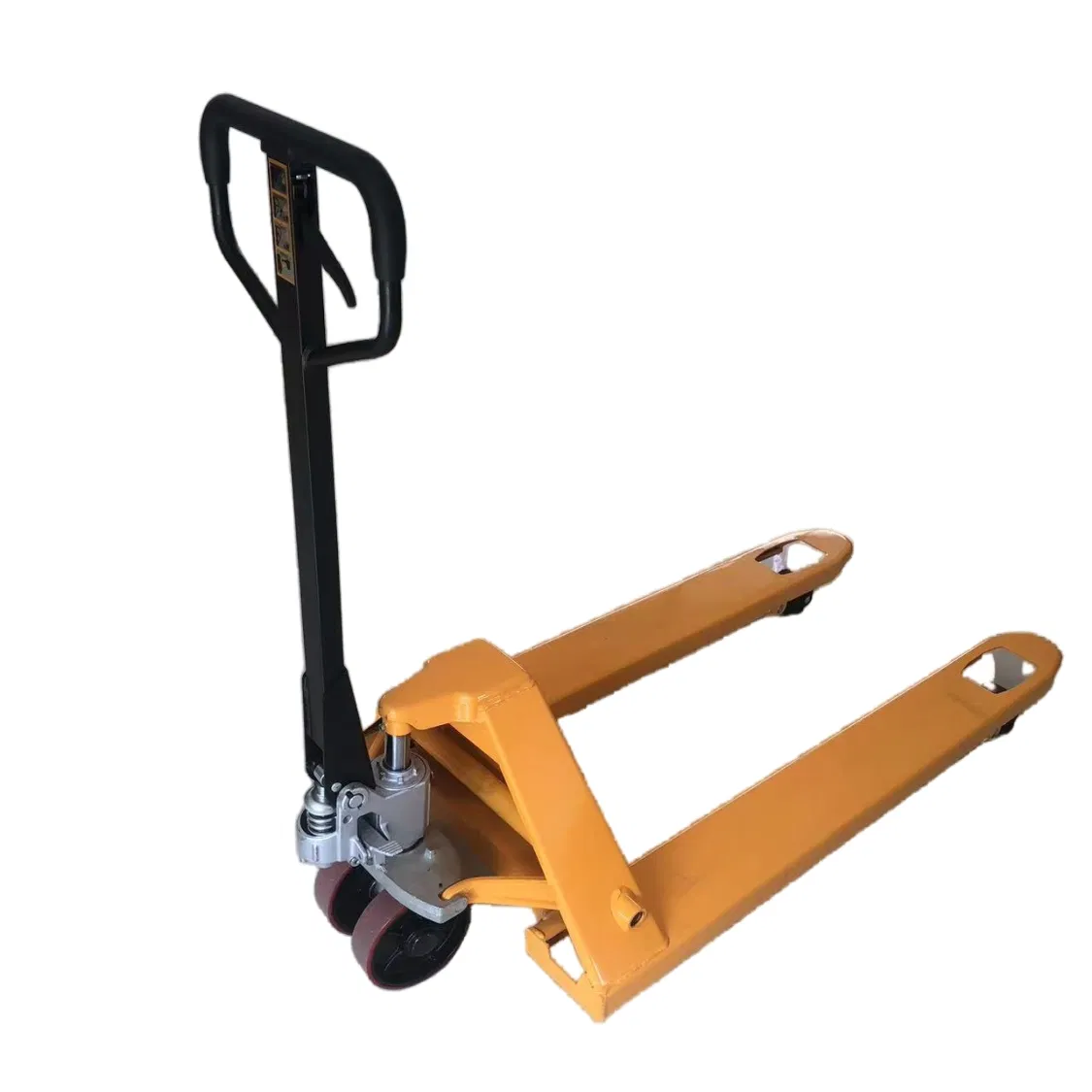

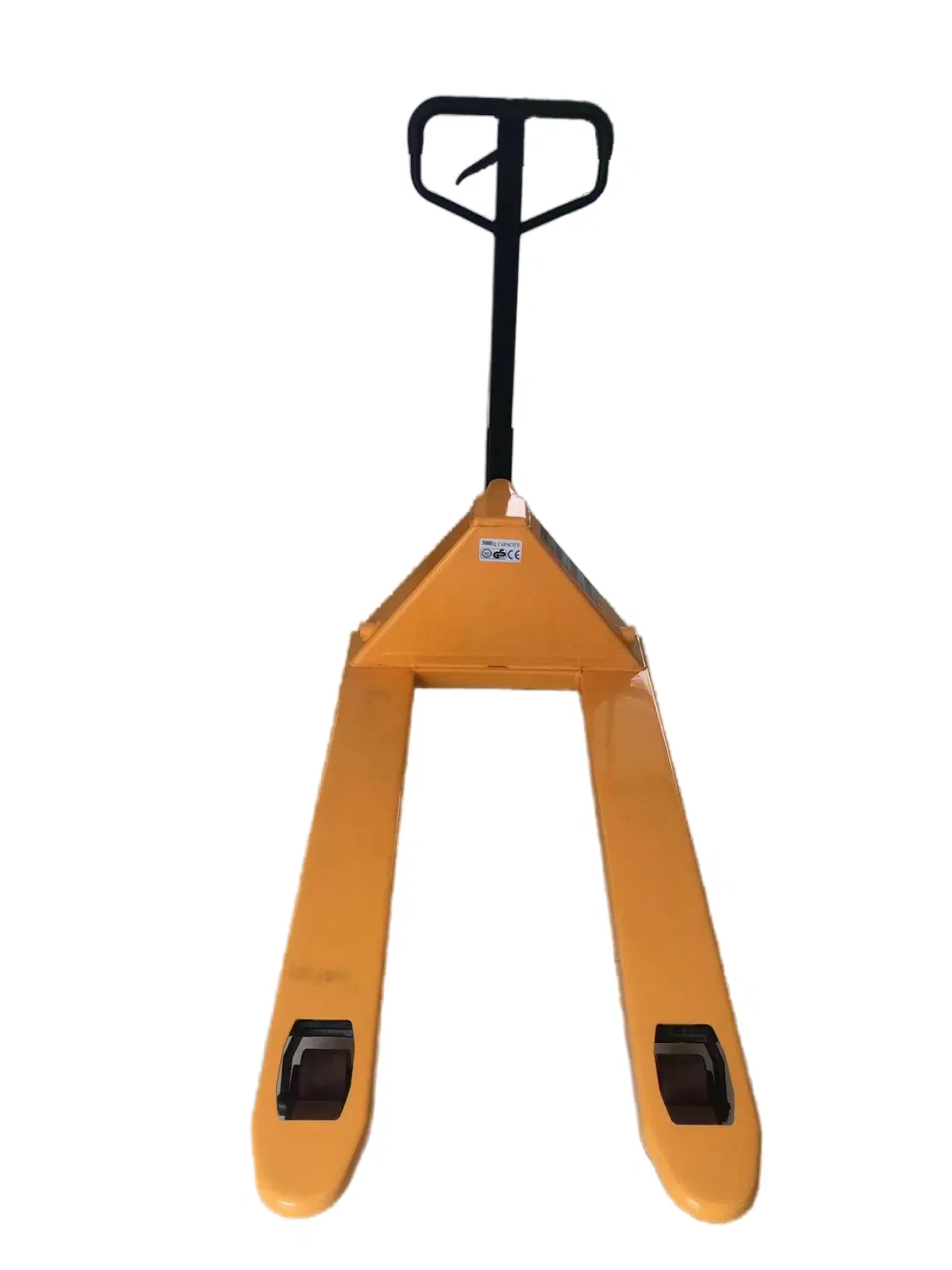

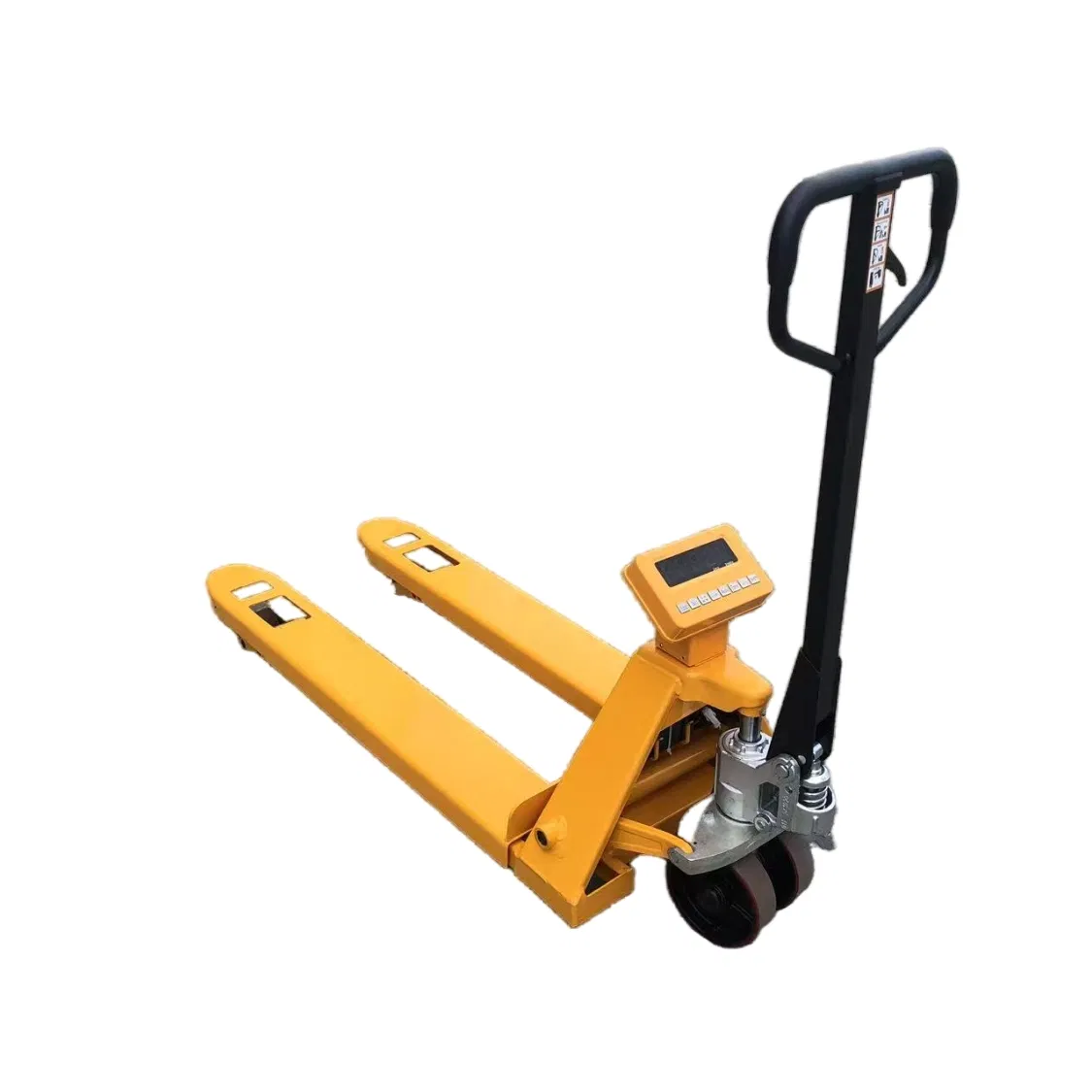

New Mini Electric Powered Power Battery Industrial Hydraulic Hand Manual Forklift Fork Lift Pallet Stacker Truck Jack

📋

Basic Information

Model NO.

SDC-A

Cab Location

Adjustable

Type

Manual Pallet Truck

Power

Hand

Load Capacity

1T - 5T

Fuel

Hand

Load Center

500mm

Lift Height

85mm-195mm

Condition

New

Certificate

CE and ISO

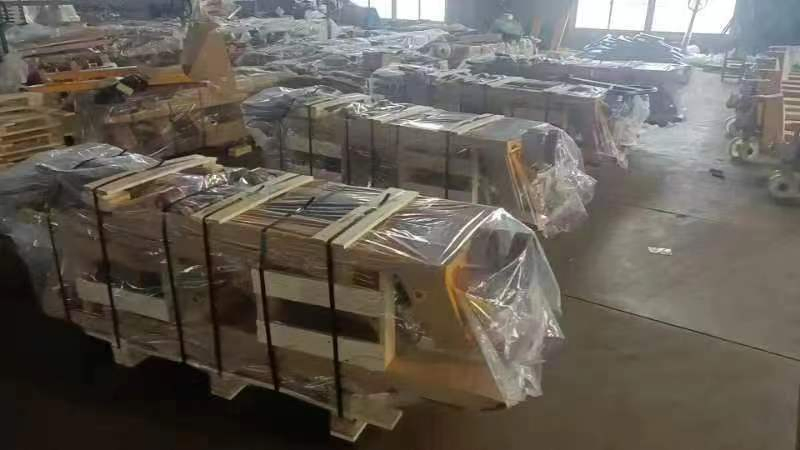

Transport Package

Wooden Box or Other

Specification

fork width 550mm/685mm

HS Code

8427900000

Production Capacity

20000

📦

Packaging & Delivery

Package Size

220.00cm * 70.00cm * 70.00cm

Gross Weight

420.000kg

🛠️

Product Application Technology Characteristics

The pallet truck is economical in design;
Standard epoxy resin powder coating, anti-fragmentation, anti-corrosion;

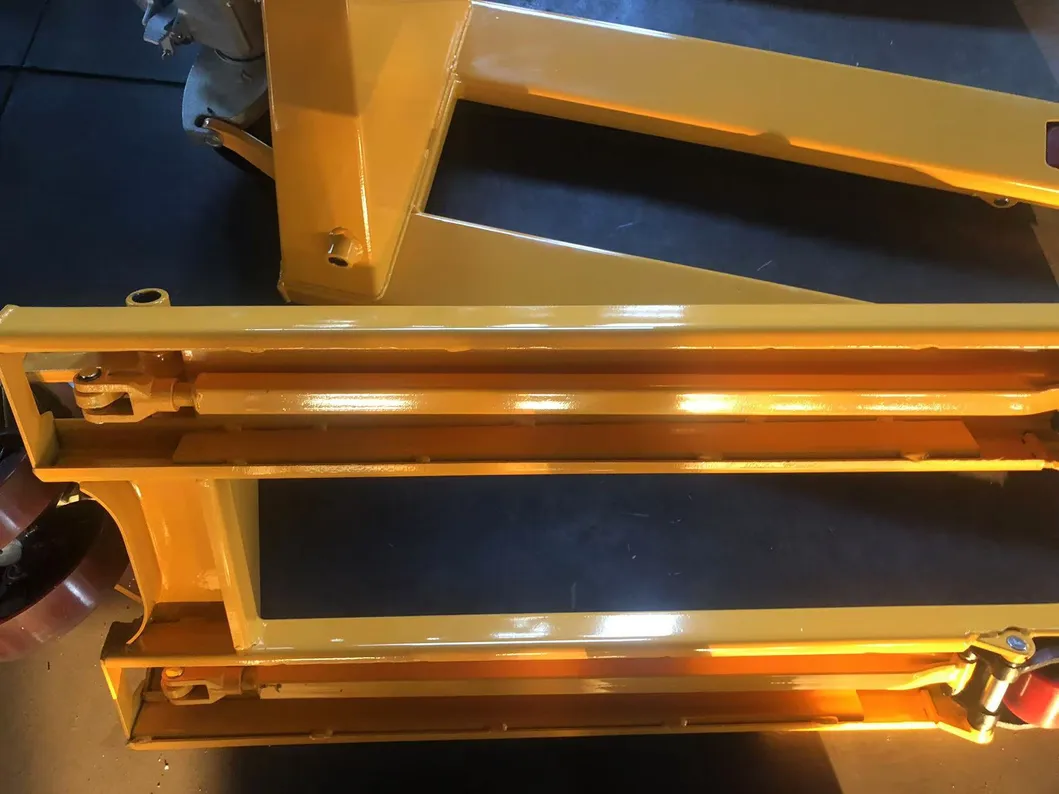

Extremely strong lightweight steel structure, the body weight is only 70kg;
Solder joints and reinforced fork tips for durability;
Three-stage handle - lifting, lowering, neutral;
High quality 190 degree corner setting;
The number of strokes of the oil pump is up to 8 times, and the height of each stroke is up to 11 mm;
Reliable oil leakage hydraulic system;

📊

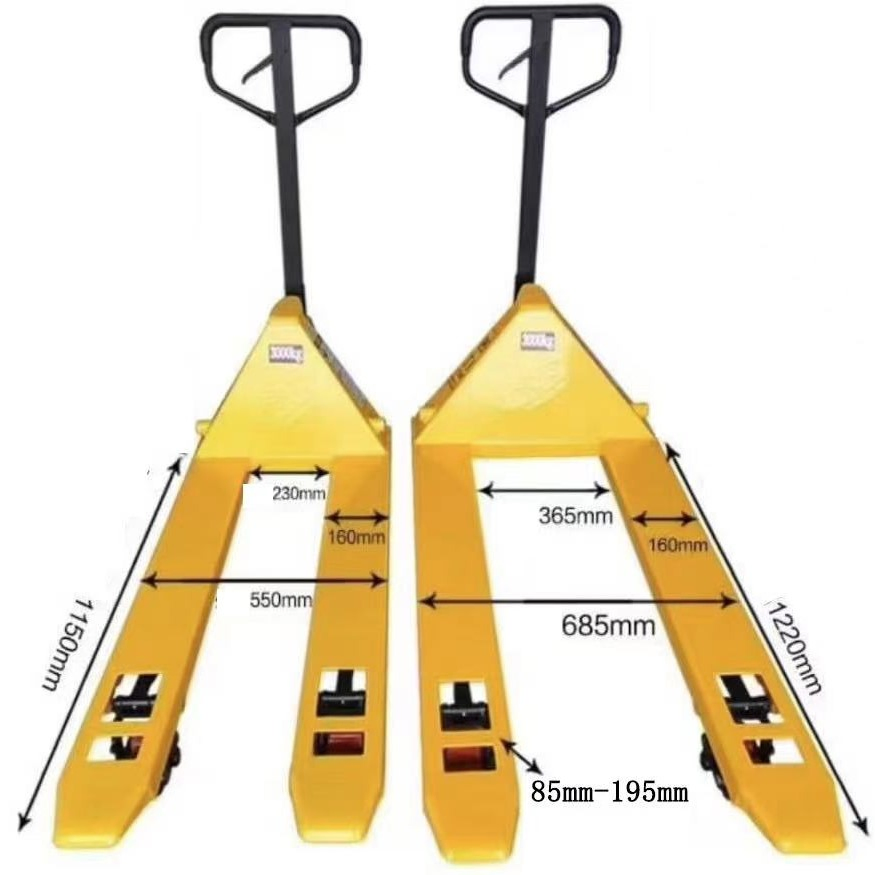

Technology Parameter

model	unit	SDC-A20	SDC-A25	SDC-A30	SDC-A50
load capacity	kg	2000	2500	3000	5000

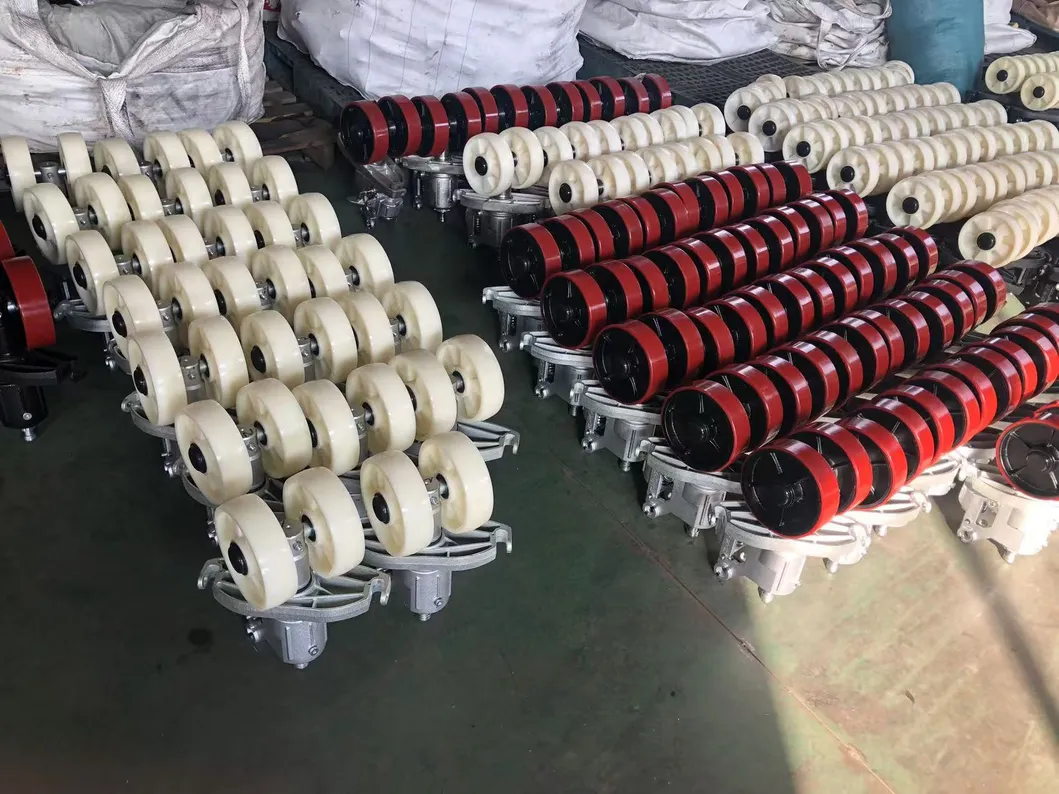

front wheel size	mm	φ180*50	φ180*50	φ180*50	φ180*50
rear wheel size	mm	φ80*70	φ80*70	φ80*70	φ80*70
lifting height	mm	85-195	85-195	85-195	85-195
total height	mm	1250	1250	1250	1250
overall length	mm	1480/1580	1480/1580	1480/1580	1480/1580
fork length	mm	1150/1220	1150/1220	1150/1220	1150/1220
outer width of fork	mm	550/685	550/685	550/685	550/685
ground clearance	mm	30	30	30	30
turning radius	mm	1265/1335	1265/1335	1265/1335	1265/1335
net weight	kg	60-68	64-71	68-75	132-140

❓

Frequently Asked Questions

Q1: How long is the warranty period for your pallet trucks? A: We provide 12 months or 2000 working hours warranty as standard, whichever comes first.

Q2: What are the standard payment terms? A: Our standard term is 30% in advance and 70% in balance by TT before delivery or against the original B/L copy.

Q3: What is the typical lead time for an order? A: It takes 15-20 days for classic forklifts, pallet trucks, and stackers, and 5-10 days for spare parts.

Q4: Do you offer customization for logos or colors? A: Yes, we can customize the configuration, logo, label, and color according to your specific requirements.

Q5: Is there a minimum order quantity (MOQ)? A: Yes, the MOQ is 1 unit for most products. For very small handling equipment, we can check on a case-by-case basis.

Q6: What makes the steel structure of this truck special? A: It features an extremely strong yet lightweight steel structure, with a total body weight of only 70kg for easier handling.
