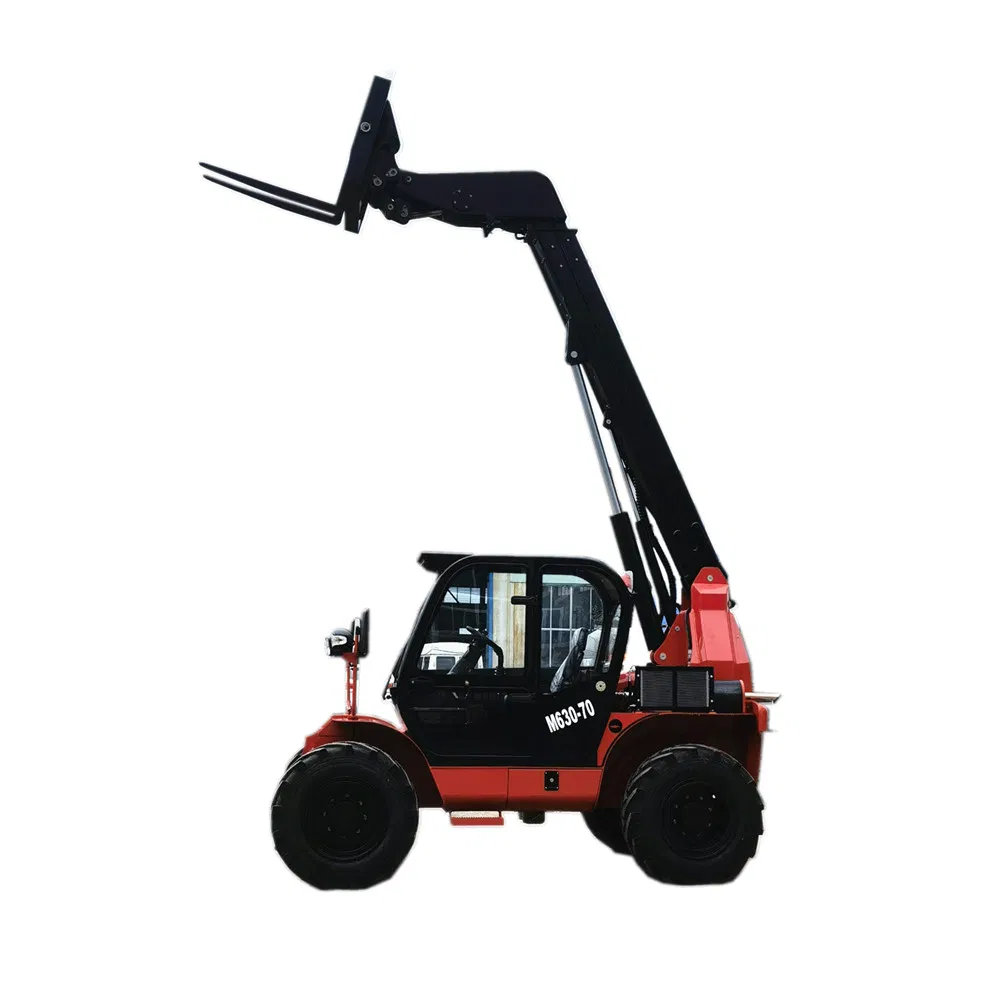

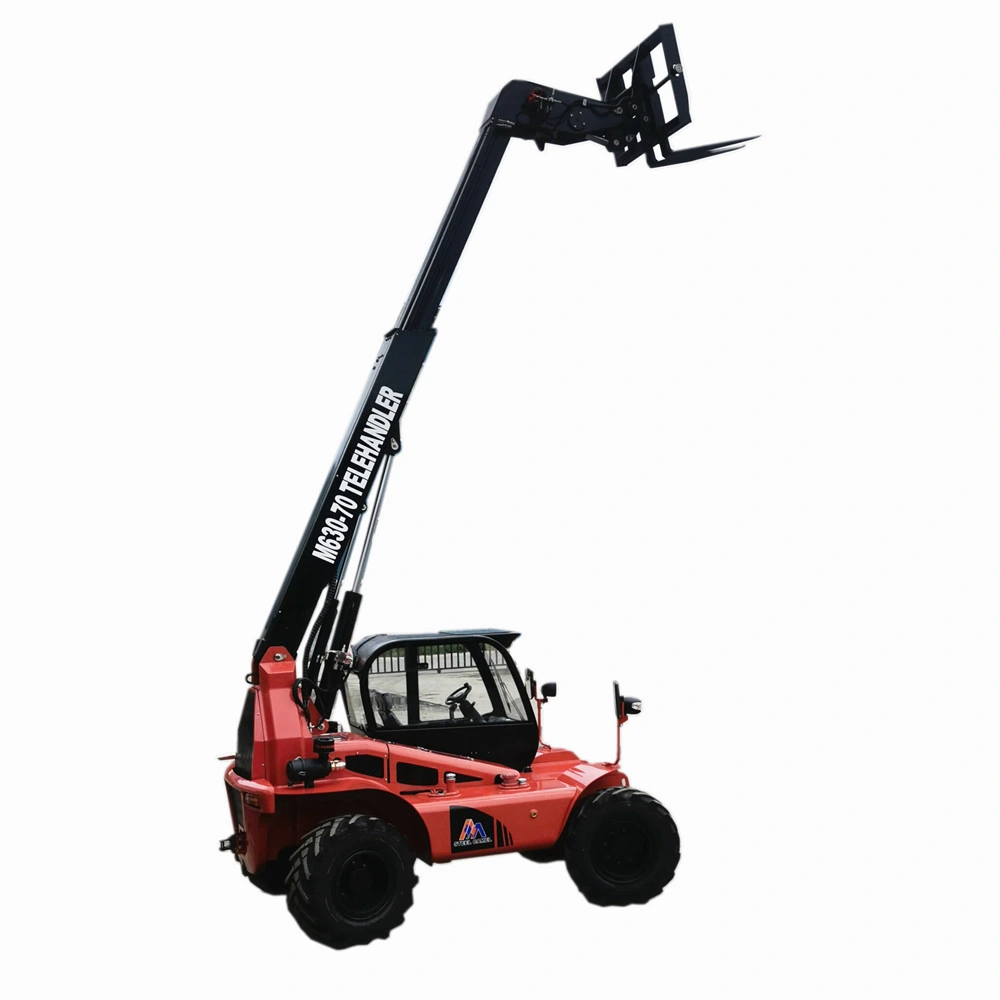

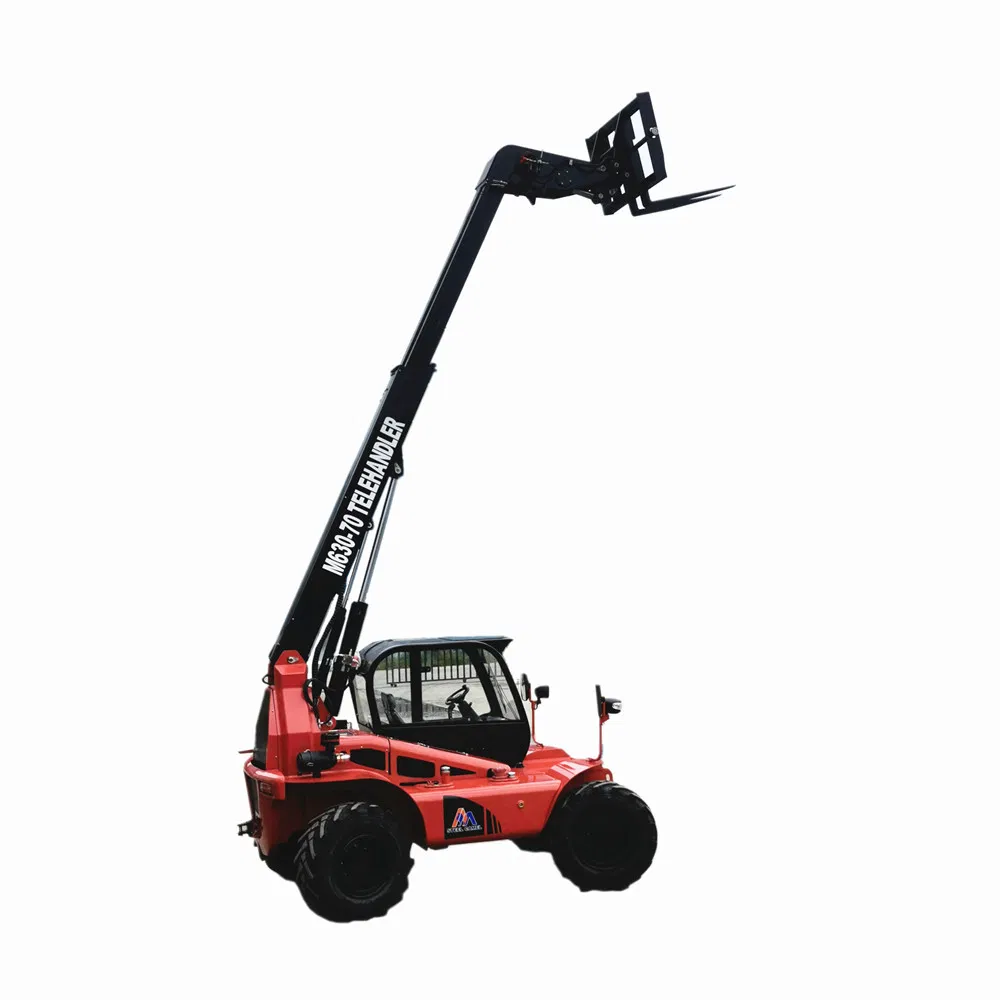

CE 2/3/4/5t Telescopic Boom Handler Mini 4X4 Terrain Forklift Telehandler

1 / 5

CE 2/3/4/5t Telescopic Boom Handler Mini 4X4 Terrain Forklift Telehandler

Customization:	Available
After-sales Service:	Warranty Technical Support Spare Parts
Warranty:	18 Months

Send Inquiry

Product Description

📊 Basic Information

Model

M730 telehandler

Type

Diesel Forklift

Load Capacity

1T - 5T (Rated 3000kg)

Max Lift Height

>7000mm

Power

Diesel Engine (55~75kw)

Driving Type

Hydrostatic 4 Wheel Drive

Weight

6500kg

Steering

Full Wheel Steering

🏗️ Product Description

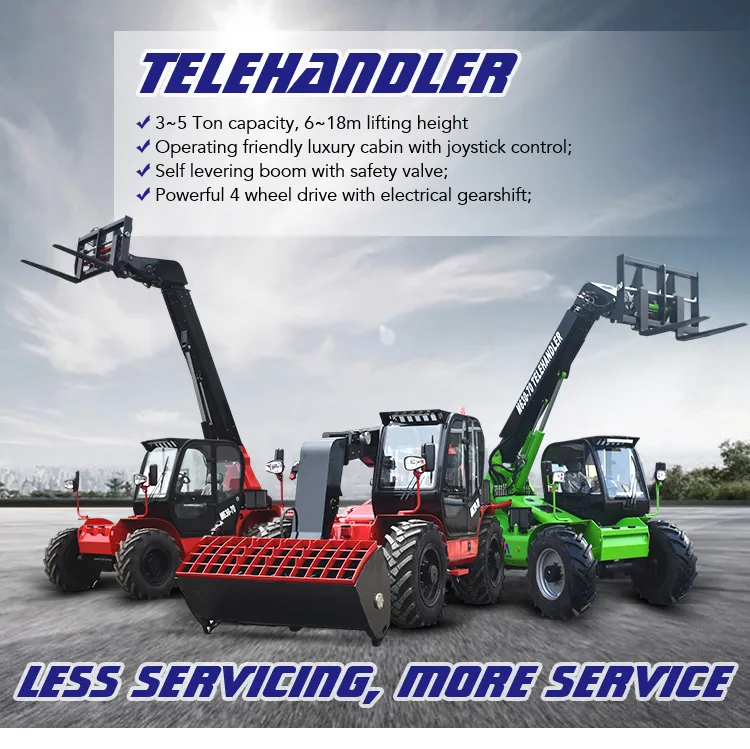

CE Diesel Telehandler - Mini 4X4 Terrain Telescopic Boom Handler Forklift

This telehandler adopts a powerful torque converter transmission, 4-wheel drive, and all-wheel steering (including crab steer options). It offers fantastic maneuverability in rough farming and construction terrain. It is a combined machine of a forklift and telescopic loader, providing superior efficiency and stability in material handling.

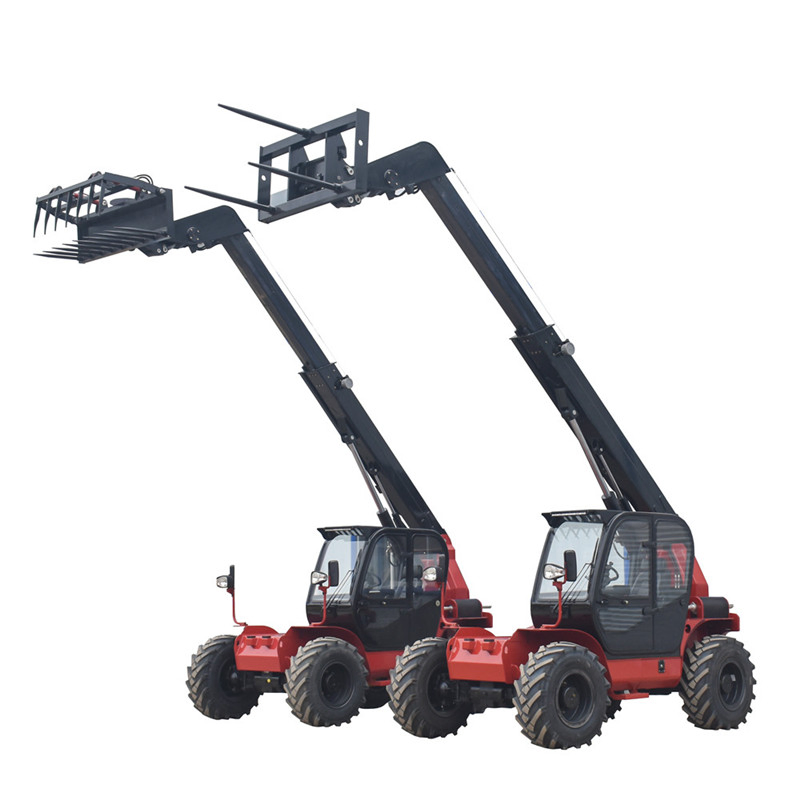

Equipped with a hydraulic quick hitch and auxiliary flow, this machine can handle diverse tasks: farming, construction, material loading, gardening, and snow cleaning.

📋 Technical Parameters

Engine	Kohler EPA Tier 4 / Yanmar / Chinese
Rated Power	55kw~75kw
Dimension (LxWxH)	4250x2200x2490mm
Rated Loading Capacity	3000kg
Max. Lifting Height	7000mm
Max. Reach (Extended)	4000mm
Speed	10/24 km/h
Min. Turning Radius	3700mm
Operating Weight	6500kg
Tire Size	16/70-20
Hydraulic Output	96L/min

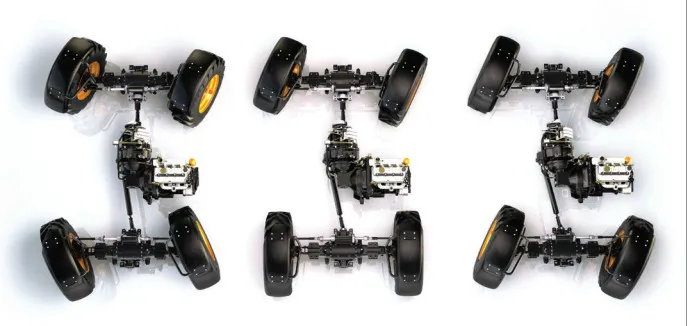

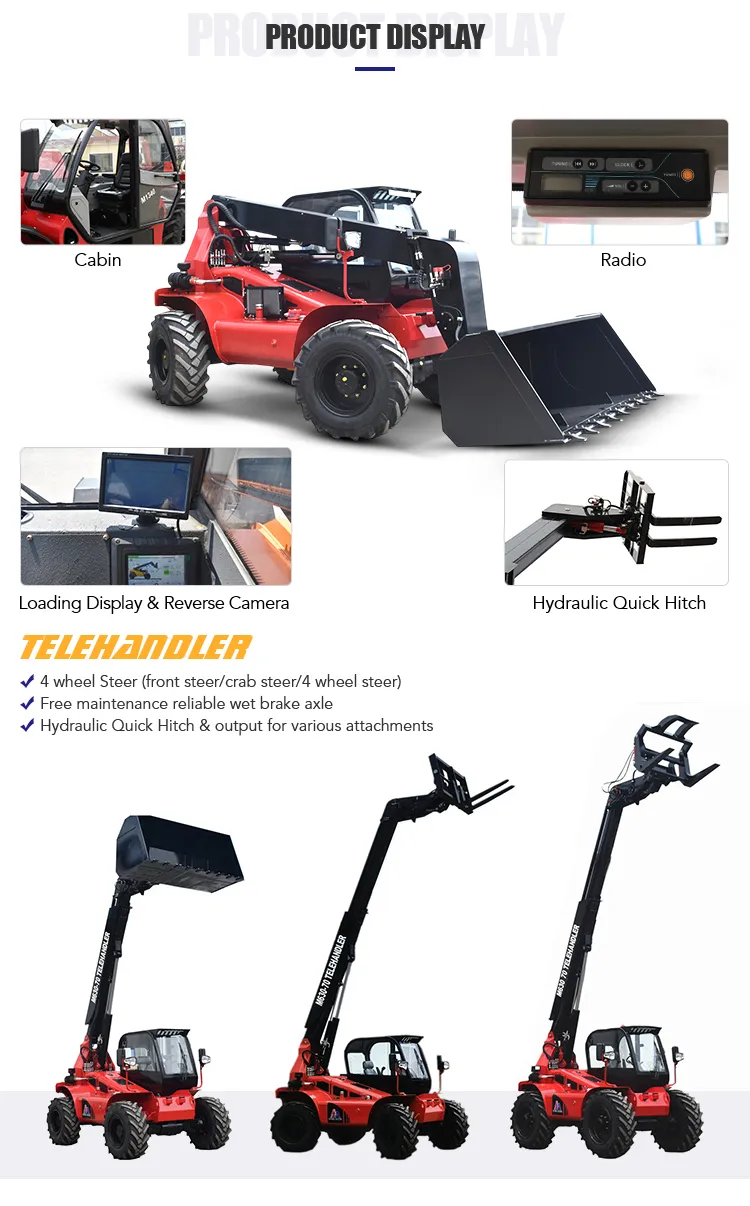

📸 Steering Modes & Details

• Crab steering: For special positioning needs.
• Front steering: Optimized for road driving.
• 4-wheel steering: For limited space operations with minimum turning radius.

🛠️ Product Application

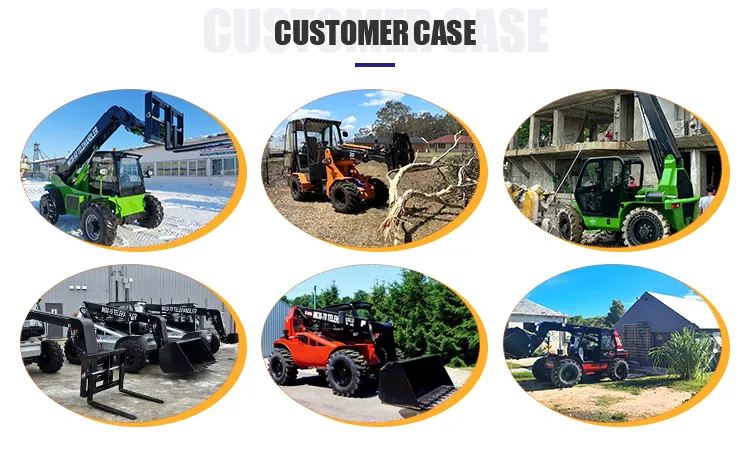

Ideal for tasks involving material lifting, moving, or placing. Widely used in construction material handling, container carrying, logistics, and agricultural fields. Features like four-wheel drive and hydrostatic transmission guarantee stability and safety in rough areas.

🚢 Packaging & Shipping

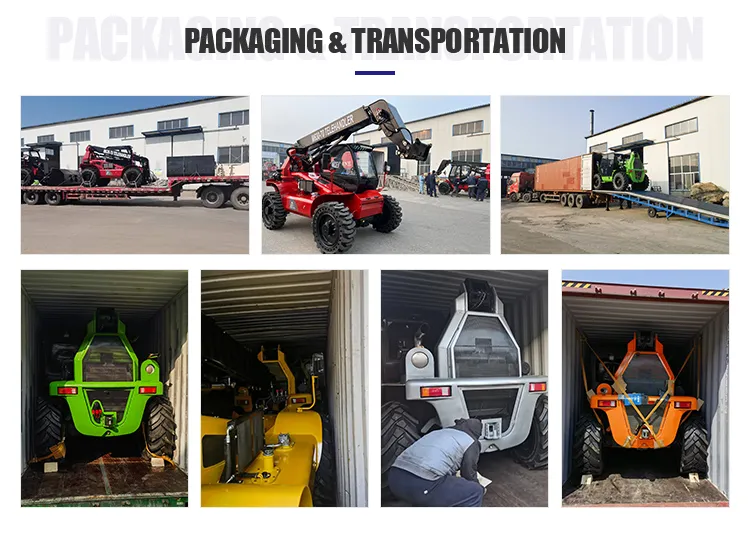

Loading Condition: 2 sets per 40ft HQ container. Machines are driven into the container directly and shipped fully assembled.

🏭 Manufacturing Excellence

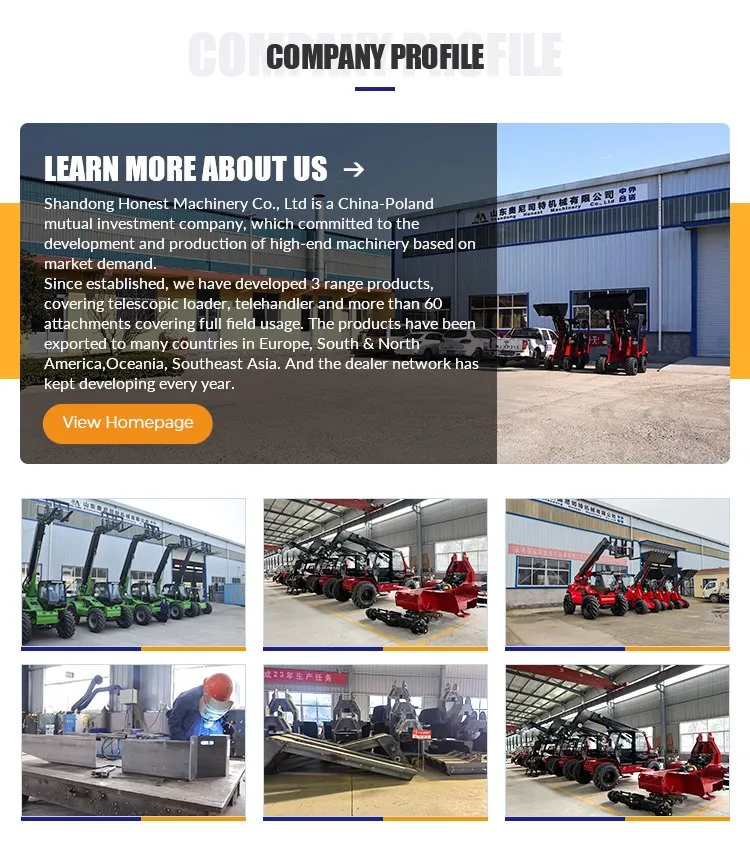

Direct Manufacturer with 100% guarantee. Professional Telehandler Factory with 9 patents obtained, authorized as a "National High Tech Enterprise". All products are designed for heavy-duty work, reliability, and long service life.

❓ Frequently Asked Questions

1. What is the maximum lifting capacity of the M730 telehandler?

The machine has a rated loading capacity of 3000kg.

2. What types of steering are available on this model?

The M730 features three steering modes: Front-wheel steering for road travel, 4-wheel steering for tight spaces, and Crab steering for lateral movement.

3. Which engines can be fitted into the telehandler?

Available options include Kohler EPA Tier 4 engines, Yanmar engines, or high-quality Chinese brand engines, depending on local emission requirements.

4. Can this machine be used with different attachments?

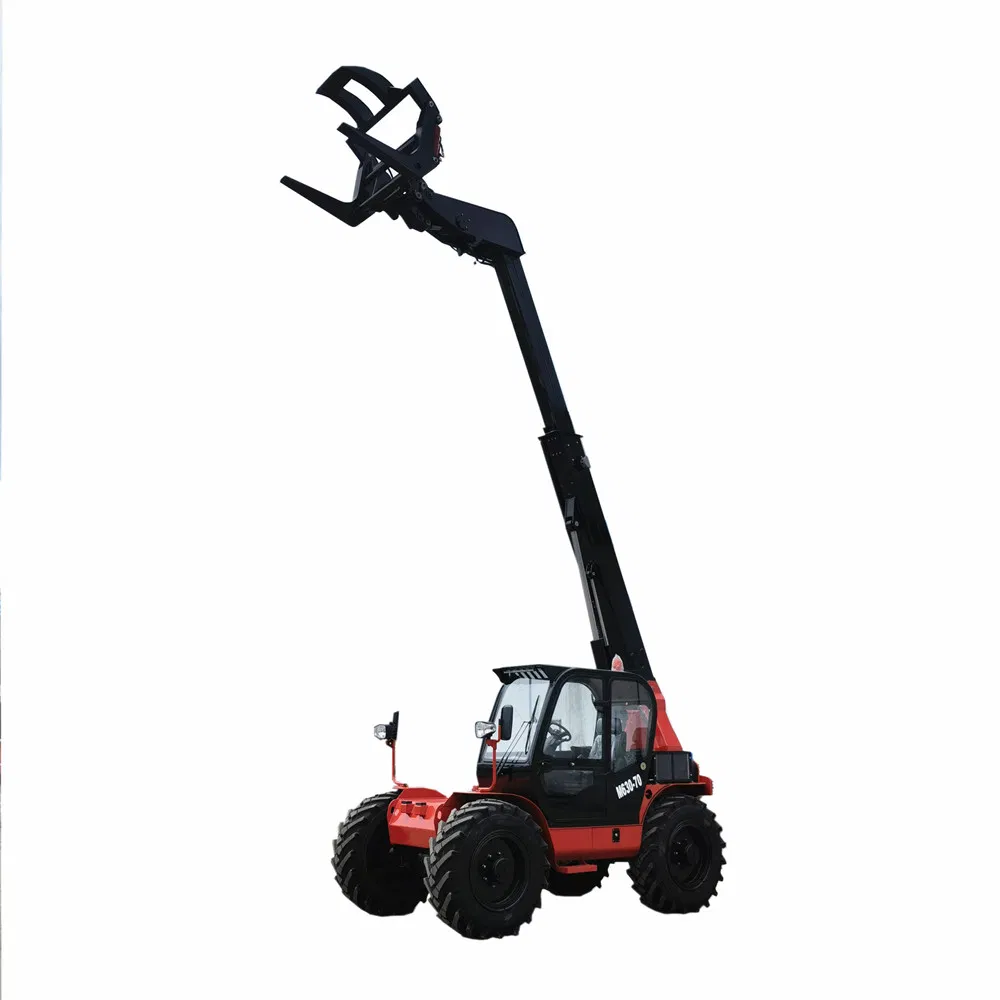

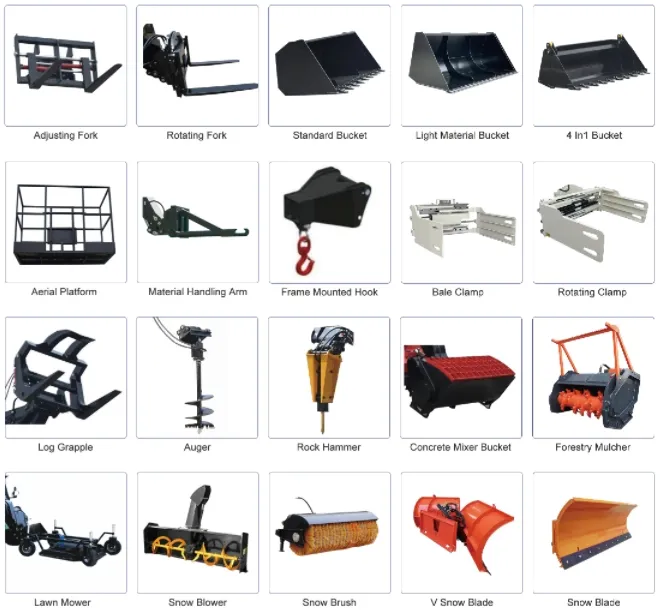

Yes, it features a hydraulic quick hitch and auxiliary flow system, allowing it to use forks, buckets, clamps, and other attachments for various industries.

5. How many units can fit in a standard shipping container?

Two fully assembled sets can be loaded into a single 40ft HQ container.

6. Is the telehandler suitable for rough terrain?

Yes, with its hydrostatic 4-wheel drive and agriculture-grade tires, it is specifically designed for stability and efficiency in rough construction and agricultural areas.
