Chinese Top Manufacture Articulated Dumper 45ton Dumper Xda45 Dump Truck

1 / 5

Chinese Top Manufacture Articulated Dumper 45ton Dumper Xda45 Dump Truck

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

ℹ

Basic Specifications

Model NO.

XDA45

Power

Diesel

Load Capacity

45 ton

Emission Standard

Euro 3

Drive Wheel

6×4 / 6x6

Horsepower

451-500hp

Operating Weight

34 T

Rated Power

390 Kw

Dimensions

11190*3480*3740mm

Condition

New

★

Product Description

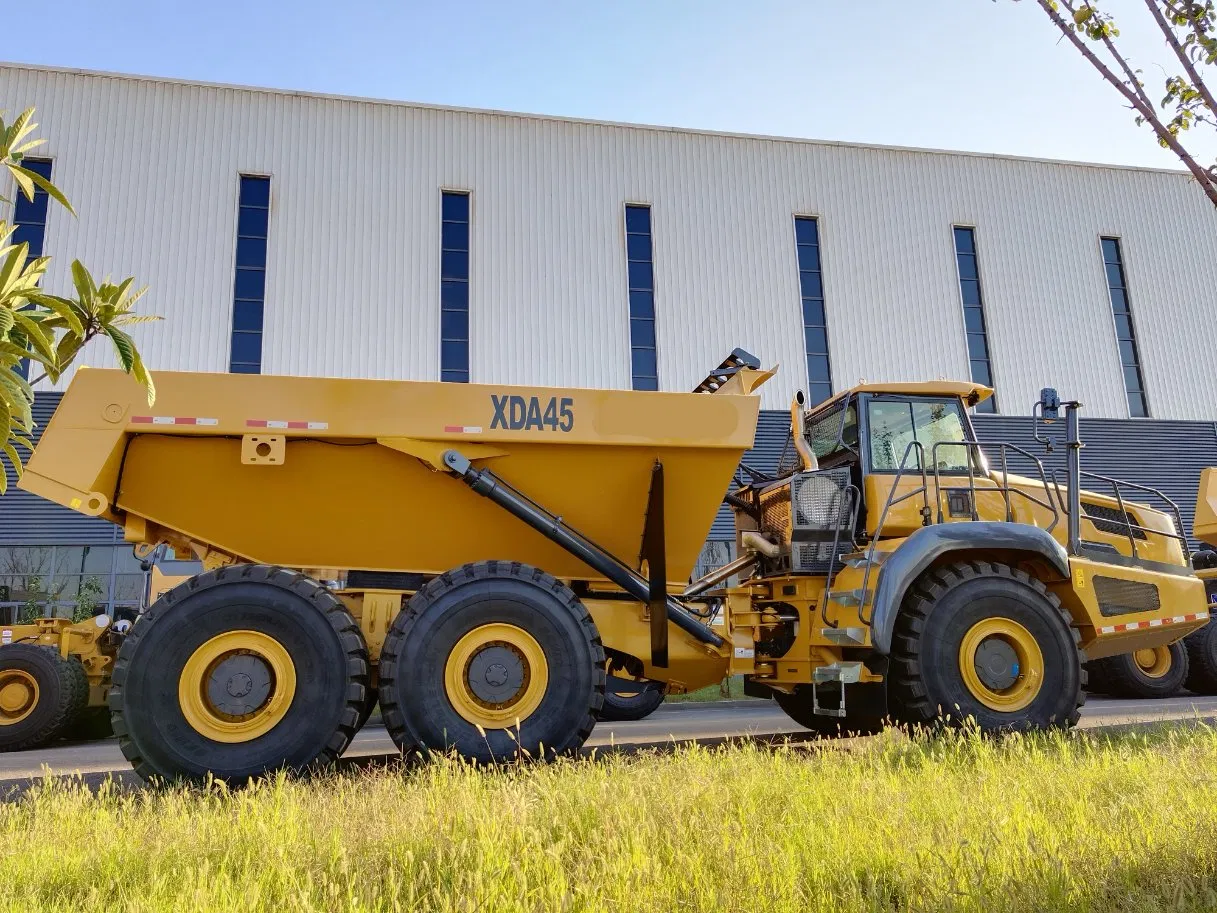

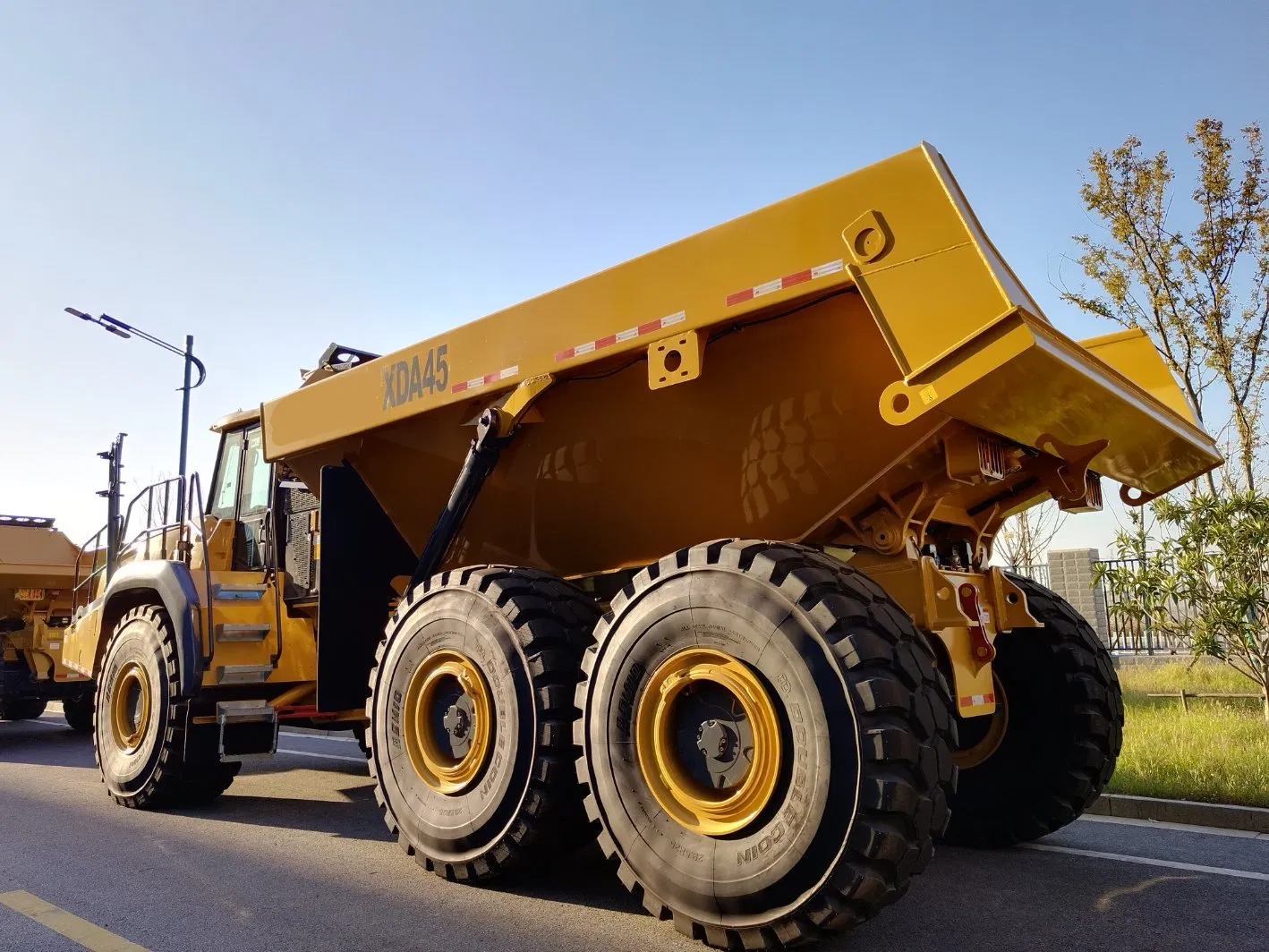

45 Ton Mine Mining Articulated Dump Truck

According to each engine torque characteristic curve, perfectly matches different manual and automatic gearboxes to ensure energy rationalization output and excellent climbing ability.
Optimized arrangement of the traditional system architecture, reducing energy transfer loss to ensure efficient kinetic transmission.
Unique steering follower mechanism ensures lighter steering and lower failure rates.
Dual-circuit brake system equipped with high-pressure accumulator, increasing brake pressure by 25% to 1 Mpa.

📋

Detailed Parameters

Category	Index	Unit	Specifications
Dimensions	Total Length	mm	11190 (with tailgate)
	Overall Width	mm	3950
	Overall Height	mm	3846
	Wheelbase	mm	4450 + 1940
Weight	Load Capacity	T	41
	Operating Weight	T	34
	Full Mass	T	75
Engine	Model	-	WP13G530E310 Euro 3
	Rated Power	kW/rpm	390 / 2100
	Max Torque	N*m	2300 / 1200-1600
Transmission	Model	-	4800 ORS 7+1
Transmission	Max Speed	km/h	51

📷

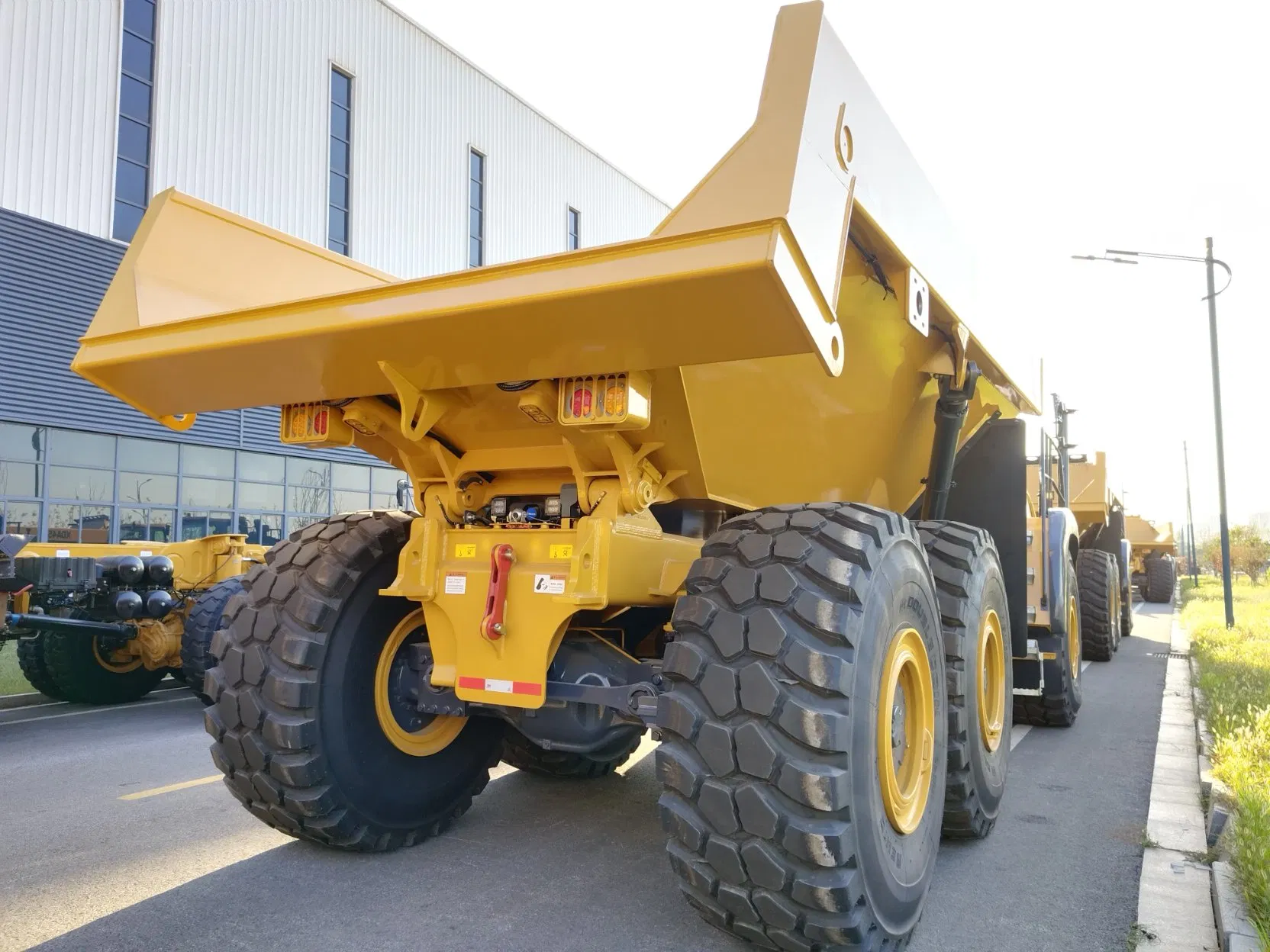

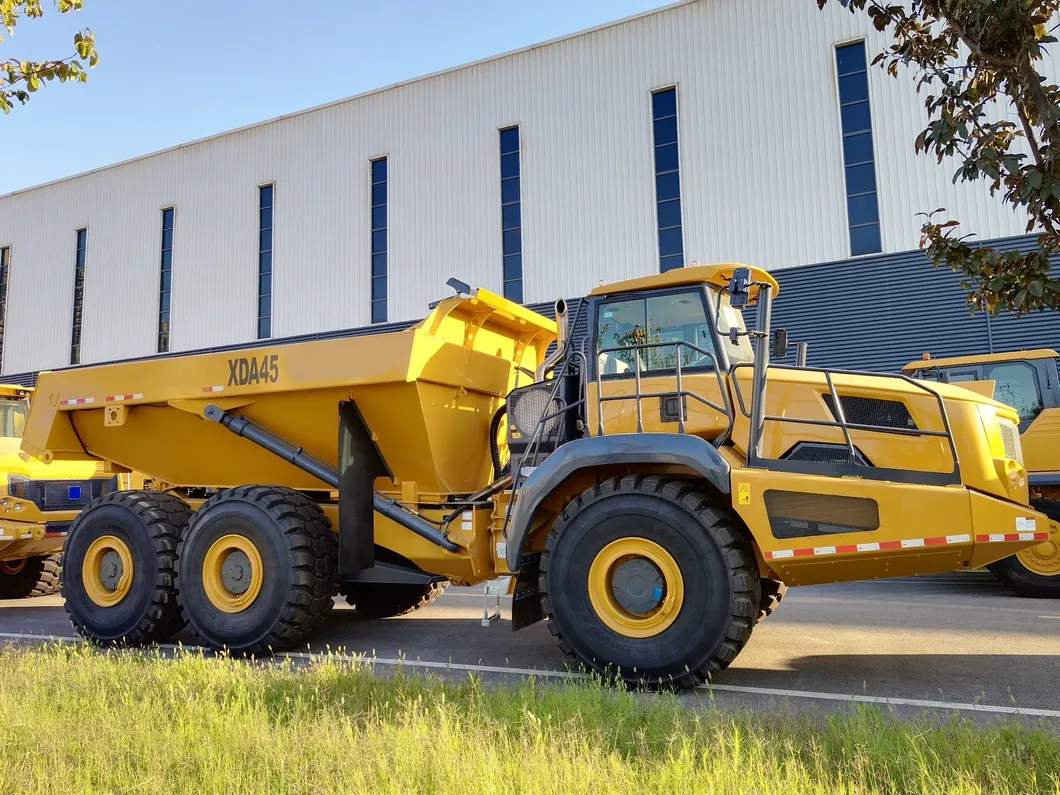

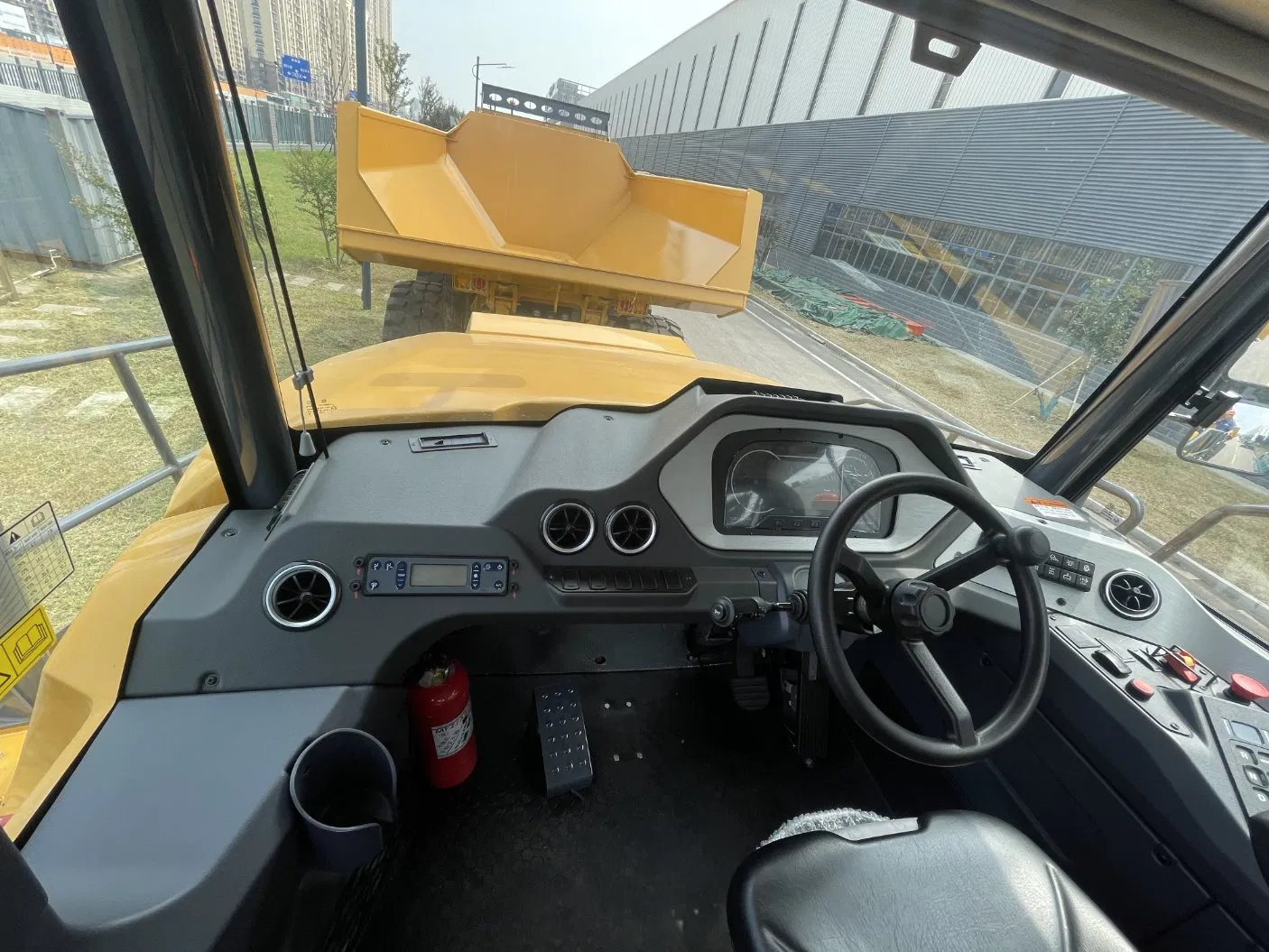

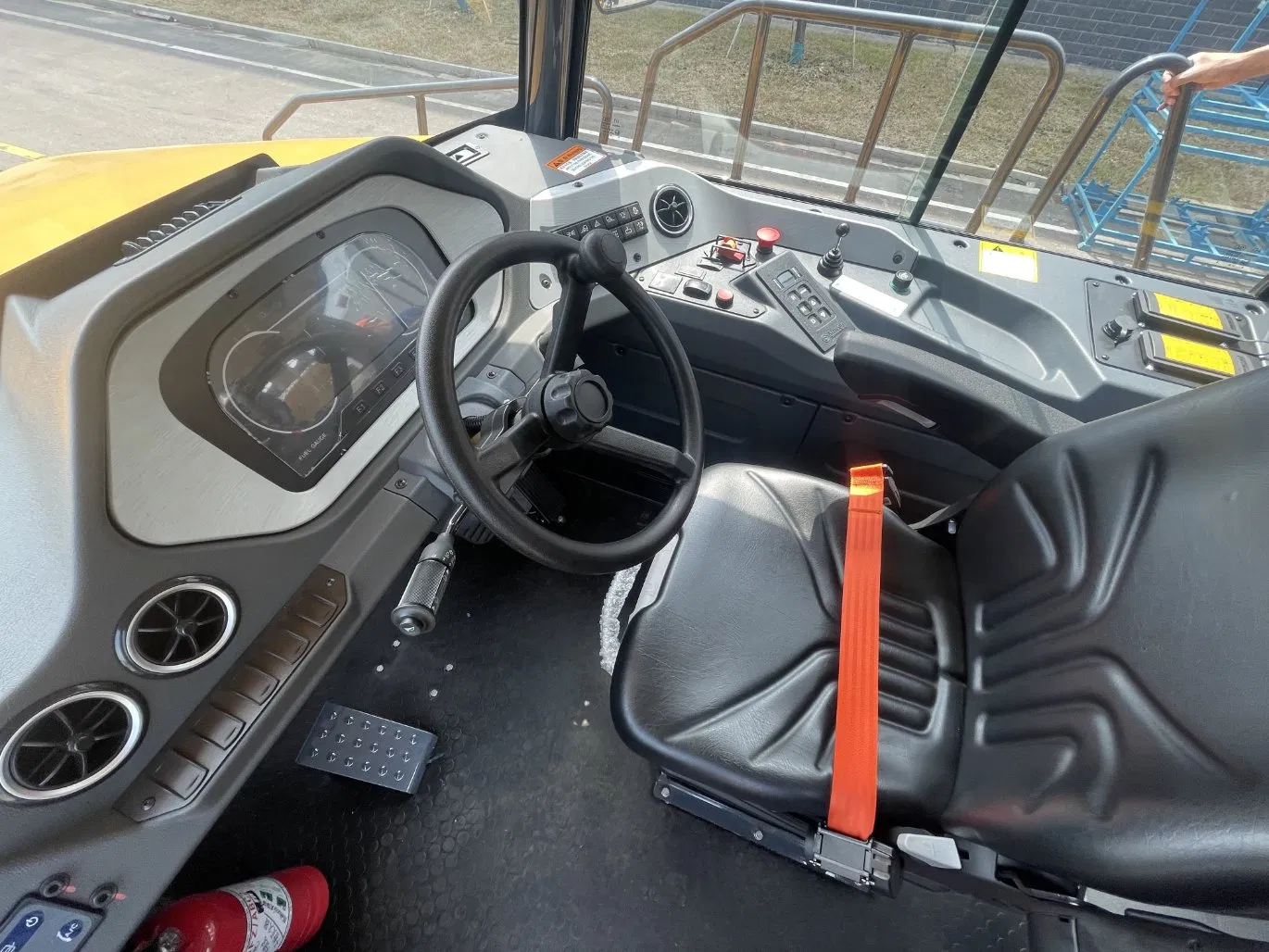

Detailed Photos

🏭

Factory & Production

❓

Frequently Asked Questions

What is the maximum load capacity of the XDA45?

The XDA45 articulated dump truck has a rated load capacity of 41 to 45 tons, designed specifically for heavy-duty mining environments.

Which engine powers this articulated dump truck?

It is powered by a high-performance WP13G530E310 Euro 3 engine, providing a rated power of 390 kW (approx 530 hp).

What is the transmission system used in XDA45?

The truck utilizes an advanced automatic transmission (4800 ORS) with 7 forward gears and 1 reverse gear for smooth operation in rugged terrains.

How does the steering system handle difficult mining terrain?

It uses a unique articulated steering mechanism and steering follower that provides light handling and high reliability even under full load.

What are the safety features of the braking system?

The XDA45 features a dual-circuit brake system with high-pressure geography accumulators, which increases braking pressure by 25% to reach 1 Mpa for superior stopping power.

What is the maximum speed and climbing capability?

The truck can reach a maximum speed of 51 km/h and can navigate slopes with a maximum surmountable gradient of 45%.
