Underground Diesel Mining Dumper Mine Diesel Tipper Haul Articulated Low Profile Ldpt Tunnelling Hauing Heavy Duty Fuel Trailer Overload Medium Dump Truck

Customization:	Available
After-sales Service:	Free Commissioning and Training on Site
Warranty:	One Year or 2000 Working Hours

Send Inquiry

Product Description

📊 Basic Info.

Model NO.GT-15

Transmission TypeAutomatic

PowerDiesel

Load Capacity8-40tons

Emission StandardEuro 4

Drive Wheel4×4

Engine Capacity6-8L

Seats≤5

Horsepower150-250hp

Tire CertificationECE, GCC, ISO, DOT

Tire DesignRadial

Dumping TypeRear Dumping

ConditionNew

Size(mm)8360-2050-2360mm

Diesel EngineCumins Qsb6.7

🚜 Product Description

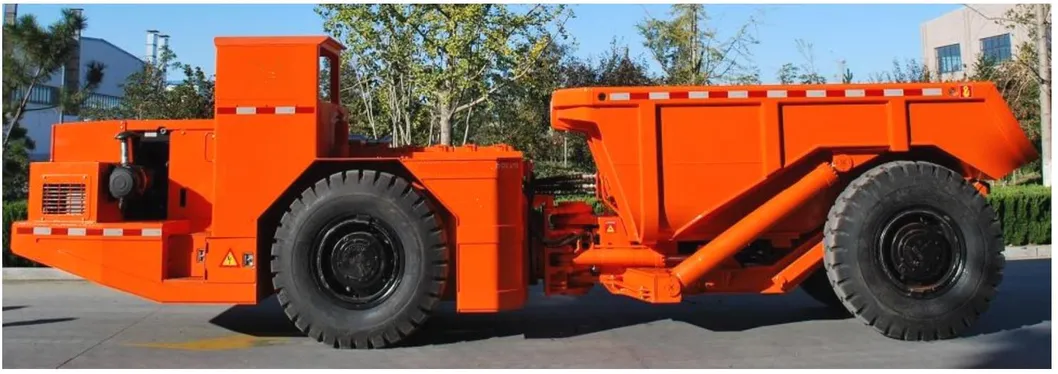

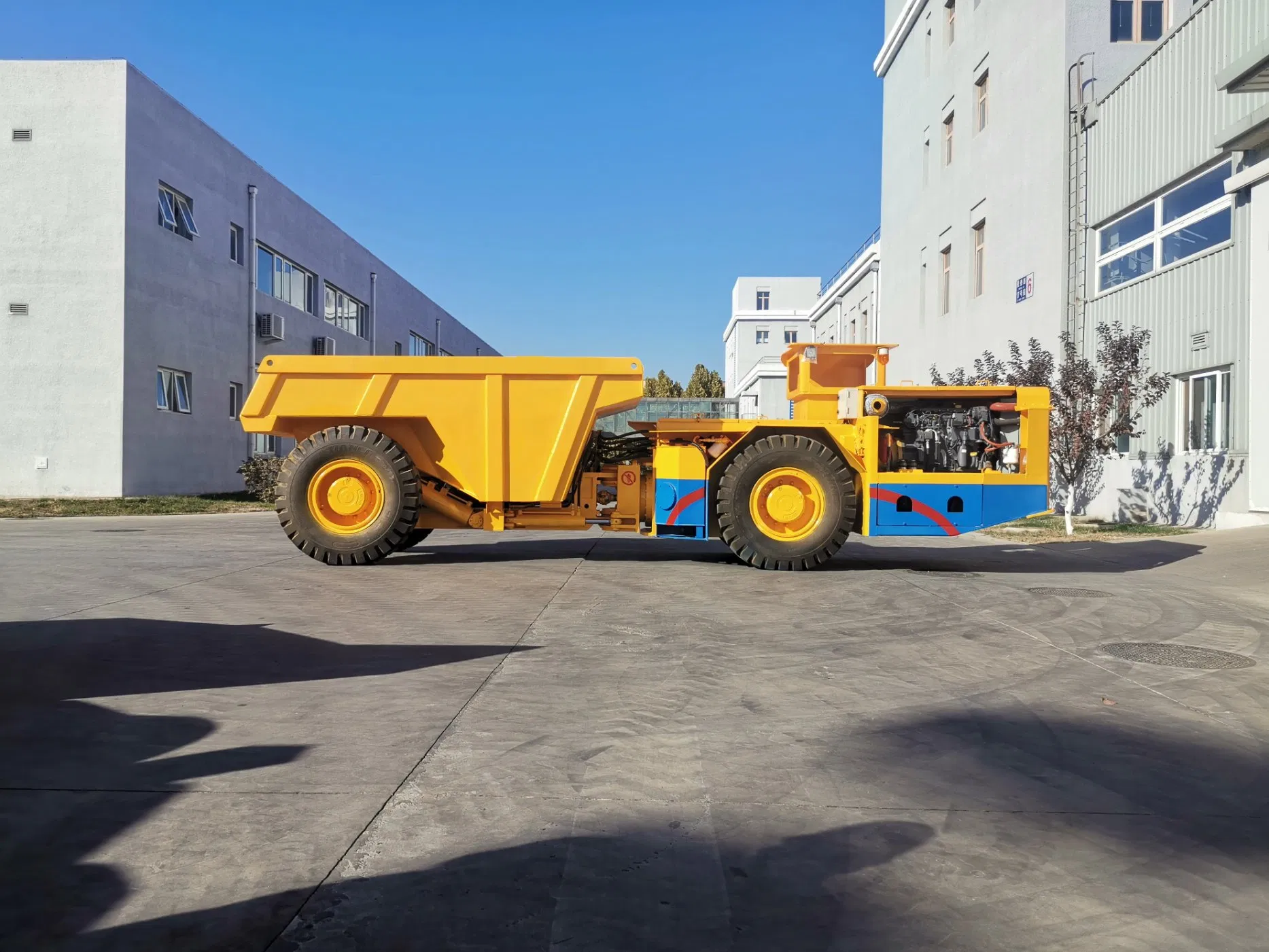

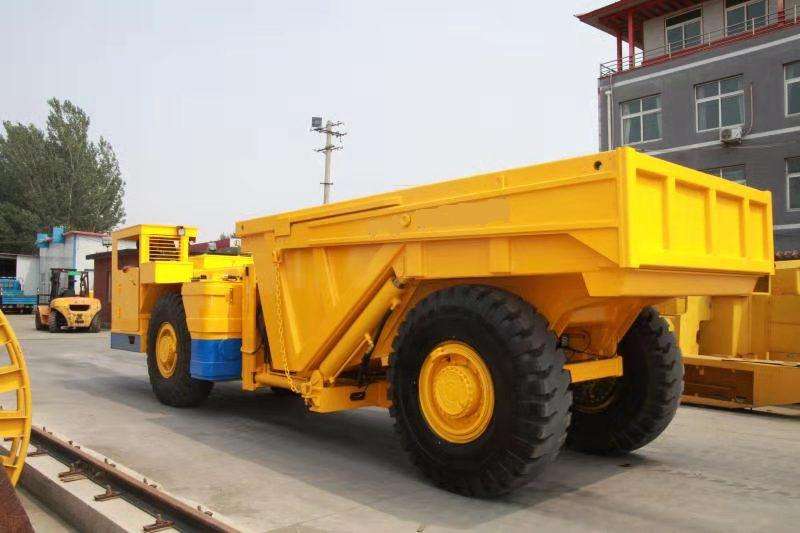

Underground Diesel Mining Dumper Mine Diesel Tipper Haul Articulated Low Profile LDPT Tunnelling heavy duty dump Truck

The GT-15 ton truck is a compact underground mine truck with 15 tons carrying capacity, equipped with a central hinged swing device. The new design not only improves production efficiency but also enhances underground transportation safety, maintainability, and operating comfort for mining and construction operations.

Heavy-duty front and rear frames are designed to cope with harsh underground environments. The rotary bearing center hinge ensures that the tires maintain excellent contact with the ground even under bad working conditions.

Loading capacity	15 tons
Engine	CUMINS QSB6.7 or VOLVO
Transmission	DANA 32000
Converter	DANA C270
Axle	KESSLER D81

⚙️ Main Specifications

Rated capacity: 15000 kg

Size: 8360×2050×2360 mm

Standard bucket: 7.5m³

Max drawbar pull: 165kN

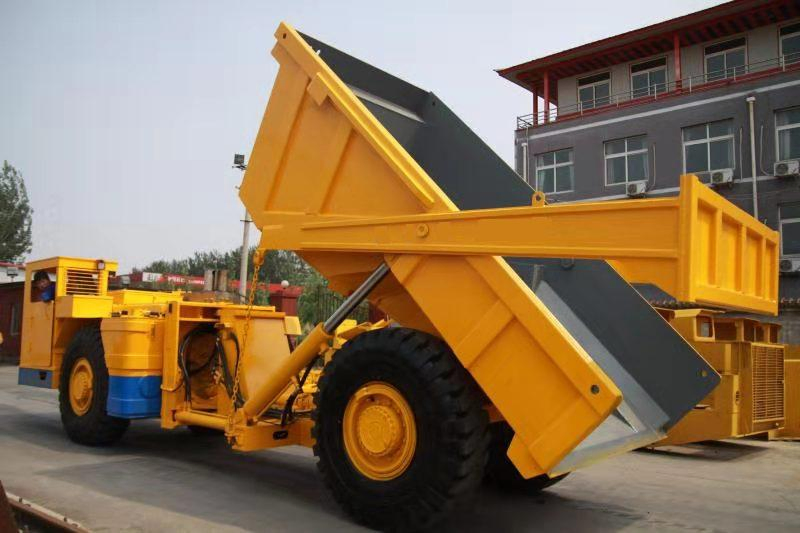

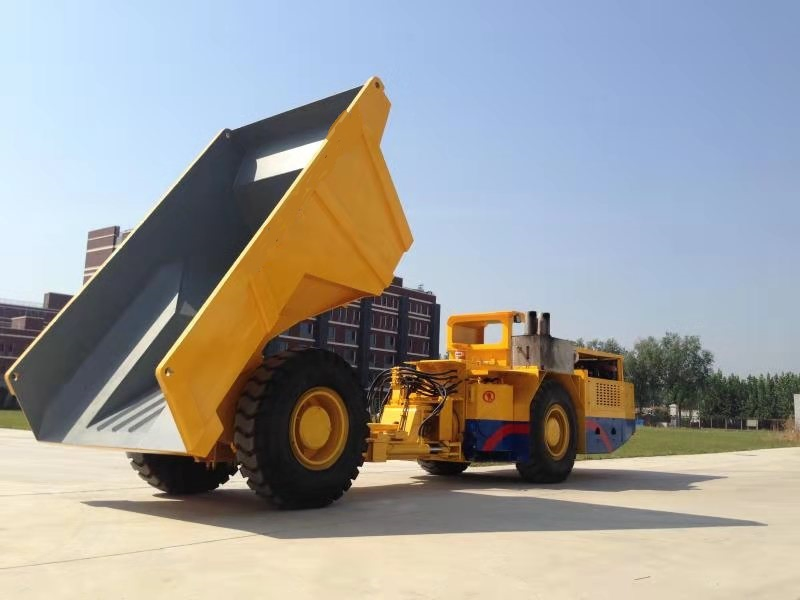

Unloading angle: 69°

Approaching angle: 15°

⚡ Power Train & Performance

Engine Details (CUMMINS QSB6.7):

Output: 164 kW @ 2200rpm

Max Torque: 949Nm @ 1500rpm

Emission: Euro IV / National Stage IV

Fuel Tank: 200L

Cooling: Water cooled, direct-drive fan

Speed (1st-4th): 5.2 - 28.2 km/h

🛡️ Structure & Safety

The operator's compartment provides spacious ergonomics and utilizes a steering handle for improved comfort and production efficiency. The cab is ROPS/FOPS certified to ensure operator safety.

High-strength alloy Q460C steel plates optimize material thickness, reducing deadweight while improving structural reliability and service life.

❓ Frequently Asked Questions

1. What is the maximum load capacity of the GT-15 mining dumper? The GT-15 is specifically designed for a rated carrying capacity of 15,000 kg (15 tons).

2. Which engine options are available for this vehicle? The truck is primarily equipped with a Cummins QSB6.7 engine (164 kW), with Volvo engine options also available.

3. Is the operator's cab safe for underground mining? Yes, the operator's compartment is ROPS/FOPS certified to protect the safety of the operator against roll-overs and falling objects.

4. What type of transmission and axles are used? It features a high-performance Dana 32000 transmission and Kessler D81 heavy-duty axles for maximum reliability in harsh conditions.

5. How does the articulated design benefit underground operations? The central hinged swing device and articulated frame allow the front and rear sections to swing freely, ensuring optimal tire contact on uneven tunnel surfaces.

6. What is the fuel efficiency and tank capacity? The vehicle has an average fuel consumption of approximately 16L/h at 50% load and is equipped with a 200L effective volume fuel tank.
