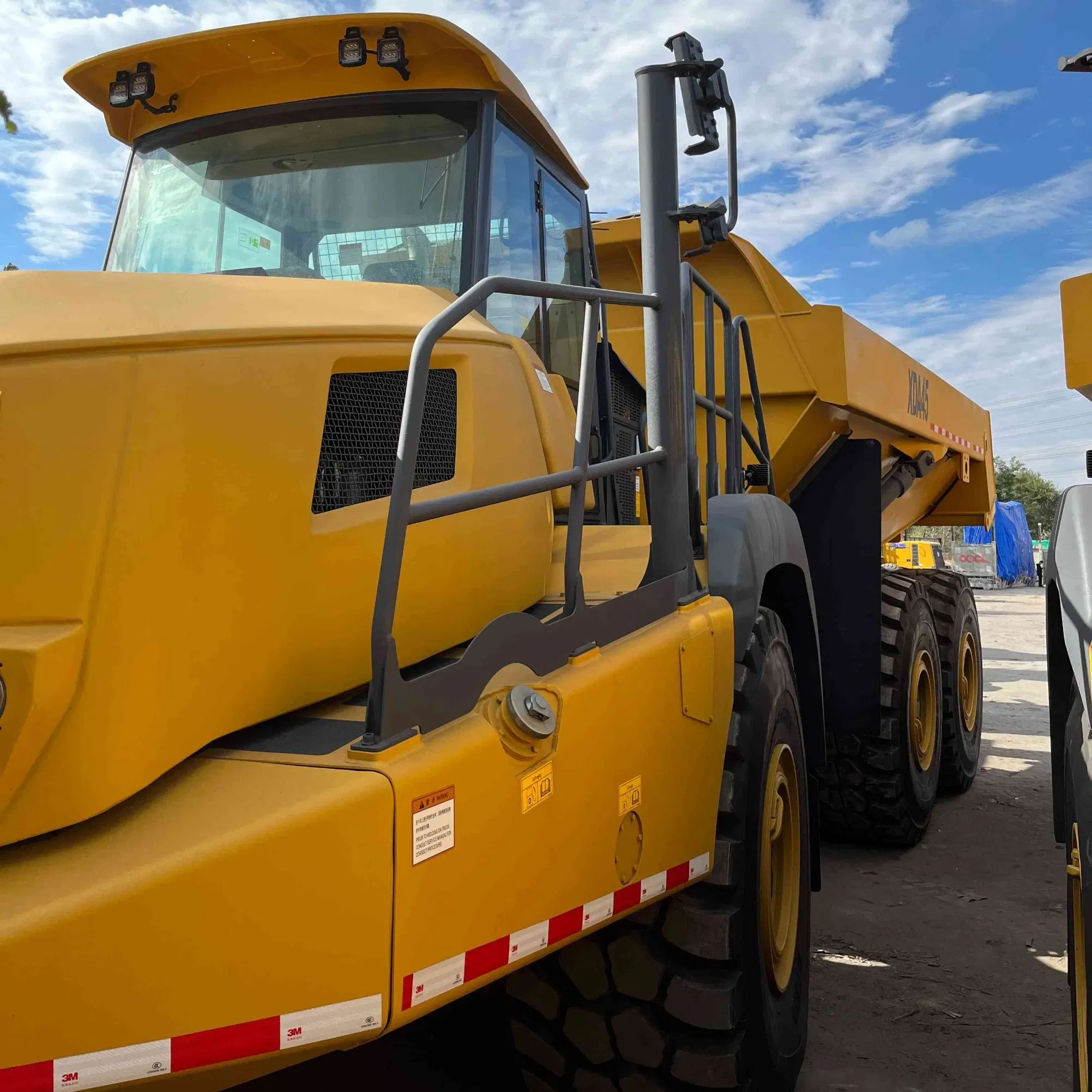

Durable 40 Ton Mining Articulated Dump Truck Xda45 for Heavy Duty Work

1 / 5

Durable 40 Ton Mining Articulated Dump Truck Xda45 for Heavy Duty Work

Customization:	Available
After-sales Service:	Provided
Warranty:	One Year

Send Inquiry

Product Description

ℹ️

Basic Info.

Model NO.

XDA45

Transmission

Manual

Power

Diesel

Load Capacity

31-40t

Emission Standard

Euro 3

Drive Wheel

4×4 / 6×6

Horsepower

251-350hp

Dumping Type

Front Lifting Style

Max Speed

60 km/h

Condition

New

📦

Packaging & Delivery

Package Size

1200.00cm * 300.00cm * 400.00cm

Gross Weight

12500.000kg

📝

Product Description

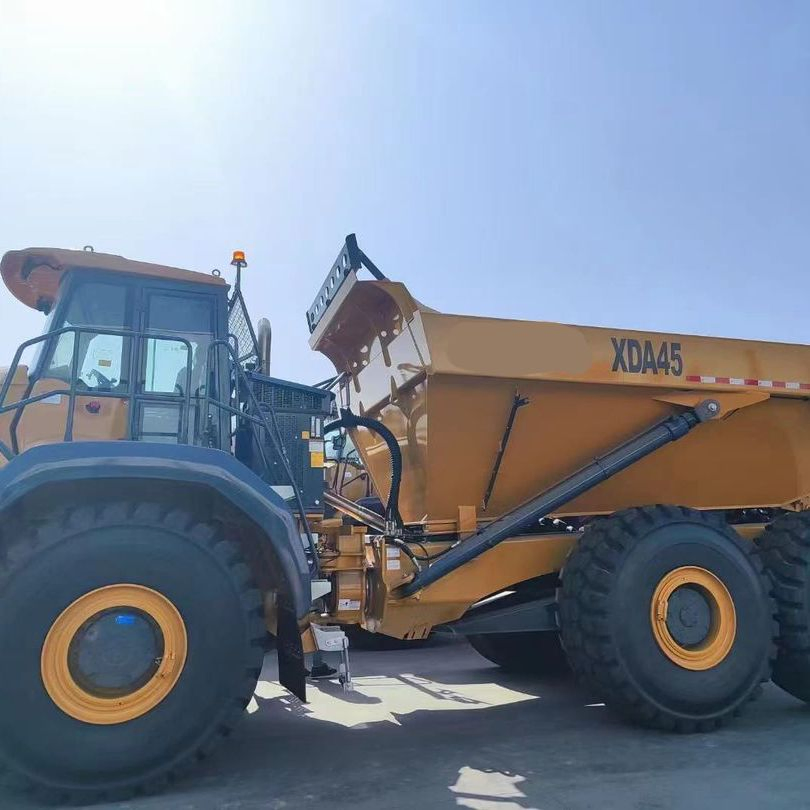

Durable 40 Ton Mining Articulated Dump Truck XDA45 for Heavy Duty Work

The Dump Truck XDA45 is a next-generation, ultra-heavy-duty rigid dump truck engineered for maximum productivity, reliability, and cost-efficiency in the most demanding large-scale mining and quarrying operations. It represents the pinnacle of haulage technology, combining robust construction with intelligent systems to deliver superior performance.

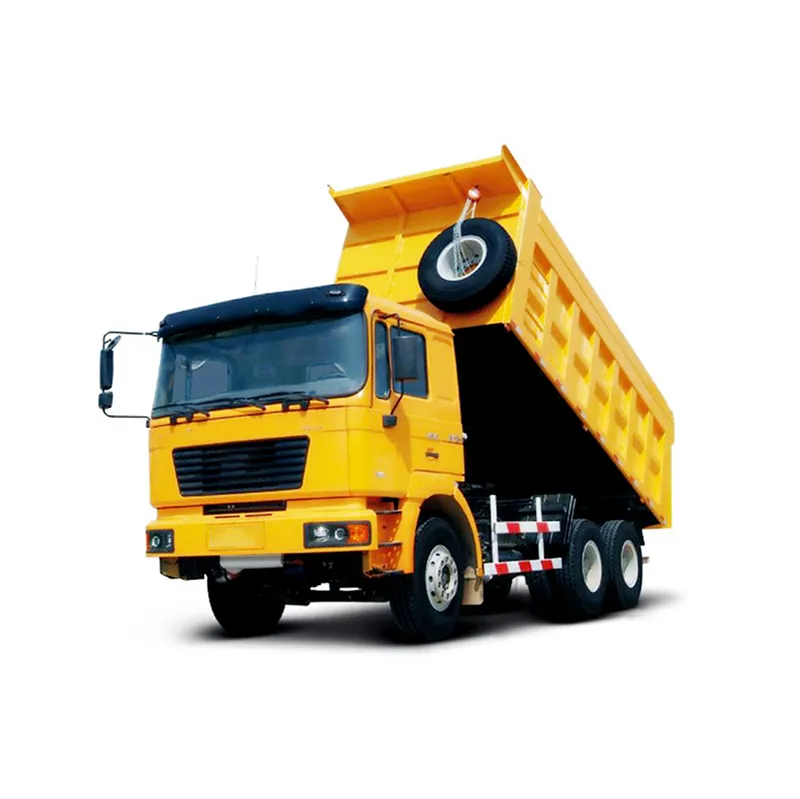

Applications

✓ Surface mining (coal, copper, iron ore)
✓ Large quarry operations
✓ Major infrastructure construction projects

Key Configurations

1. Engine: High-torque, low-emission diesel engine, compliant with international standards (EU Stage V / EPA Tier 4 Final). Provides exceptional power.

2. Transmission: Advanced electronically controlled powershift transmission for smooth, efficient gear changes.

3. Chassis & Frame: Fabricated from high-strength alloy steel with a reinforced box-section design for longevity under extreme loading.

📊

Specifications

Overall Dimension (L×W×H)	11070 × 3950 × 3846 mm
Total Weight	75000 kg
Payload	41000 kg
Curb Weight	34000 kg
Engine Model	BENZ OM502
Rated Power	350 kW / 1800 rpm
Max Torque	2300 Nm / 1300 rpm
Drive Type	6×6
Tire Specification	29.5R25
Max Gradeability	45%
Max Steering Angle	±42°
Minimum Ground Clearance	530 mm
Fuel Capacity	500 L
Struck / Heaped Volume	19.5 m³ / 25 m³

📷

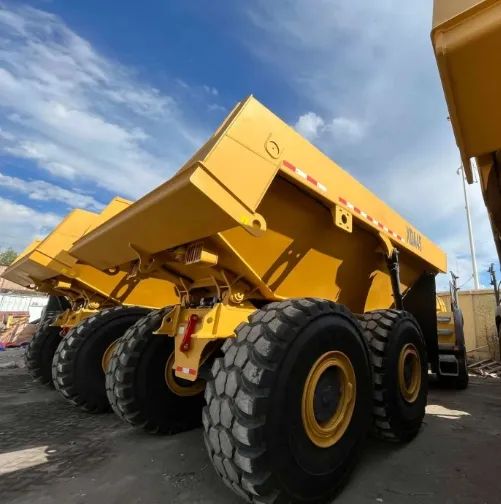

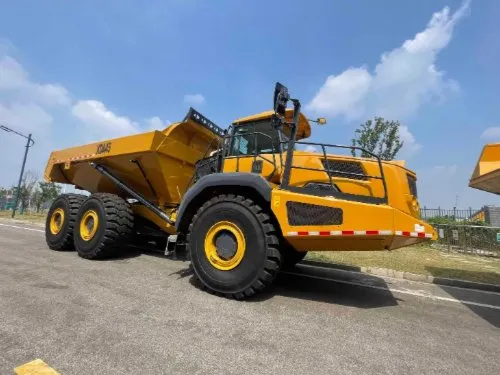

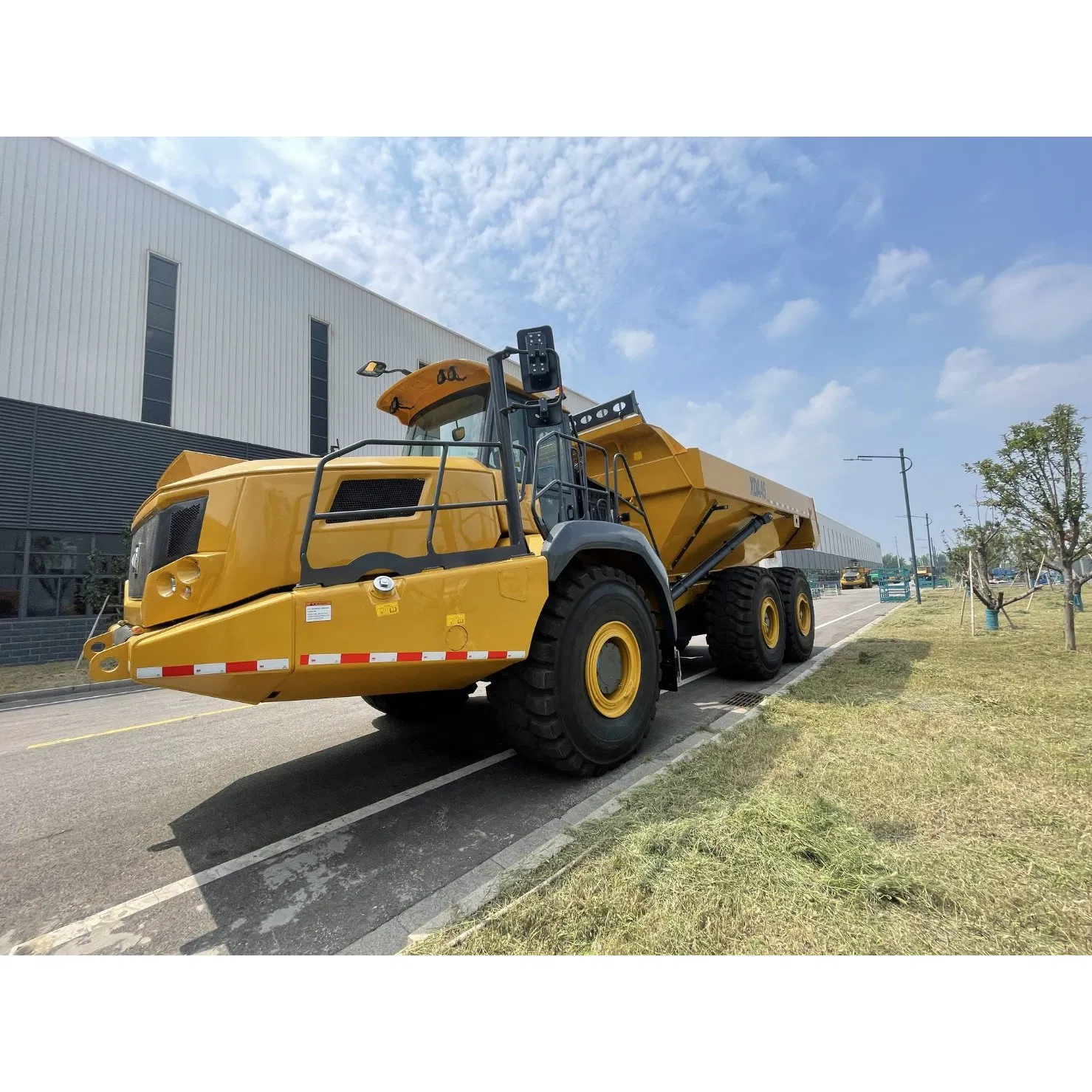

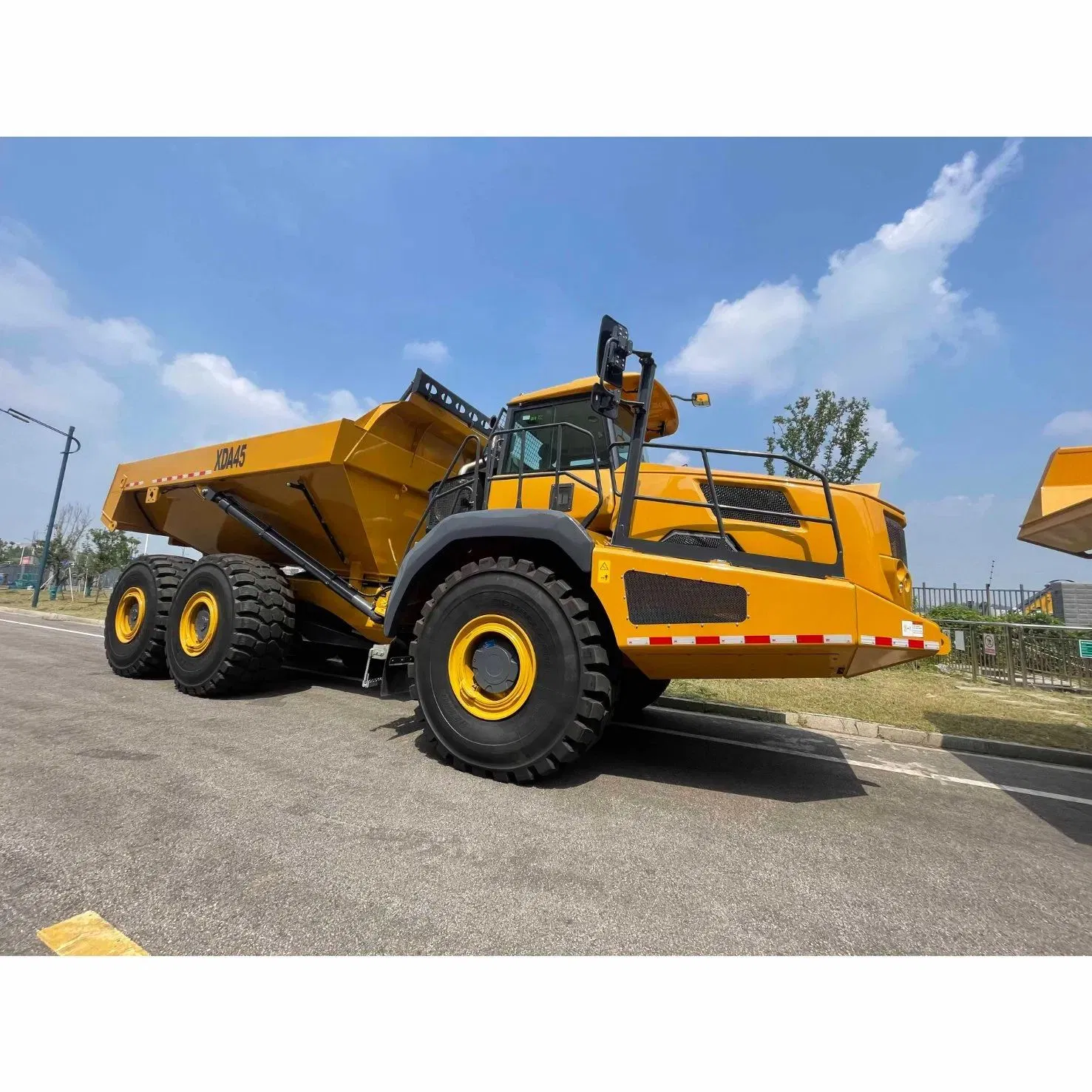

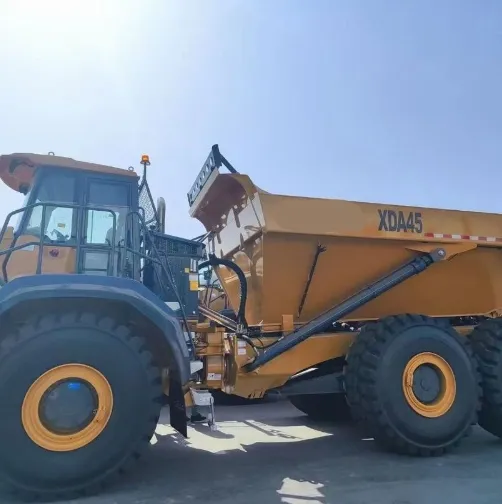

Detailed Photos

🏭

Production & Quality

🚢

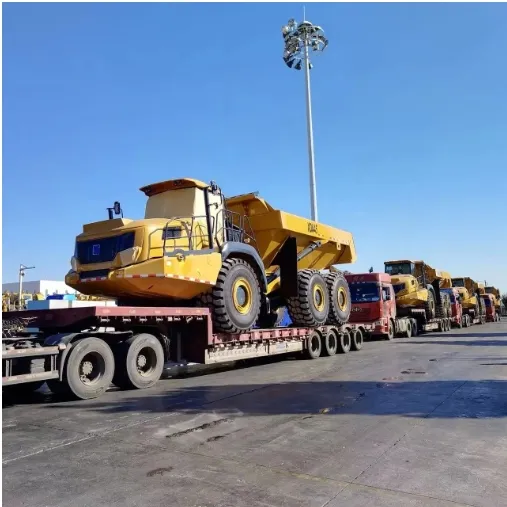

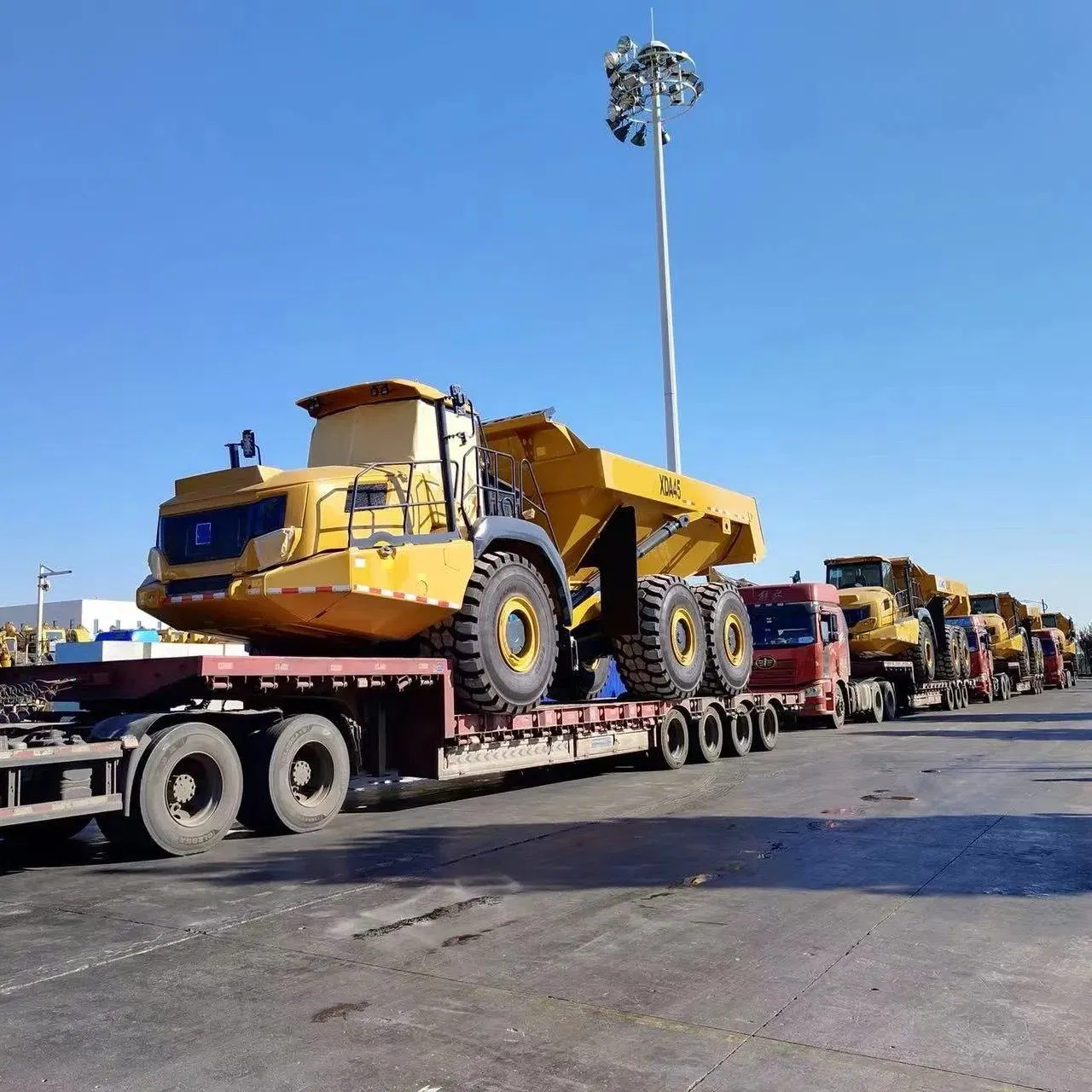

Packing & After Sales

❓

FAQ

1. What is the maximum payload of the XDA45 dump truck?

The XDA45 articulated dump truck has a maximum payload capacity of 41,000 kg (41 tons).

2. Which engine is used in the XDA45 model?

The truck is equipped with a high-performance BENZ OM502 diesel engine, providing a rated power of 350 kW.

3. Is the XDA45 suitable for extreme off-road terrain?

Yes, with its 6x6 drive system, articulated steering, and high ground clearance (530mm), it is specifically designed for rough mining and quarry environments.

4. What are the loading volume capacities?

The body provides a struck volume of 19.5 m³ and a heaped volume (2:1 ratio) of 25 m³.

5. What is the climbing ability of this truck?

The XDA45 features a maximum gradeability of 45%, making it highly efficient on steep inclines.

6. Does the truck comply with international emission standards?

Yes, the engine configurations are designed to meet stringent international standards, including EU Stage V and EPA Tier 4 Final.
