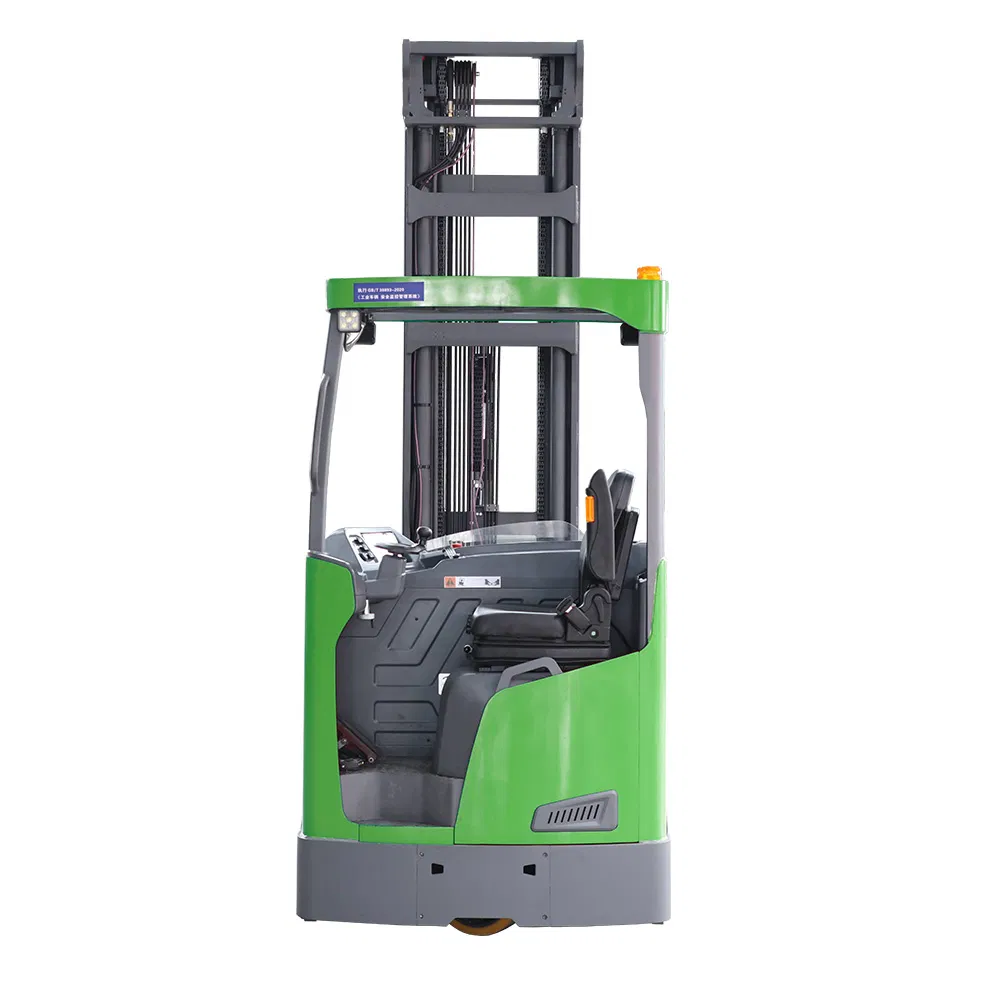

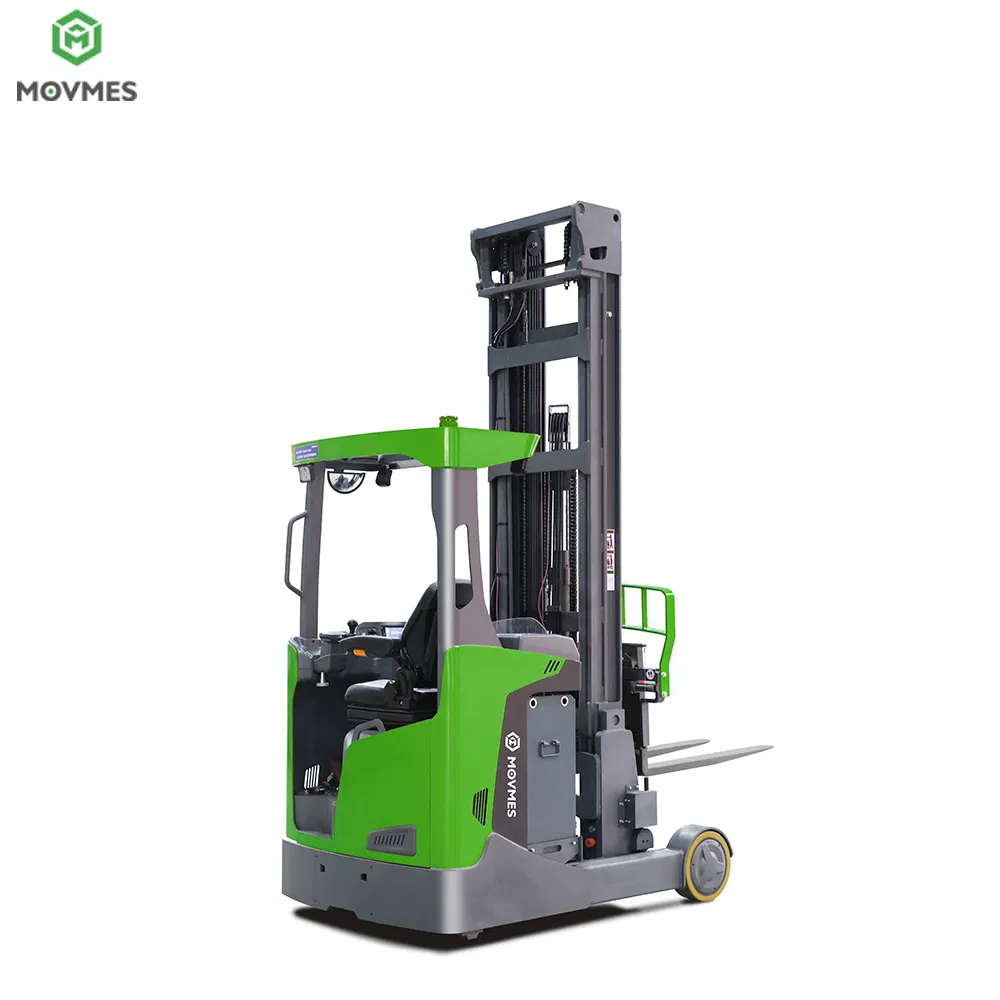

The CQD20-D Reach Truck is engineered for efficient and precise material handling in narrow aisle and high-racking warehouse environments. Its compact design and stable reach system allow operators to stack and retrieve pallets safely, even in confined spaces.
Powered by a reliable electric drive system, the CQD20-D delivers smooth operation, low noise, and zero emissions. The ergonomic operator compartment and responsive controls help improve productivity while reducing operator fatigue.

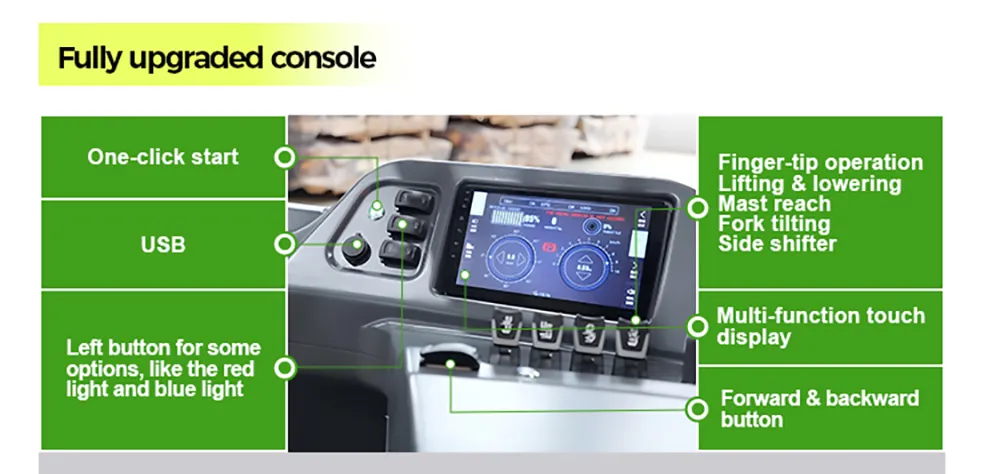

Large-screen instrument with finger-tip sticks. Displays battery power, wheel angle, and faults in real-time.

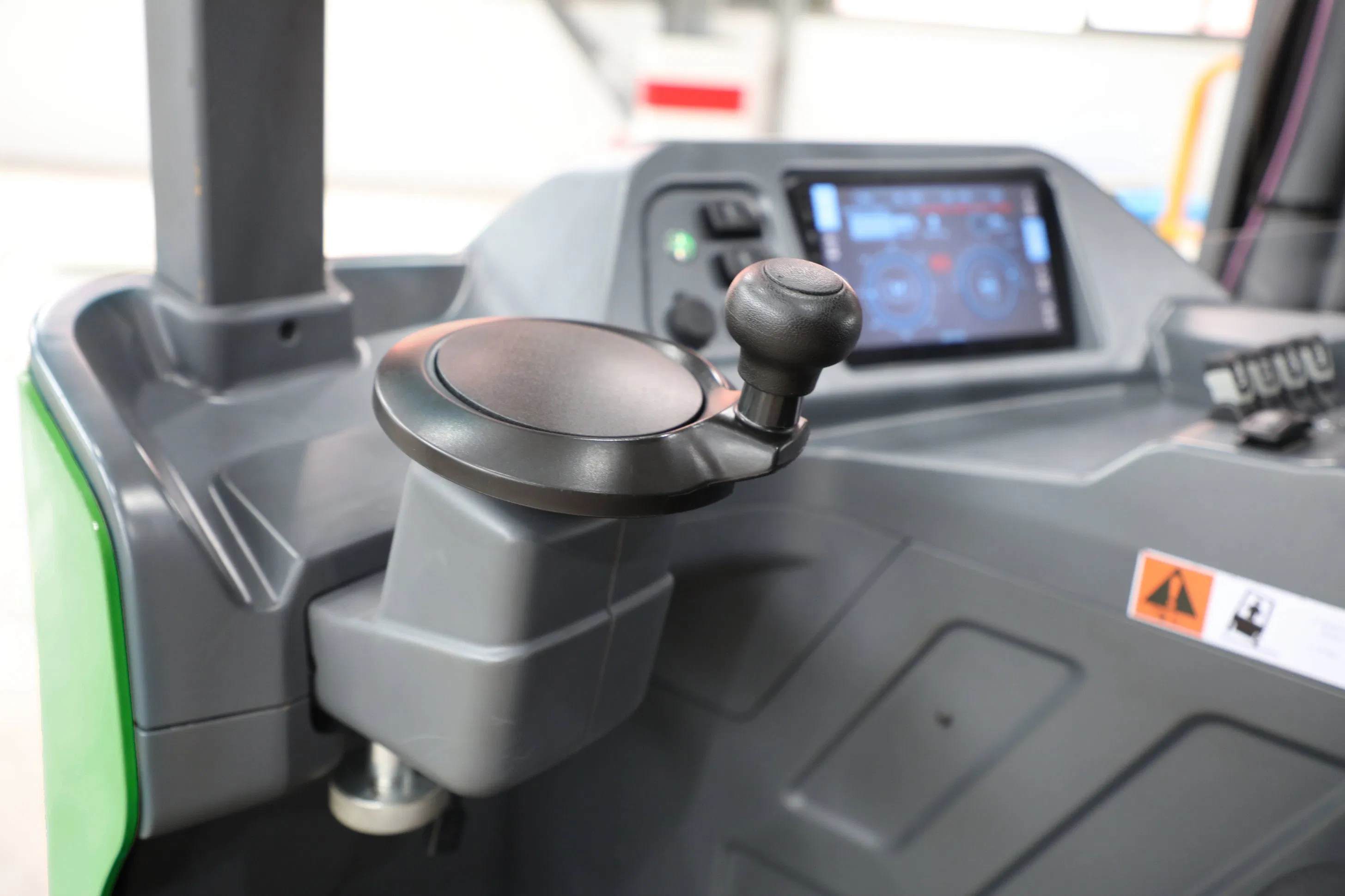

Easy-to-reach thumb switch for smooth forward/reverse control and horn operation.
Electric Power Steering (EPS), automatic speed reduction during turns, and fork side camera for better visibility.

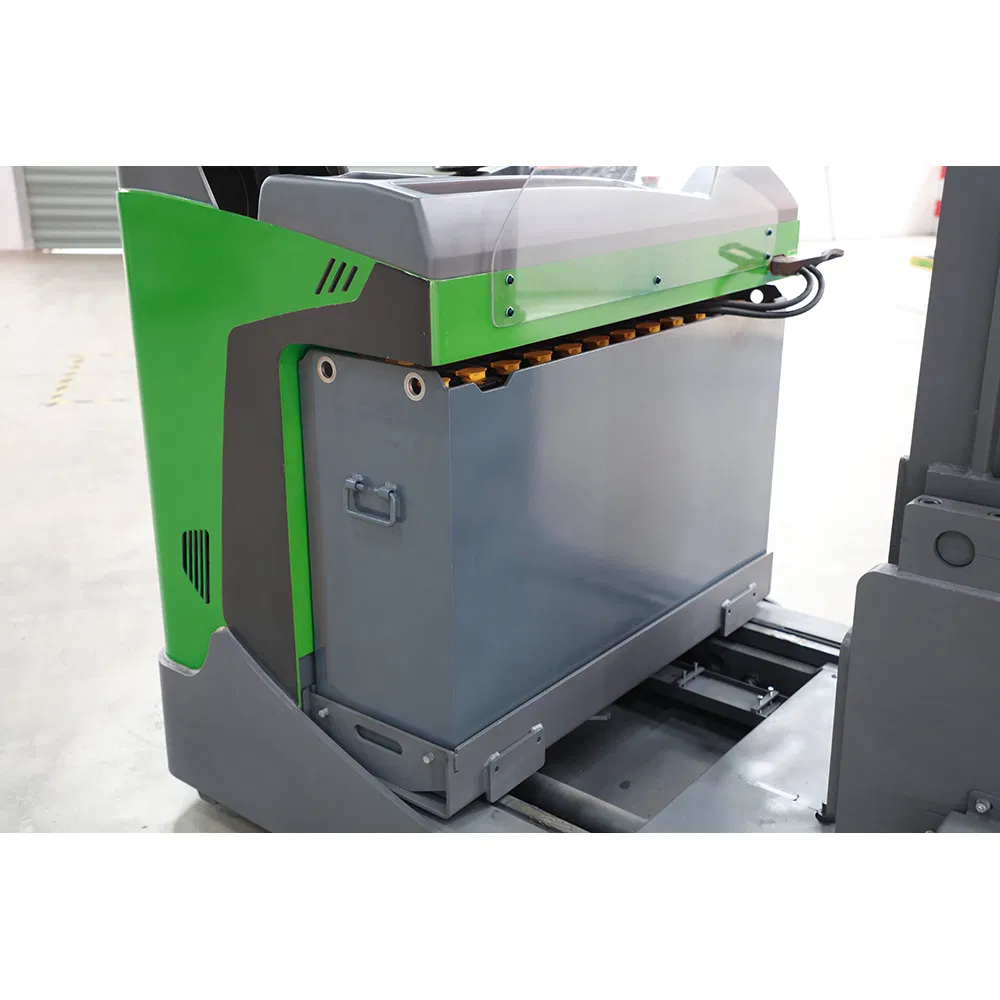

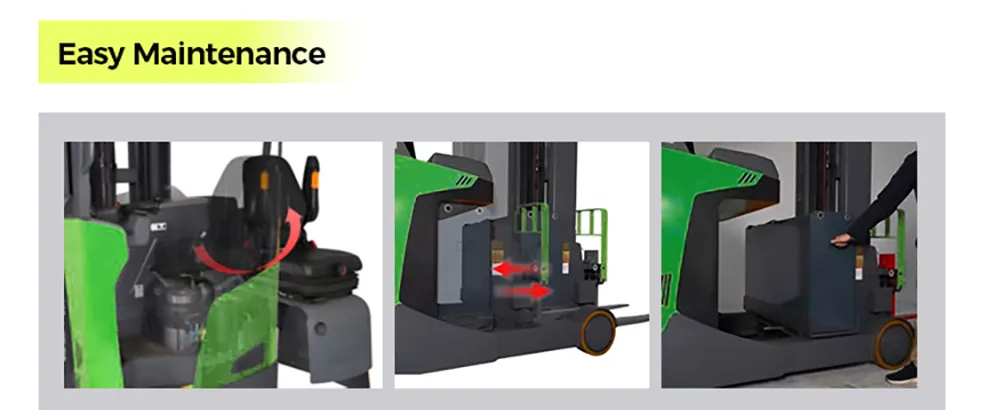

One-piece upper cover for quick access to controllers and motors. Sideway battery removal system.

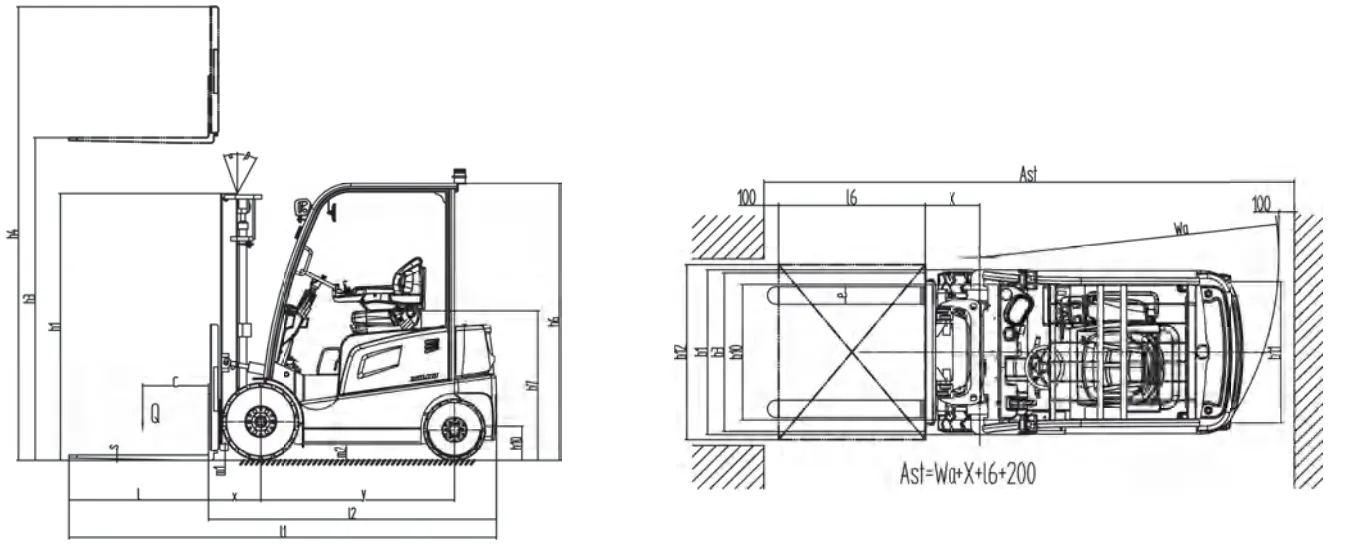

| Parameter | Unit | Specification (CQD20-D) |
|---|---|---|
| Drive type | - | Electric |
| Operator type | - | Seated |
| Rated load | Q (kg) | 2000 |
| Load center distance | C (mm) | 600 |
| Wheelbase | Y (mm) | 1510 |
| Service weight (with battery) | kg | 4205 |
| Travel speed (laden/unladen) | km/h | 10.5 / 11 |
| Lift speed (laden/unladen) | m/s | 0.3 / 0.46 |
| Lower speed (laden/unladen) | m/s | 0.5 / 0.56 |
| Battery voltage/capacity | V/Ah | 48 / 500 |
| Turning radius | Wa (mm) | 1783 |

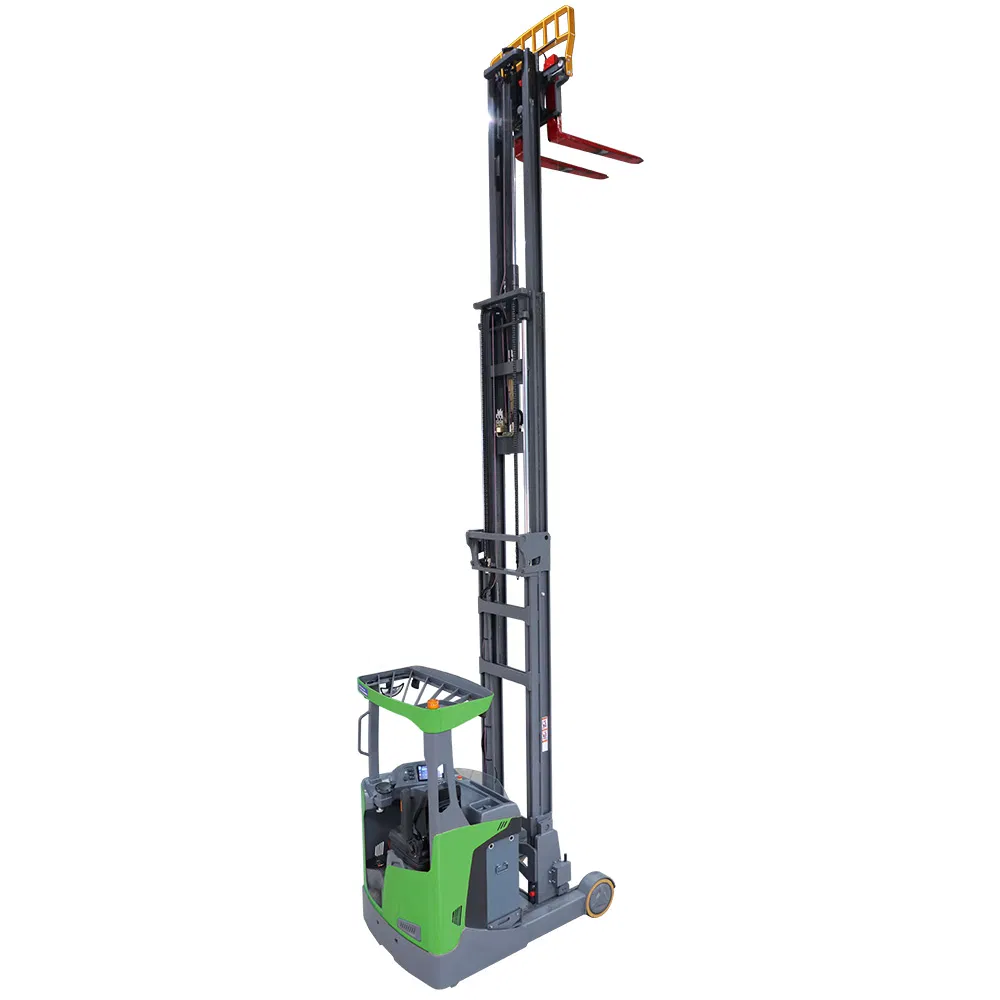

| Max Lifting Height | h3 (mm) | 3000 - 12500 |

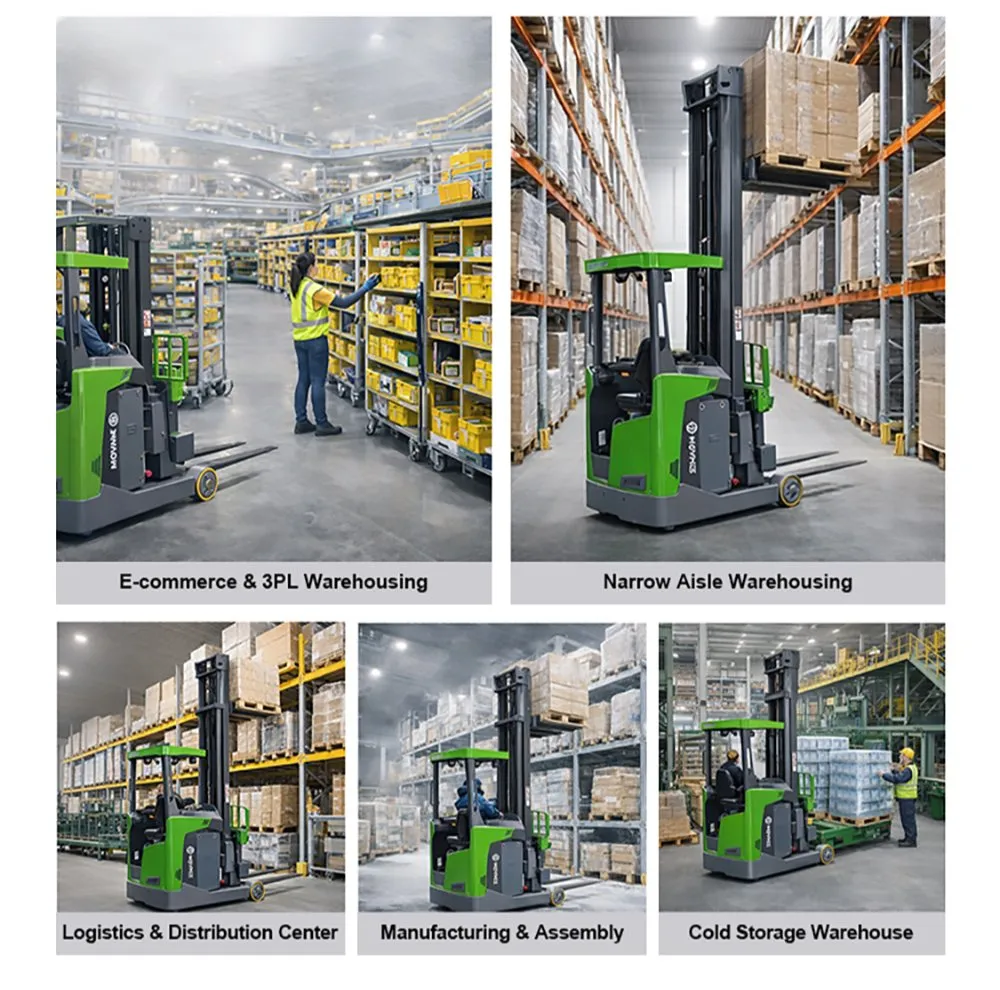

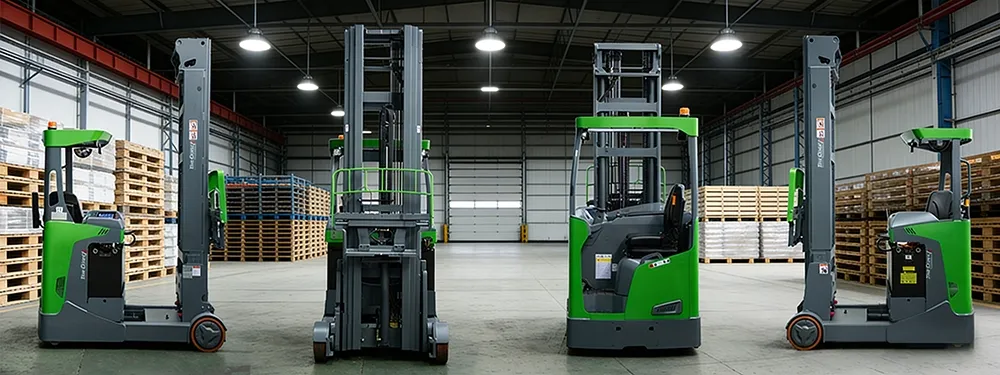

Our electric reach trucks are widely used in cold storage, food and beverage logistics, chemical industries, and high-density racking warehouses where space optimization is critical.
