Plautz Excavator
1 / 5

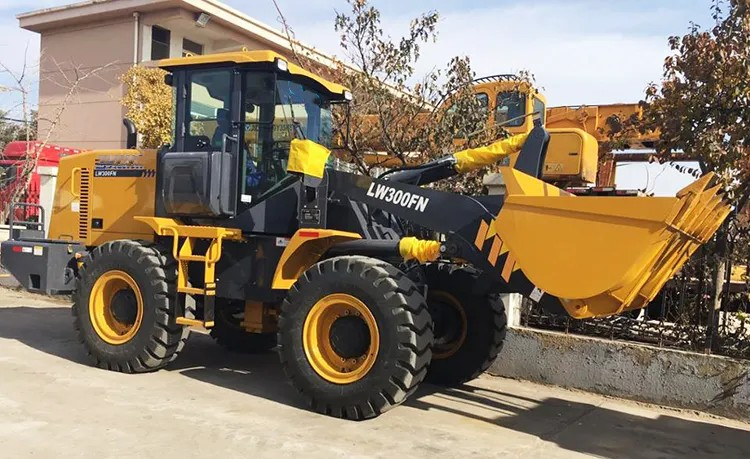

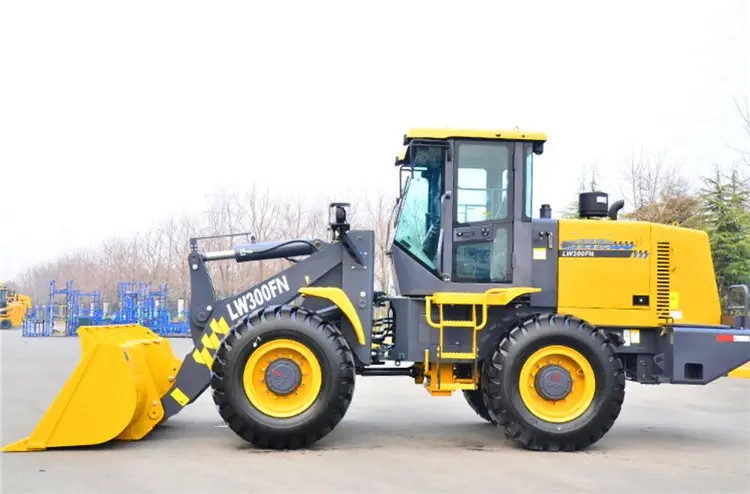

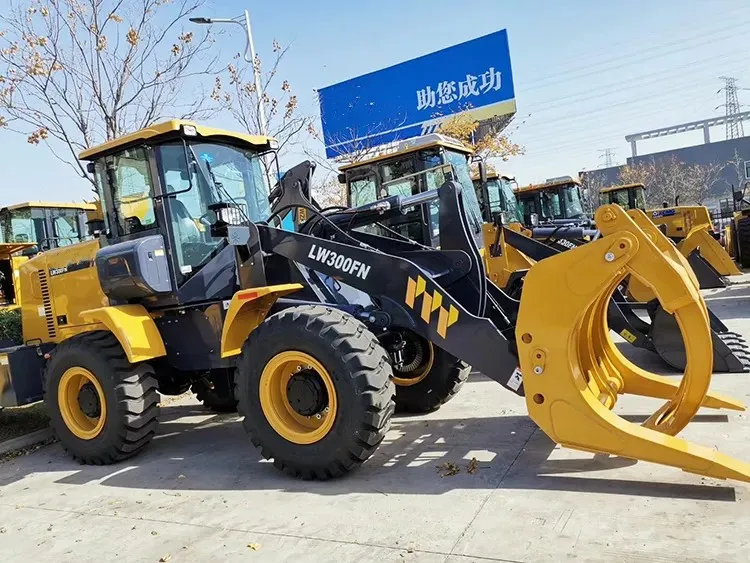

| Model NO. | LW300FN | Certification | CE |
|---|---|---|---|
| Condition | New | Rated Load | 1-3t |
| Transmission | Hydraulic | Load and Unload Mode | Front Discharge |
| Walking Mode | Wheeled | Type | Medium-sized Loader |
| Wheel Base | 2600mm | Tread | 1850mm |
| Max.Breakout Force | 130kn | Hydraulic Tank | 170L |
| Specification | 7245mm* 2482mm*3118mm | Origin | Jiangsu, China |
| Description | Unit | Parameter value |
|---|---|---|
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5~2.5 |
| Machine weight | kg | 10600±200 |
| Dump clearance at maximum lift | mm | 2770~3260 |
| Reach at maximum lift | mm | 1010~1210 |
| Wheel base | mm | 2600 |
| Tread | mm | 1850 |
| Max. breakout force | kN | 130 |
| Total hydraulic cycle time | s | 10 |
| Gradeability | ° | 28 |
| Tyre size | - | 17.5-25-12PR |
| Overall machine dimension (L×W×H) | mm | 7050×2482×3118 |
| Rated Power/Speed | kW/rpm | 92/2200 |
Outstanding capability with traction at ≥9t and breakout force at ≥13t. High adaptability with a turning radius of 5,165mm (tire center).
Available Tools: Log clamp, Toad's mouth clamp, Pallet fork, Snowplow, Grasping grass machine.
