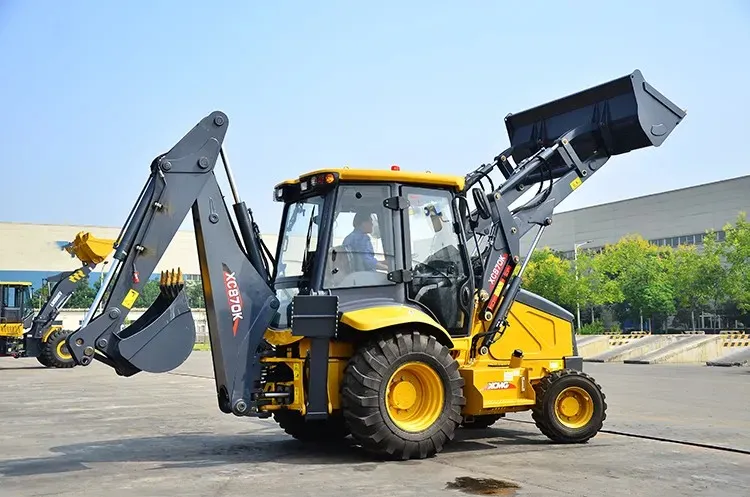

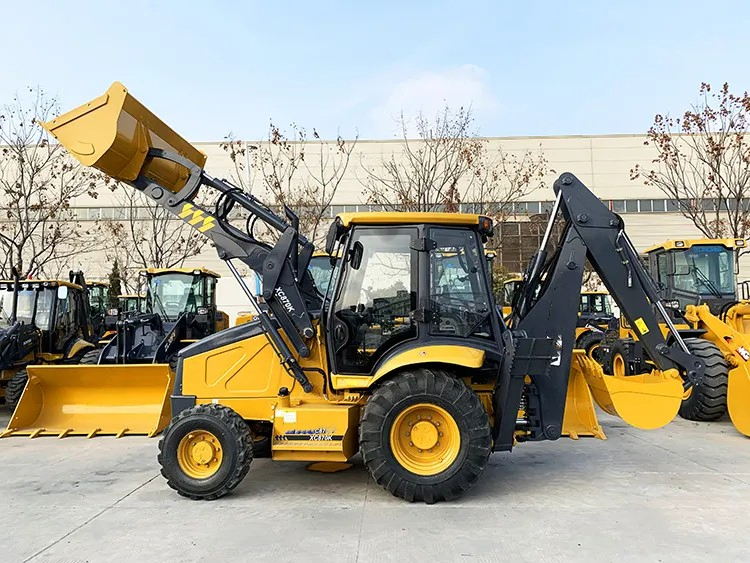

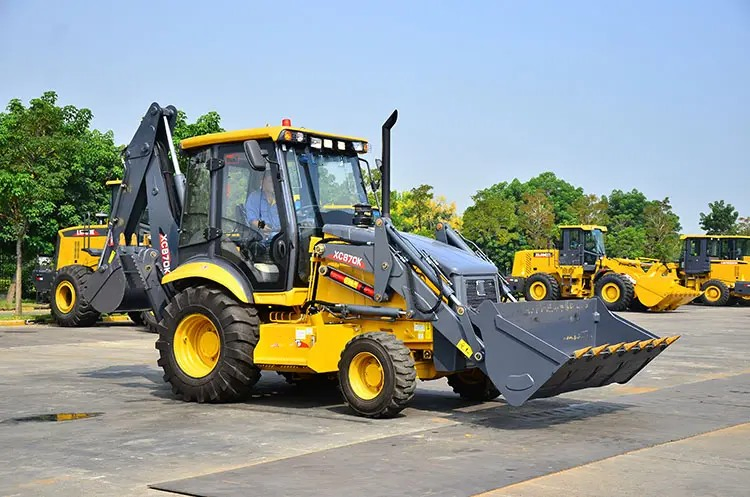

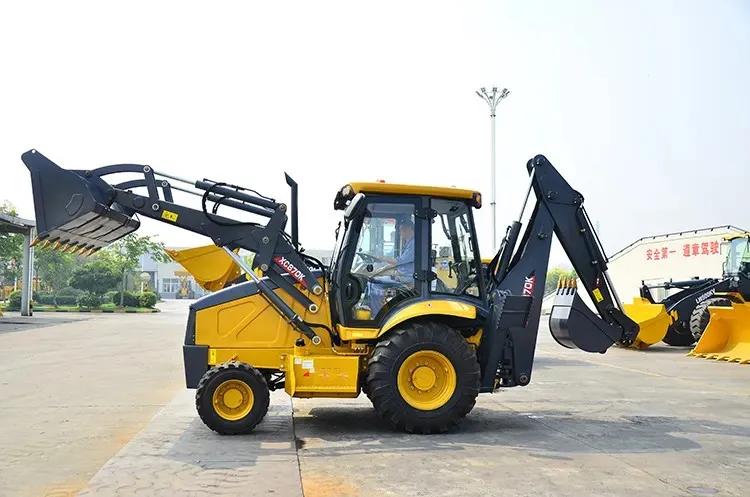

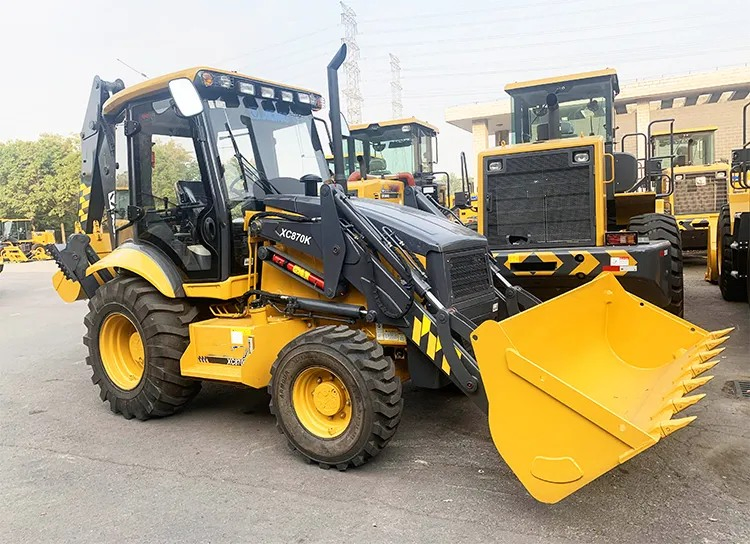

XC870K is a K series backhoe loader newly launched. This product is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and of working device parameters, to further improve the comfort, safety, maintainability, reliability, supportability, and economy of the product.
| Description | Parameter Value | Unit |
|---|---|---|
| Chassis type | integrated | - |
| Drive style | 4 drive/2 drive | - |
| Outline dimensions(L×W×H) | 7440×2350×3450 | mm |
| Total weight | 7600 | kg |
| Max. travel speed | ≥40 | km/h |
| Wheelbase | 2180 | mm |
| Engine Power | 70-82 | kw |
| Loading Bucket capacity | 1 | m3 |
| Rated load | 2500 | kg |
| Max. discharge height | 2770 | mm |
| Digging Bucket capacity | 0.3 | m3 |
| Max. digging depth | 4425 | mm |
| Max. digging force | 63 | kN |
