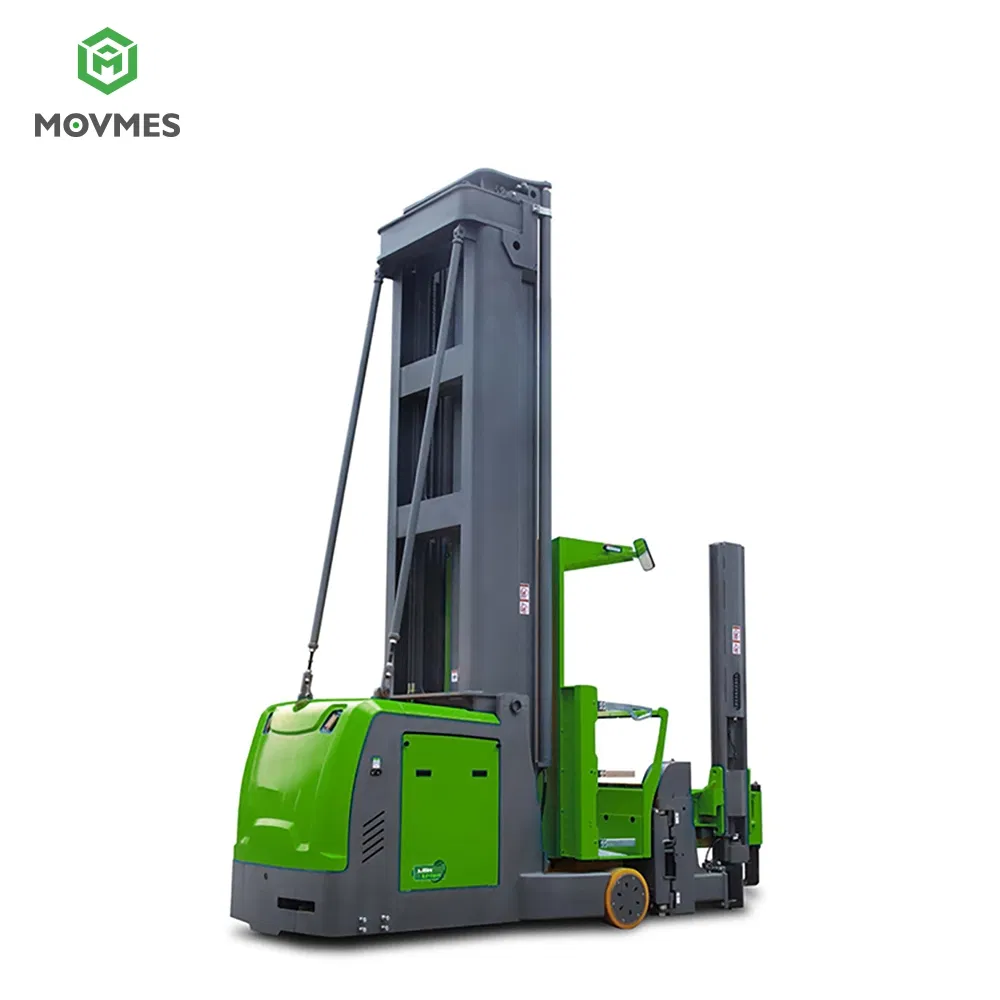

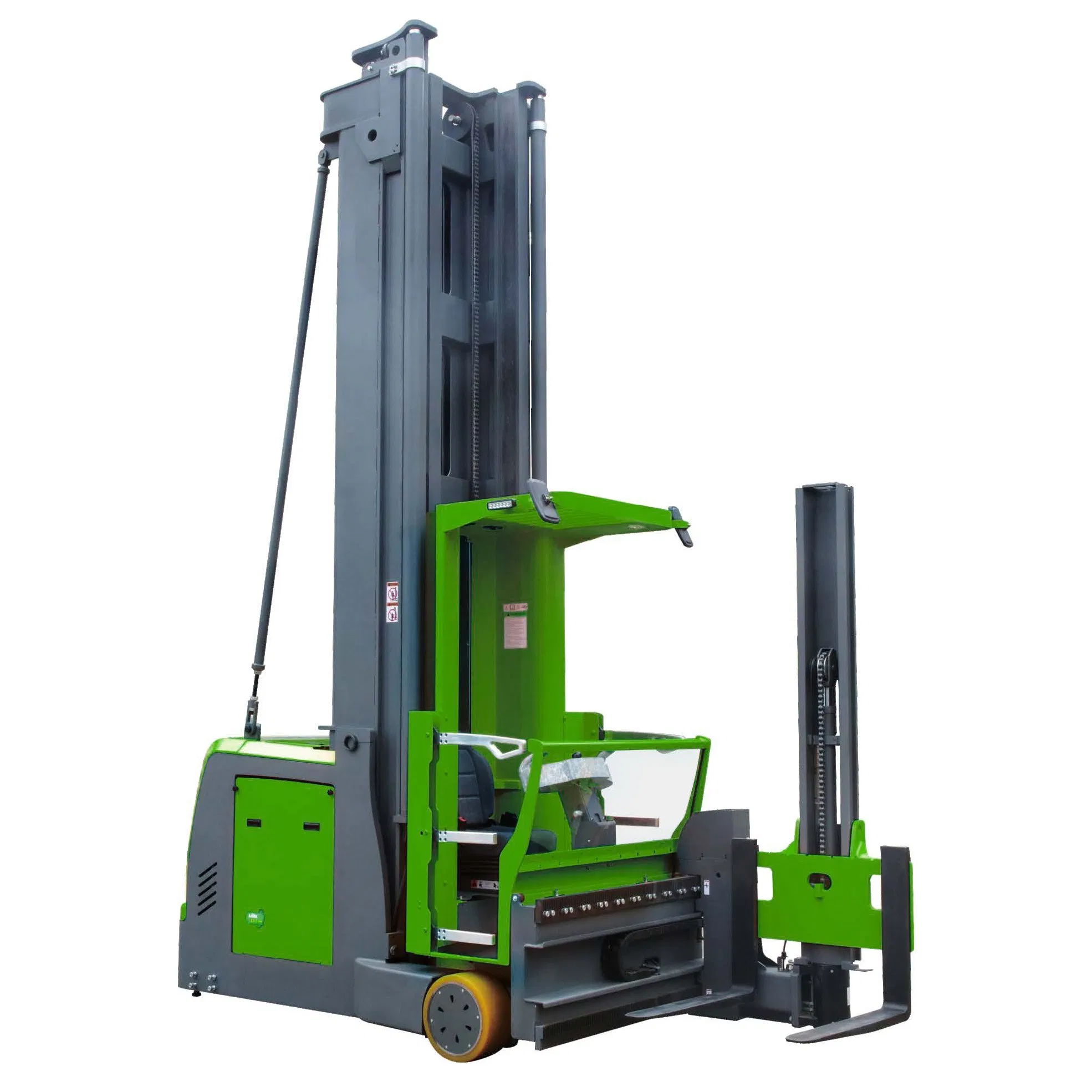

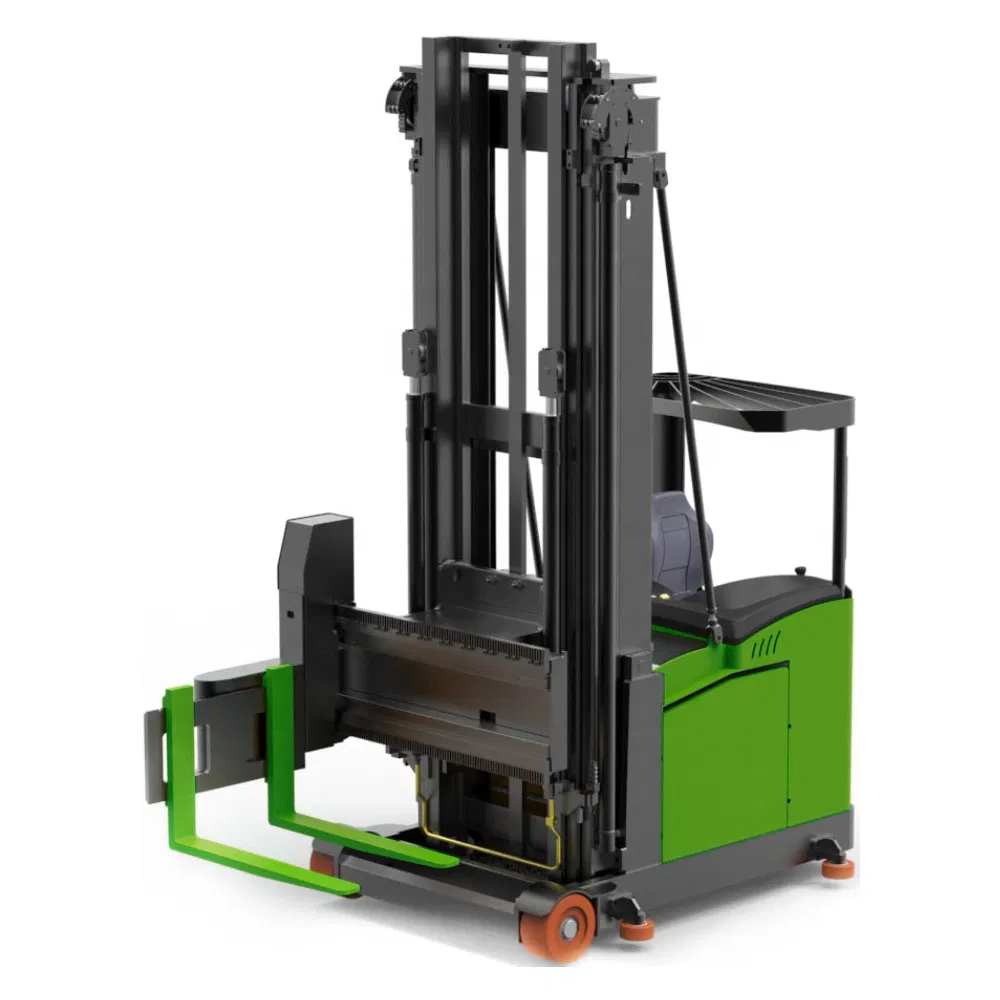

OPTS15 is a man-up tri-lateral stacker designed specifically for narrow aisles, offering an impressive lifting height ranging from 6m to 15.5m. Engineered with three fulcrums, it maximizes storage density while providing an advanced control system for superior performance and ease of operation.

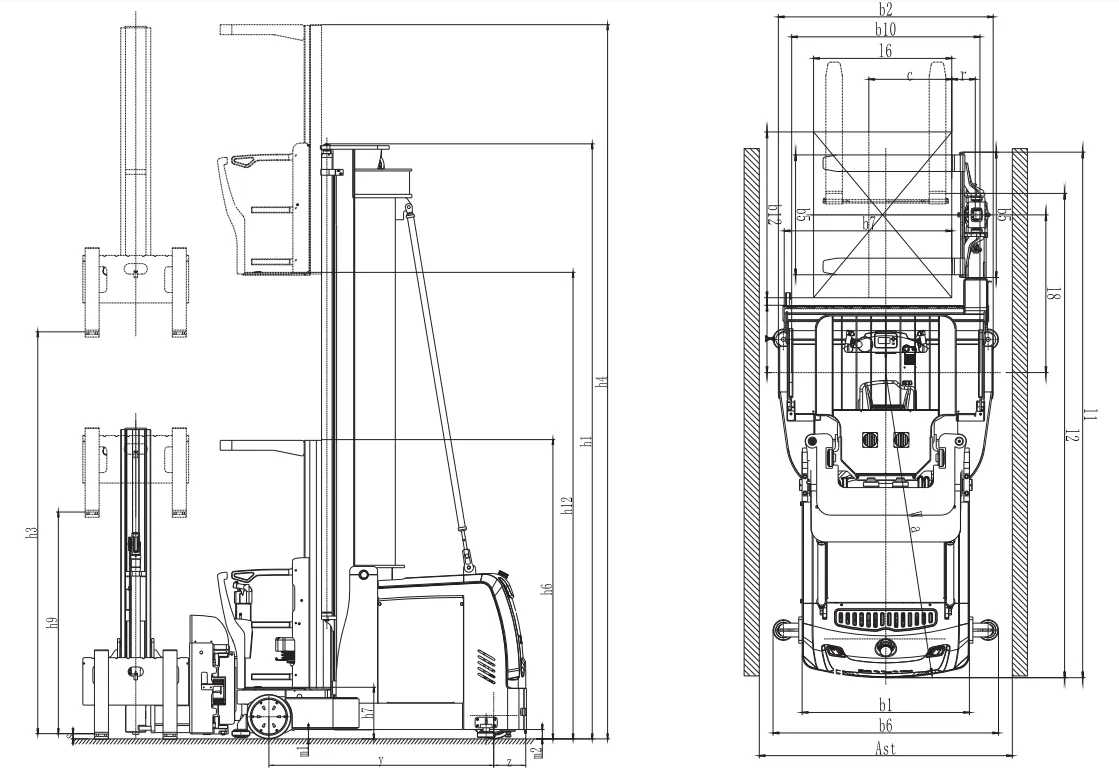

| Parameter | Unit | OPTS15 (9.2M) | OPTS15 (10M) | OPTS15 (13M) |
|---|---|---|---|---|
| Power | - | ELECTRIC | ELECTRIC | ELECTRIC |
| Load capacity | Q(kg) | 1500 | 1500 | 1500 |
| Load capacity at max height | kg | 950 | 900 | 600 |
| Load centre distance | c(mm) | 600 | 600 | 600 |
| Service weight (incl. battery) | kg | 8405 | 8705 | 9855 |
| Lifting height | h3(mm) | 7460 | 8260 | 11260 |
| Overall length | l1(mm) | 3805 | 3805 | 4125 |
| Aisle width (1200x1200mm) | Ast(mm) | 1700 | 1700 | 1700 |
| Turning radius | Wa(mm) | 2220 | 2220 | 2540 |
