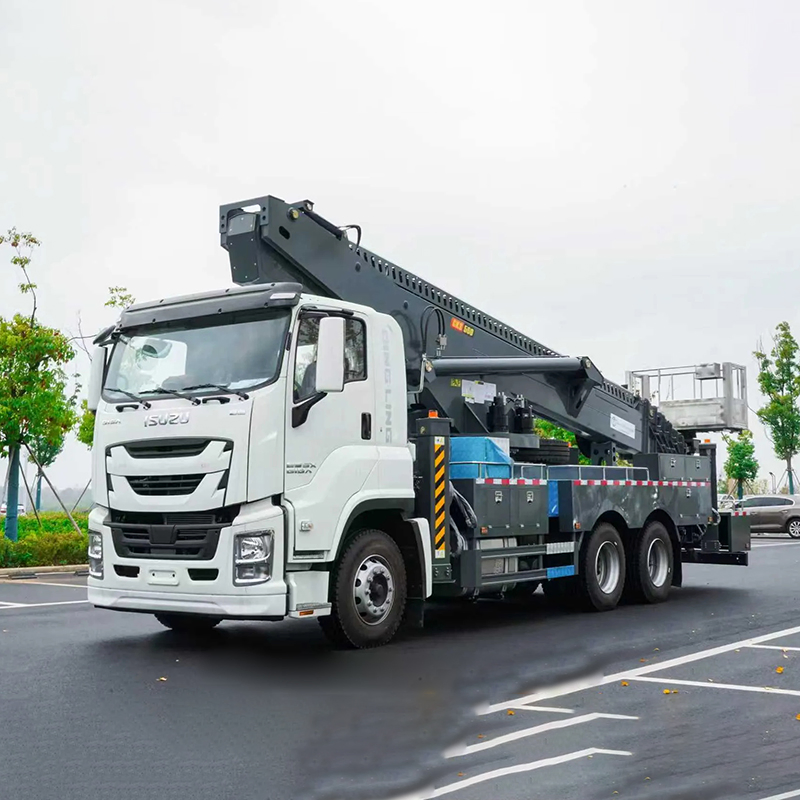

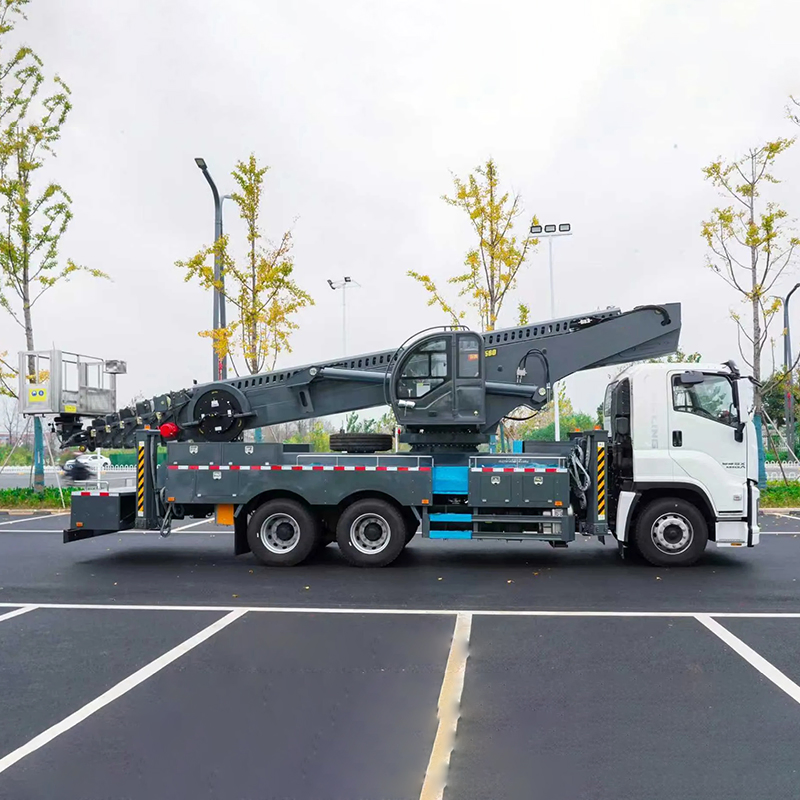

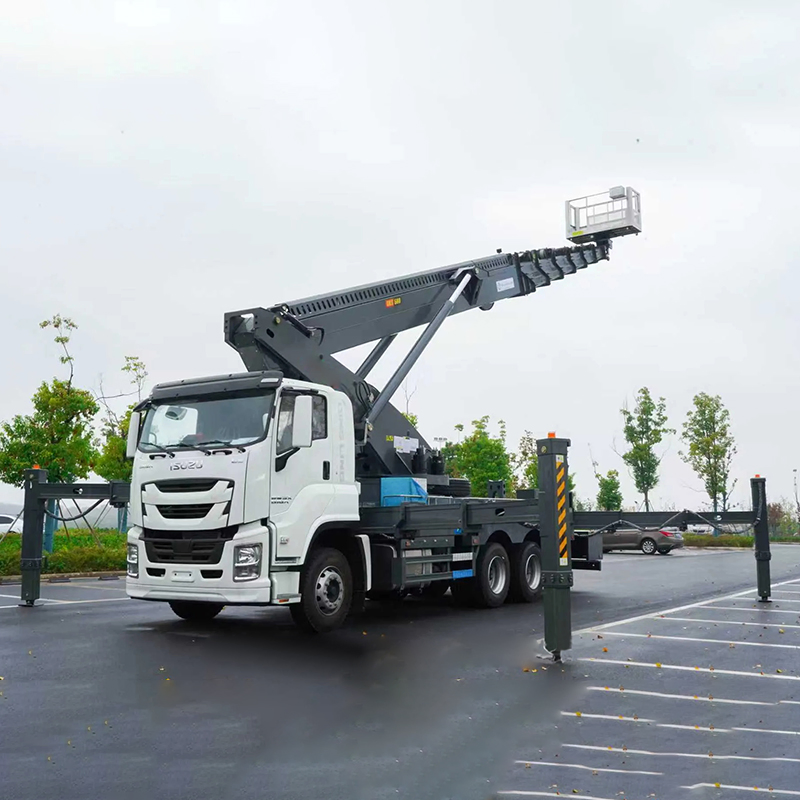

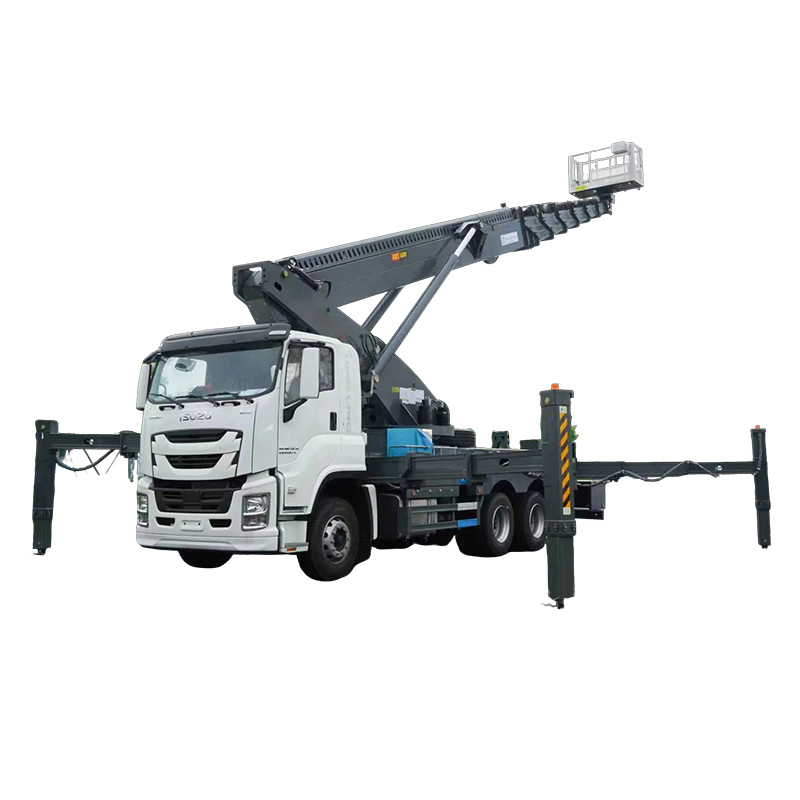

Japan Engine 60-Meter Straight Boom Aerial Work Platform Truck, High-Reach Platform Truck, Suitable for Various Aerial Work Tasks.

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Type
60 meters
Certification
ISO9000, CCC, TS16949
Emission Standard
Euro 6
Horsepower
150-250hp
Payload
5-15t
Fuel
Diesel
Transmission
Manual (5/6 Gears)
Drive Wheel
4x2
Rotation
360° Continuous
Operation Mode
Electric/Manual/Remote
Straight Boom Aerial Work Platform Truck
Product Technical Parameters
ChassisI-SUZUJUKA
Curb Weight19600KG
Engine4HK1-TCG60 (5.193L 205HP)
Maximum Operation Height60m
Maximum Range of Work27m
Rated Load of Platform400kg
Outline Dimension10400mm * 2550mm * 3900mm
Arm Frame9-section arm, 8-section synchronous telescoping
Hydraulic LegX-shaped, 4 three-section outriggers
Operating SystemWireless remote control, three-way operation
Aerial Work Vehicle Overview

Aerial work vehicles are special engineering vehicles used for high-altitude operations. They use mechanical devices to lift operators and equipment to the required height to complete maintenance, installation, and cleaning tasks. The design combines the mobility of a truck chassis with the functionality of a professional aerial platform.

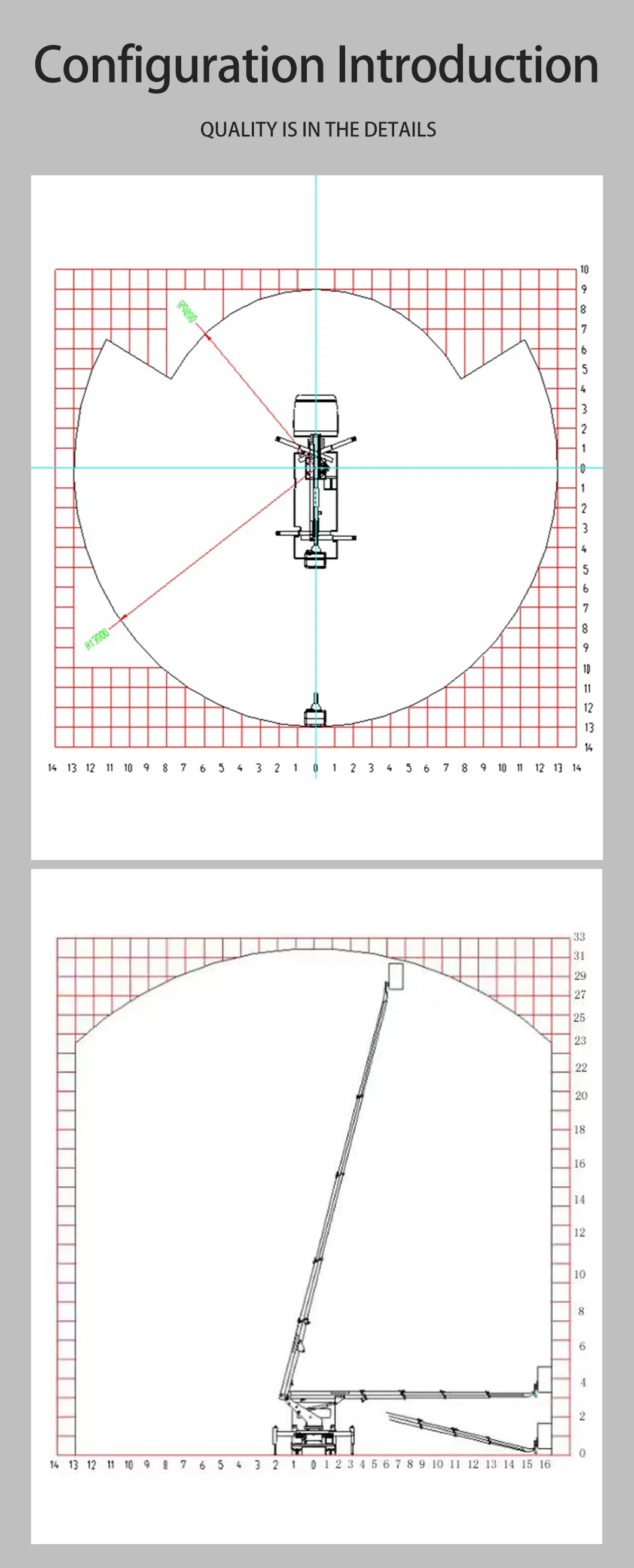

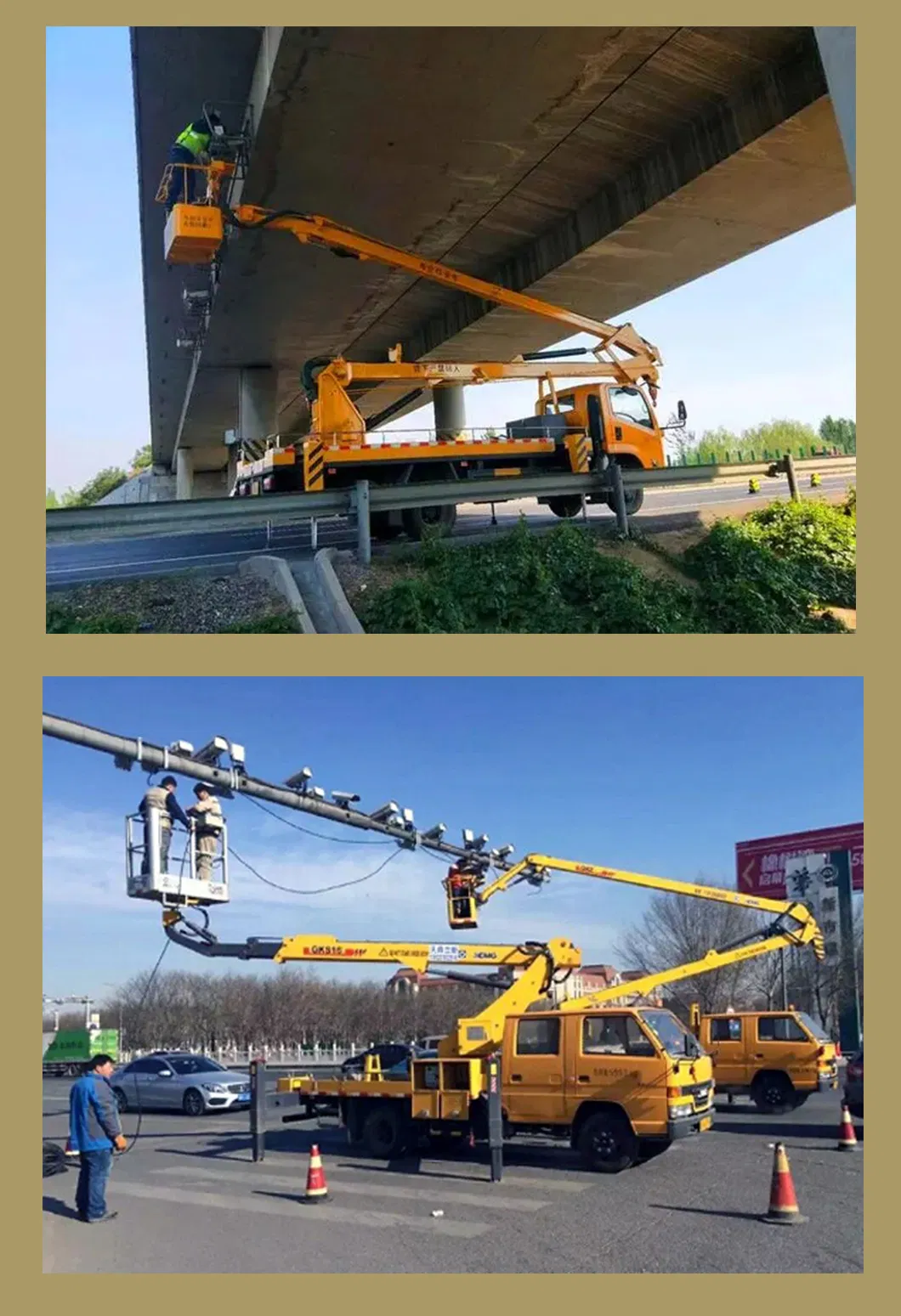

Operation View

Equipped with intelligent control systems, these vehicles offer precise operations via control panels or remote devices. Features like automatic balancing, tilt alarms, and emergency power sources ensure high safety standards and operational convenience in complex work sites.

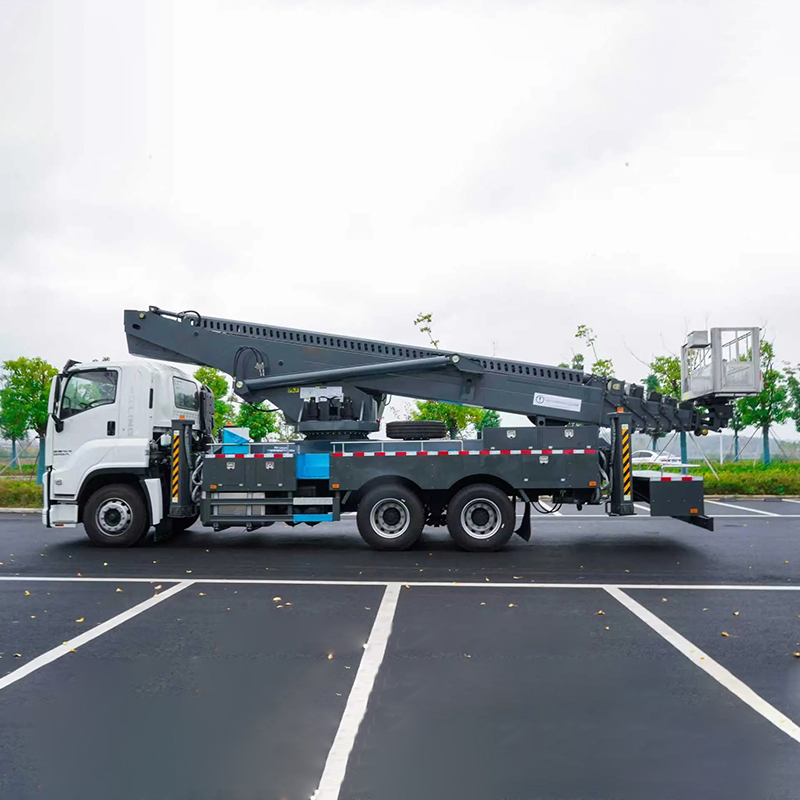

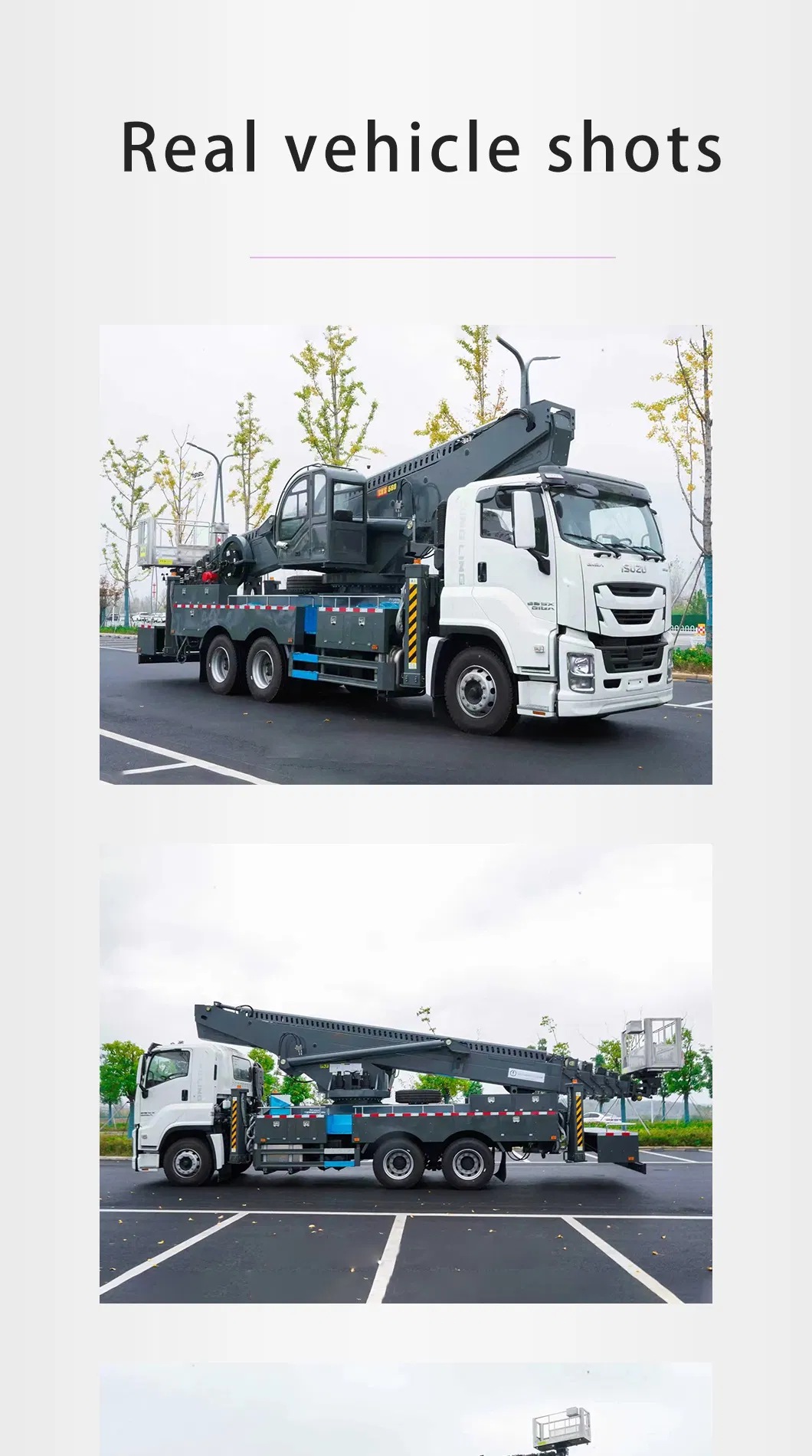

Full truck display
FAQ - Frequently Asked Questions
Q1: What is the maximum working height of this vehicle?
The vehicle features a 9-section arm that allows for a maximum operation height of 60 meters and a maximum working range of 27 meters.
Q2: What is the rated load capacity of the aerial platform?
The platform is designed to carry a rated load of 400kg, suitable for multiple operators and their equipment.
Q3: Does the truck come with a remote control system?
Yes, it is equipped with a wireless remote control system and a three-way operation mode for precise control from various positions.
Q4: What safety features are included for high-altitude work?
Safety features include interlocking between upper and lower parts, tilt alarms, emergency power source, soft leg protection, and weight detection protection.
Q5: What kind of outrigger system does it use for stability?
It uses an X-shaped hydraulic outrigger system with 4 three-section outriggers that can be individually adjusted to ensure stability on uneven ground.
Q6: What are the chassis and engine specifications?
The vehicle uses an I-SUZU type chassis with a 4HK1-TCG60 Euro 6 Diesel engine, providing 205HP (150-250hp range).
