| Model | KFS15 |
| Type | Reach Forklift |
| Power | Electric / Diesel Engine Option |
| Load Capacity | 1T - 5T (Rated 1500kg) |
| Lift Height | 3000~5000mm |
| Cab Location | Standing-up ride on |
| Min. Turning Radius | 1854mm |
| Battery Type | Lead Acid (48V/40A Charger) |

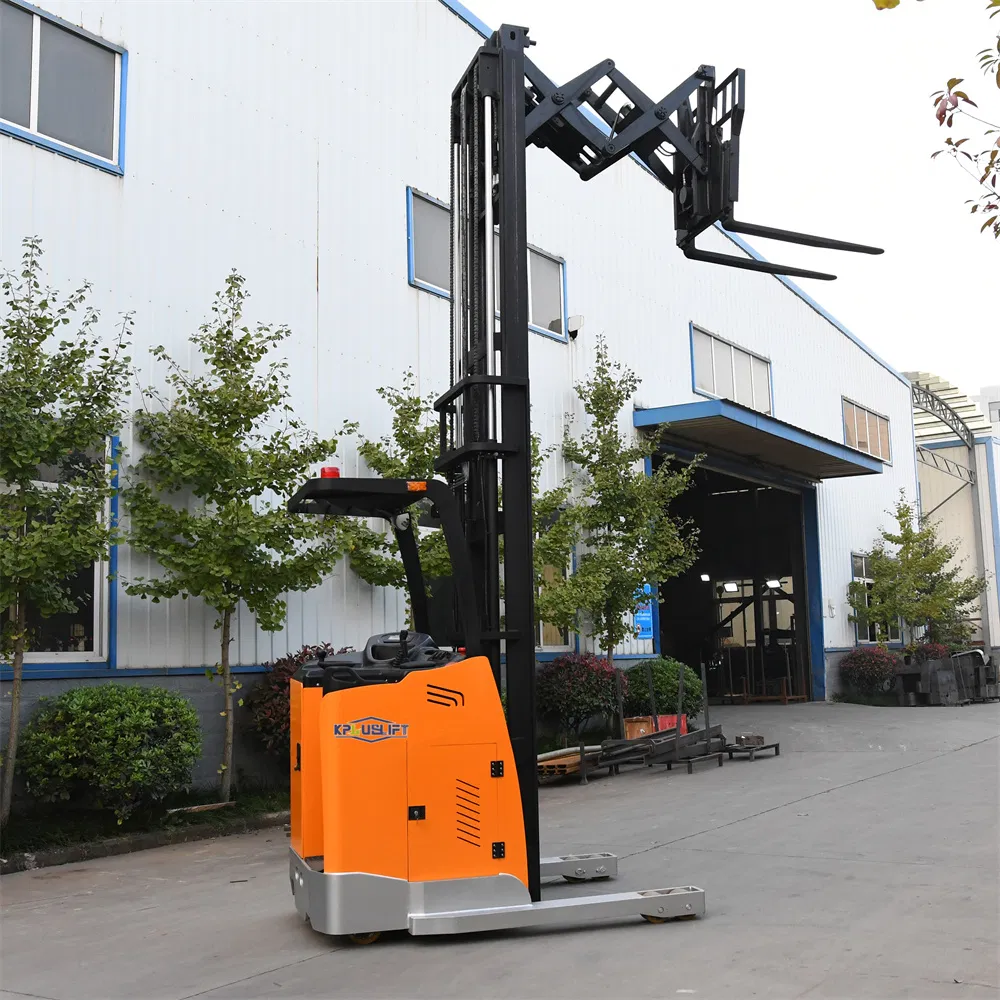

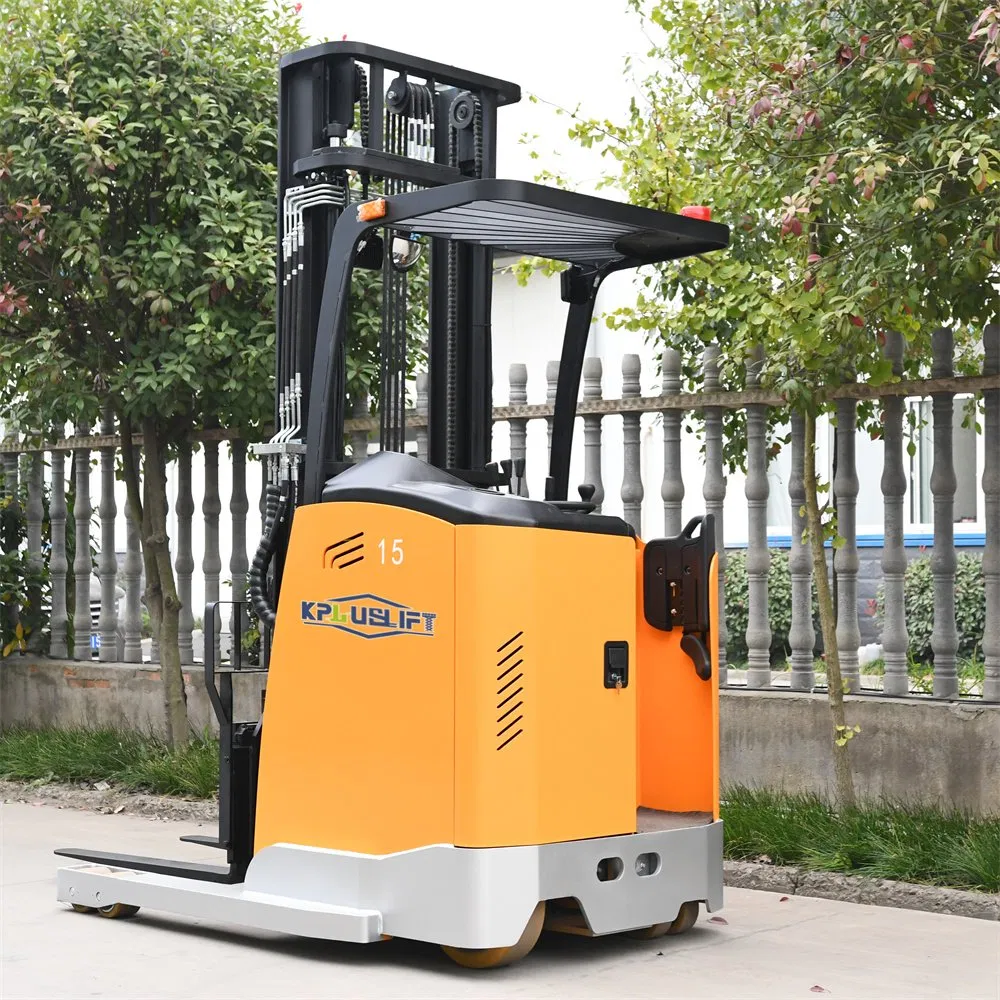

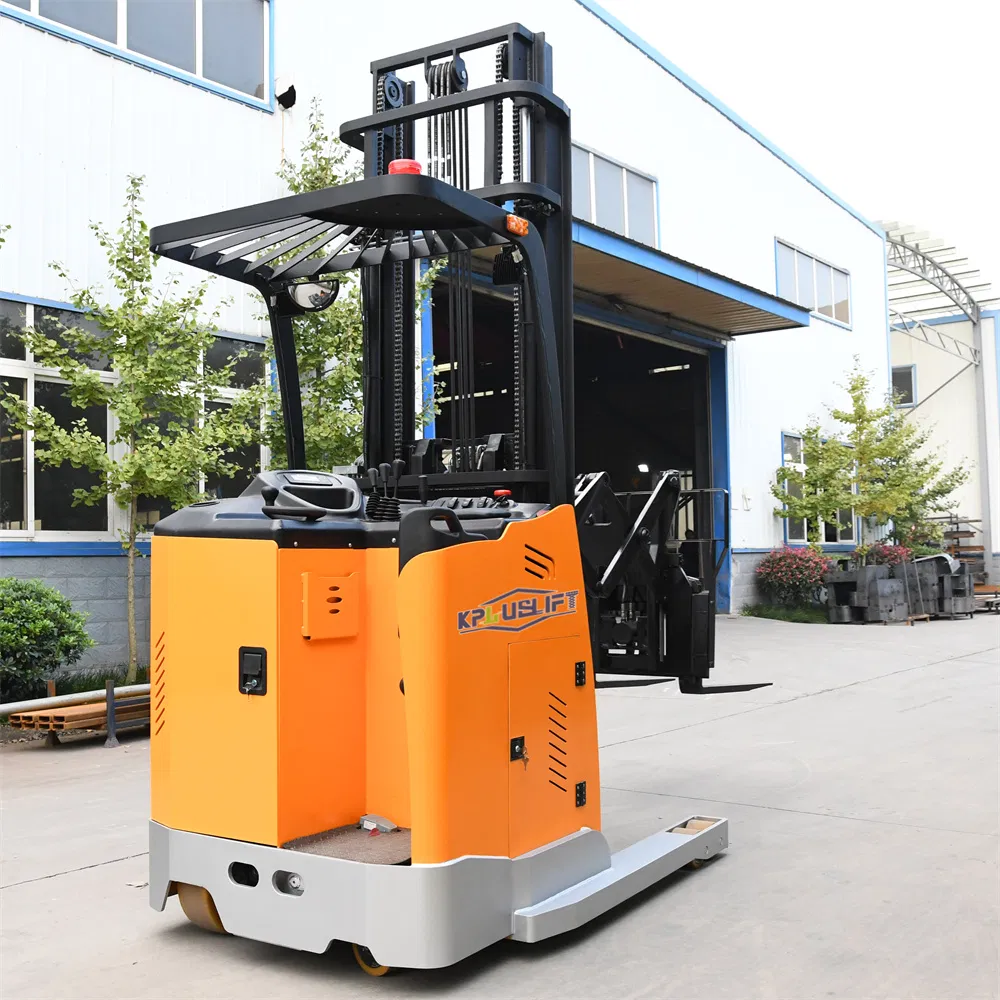

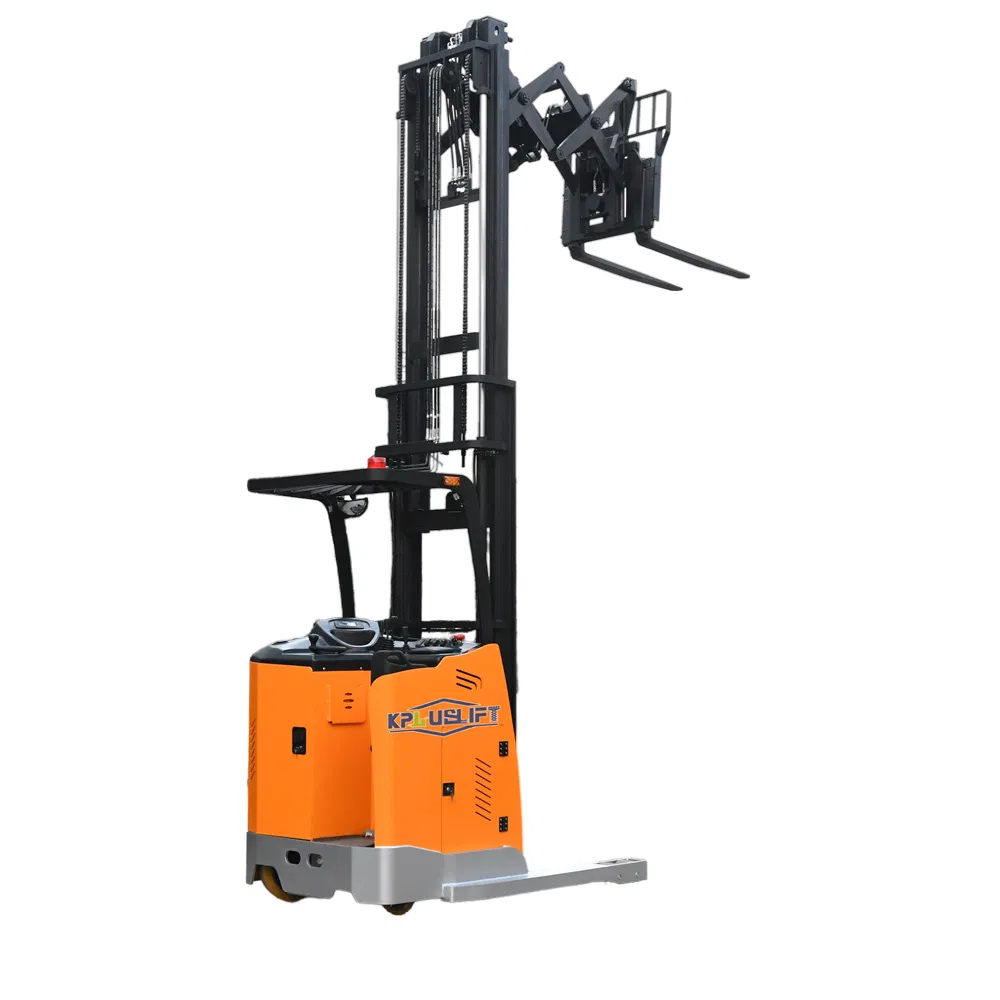

Walkie Electric Deep Reach Truck 1500kg
Double deep-reach trucks are similar to single-reach trucks but feature an extended reach mechanism, allowing operators to access pallets deeper within high-density racking systems. These are ideal for narrow aisle warehouse environments where space optimization is critical.
| Drive Control | AC Drive Motor (4.5AC) |
| Lift Motor | 7.5AC |

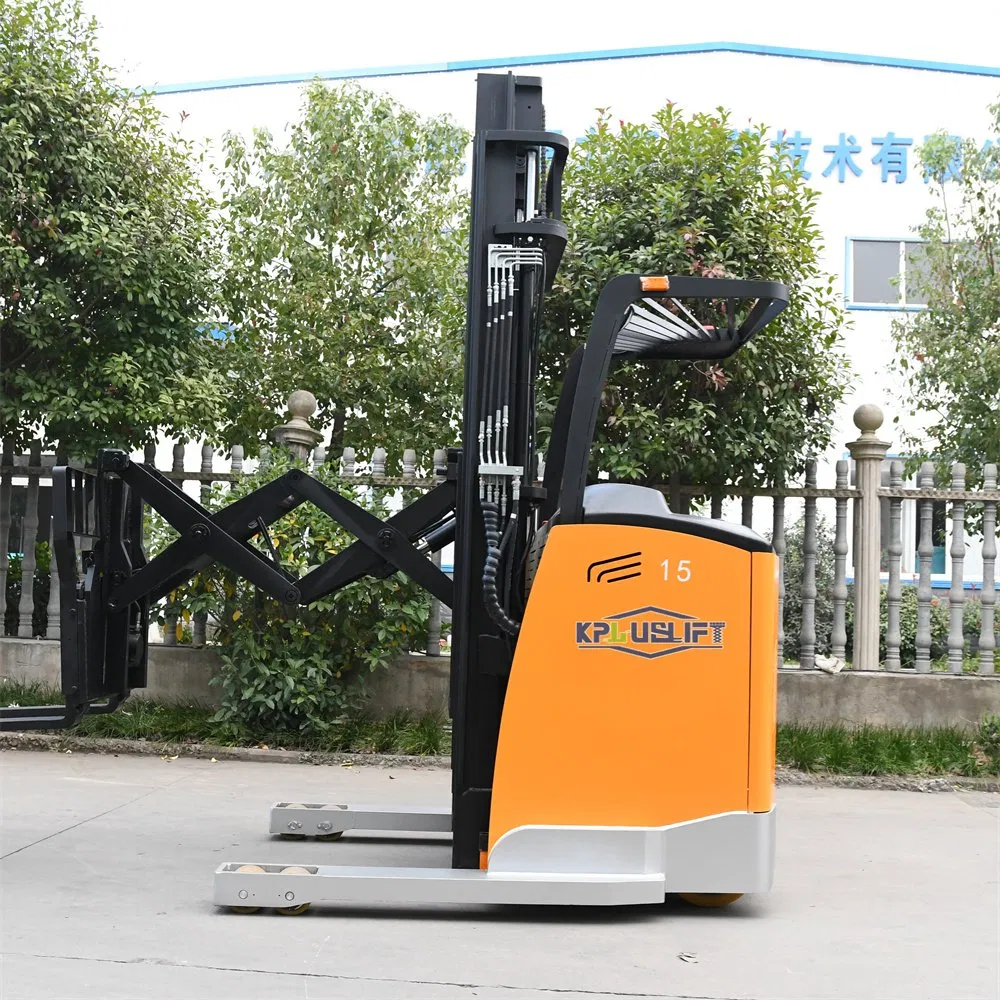

| Mast Features | Pantograph (Zoom in/out forks), Side shift, Tilt |
| Wheelbase (Y) | 1562 mm |
| Self-weight with Battery | 3650 kg |
| Wheel Type | Polyurethane |
| Overall Width (b1) | 1390 mm |
| Fork Size (s/e/l) | 35 * 100 * 1070 mm |
| Fork Expansion Stroke | 1200 mm |
| Max Travel Speed (Laden) | 6.5 km/h |
| Lifting Speed (Laden) | 0.245 m/s |
