Basic Information
Product Description

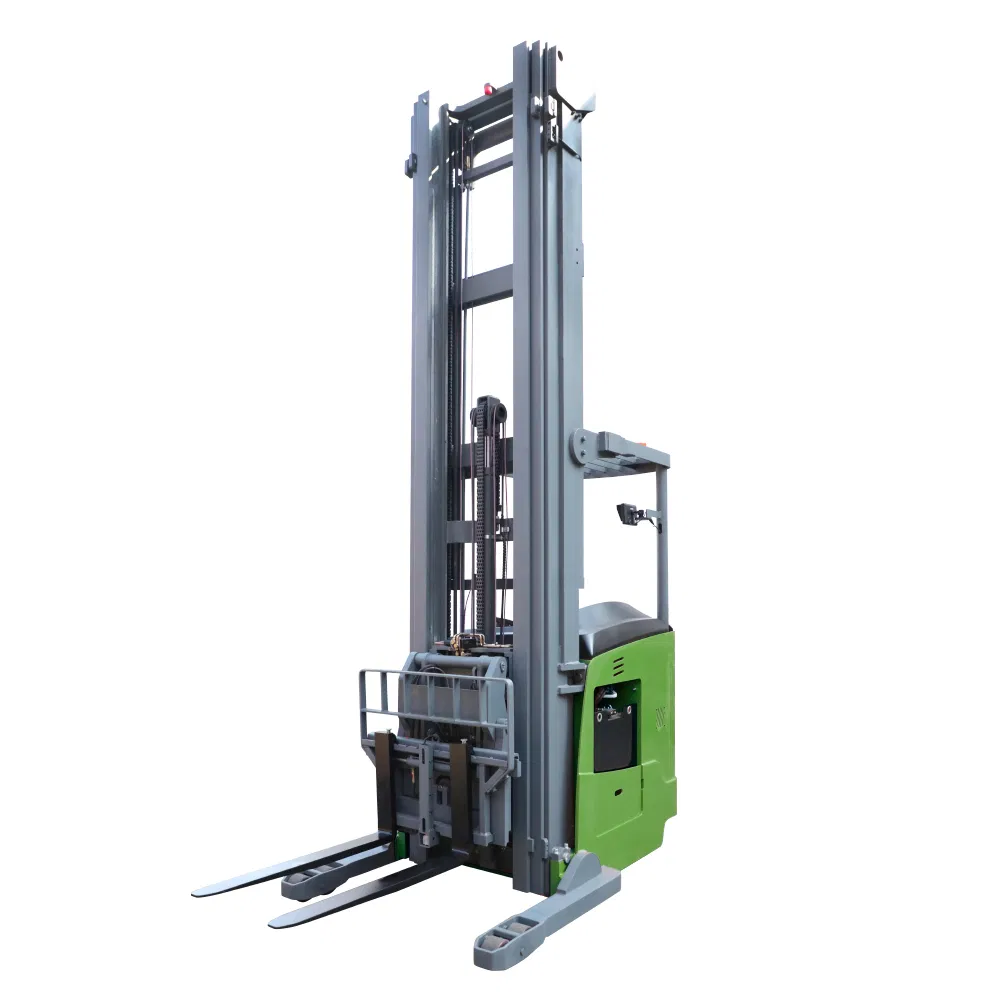

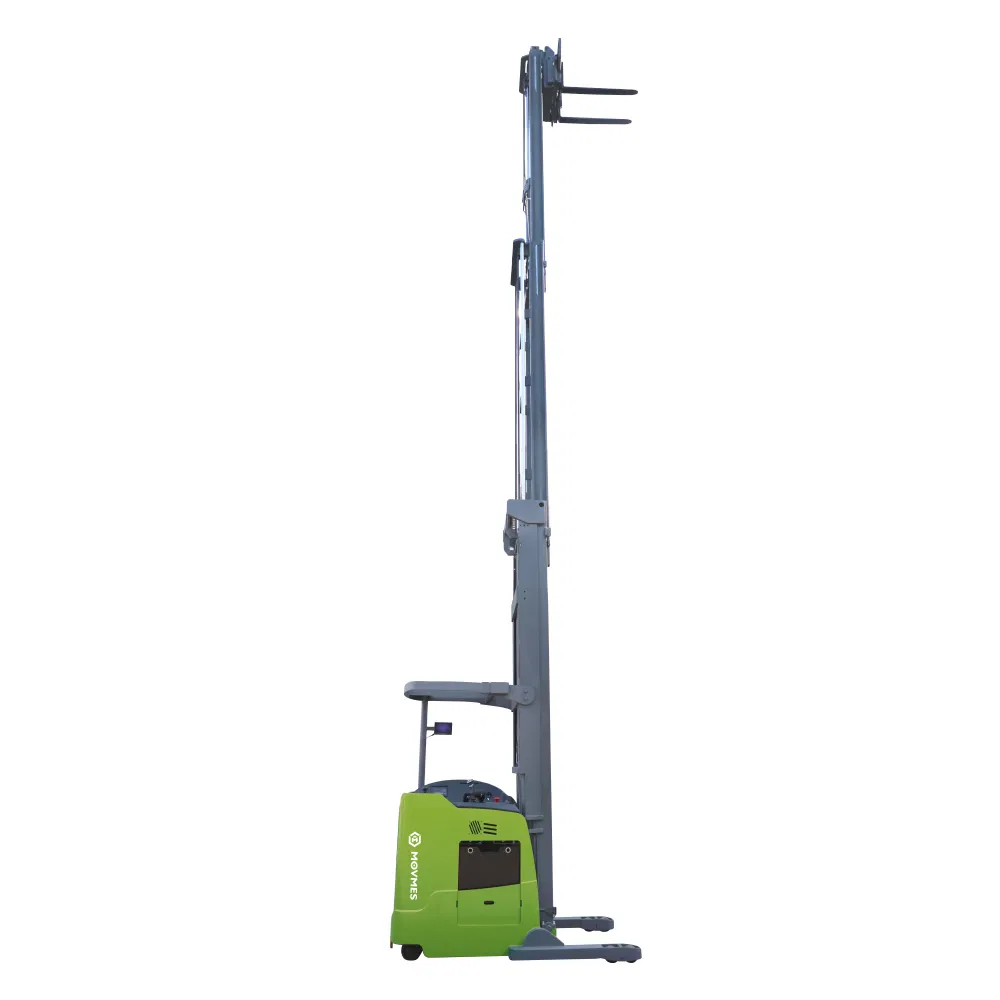

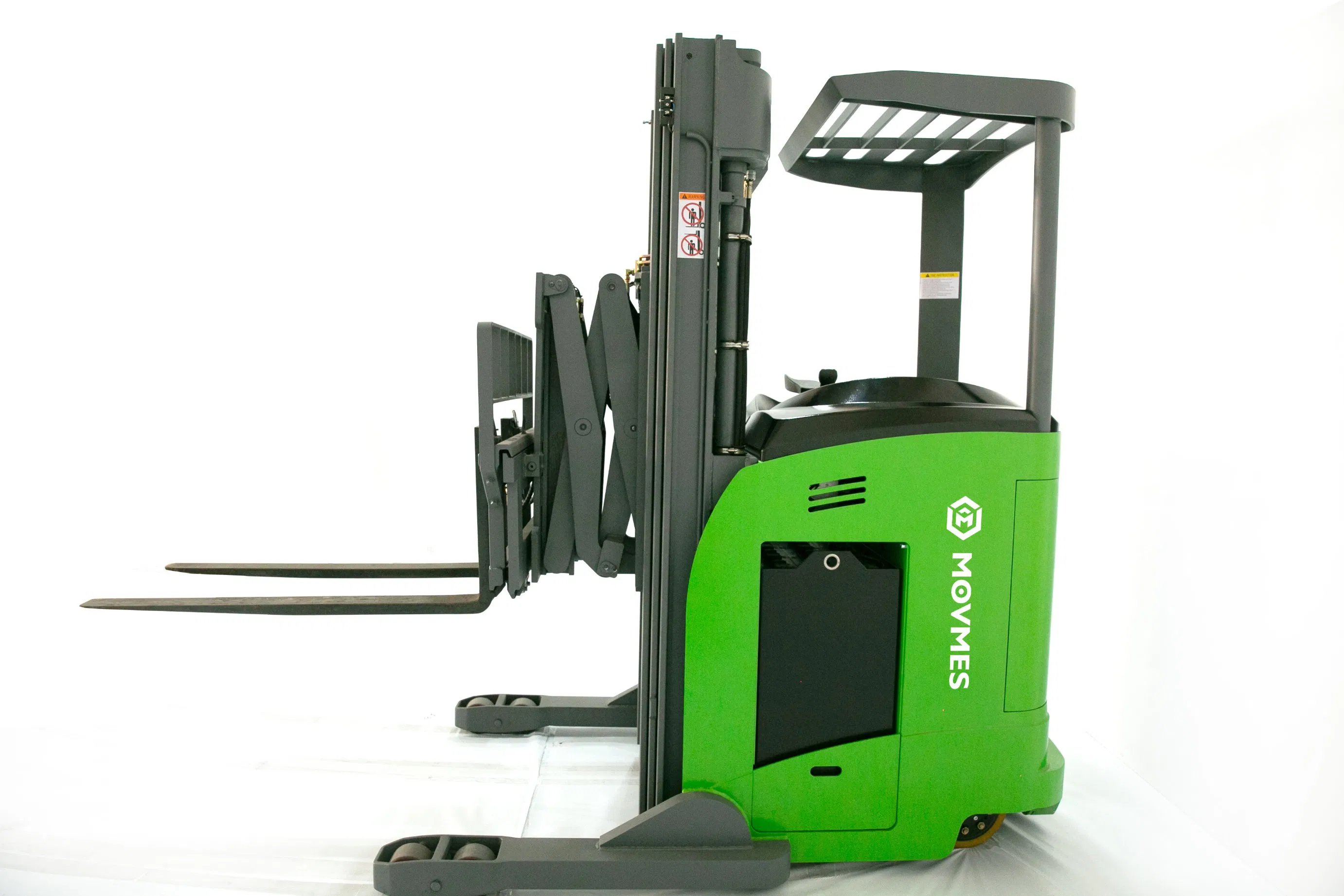

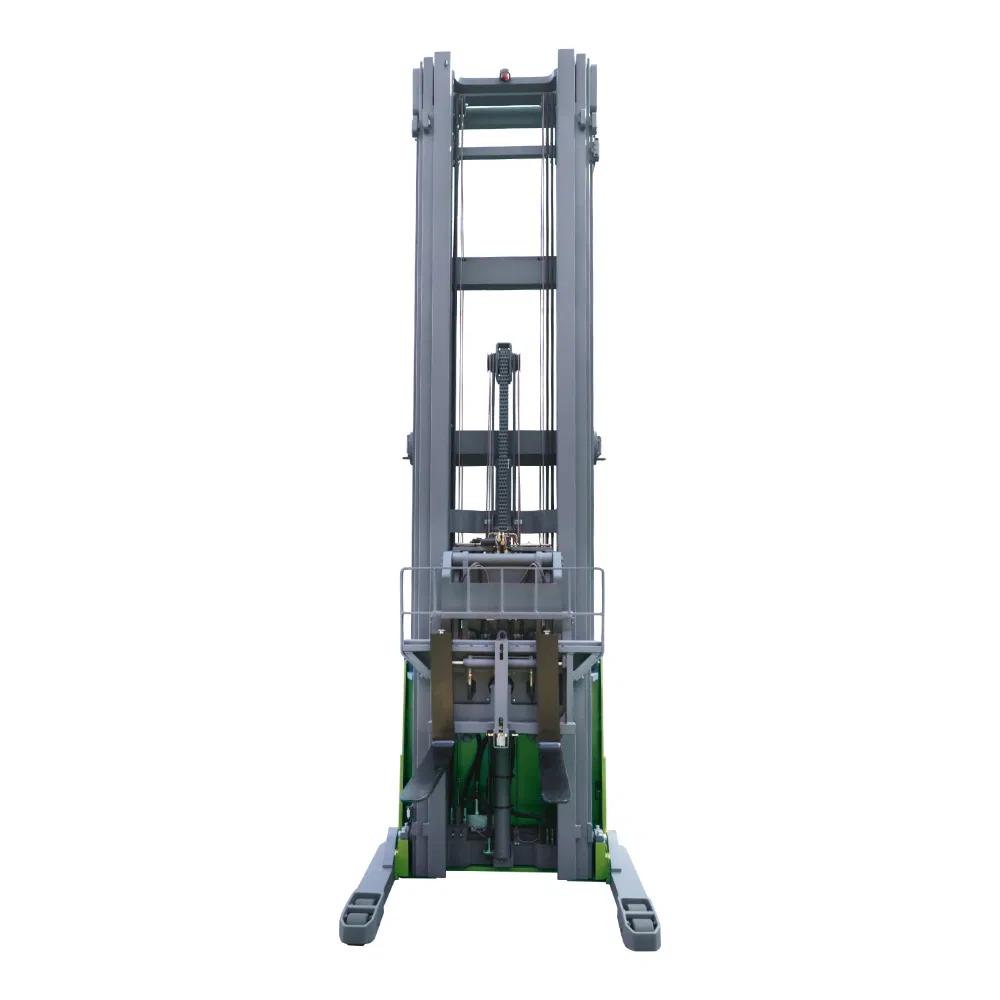

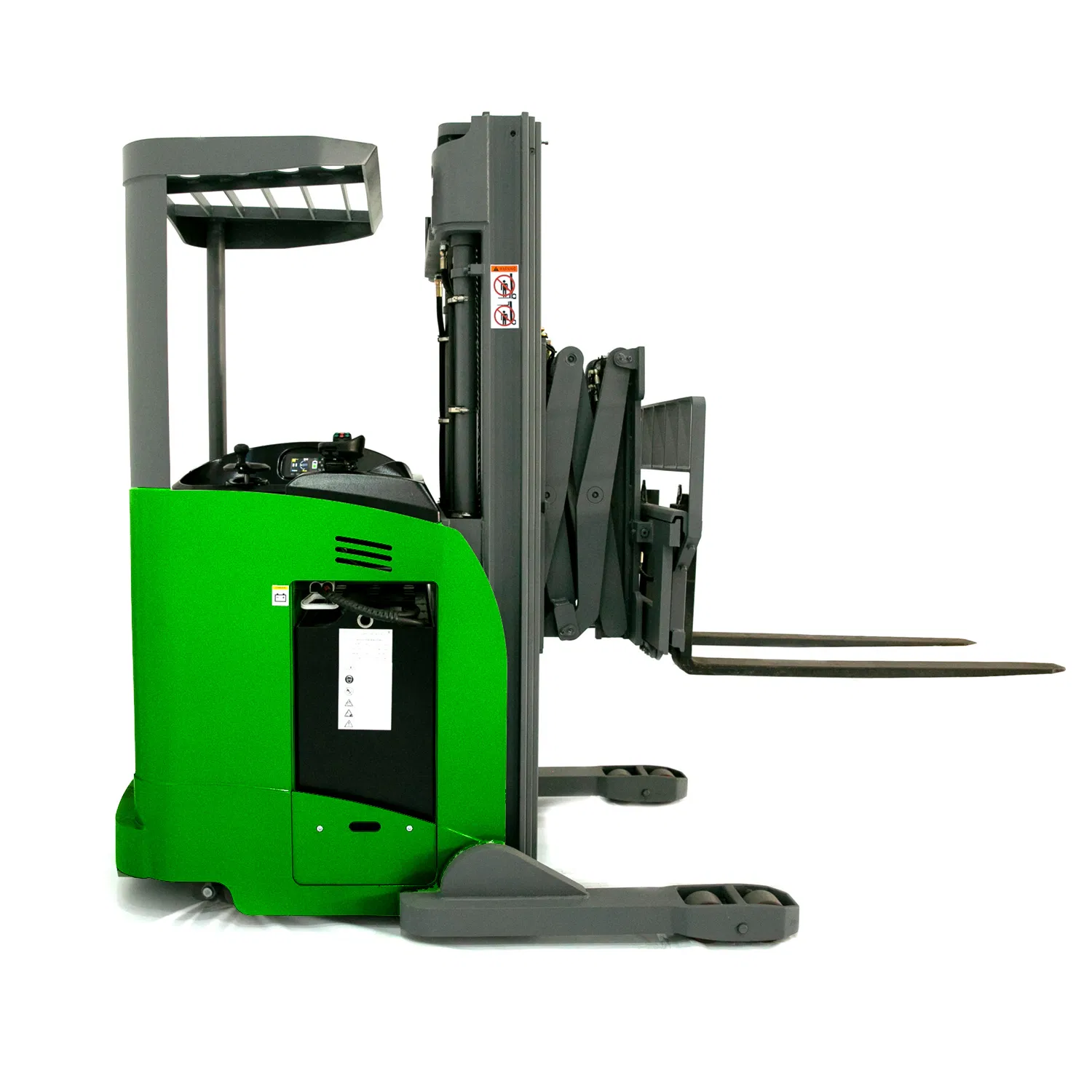

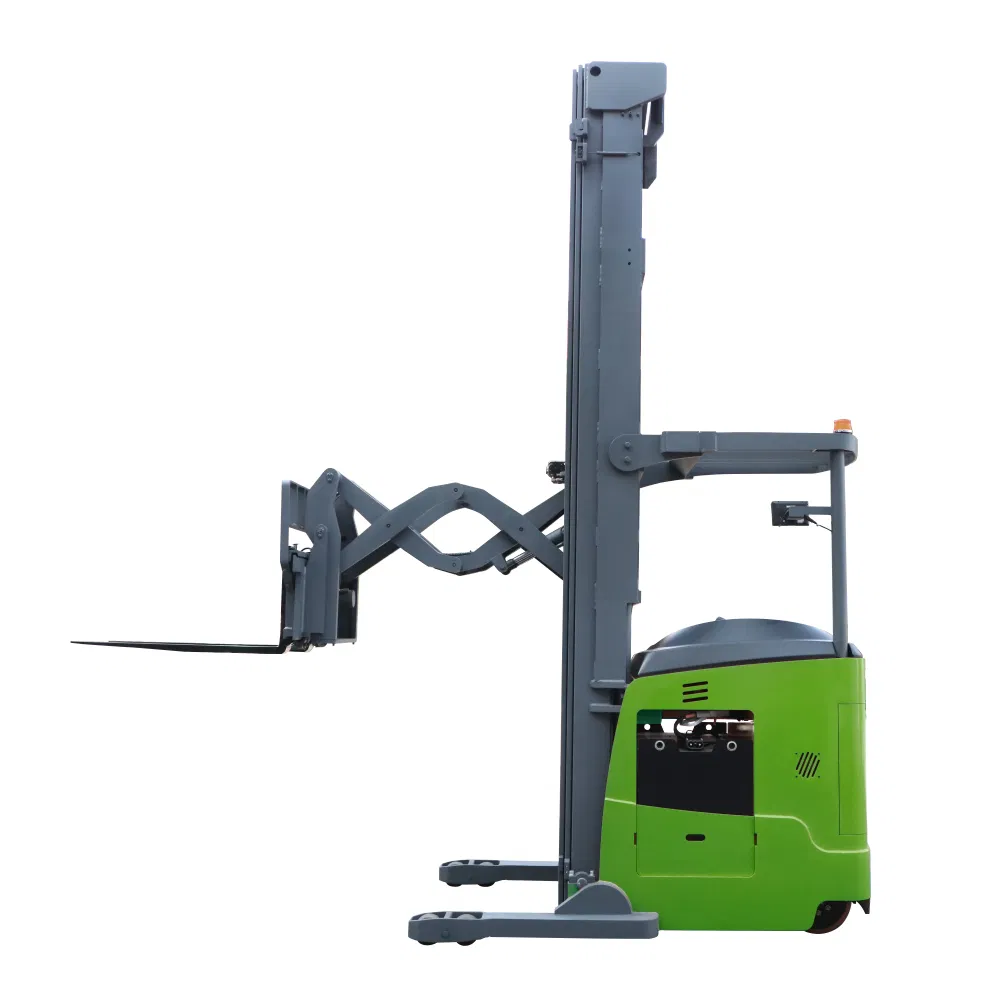

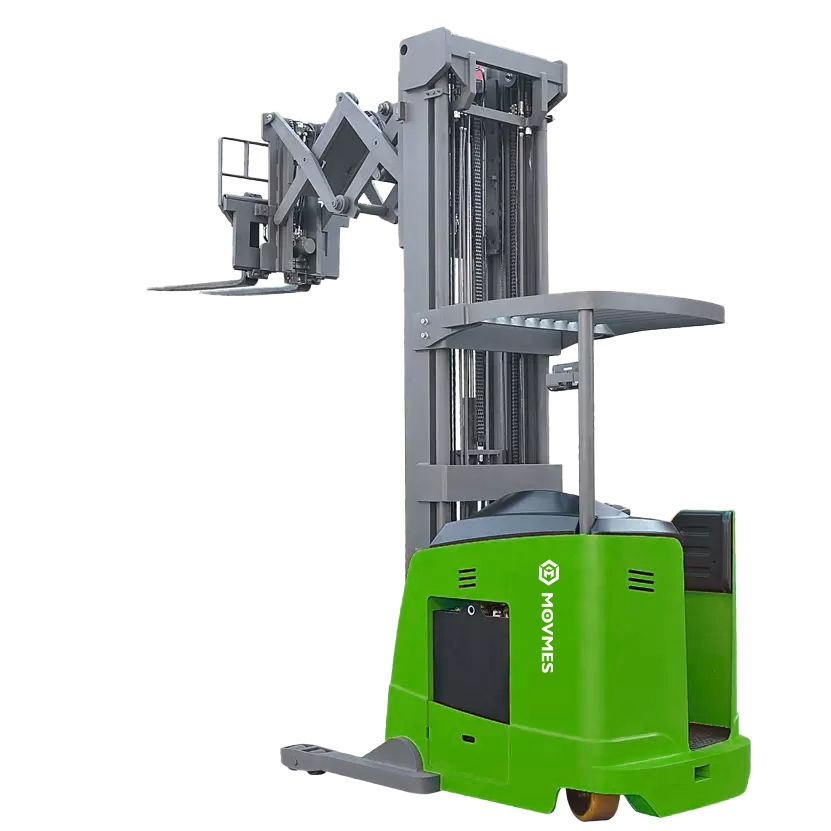

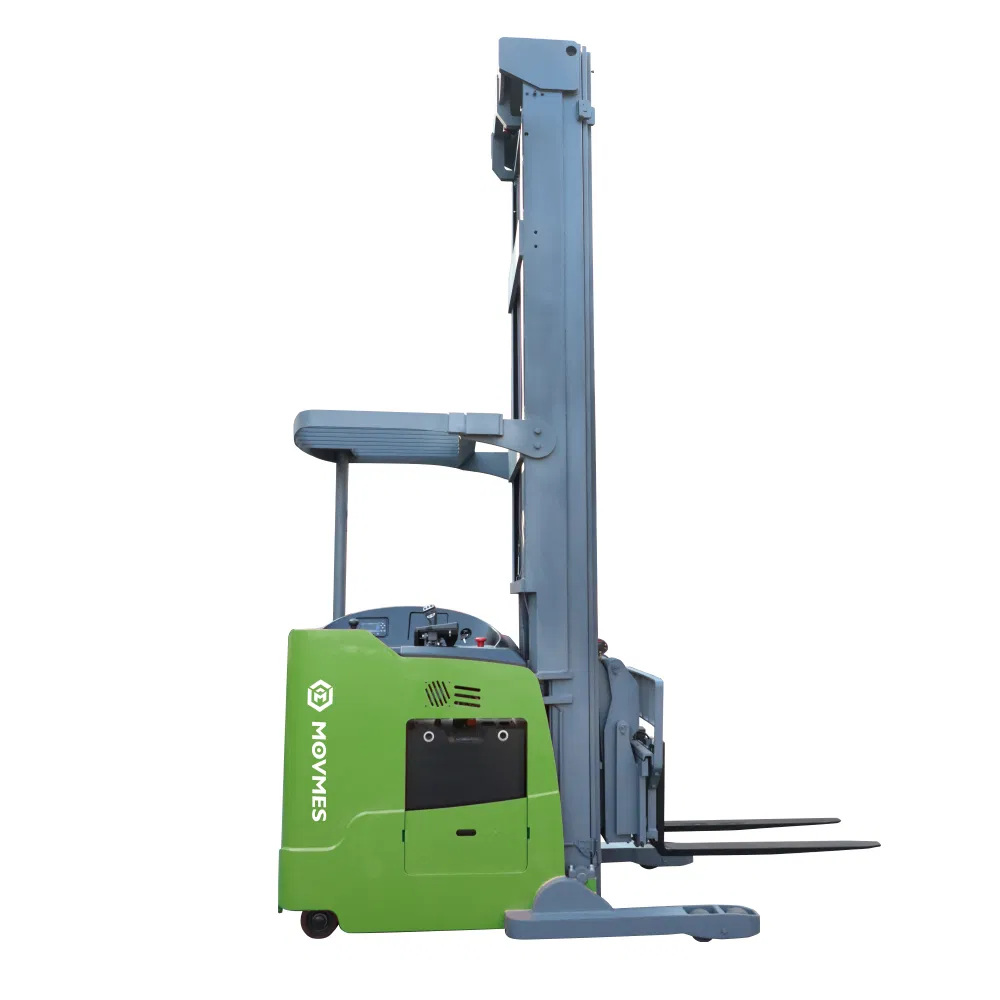

Electric Fork Reach Truck with Single or Double Scissors
Technical Parameters
| Model Spec |
Unit |
Double Scissor A |
Double Scissor B |
| Drive type | - | Battery | Battery |

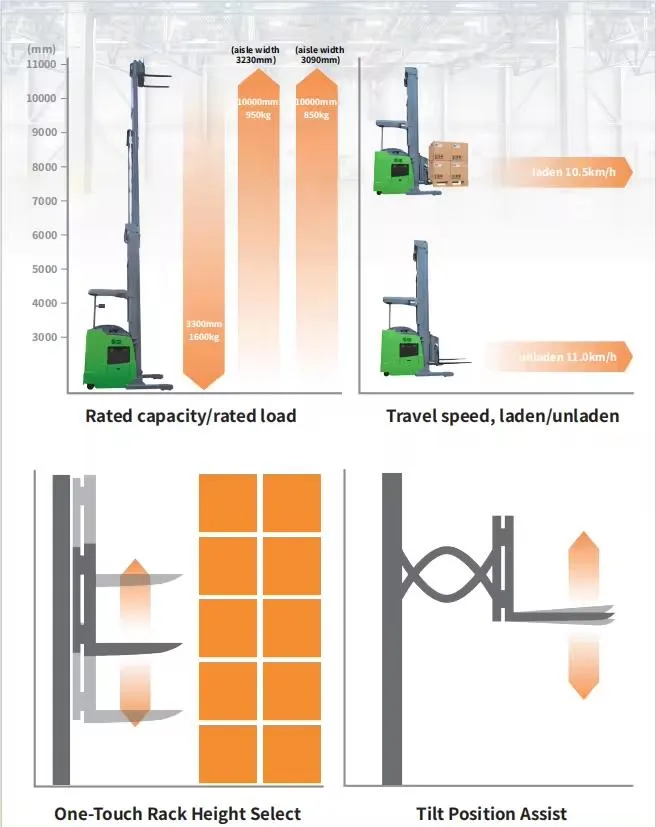

| Rated load capacity | kg | 1600 | 1600 |
| Load centre distance | mm | 600 | 600 |
| Max lift height | mm | 4500-10500 | 4500-9000 |
| Overall width | mm | 1352/1070 | 1352/1070 |
| Turning radius | mm | 2005 | 1865 |
| Travel speed (laden/unladen) | km/h | 10.5/11 | 10.5/11 |
| Lift speed (laden/unladen) | m/s | 0.29/0.29 | 0.29/0.29 |
| Battery voltage/capacity | V/Ah | 36/1000 | 36/700 |

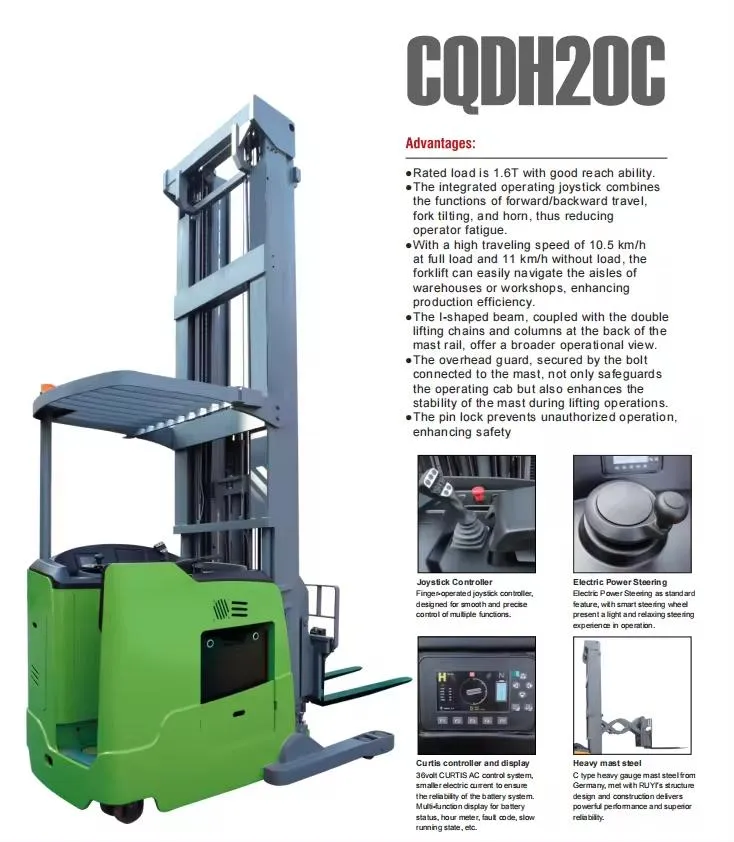

Key Advantages
1
Rated load of 1.6T with superior reach capability.
2
Integrated operating joystick combining travel, tilting, and horn to reduce operator fatigue.
3
High travel speeds up to 11 km/h enhancing warehouse production efficiency.
4
I-shaped beam and double lifting chains offer a broader operational view for safety.
5
Stable mast construction with overhead guard protection.
6
Pin lock system to prevent unauthorized operation.

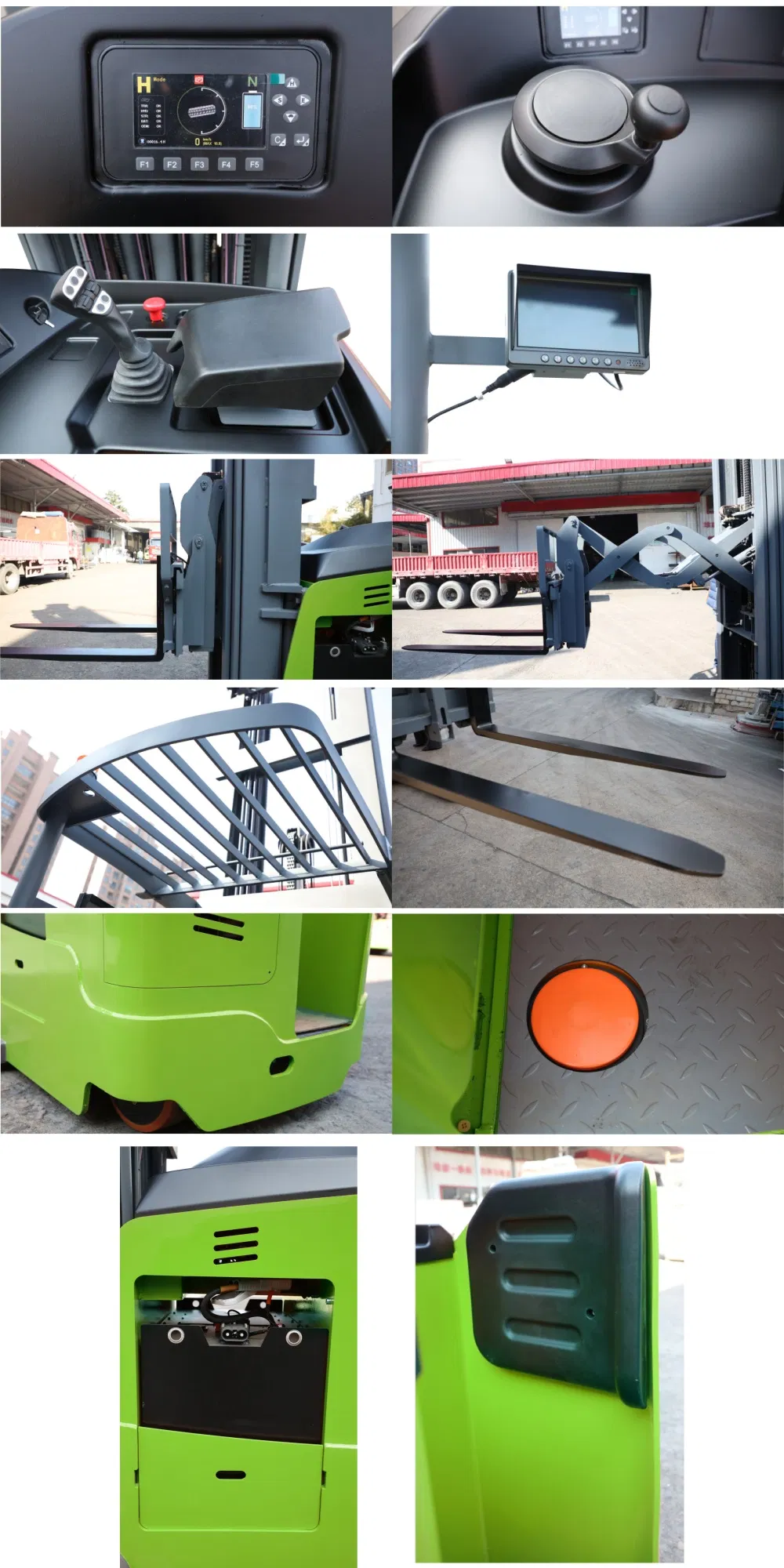

Product Gallery

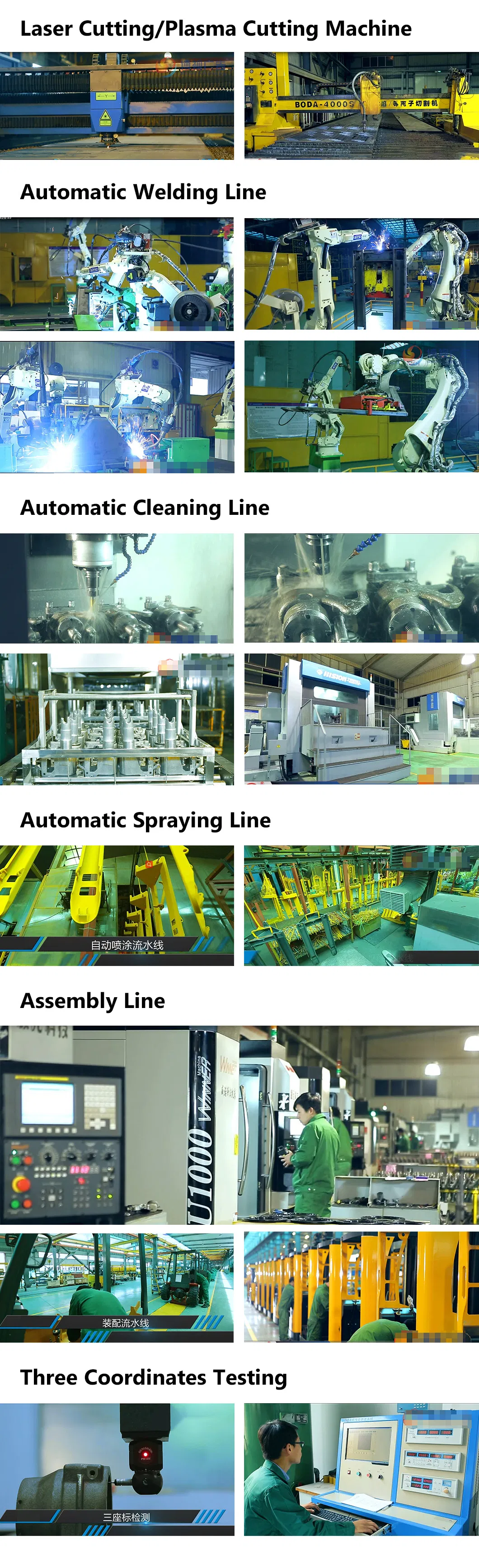

Production Excellence
36 YearsExperience
150,000m²Factory Area
1,200Employees
157Countries Exported
Rigorous Testing System
Total five test items before delivery:
- ✔ Strengthening test detection
- ✔ Stability detection
- ✔ Detection of climbing performance and current
- ✔ Debugging and testing of braking performance
- ✔ Testing of technical parameters
Frequently Asked Questions
Q1: What is the continuous working time and charging duration?
The battery continuous working time is approximately 3-6 hours depending on the battery volume. Charging typically takes between 3 to 6 hours for a full cycle.
Q2: What are the charger specifications and plug standards?
Our chargers support 24V / 48V. Power plugs can be customized to USA, UK, AUSTRALIA, or EUROPEAN standards for your convenience.
Q3: Do you offer customized OEM or ODM services?
Yes, we have been professionally involved in developing warehouse logistics equipment since 1985 and have extensive experience providing OEM services for global industry leaders.
Q4: What is the warranty policy for this reach truck?
We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.
Q5: What is the maximum load capacity of the CQDH20C?
The rated load capacity for this model is 1.6 Tons (1600 Kg) with a load center distance of 600 mm.
Q6: What certifications do your products hold?
Our products are ISO9001, ISO14001, and OHSAS18001 certified. Over 90% of our equipment has approved CE certificates from TUV, meeting EN3691-5:2014 and EN3691-1:2012 standards.
