We are one of the leading manufacturers of various kinds of skid steer loaders and attachments. Founded in 2003, we were the first company in China to cooperate with European counterparts for the mass production of skid steer loaders and attachments.

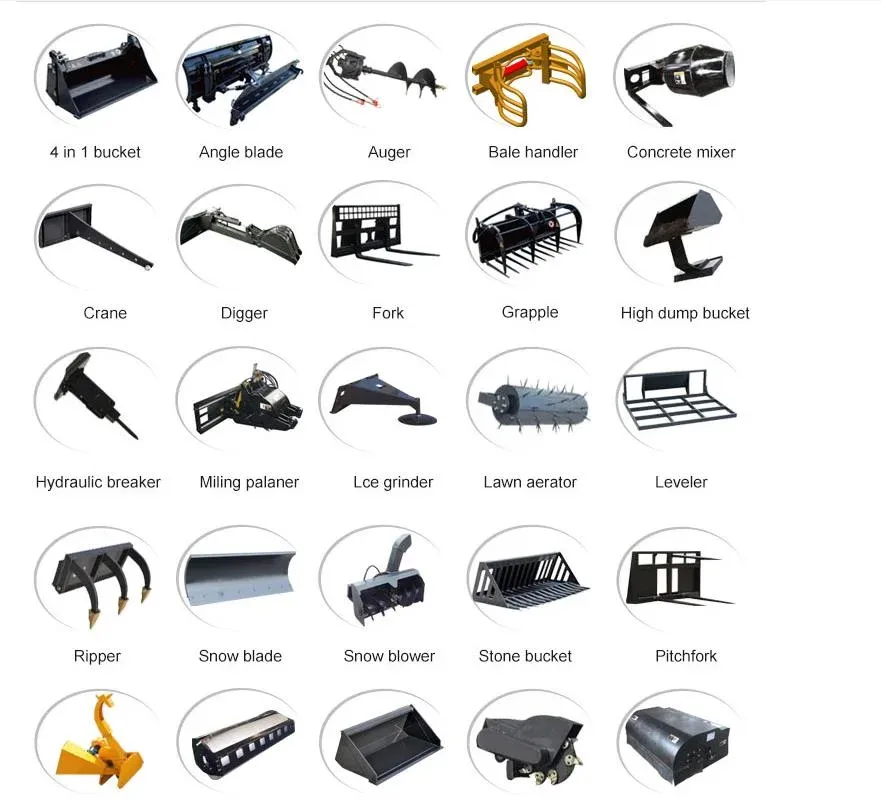

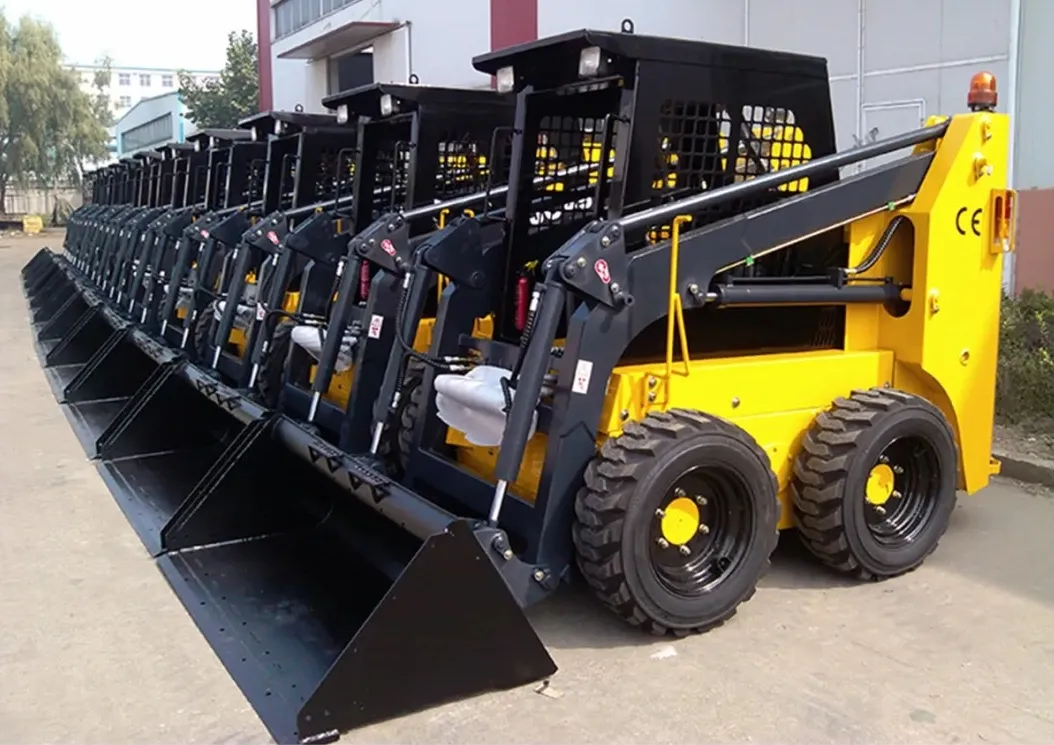

Main products include wheel type skid steer loaders, crawler type skid steer loaders, and a wide range of attachments. The horse power of the whole series ranges from 20HP to 140HP with rated loading capacities from 300kg to 1800kg.

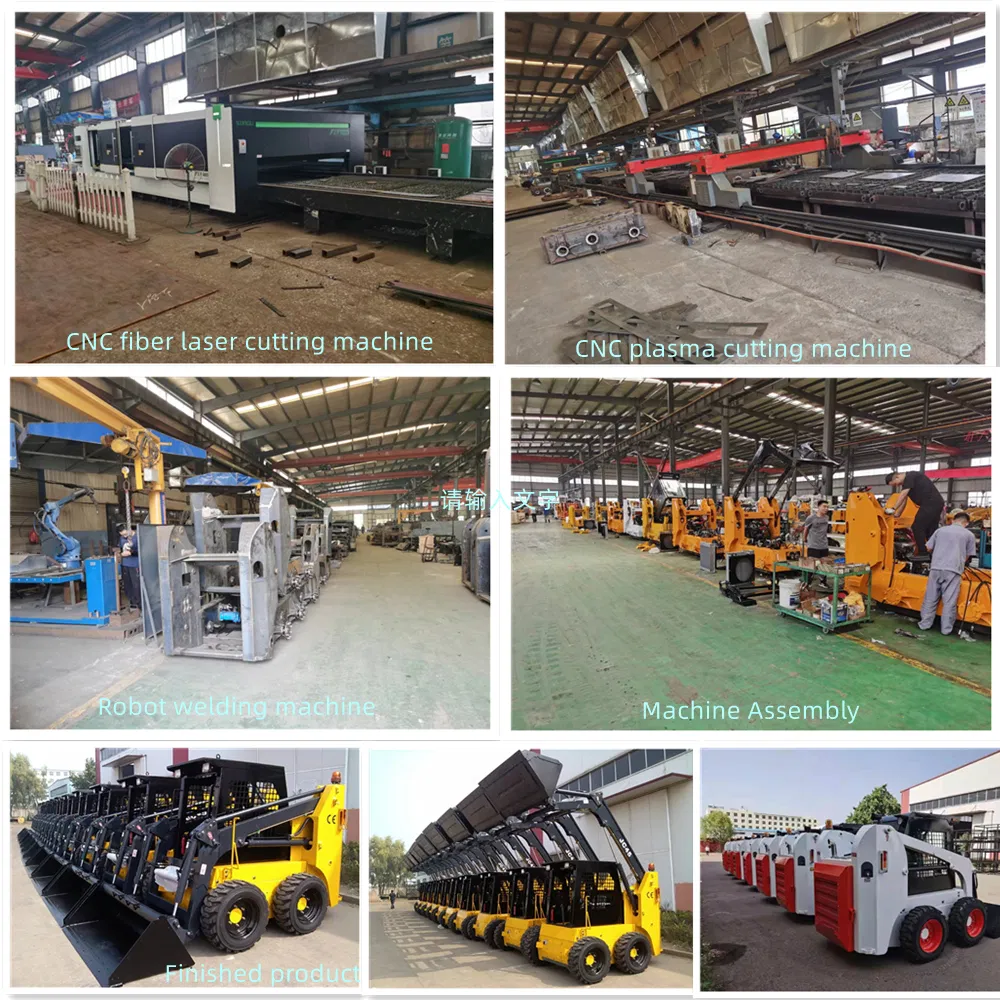

Annual production reaches approximately 600 units of skid steer loaders and 7000 sets of loader attachments. 90% of our products are exported globally to North America, Europe, South America, the Middle East, Southeast Asia, and Russia.

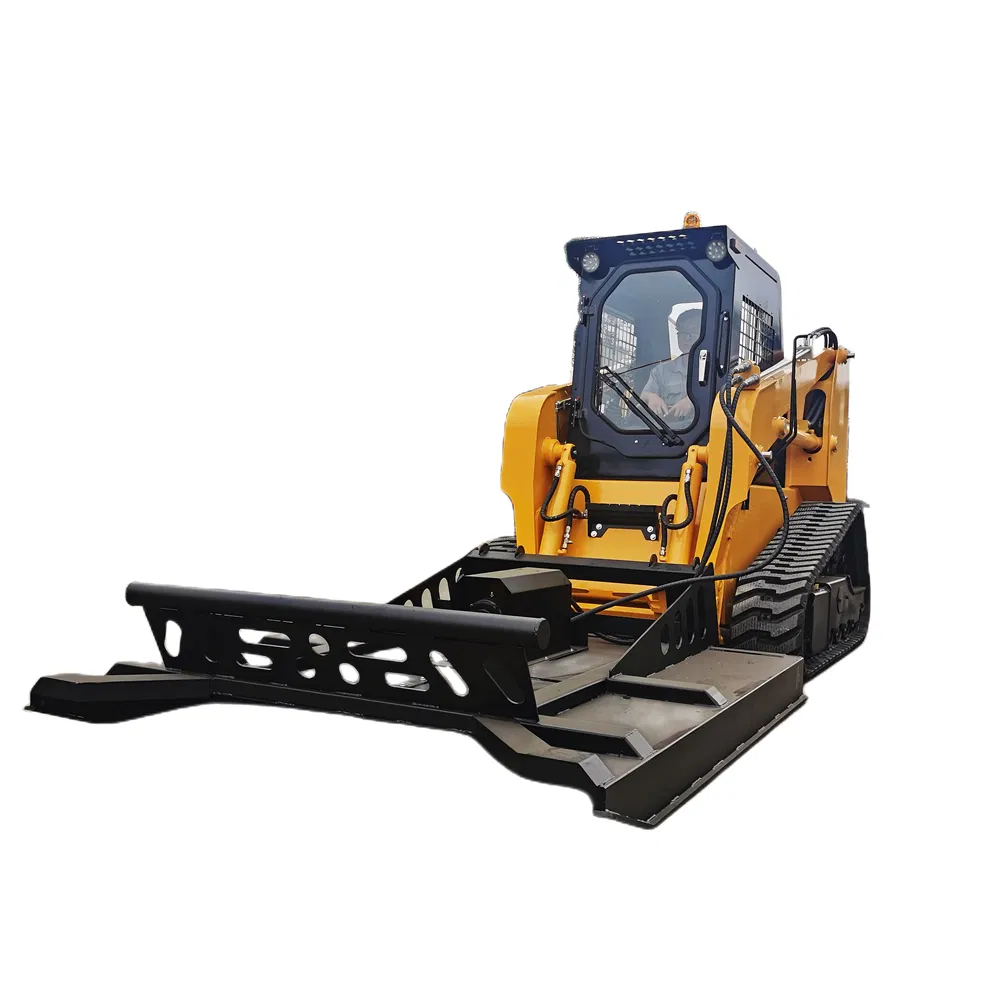

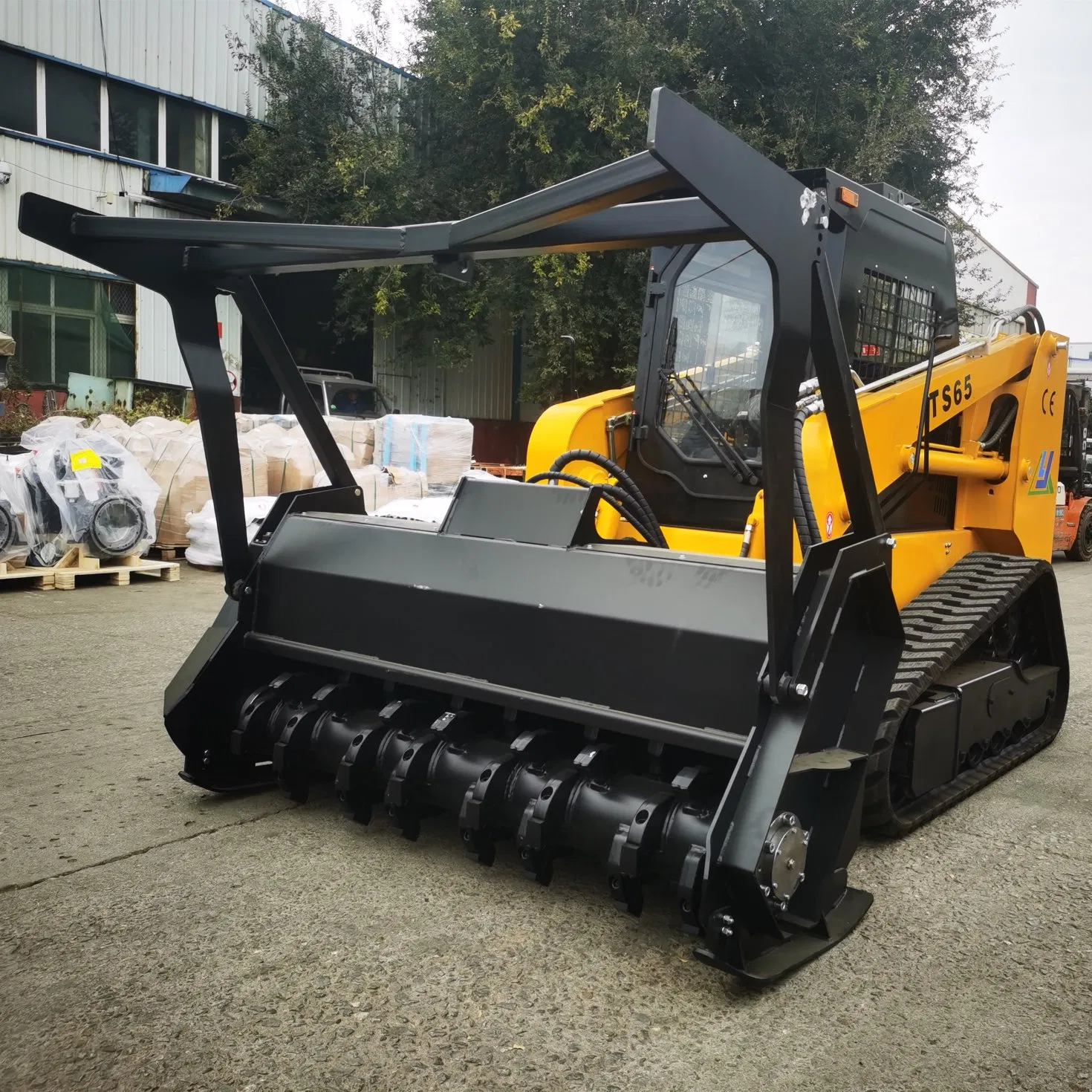

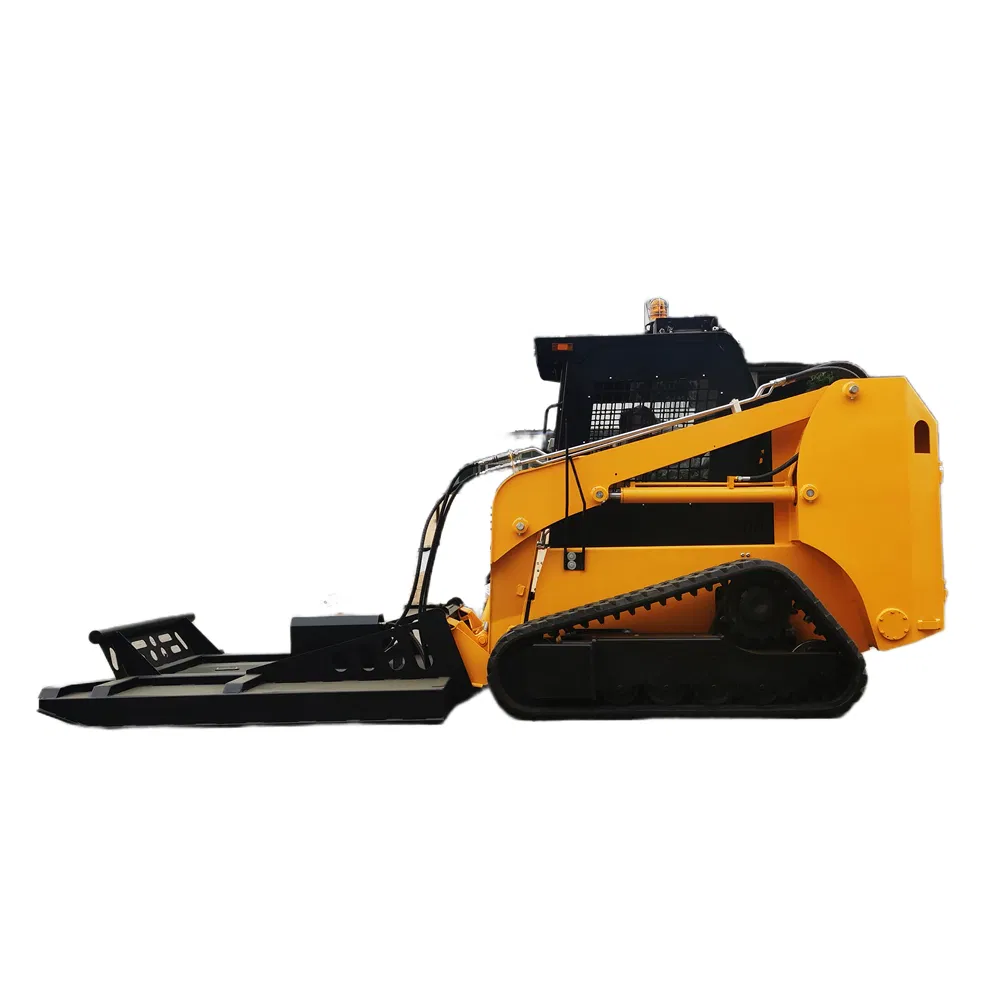

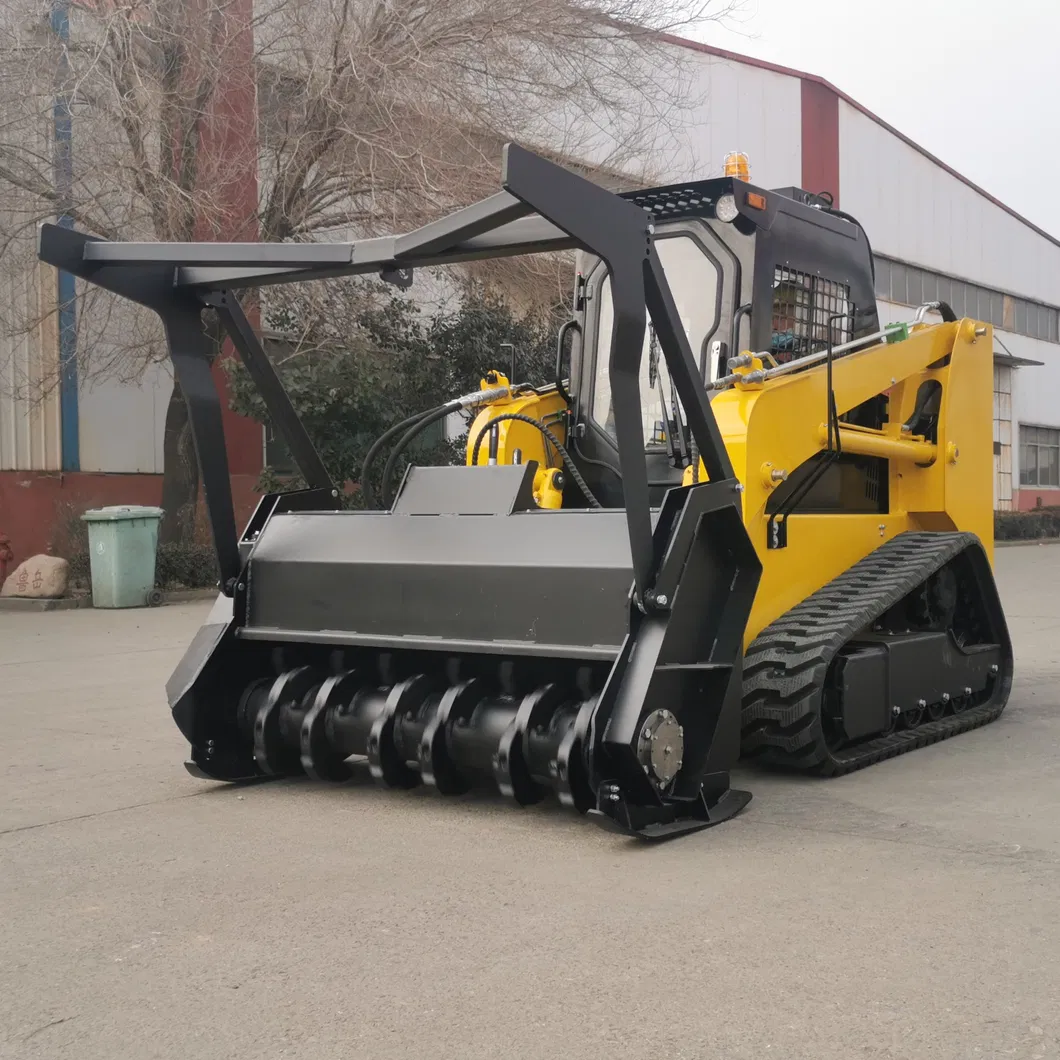

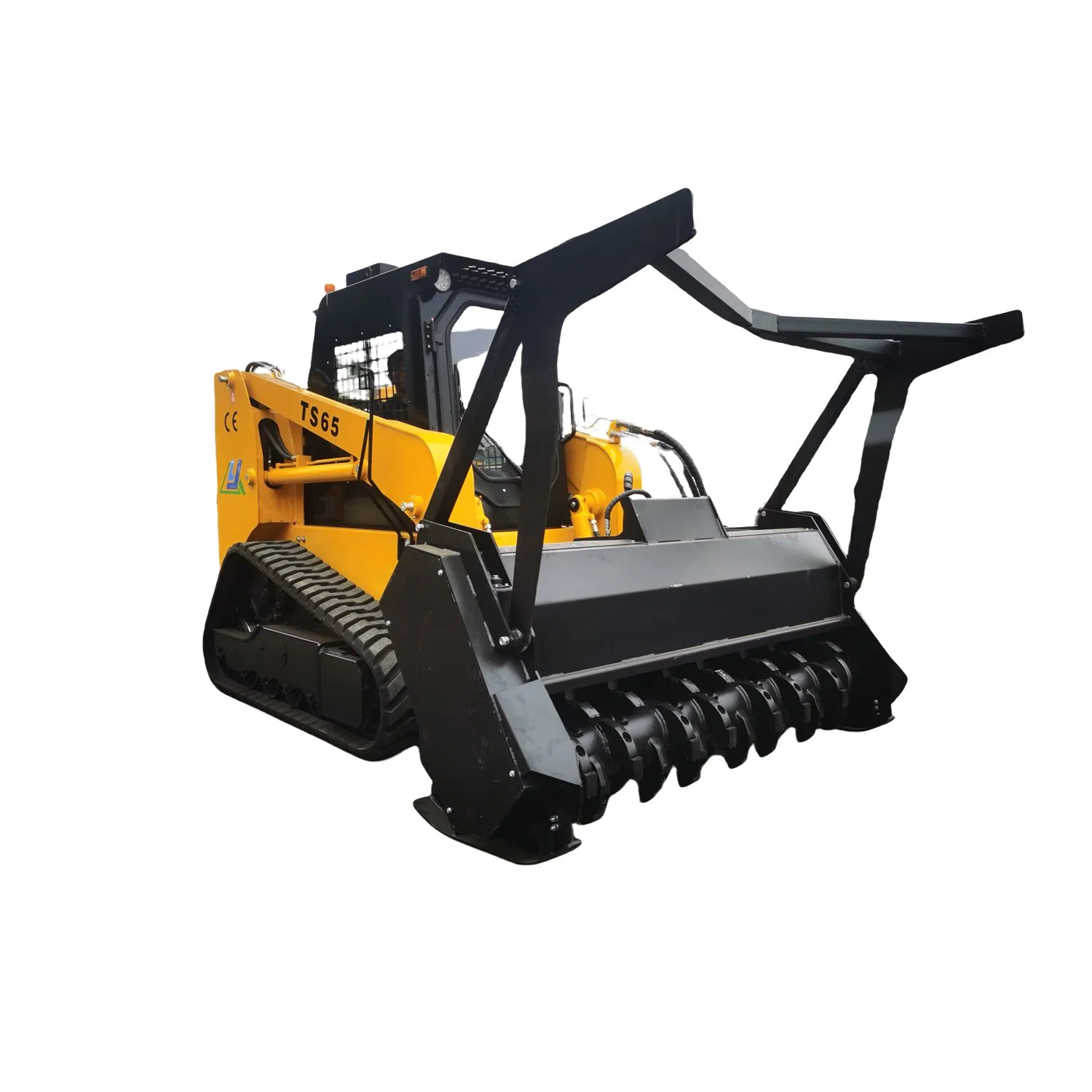

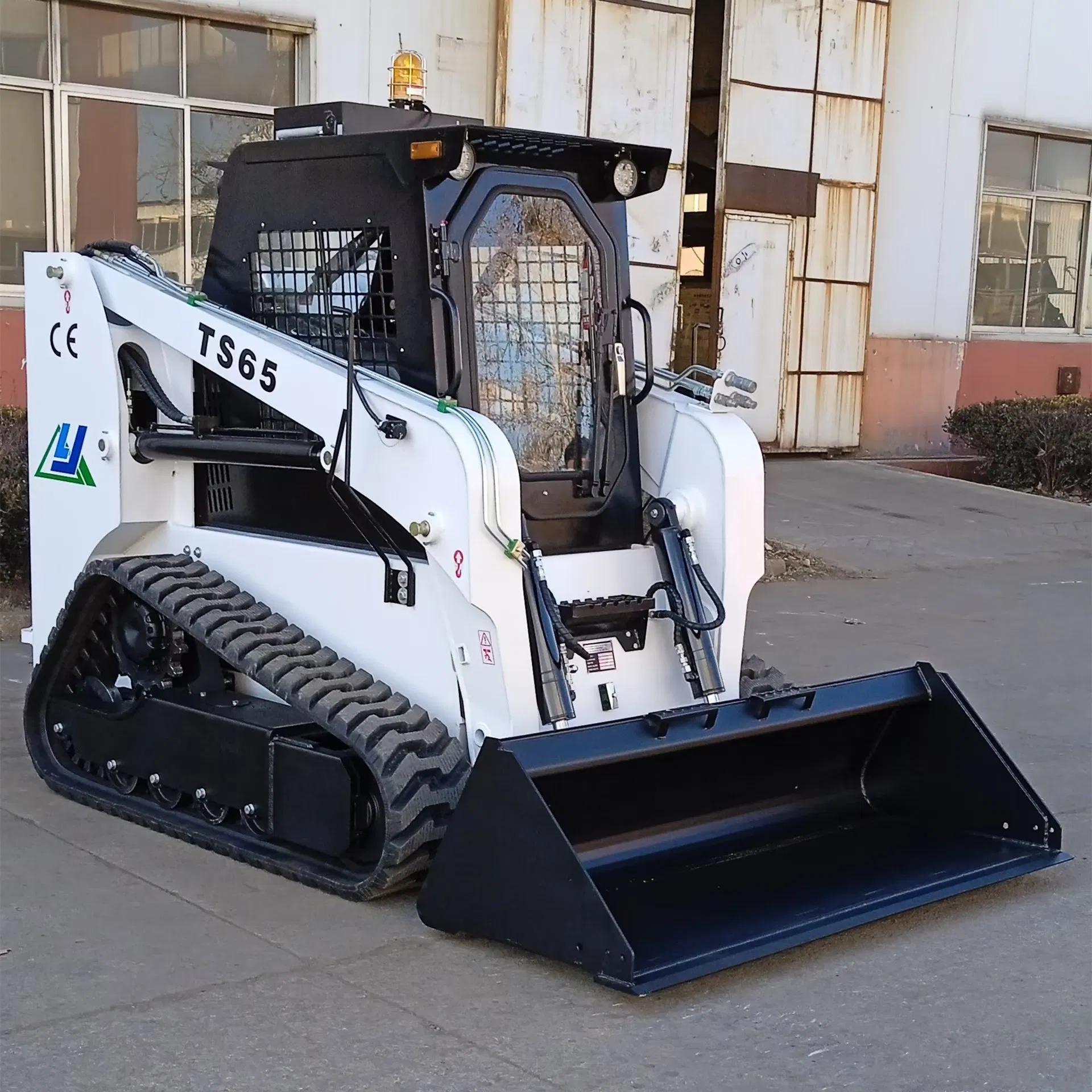

Main features of TS65 skid steer loader:
| Performance Parameter | TS65 Specification |
|---|---|
| Engine | Cummins EPA4 engine, 55KW |
| Rated load | 1000kg |
| Tipping load | 2000kg |
| Rated bucket capacity | 0.5cbm |
| Total weight | 3800kg |
| Maximum running speed | 12km/h |
| Maximum climbing capacity | 20° |
| Hydraulic flow | 80L~140/min |
| Track model | 320*86 |
| System voltage | 12V |
| Fuel (diesel) capacity | 90L |
| Code | Item | Measurement |
|---|---|---|
| A | Loader operation height | 3480mm |
| B | Height to bucket hinge pin | 2900mm |
| C | Maximum height to the cab top | 2150mm |
| D | Height to bucket bottom | 2730mm |
| E | Total length without accessory | 2750mm |
| F | Total length with standard bucket | 3500mm |
| H | Discharging height (arm lifted) | 2230mm |
| J | Discharging distance (arm lifted) | 715mm |
| V | Wheel tread | 1462mm |
| W | Total width (tire edge) | 1782mm |
| X | Total width (bucket edge) | 1830mm |
