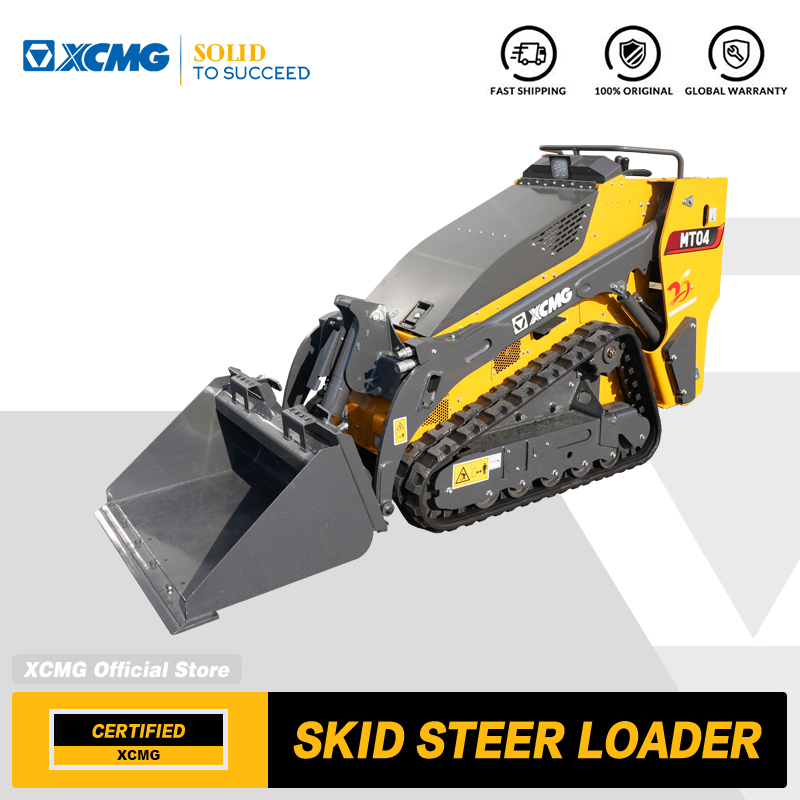

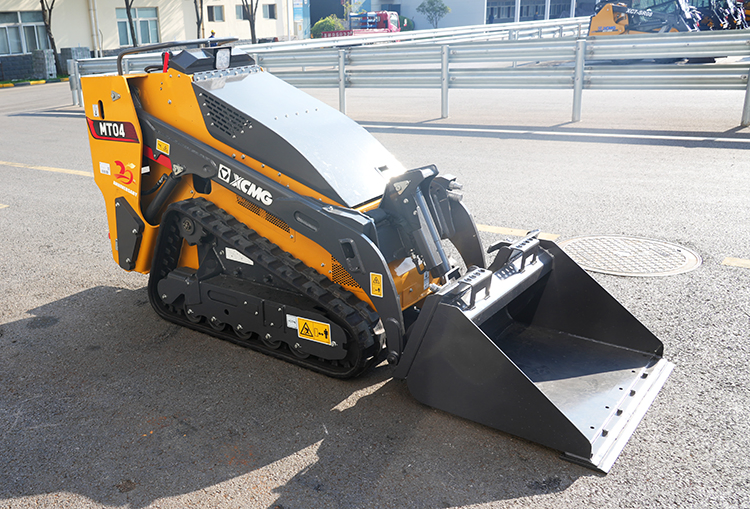

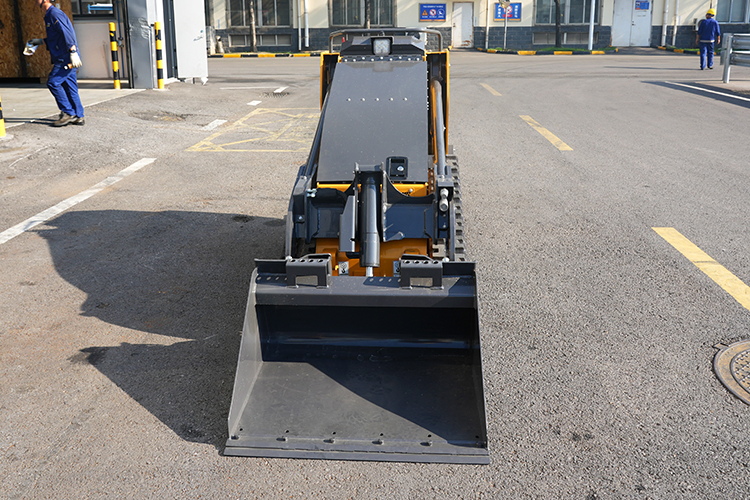

New Mini Track Loader Stand Behind Crawler EPA Compact Skid Steer Loader for Sale
Adopting internationally renowned brand engines, the power is strong, the noise is low, the reliability is high, and the whole machine meets stricter green environmental protection requirements. It is a high-quality product specially designed, manufactured, and verified for the working conditions of construction machinery, with safe and reliable performance.
The core components of the hydraulic system, the walking hydraulic pump and the walking motor, are all well-known brands. The hydraulic hoses are made of high-strength rubber hoses, which are safe and reliable. The control mode of the working hydraulic system adopts mechanical operation, and the overall operation of the machine is sensitive and accurate.

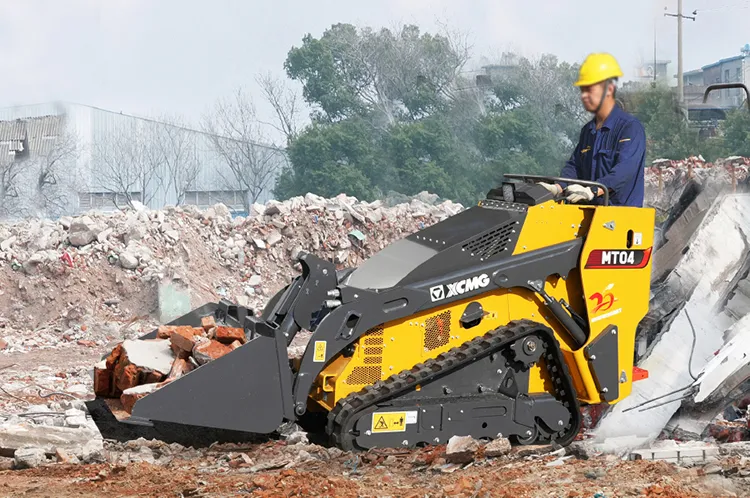

Adopting a standing operation, equipped with foot pedals, shock-absorbing cushions, guardrails, and control handrails to achieve very intuitive operation, it can also be easily controlled by inexperienced equipment operators.

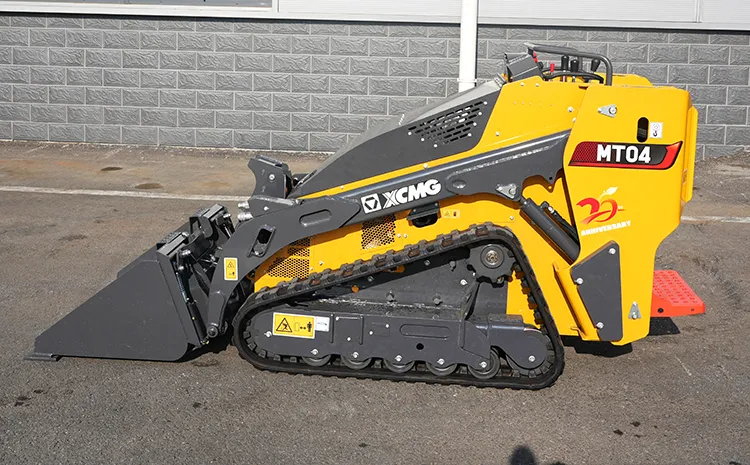

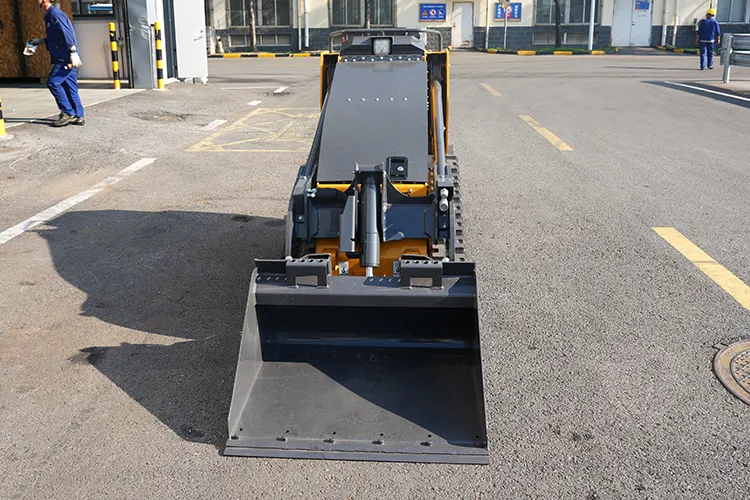

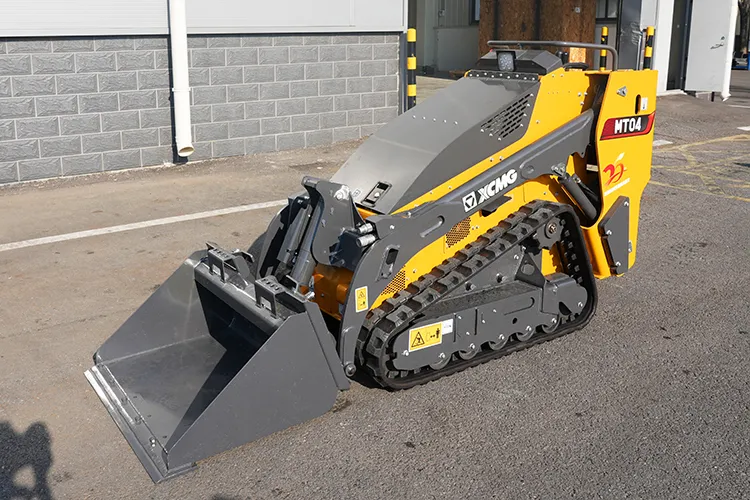

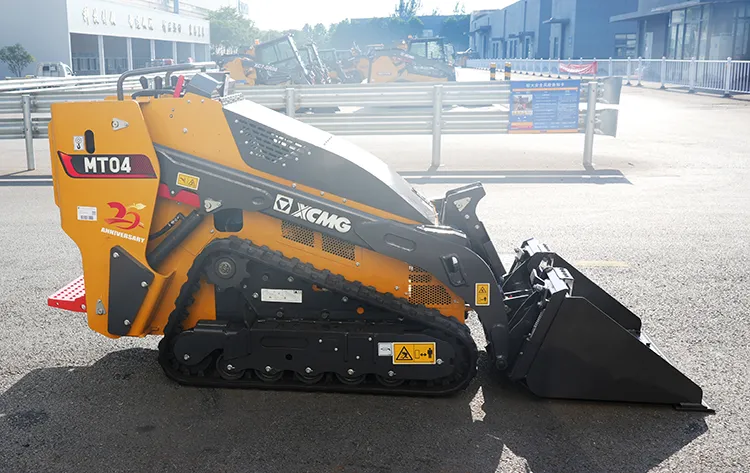

The MT04 skid steer loader can be equipped with various types of work tools such as forks, rotary drills, crushers, trenchers, sweepers, and rakers to meet the needs of different working conditions.
| Item | Unit | Parameter |
|---|---|---|
| Rated load | kg | 400 |
| Operating weight | kg | 1580 |
| Max. breakout force | kN | 7.8 |
| Max. traction force | kN | 11 |
| Dimension | mm | 2895*914*1408 |
| Engine model | — | D1105 |
| Rated power | kW | 18.1 |
| Emission stage | — | EPA T4F |
| Rated speed | rpm | 3000 |
| Cylinder amount | — | 3 |
| Displacement | L | 1.123 |
| Max. torque | Nm/rpm | 71.5/2200 |
| Hydraulic flow | L/min | 43 |
| Max. operation height | mm | 2858 |
| Height to the hinge pin | mm | 2062 |
| Dumping reach | mm | 600 |
| Wheelbase | mm | 1099 |
